Products

New Products

4 Lan N97 DDR4 Fanless Mini Firewall

♦Model No.:C2120Z-L4 V2.0(N97)

♦All aluminum alloy, fanless cooling structure

♦Intel®Alder Lake-N N97/Turbo 3.6GHz quad-core CPU

♦1x DDR4 RAM slot, up to 16GB

♦1x SATA + 1x M.2

♦4x RJ45 Lan

♦1x HDMI1.4

♦1x Mini-PCIe for 4G/WIFI

♦5x USB3.0, 1x USB2.0

♦DC_12V Power Input
8 Lan LGA1151 DDR4 SFP Pfsense Firewall System Security

♦ Model No.:R320E-L8 V1.0(R270)

♦ Intel®LGA1151 6th/7th/8th/9th i3/i5/i7 series processor

♦ Intel®Q270/Q250 High speed chipset

♦ 2*DDR4 SODIMM 2400MHz ,max up to 64GB

♦ 8*Intel I210 Gigabit Ethernet port，4 or 2 SFP+ ports can be extended

♦ 2*USB3.0, 1*VGA

♦ 4 or 2 light ports can be extended

♦ Support two groups of BYPASS(Optional)

♦ Standard with 1U AC220V ATX power supply 250W

♦ 1U standard case, high-quality galvanized steel plate / Support Windows&Linux OS
4 Lan N97 DDR4 Machine Vision Motherboard

♦Model No.:ITX-VL305 VER:1.0(N97)

♦Based on Inte Alder Lake-N SOC platform

♦Integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor

♦Intel® UHD Graphics; VGA+HDMI+LVDS/1* EDP for display

♦1*DDR4 2133MHz SO-DIMM Socket, up to 16GB

♦4* Intel WGI210AT Gigabit Ethernet/ 8*USB/ 6*COM /1*SIM/ 1* TPM

♦1*SATA3.0/ 1* M.2 SSD/ 1* Mini-PCIE (Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input
RK3576 ARM Motherboard

♦Model No.:CX3576-A V1.0 (4G+128G) VER:4G

♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3

♦Bottom plate thread DC2.0*1（12V-36V input)

♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1

♦Size:157*100mm

2 Lan LGA1150 mini itx motherboard

♦Product model: ITX-Q85M1 VER:1.0

♦Adopt Intel Q85 Express chipset

♦Support socket LGA1150 Intel Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; VGA + 2*HDMI1.4 for display

♦1*DDR3 1600/1333MHz DIMM socket, up to 8GB

♦2*RJ45 Gigabit Ethernet / 12*USB / 6*COM(RS232/485/422) / 2* PS2

♦2*SATA3.0 / 1*mSATA SSD / 1*M.2 2230(Wifi module) / 1*PCIE x16

♦Support GPIO ; Watchdog Timer ; 1*SIM slot

♦Provide: 1* ATX 20PIN Input ; 1*ATX 4pin input

Read More Make an inquiry
2 Lan LGA1700 mini itx motherboard

♦Model No.: ITX-H610M1 VER:1.0

♦Adopt Intel H610 Express chipset

♦Support LGA1700 12nd/13rd Gen Pentium/Core i3/i5/i7/i9 processors

♦Integrated Intel HD Graphics; HDMI1.4 + VGA for display

♦2*DDR4 3200MHz SO-DIMM socket, up to 64GB

♦2*RJ45 Gigabit Ethernet / 9*USB / 6*COM(RS232/485/422)

♦2*SATA3.0 / 1*M.2 NVMe SSD / 1*M.2 (Wifi) / 1*PCIE3.0 x16

♦Support GPIO ; Watchdog Timer ; 2*PS2

♦Provide: 1* ATX 24PIN Input ; 1*ATX 8pin input

Read More Make an inquiry
LGA1200 mini itx motherboard

♦Model No.: ITX-Y410 VER:1.0

♦Adopt Intel H410 Express chipset

♦Support LGA1200 10th Gen Celeron/Pentium/Core i3/i5/i7/i9 processor

♦Integrated Intel HD Graphics; DP + 2*HDMI + LVDS/eDP for display

♦2*DDR4 2933MHz SO-DIMM socket, up to 128GB

♦1*RJ45 Gigabit Ethernet / 8*USB / 1*COM(RS232)

♦2*SATA3.0 / 1*M.2 2260/2280 SATA SSD / 1*M.2 2230 (Wifi module)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W

♦Provide: 1* DC_Jack 12V~19V Input ; 1*ATX 4pin 12V~19V input

Read More Make an inquiry
H310C chipset LGA1151 mini itx motherboard

♦Model No.: ITX-Y310C VER: 1.0

♦Adopt Intel H310C Express chipset

♦Support LGA1151 6th/7th/8th/9th Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; DP + 2*HDMI + LVDS for display

♦2*DDR4 2400/2133MHz SO-DIMM socket, up to 64GB

♦1*RJ45 Gigabit Ethernet / 8*USB / 1*COM(RS232)

♦2*SATA3.0 / 1*M.2 PCIE x2/SATA SSD / 1*M.2 2242 (Wifi module)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W

♦Provide: 1* DC_Jack 12V~19V Input ; 1*ATX 4pin 12V~19V input

Read More Make an inquiry
B365 chipset LGA1151 mini itx motherboard

♦Mode No.: ITX-HW365 VER:1.0

♦Adopt Intel B365 Express chipset

♦Support LGA1151 6th/7th/8th/9th Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; DP + HDMI + LVDS + HDMI_in for display

♦2*DDR4 2400/2133MHz SO-DIMM socket, up to 32GB

♦1*RJ45 Gigabit Ethernet / 10*USB / 1*COM(RS232) / 1*TPM

♦2*SATA3.0 / 1*M.2 SSD / 1*M.2 2230 (Wifi module)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W

♦Provide: 1* DC_Jack 12V~19V Input ; 1*ATX 4pin 12V~19V input

Read More Make an inquiry
2 Lan Q250 chipset LGA1151 mini itx motherboard

♦Model No.: ITX-VS250 VER:1.0

♦Based on Intel Q250 Chipset

♦Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

♦Intel HD Graphics ; 1*VGA + 1*HDMI for Display

♦2*DDR4 2400MHz DIMM socket, up to 64GB

♦2*RJ45 Gigabit Eth / 8*USB / 2*COM(RS232)

♦2*SATA / 1*M.2 NVME SSD / 1* PCIE3.0 X16/ 1* 80pin

♦Socket(including 4*PCIE signal, 1*VGA signal, can expand 4*POE LAN+ 1*VGA)

♦Support GPIO ; Watchdog Timer

♦Support ATX 24Pin ; 1*socket 4pin 12V

Read More Make an inquiry
H81 chipset LGA1150 mini itx motherboard

♦Mode No.: ITX-D81_D6L VER:1.6

♦Adopt Intel H81 Express chipset

♦Support LGA1150 4th Gen Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; VGA + 2*HDMI1.4 + LVDS for display

♦2*DDR3 1600/1333MHz DIMM socket, up to 16GB

♦1*RJ45 Gigabit Ethernet / 6*USB / 6*COM(RS232/485/422)

♦2*SATA / 1*mSATA SSD / 1*Mini-pcie(Wifi/4G)

♦Support GPIO ; WDT ; 1*SIM slot ; 1*LPT ; SPK 3Ω/2W

♦Provide: 1* DC_Jack 19V Input ; 1*ATX 4pin 12V~19V input

Read More Make an inquiry
J4105 thin itx motherboard

♦Model No.: ITX-B420_J112L VER:1.0（J4105）

♦Based on Intel Gemini Lake SOC platform

♦Integrated Celeron J4105 1.50GHz Quad core processor

♦Intel UHD Graphics 600 ; VGA+HDMI+LVDS for Display

♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB

♦1*RJ45 Gigabit Eth / 8*USB / 2*COM(RS232) / 1*SIM slot

♦1*SATA / 1*mSATA SSD / 1*M.2 / 1*mini-pcie(Wifi/4G) / 1*LPT

♦Support GPIO ; Watchdog Timer ; SPK 2Ω/5W ; 1*PS2

♦Provide: 1* DC_12V Input ; 1*ATX 4pin 12V input (Fanless)

Read More Make an inquiry

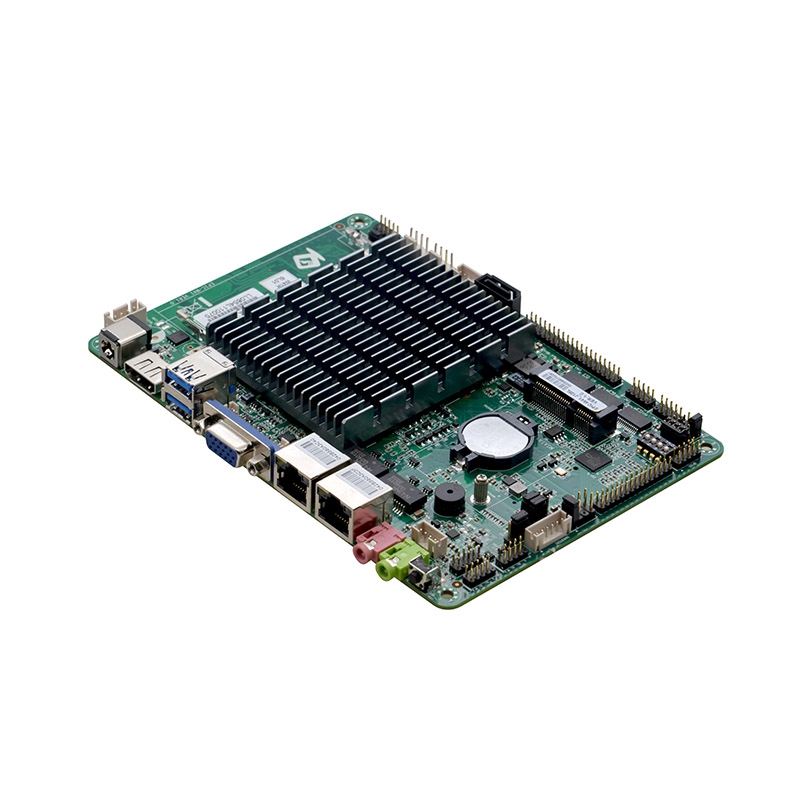

2 Lan J4125 thin itx motherboard

♦Model No.: ITX-B415_J126L VER:1.0（J4125）

♦Based on Intel Gemini Lake SOC platform

♦Integrated Celeron J4125 2.0GHz Quad core processor

♦Intel UHD Graphics 600 ; VGA+HDMI+LVDS/eDP for Display

♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB

♦2*RJ45 Gigabit Eth / 8*USB / 6*COM(RS232/485/422) / 1*SIM slot

♦1*SATA3.0 / 1*mSATA SSD / 1*M.2 SSD / 1*mini-pcie(Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Provide: 1* DC_12V Input (Fanless)

Read More Make an inquiry
2 Lan J4125 thin itx motherboard

♦Product No.: ITX-B413_J1210L VER:1.0（J4125）

♦Based on Intel Gemini Lake SOC platform

♦Integrated Celeron J4125 2.0GHz Quad core processor

♦Intel UHD Graphics 600 ; VGA+HDMI+LVDS/eDP for Display

♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB

♦2*RJ45 Giga Eth / 8*USB / 10*COM (RS232/485/422)

♦1*SATA3.0 / 1*mSATA SSD / 1*mini-pcie(Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W

♦Support DC_12V Input (Fanless)

Read More Make an inquiry
N5095A 12V DDR4 Mini ITX Motherboard

♦Model No.: ITX-B509_J116L VER:1.0(N5095)

♦Based on Intel Jasper Lake SOC platform N5095A

♦Integrated Celeron N5095A 2.0~2.9GHz Quad core processor

♦Intel UHD Graphics ; VGA+HDMI+LVDS/eDP for Display

♦1*DDR4 2933MHz SO-DIMM socket, up to 16GB

♦1*RJ45 GbE / 8*USB / 6*COM(RS232/485/422) (2*GbE optional)

♦1*SATA3.0 / 1*mSATA / 1*M.2 SSD / 1*M.2 Wifi / 1*M.2 5G

♦Support GPIO / WDT / SPK (4Ω/3W) / 1*LPT / 1*SIM slot

♦Support DC_12V Input (with Fan / Fanless)

Read More Make an inquiry
2 Lan J6412 Mini ITX Fanless Motherboard with M 2 Slot

♦Model No.: ITX-B641_J126L VER:1.0(J6412)

♦Based on Intel Elkhart Lake SOC platform J6412

♦Integrated 10th Gen Celeron J6412 2.0GHz Quad core processor

♦Intel UHD Graphics ; VGA+HDMI+LVDS/eDP for Display

♦1*DDR4 2400MHz SO-DIMM socket, up to 16GB

♦2*RJ45 Gigabit Eth / 8*USB / 6*COM(RS232/485/422) / 1*SIM slot

♦1*SATA3.0 / 1*mSATA 3.0 / 1*M.2 SSD / 1*M.2 Wifi / 1*M.2 (4G/5G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input (Fanless)

Read More Make an inquiry
