Overview
Key Features:
✔ Quad-Core Efficiency: Intel J4105 with UHD Graphics 600 (6W TDP)
✔ Multi-Display Support: VGA + HDMI + LVDS (triple output)
✔ Memory: Single DDR4 2400MHz (max 8GB)
✔ Industrial Connectivity:
1×GbE + 8×USB + SIM slot
2×COM (RS232) + LPT + PS/2
✔ Storage & Expansion:
1×SATA + 1×mSATA
1×M.2 + 1×mini-PCIe (WiFi/4G)
✔ Rugged Design:
GPIO + Watchdog + 2Ω/5W audio
Fanless dual power input (12V DC/ATX)

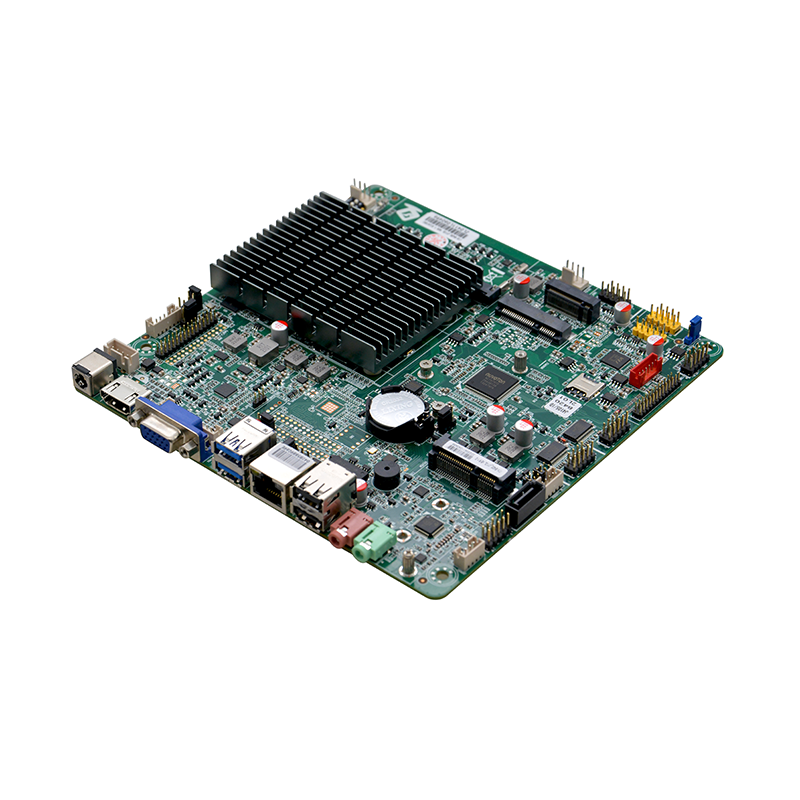

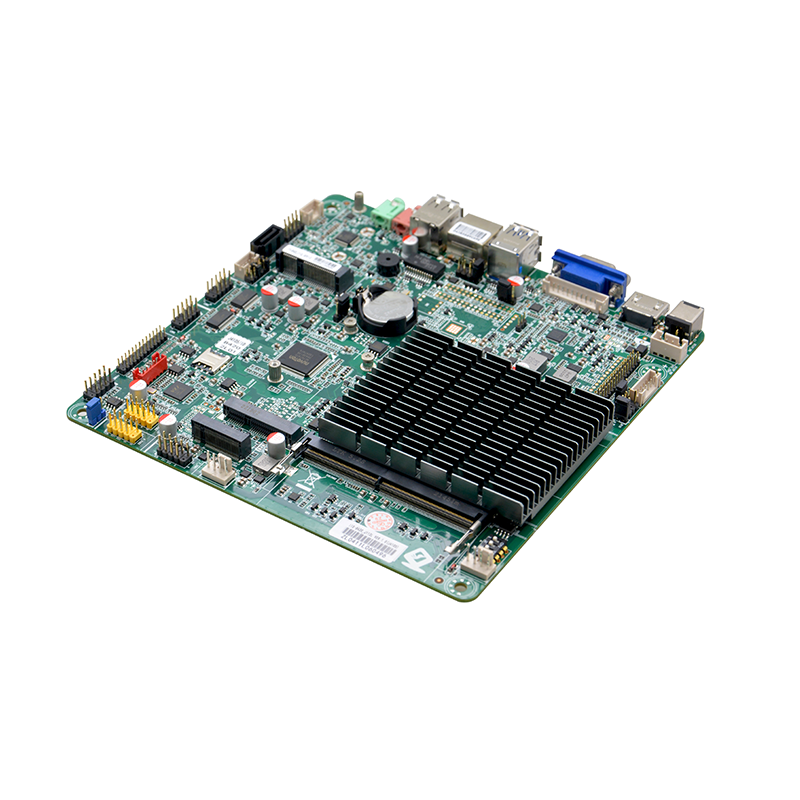

Detail Display

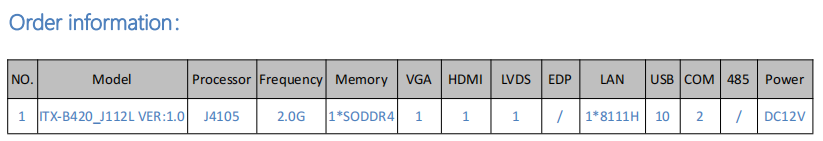

Product Description
Product No.: ITX-B420_J112L VER:1.0（J4105）
Processor: Integrated Intel®Celeron J4105 1.5GHz quad-core quad-thread processor, TDP 10W
Compatible with the full range of Intel® Gemini Lake CPUs for customers to choose flexibly
Chipset: SOC
RAM: 1* SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB
Show: Integrated Intel® UHD Graphics 600
1* VGA, 1* HDMI, 1* LVDS interface, support dual channel 24BIT
Note: Can support dual EDP display or dual LVDS display
HDMI interface and RJ11 cash drawer interface are optional
Ethernet: 1* Realtek RTL8111H Gigabit LAN, support Wake-on-LAN/PXE
Storage: 1* 7pin SATA3.0 HDD interface, the transfer speed can reach 6Gbps
1* MSATA slot supports SSD solid state drive, the transfer speed can reach 6Gbps (MSATA and 7pin SATA are optional, the default is MSATA)
1* M.2 slot, support M.2 2280/2260 SATA standard SSD
Audio: Onboard USB HS-100B audio controller, support MIC/Line-out. Power amplifier
It is recommended to use a 2Ω5W speaker for the power amplifier
Expansion slot:1* Mini-PCIE slot, support WIFI/4G module

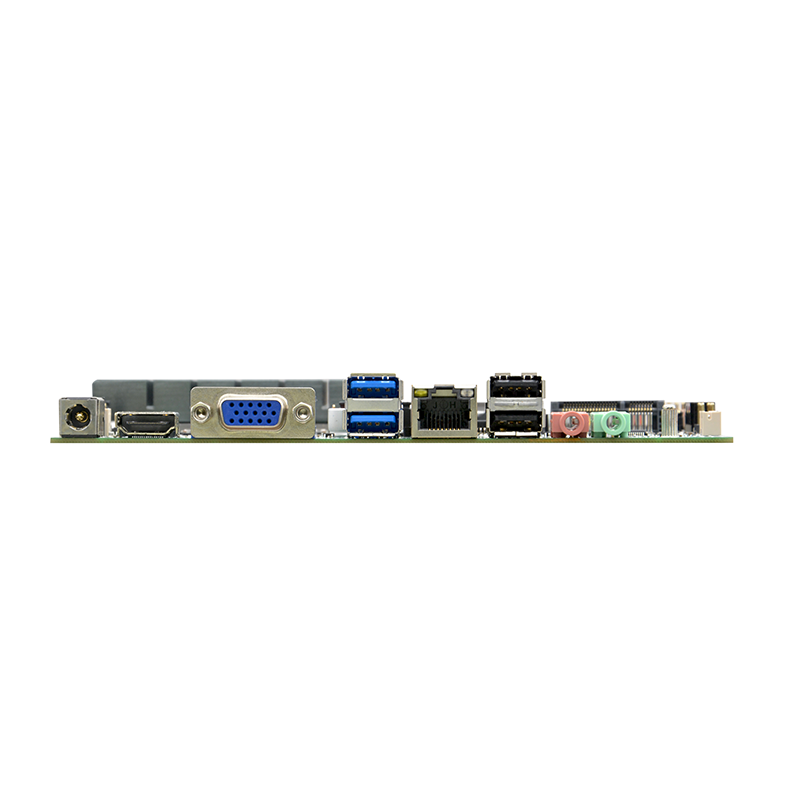

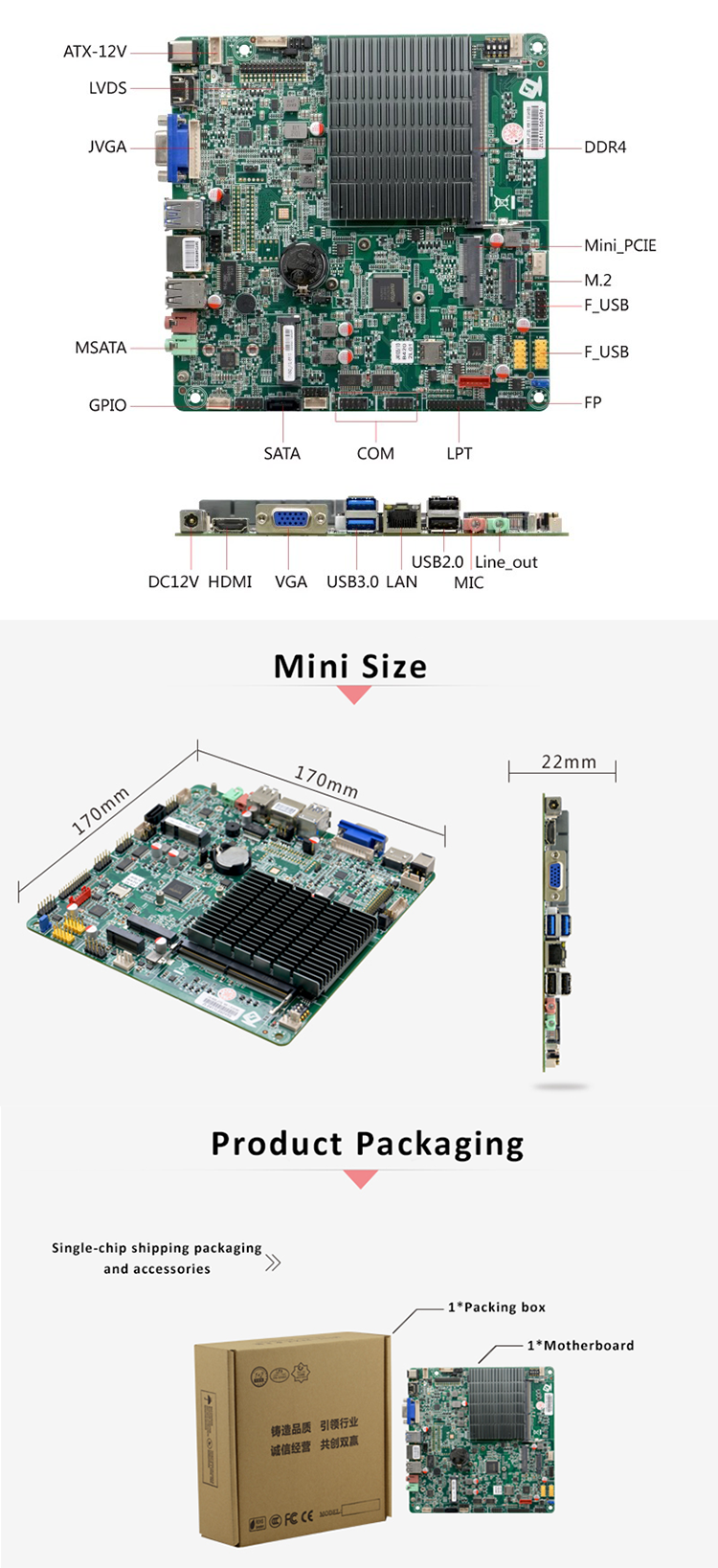

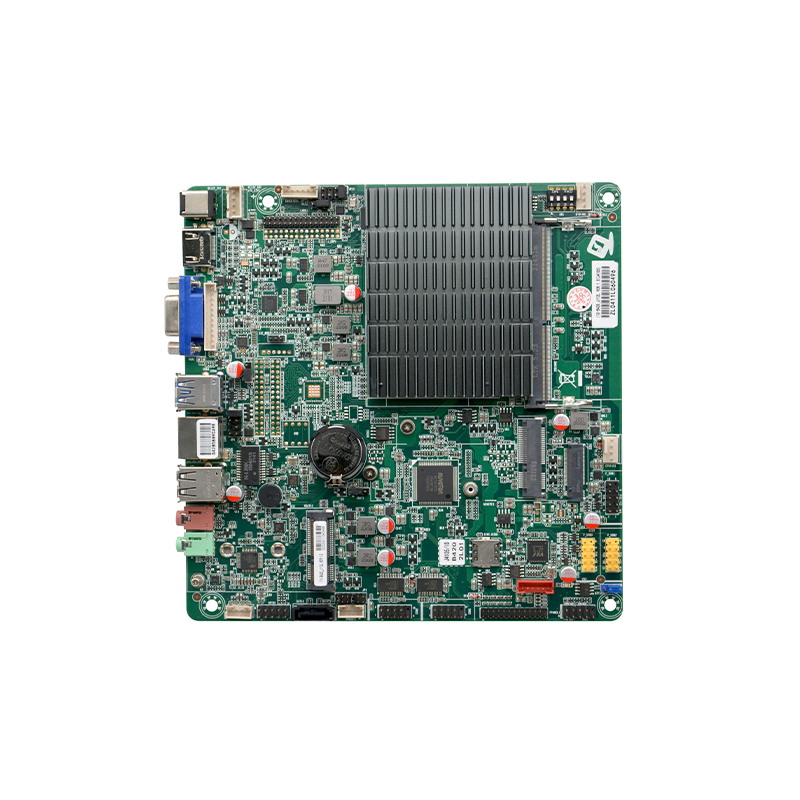

Backplane I/O Interface:
1* HDMI (HDMI interface and RJ11 cash drawer interface are optional)
1* VGA
2* USB3.0 interface, 2*USB2.0 interface
1* RJ-45 Gigabit network interface
1* Line out interface (green), 1* MIC interface (red)
1* 12V DC power input interface
Built-in I/O interface:
1* 4pin DC power interface (can be used as 12V input and output power interface)
1* LVDS interface, 2*15pin, support dual channel 24BIT
1* Screen backlight power supply interface, 1*6pin
6* USB 2.0 interface, 2*5Pin (Among them, F_USB2 and F_USB3 are the signals transferred out by PCI.)
1* JVGA interface, 1*12Pin (same signal as DB15)
2* RS232 serial interface, COM1/2 supports the 9th pin live function
1* LPT parallel interface, 2*13Pin
1* PS/2 keyboard and mouse interface, 1*6pin
1* Front panel switch button and indicator port, 2*5Pin
1* Hard drive power supply interface, 1*4pin
1* Amplifier interface, 1*4pin
1* SIM card holder
Fan interface: Fanless cooling design, reserved 1*4pin CPU fan interface, 1*4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 64Mb Flash ROM
Watchdog:Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows 10/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
