Overview
Key Features:
●
LGA1151 socket supports 6th-9th Gen Intel Celeron/Pentium/i3/i5/i7 CPUs
●Intel HD Graphics with VGA+dual HDMI1.4+LVDS multi-display support
●Dual-channel DDR4 up to 64GB 2400MHz
●Dual Gigabit LAN+8USB+6COM(RS232/485) rich I/O
●2×SATA3.0+1×M.2 SSD+1×mini-PCIe(WiFi) storage options
●GPIO control, Watchdog Timer, 2Ω/5W audio amplifier
●19V DC or ATX 4pin 12V~19V dual power input

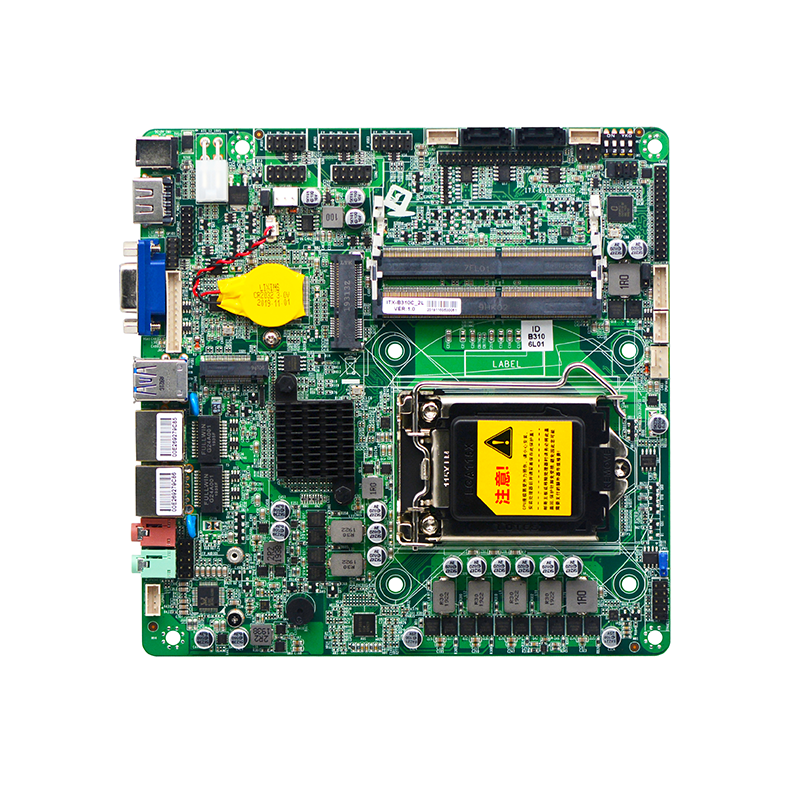

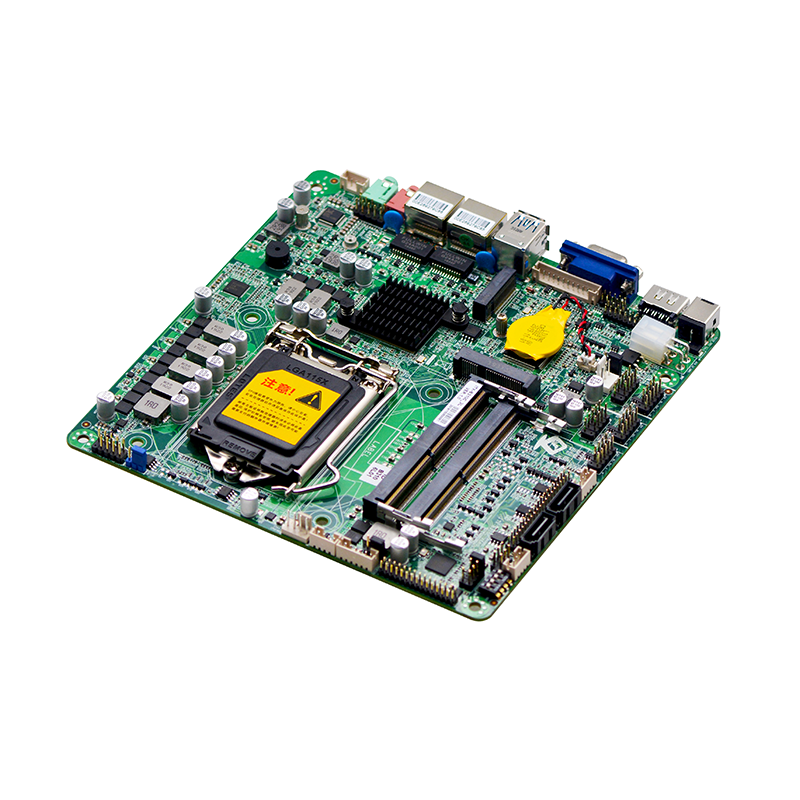

Detail Display
Product Description
Model No.: ITX-B310C_2L VER:1.0
Processor: Supports LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
Chipset: Adapt Intel® H310C High speed chipset
Memory: 2x DDR4 SODIMM memory slot，supports 2400/2133MHz memory,is up to 64GB
Display: Integrated Intel® HD Graphics，supports DirectX12,OpenGL4.4, supports 4K display
1x VGA, the maximum resolution supported is：1920X1200@60Hz
2x HDMI1.4, the maximum resolution supported is：4096X2304@24H
1x LVDS,supports dual channels 24bit
Ethernet: 2x RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage: 2x SATA3.0, the transfer rate is up to 6Gbps
1x M.2 slot, supports M.2 2260/2280 PCIE x2/SATA SSD, the transfer rate is up to 32Gbps
Audio: Onboard ALC662 6 channel high fidelity audio controller, supporting MIC/Line-out and power amplifier
Support power amplifier 2Ω/5W dual channels
Expansion Slot: 1x MiniPCIE slot，supports WIFI module

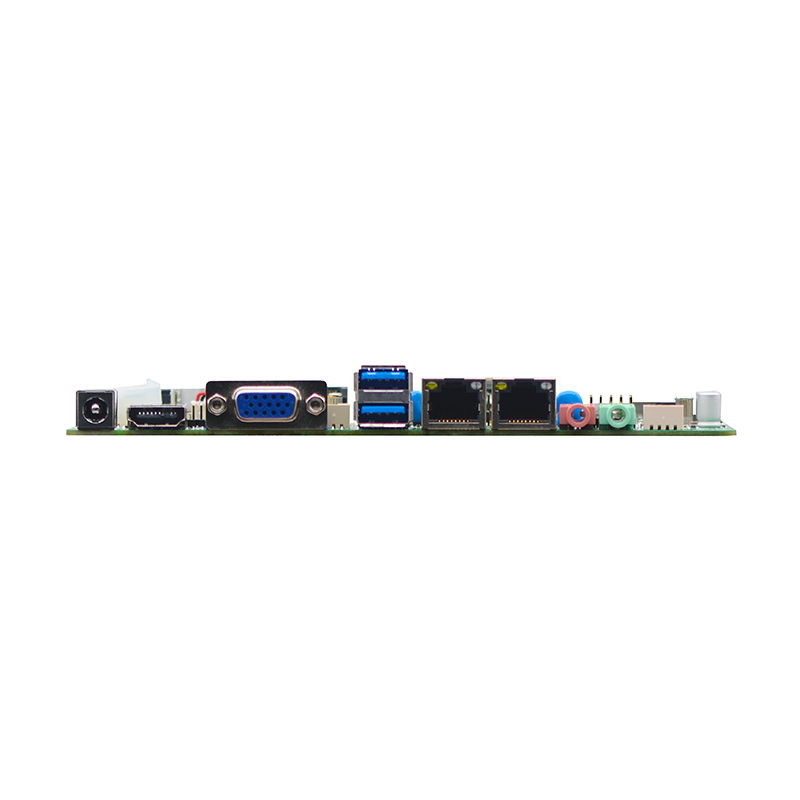

Rear I/O interface:
2x USB3.0
1x HDMI
1x VGA
2x RJ45 Gigabit Network Interface
1x Line-out (Green), 1x MIC (Red)
1x DC12~19V power input interface

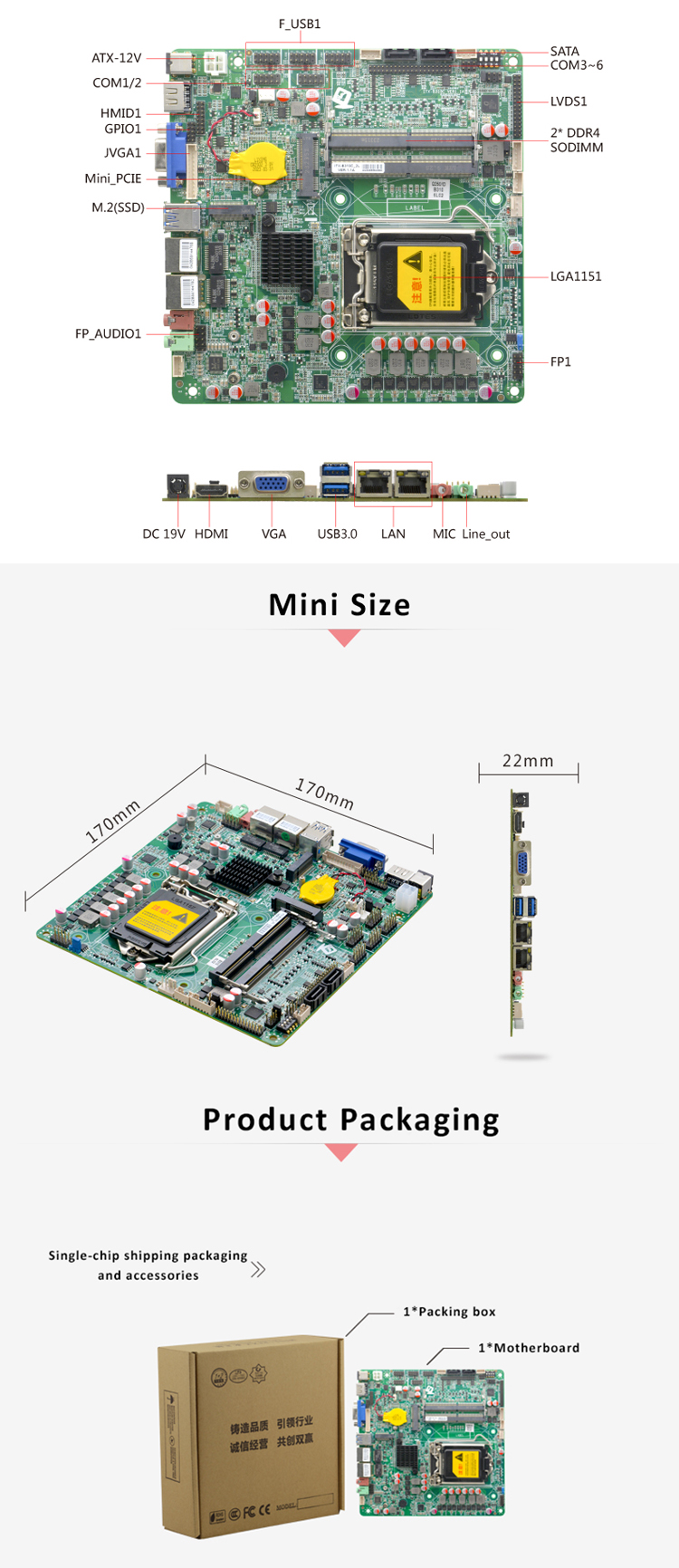

Built in I/O interface:
1x JVGA, 1x 12pin (Same signal as VGA)
1x JHDMI, 2x 8pin
1x LVDS, 2x 15pin , supports dual channels 24bit
1x Backlight power supply interface, 1x 6pin
1x Screen brightness adjustment interface, 1x 4pin
6x RS232 COM, COM2 supports RS485
6x USB2.0, 2x 5pin
1x Front audio interface, 2x 5pin
1x Power amplifier interface, 1x 4pin
2x Hard disk power supply interface, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
1x 4pin ATX power interface, supports 12V~19V power input and output
Fan Connector: 1x 4pin CPU smart fan connector; 1x 3pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 64Mb Flash ROM
OS: Windows 10/Linux
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: Support DC 19V power supply
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

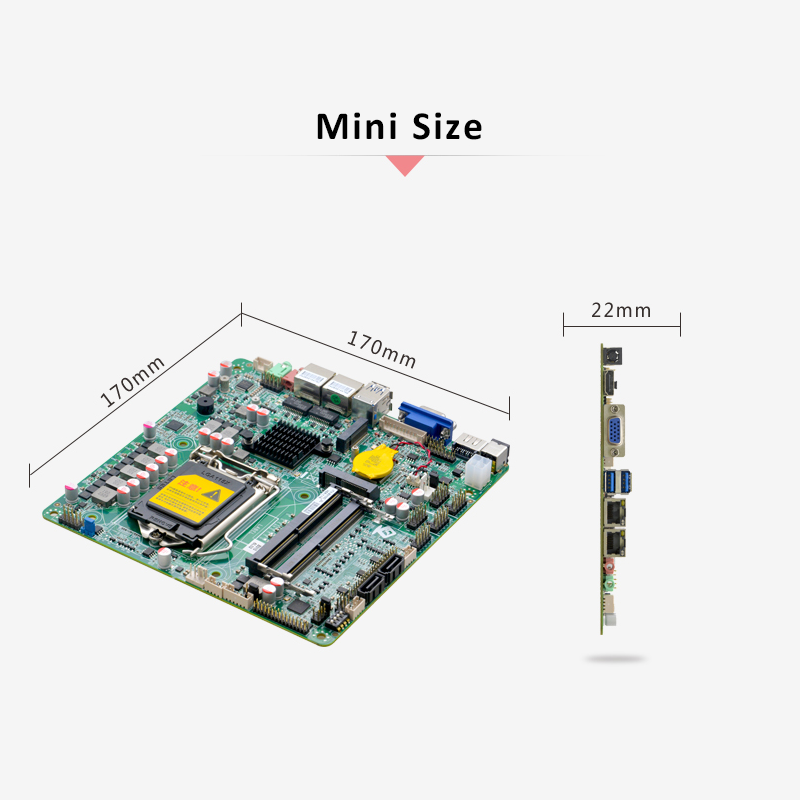

Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
