Overview
High-performance Core
The ITX-VL305 machine vision motherboard is equipped with the Intel Alder Lake-N N97 3.6GHz quad-core processor, based on the Alder Lake-N SOC platform. It provides powerful computing support for machine vision tasks, ensuring efficient and stable processing of complex data, making it the ideal core hardware for machine vision applications.
Rich Interface Configuration
The ITX-VL305 machine vision motherboard features 4 Gigabit Ethernet ports for high-speed data transfer, 8 USB interfaces for easy connection of various external devices, and multiple storage interfaces to meet different storage needs, providing convenience for system expansion. It can effortlessly handle the diverse device connection requirements in machine vision projects.
Reliable Functional Design
The ITX-VL305 machine vision motherboard supports GPIO custom control to meet diverse application requirements and has a built-in Watchdog Timer to ensure long-term stable system operation, offering high reliability. It effectively prevents malfunctions and interruptions during the operation of machine vision systems.
Wide Range of Application Fields
The ITX-VL305 machine vision motherboard is suitable for various machine vision fields such as industrial automation and intelligent security. With its excellent performance and rich functions, it is an excellent choice for implementing visual intelligent solutions.

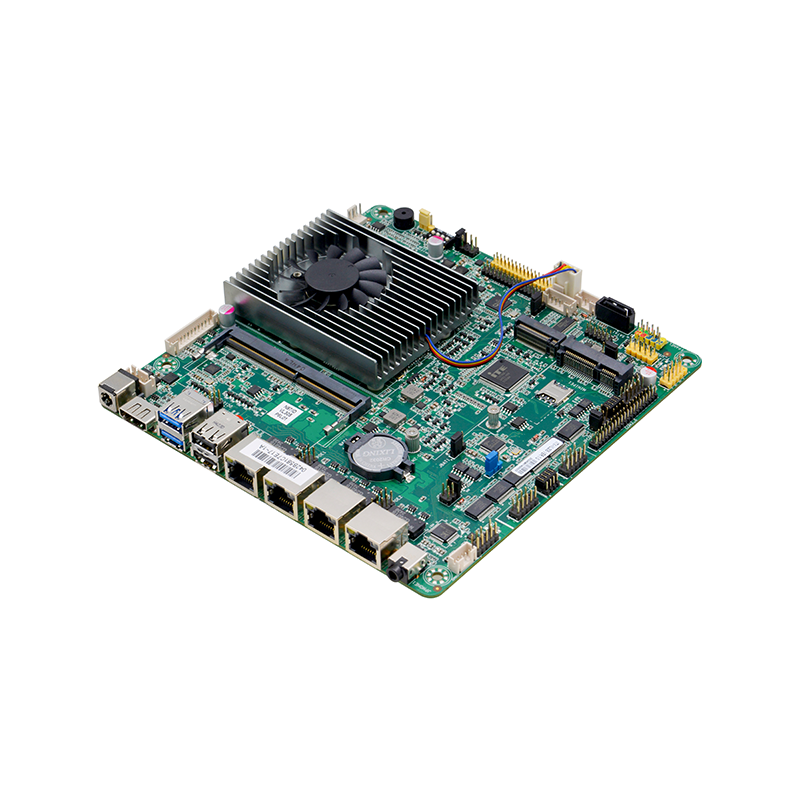

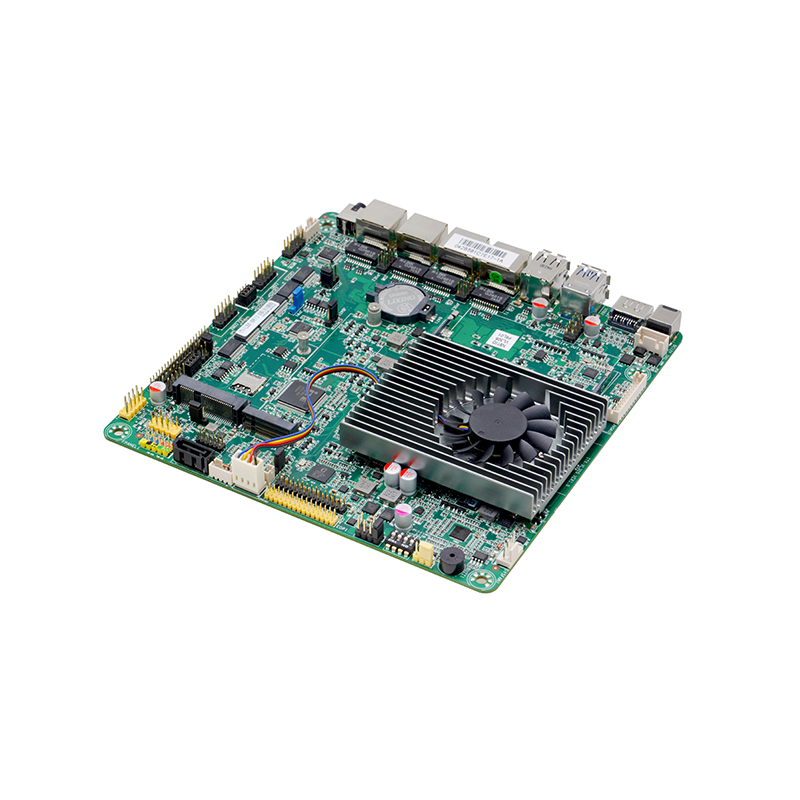

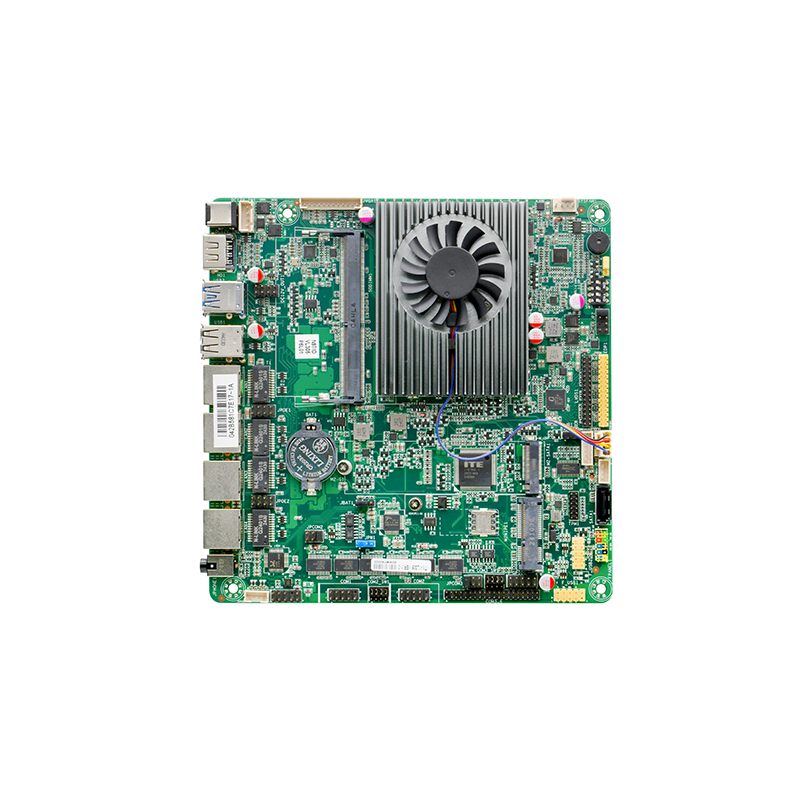

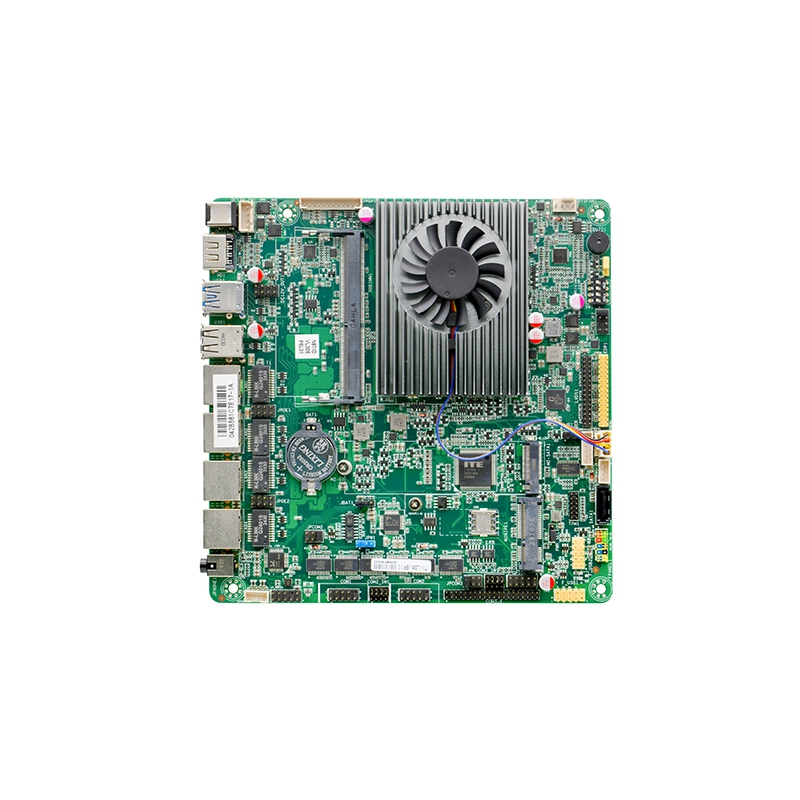

Detail Display
Product Description
Model No.: ITX-VL305 VER:1.0(N97)
Processor:
Integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor, TDP 12W
Compatible with Intel® Alder Lake-N all series CPU
Chipset: SOC
RAM: 1* SODIMM memory slot, support single channel 3200MHz DDR4 memory, up to 16GB
Display:
Integrated Intel® UHD Graphics, support DirectX 12.1, OpenGL4.6
1* VGA, 1*HDMI1.4, 1* LVDS/1* EDP
Note: The LVDS and EDP interfaces are selected by wire jumper(LVDS default)
Ethernet:
4* Intel WGI210AT Gigabit LAN, support Wake-on-LAN, PXE function
Note: can support POE. If need the POE function, will need to use the VL68-PW expansion board.
Storage:
1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps
1* M.2 slot, support M.2 Key M 2280 NVME PCIE X1/SATA specification SSD
Audio:
Onboard ALC897 7.1+2 channel Hi-Fi audio controller,support MIC/Line-out.Power amplifier
Suggest to use a 4Ω3W speaker for the power amplifier
Expand slot: 1* Mini-PCIE slot, support WIFI/4G module

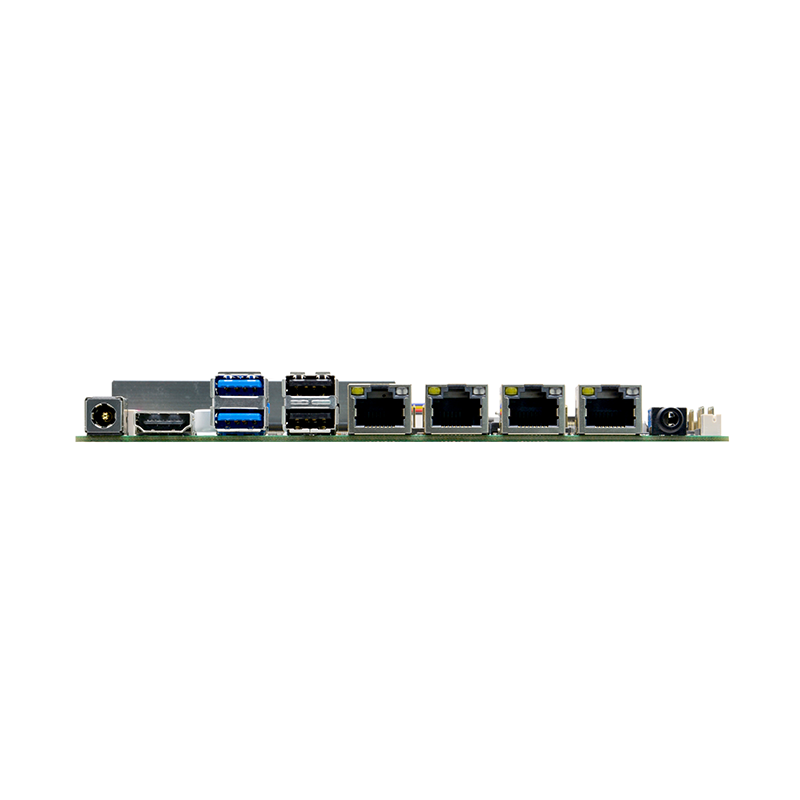

Backplane I/O Interface:
1* DC 12V power supply input interface
1* HDMI1.4
2* USB3.0, 2* USB2.0
4* RJ45 Gigabit network interface
1* Two-in-one audio interface

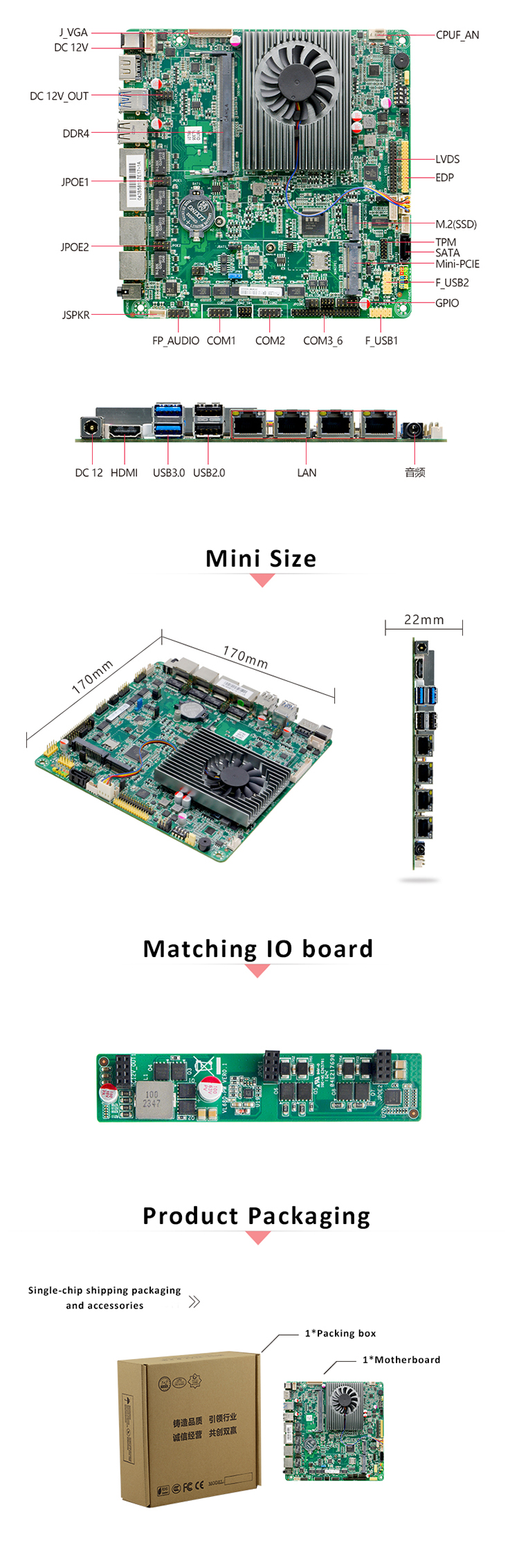

Built-in I/O interface:
1* JVGA, 1*12pin
3* 2*4pin PH=2.54mm pin header, connected to VL680-PW small board
1* LVDS, 2*15pin, support dual channels 24BIT
1* EDP(yellow), 2*15pin(The LVDS and EDP interfaces are selected by wire jumper)
1* Screen backlight power supply interface, 1*6pin
4* USB2.0, 2*5pin
6* RS232 serial port, COM2/COM3 support RS485/422 function
1* Hard drive power supply interface, 1*4pin
1* Front panel audio interface, 2*5pin
1* Amplifier interface, 1*4pin
1* SIM card slot
1* Front panel function button and indicator interface, 2*5pin
1* TPM pin header, ESPI specification, 2*6pin
1* 4pin DC power interface (can be used as 12V input and output power interface)
Fan interface: 1*4pin CPU smart fan interface, 1*4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 256Mb Flash ROM
Watchdog: Support hardware reset function(256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power Type: Powered by DC 12V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, no condensation
Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
