Product Description

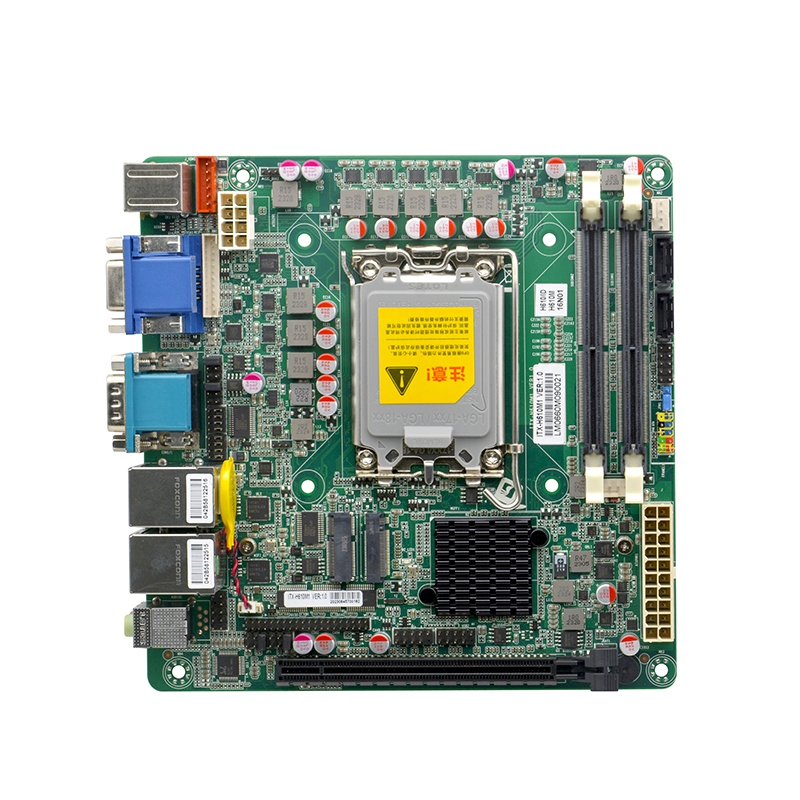

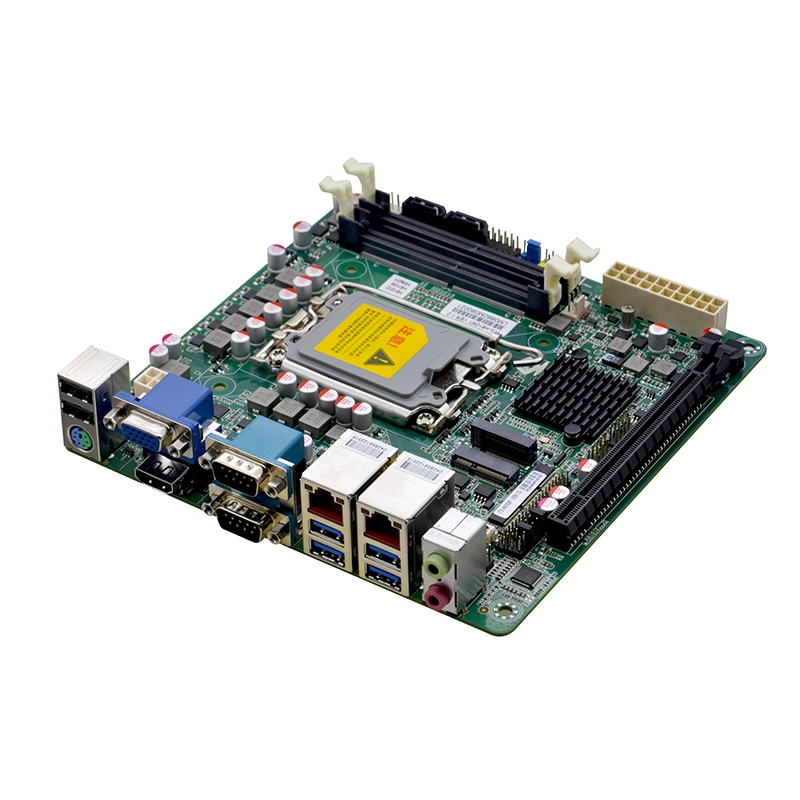

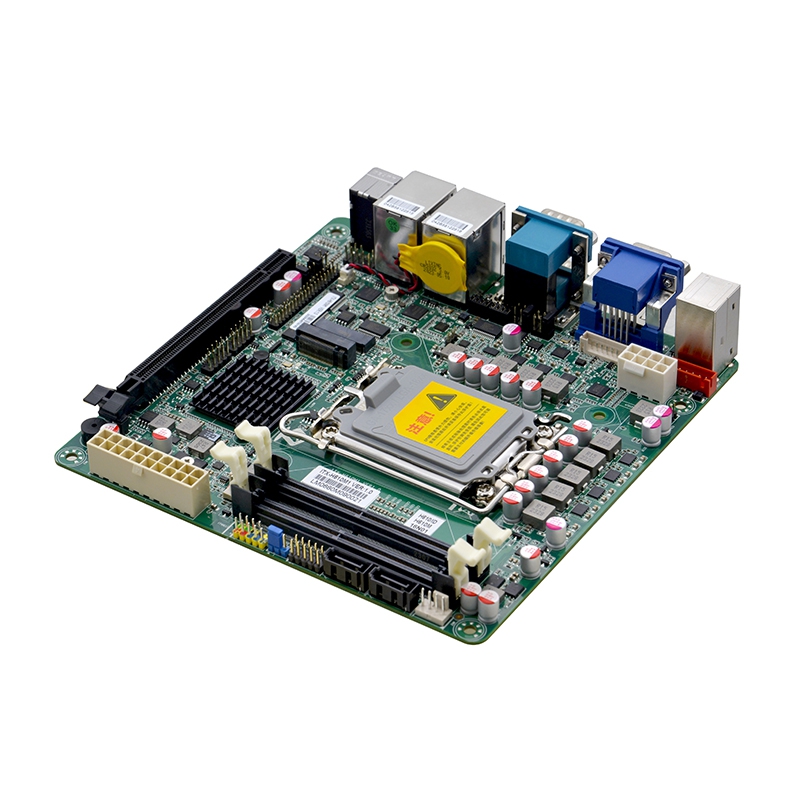

Model No.: ITX-H610M1 VER:1.0
Processor: Supports LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note:Supports below 125W CPU
Chipset: Intel® H610 chipset
Memory: 2x DDR4 SODIMM memory slot, supports dual channels ,up to 3200MHz memory, up to 64GB
Display: Integrated Intel®HD Graphics , supports DirectX12.1,OpenGL4.5 , supports 4K
1x VGA, the maximum resolution supported is：1920X1200@60Hz
1x HDMI1.4, the maximum resolution supported is：4096x2304 @24Hz
Ethernet: 2x Intel ®I226V Gigabit Ethernet chip, supports Wake on LAN/PXE function
Storage: 2x SATA3.0, the transfer rate is up to 6Gbps
1x M.2 slot，supports M.2 Key M 2260/2280 NVME PCIE3.0 X4/SATA, adaptive SSD
Audio: Onboard ALC897 7.1+2 channel high fidelity audio controller, supporting MIC/Line-out
Expansion Slot:
1x PCIE3.0 X16
1x M.2, support M.2 2230 WIFI module

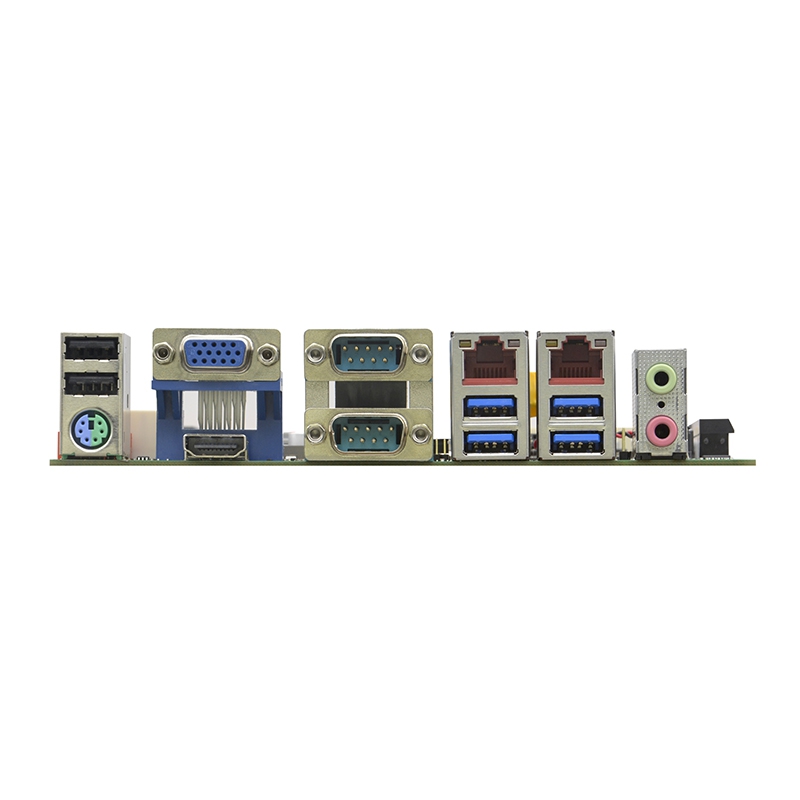

Rear I /O interface:
1x PS/2 (can extend keyboard and mouse)
1x DB15 VGA
1x HDMI1.4
2x DB9 RS232 COM, supports the 9th pin charged function，supports RS485/422
2x USB2.0
4x USB3.0
2x RJ-45 Gigabit Network Interface
1x Double layer audio interface (sound output and MIC input)
Built in I/O interface:
3x USB2.0, 2x 5pin，F_USB2 only support one USB2.0
1x Front audio interface, (2*5pin）
1x Front panel function button and indicator light interface, (2x 5pin)
1x 24pin ATX power supply outlet, 1x 8pin ATX power supply outlet
1x PS/2 keyboard and mouse interface, 1x 6pin
1x JVGA, 1x 12pin (Same signal as DB15)
4x RS232 COM，2x 20pin
Fan Connector: 1x 4pin CPU fan connector ,1x 4pin system fan connector
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 10/Windows 11/Linux
Power Type: Adapt ATX 20Pin and 8pin power supply
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

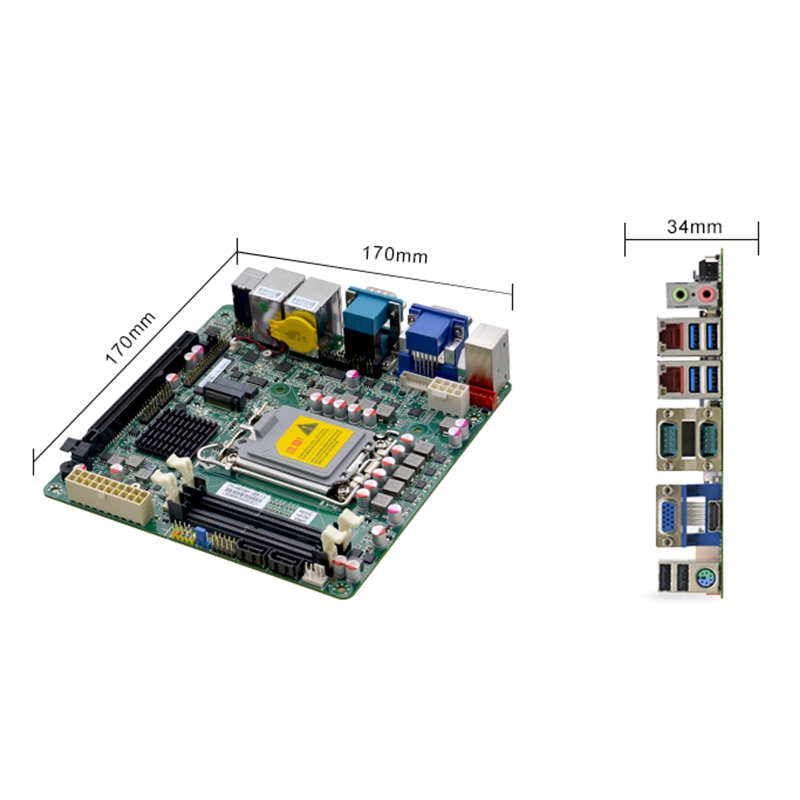

Dimension: 170mm x 170mm
