Product Description

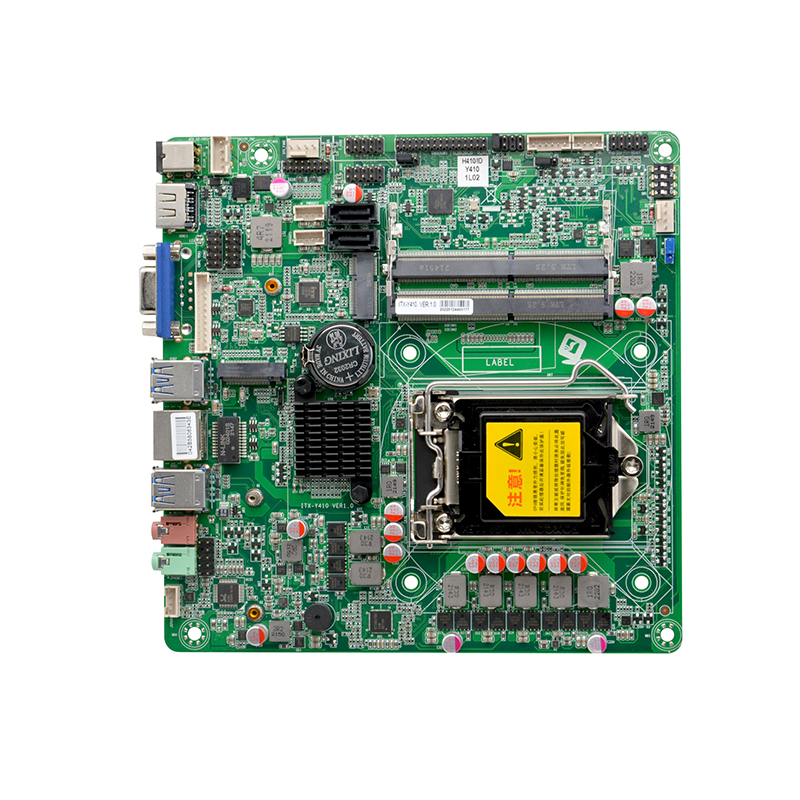

Model No.: ITX-Y410 VER:1.0
Processor: Supports LGA1200 10th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note: only support 10th 6 core 65W and below CPU
Chipset: Adopt Intel® H410 high speed chipset
Memory: 2x DDR4 SODIMM memory slot, supports highest 2933MHz memory, is up to 128GB
Display: Integrated Intel® HD Graphics，Supports DirectX12,OpenGL4.5, supports 4K/60Hz display
1x VGA, the maximum resolution supported is：1920X1200@60Hz
2x HDMI, the maximum resolution supported is：4096 x 2160@30Hz
1x LVDS, supports dual channels 24bit
Note: supports EDP (Shared pin with LVDS)
Ethernet: 1x RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:2x SATA3.0, the transfer rate is up to 6Gbps
1x M.2 slot, supports M.2 2260/2280 SATA standard SSD
Audio: Onboard ALC892 7.1+2 channel high fidelity audio controller, supporting MIC/Line-out，power amplifier
Support power amplifier4Ω/3W dual channels
Expansion Slot: 1x M.2 slot，supports M.2 2230 WIFI module

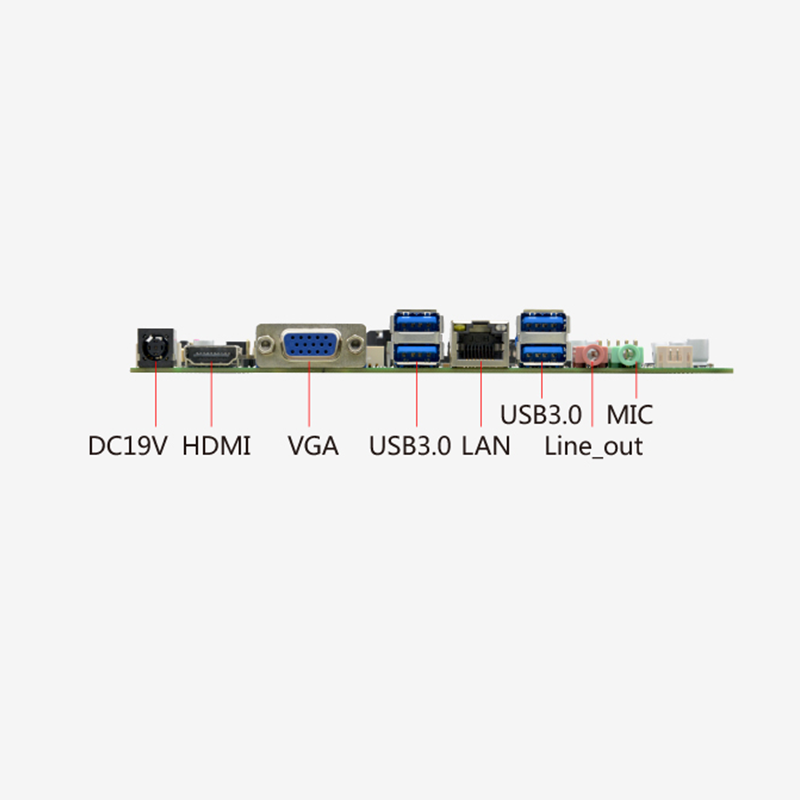

Rear I/O interface:
4x USB3.0
1x HDMI
1x VGA
1x RJ45 Gigabit Network Interface
1x Line-out (Green), 1*MIC (Red)
1x DC12~19V power input interface
Built in I/O interface:
1x JVGA, 1x 12pin (Same signal as VGA)
1x LVDS/EDP, 2x 15pin , supports dual channels 24bit
1x Backlight power supply interface, 1x 6pin
1x Screen brightness adjustment interface, 1x 4pin
1x RS232 COM
4x USB2.0, 2x 5pin
1x Front audio interface, 2x 5pin
1x Power amplifier interface, 1x 4pin
2x HDD power supply voltage interface, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
1x DC power interface, 1x 4pin, supports DC12~19V power input output
Fan Connector: 1x 4pin CPU smart fan connector; 1x 4pin system fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 128Mb Flash ROM
OS: Windows 10/Linux
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: Supports DC12~19V power supply
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

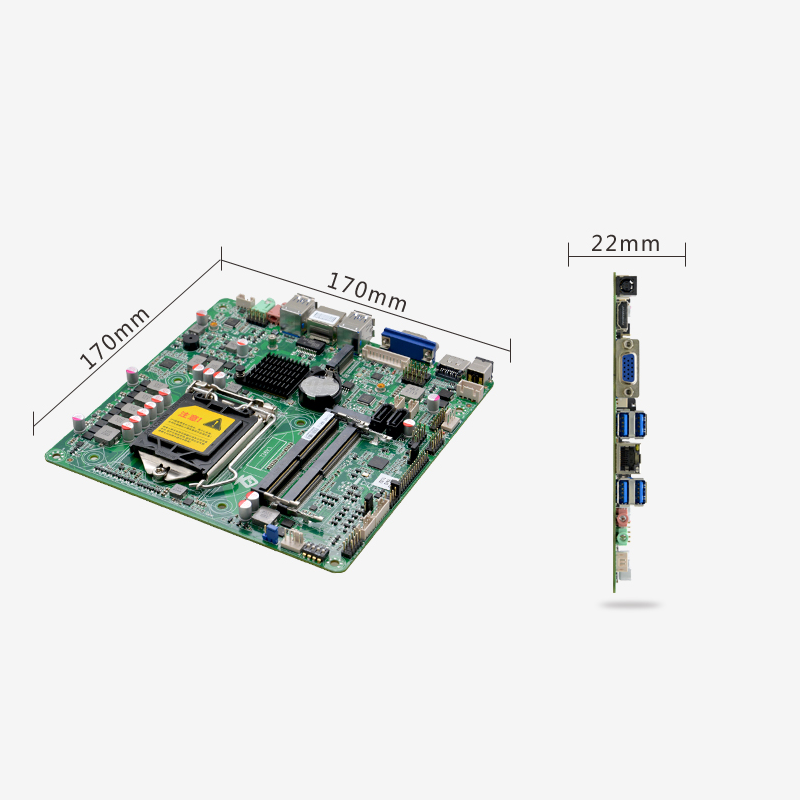

Dimension: 170mm x 170mm
