Product Description

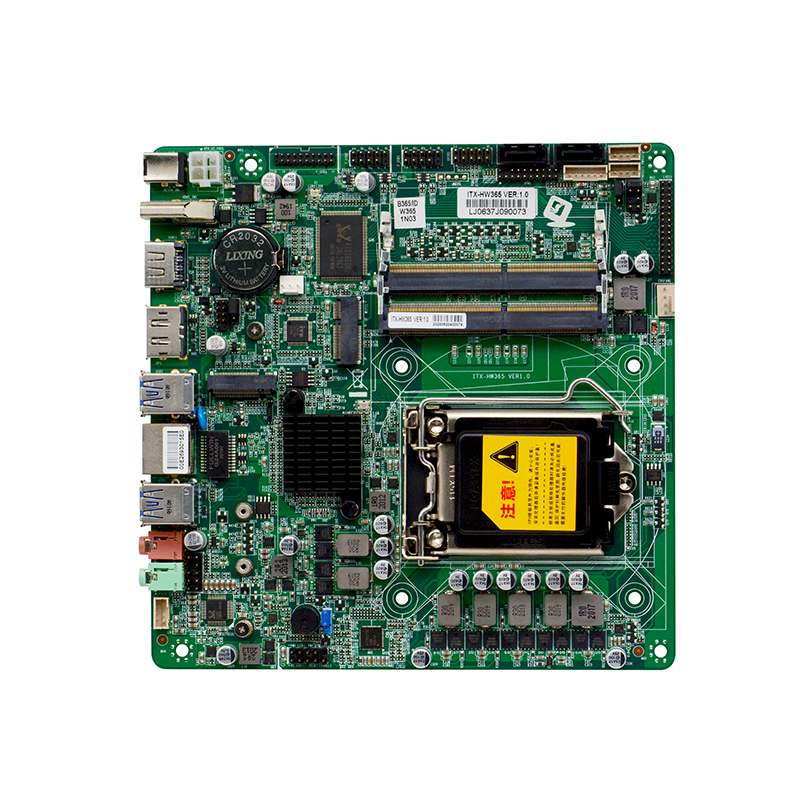

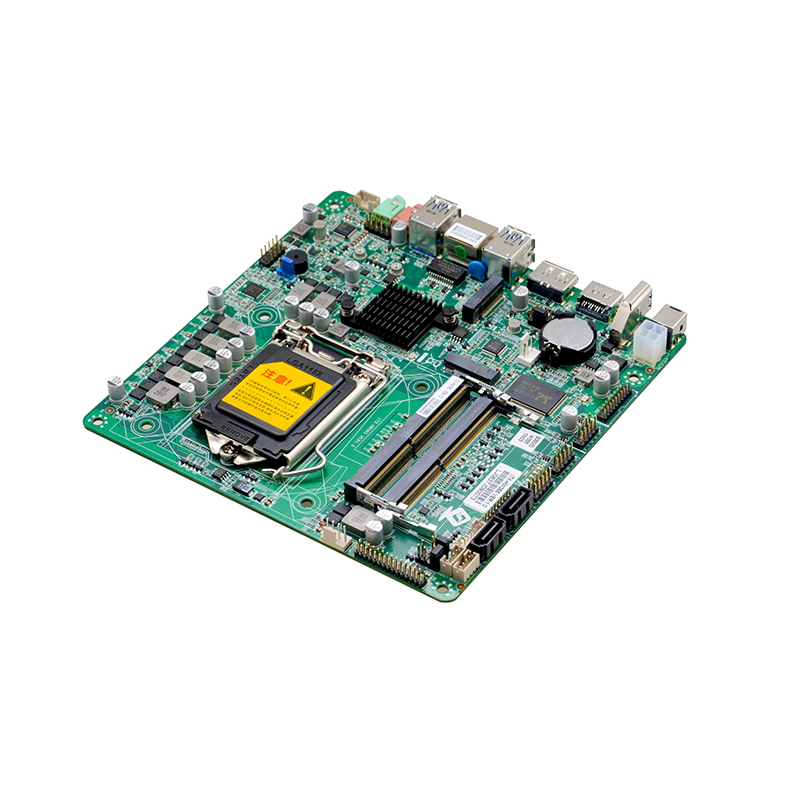

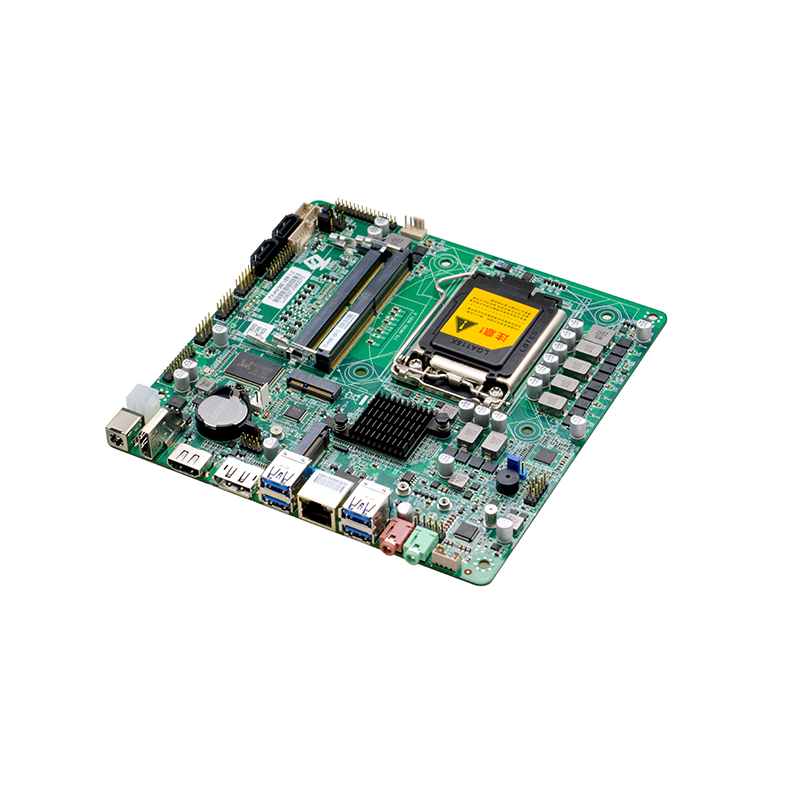

Mode No.: ITX-HW365 VER:1.0
Processor: Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
Note: supports 6th/7th 95W，8th/9th only support：6 core 95W and below CPU，8 core 35W CPU
Chipset: Adopt Intel® B365 High speed chipset
Memory: 2x DDR4 SODIMM memory slot，supports 2400/2133MHz memory, is up to 32GB
Display: Integrated Intel® HD Graphics，supports DirectX12,OpenGL4.4, supports 4K display
1x HDMI1.4, the maximum resolution supported is：4096X2304@24Hz
1x Display port ,the maximum resolution supported is：4096X2304@60Hz
1x LVDS, supports dual channels 24BIT
Ethernet: 1x RTL8111H Gigabit Ethernet, supports Wake on LAN/PXE function
Storage: 2x SATA3.0, the transfer rate is up to 6Gbps
1x M.2 slot，supports M.2 2280/2260/2240 PCIEx4/SATA SSD,PCIE/SATA Automatic Identification
Audio: Onboard ALC662 6 channel high fidelity audio controller, supports MIC/Line-out and power amplifier
Supports power amplifier 2Ω/5W dual channels
Expansion Slot: 1x M.2 slot，supports M,2 2230 WIFI module

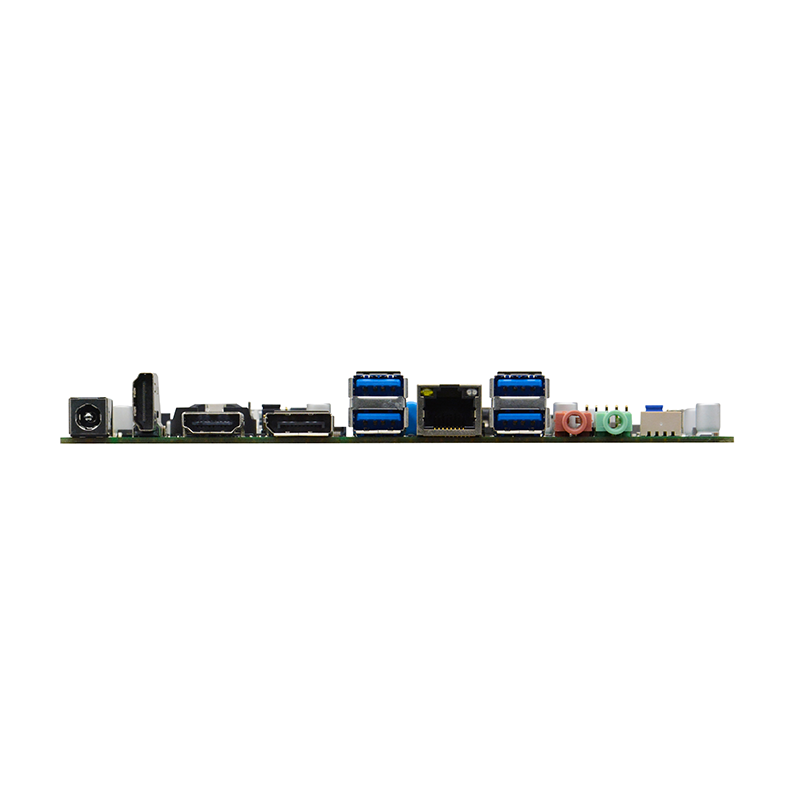

Rear I/O interface:
1x HDMI
1x HDMI - IN, supports external HDMI Signal input and automatically switch to LVDS output (need to enter LVDS screen FW)
1x Display port
4x USB3.0
1x RJ45 Gigabit Network Interface
1x Line-out (Green), 1x MIC (Red)
1x DC12~19V power input interface
Built in I/O interface:
1x LVDS, 2x 15pin，supports dual channels 24BIT
1x Backlight power supply interface, 1x 6pin
4x USB2.0, 2x 5pin
2x USB3.0 ,2x 10pin
1x TPM, 2x 10pin
2x Hard disk power supply interface, 1x 4pin
1x RS232 COM, 2x 5pin
1x Front audio interface, 2x 5pin
1x Power interface, 1x 4pin
1x 4pin ATX power interface，supports 12V~19V power input output
1x Front panel function button and indicator light interface, 2*5pin
Fan Connector: 1x 4pin CPU smart fan connector, 1x 3pin system smart fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 128Mb Flash ROM
OS: Windows® 7/ 8.1/ 10
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: Support DC12V~19V power supply
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)
Dimension: 170mm x 170mm
