Product Description
Product number: ITX-Y310C VER: 1.0
Processor: Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
Chipset: Using Intel® H310C Express Chipset,
RAM: 2x DDR4 SODIMM memory slot, support 2400/2133MHz memory, maximum support 64GB
Display: Integrated Intel® HD Graphics core graphics card, support DirectX12, OpenGL4.4, support 4K display 1x VGA interface, support the highest resolution 1920X1200@60Hz, 2x HDMI1.4 interface, support the highest resolution 4096X2304@24H, 1x Support dual channel 24bit LVDS interface
Ethernet: 1x RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function
Storage:
2x SATA3.0 hard disk interface, the transmission speed can reach 6Gbps
1x M.2 slot, support M.2 2260/2280 PCIE x2/SATA standard SSD, choose one of the two through the jumper
Audio: Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier supports 2Ω/5W dual-channel
Expansion slot :1x M.2 slot, support M.2 2242 standard WIFI module

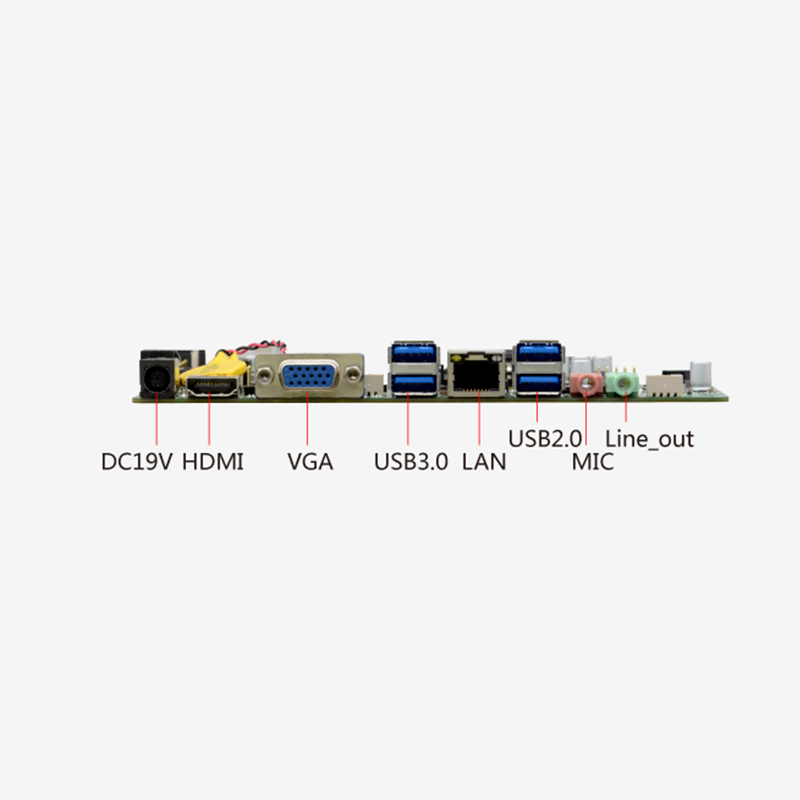

Backplane I/O interface:
4x USB3.0 interface
2x HDMI interface (choose one of HDMI2 and DP interface, optional DP interface)
1x VGA port (choose one from DB9 serial port, DB9 serial port is optional)
1x RJ45 Gigabit network interface
1x Line-out (green), 1x MIC (red)
1x DC12~19V power input interface
Built-in I/O interface:
1x JVGA interface 1x 12pin, same signal as VGA interface
1x LVDS interface 2x 15pin, support dual channel 24bit
1x Backlight power supply interface 1x 6pin
1x Screen brightness adjustment interface 1x 4pin
1x RS232 serial interface, 2x 5pin
4x USB2.0 interface 2x 5pin
1x Front audio interface 2x 5pin
1x power amplifier interface 1x 4pin
2x Hard disk power supply voltage interface 1x 4pin
1x Front panel function button and indicator port 2x 5pin
1x 4pin ATX power interface. Support 12V~19V power input and output
Fan interface: 1x 4pin CPU smart fan interface; 1x 3pin system fan interface
GPIO: Support 4 input and output GPIO function
BIOS: 64Mb Flash ROM
Support system: Windows 10/Linux
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: Support DC19V power supply
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing

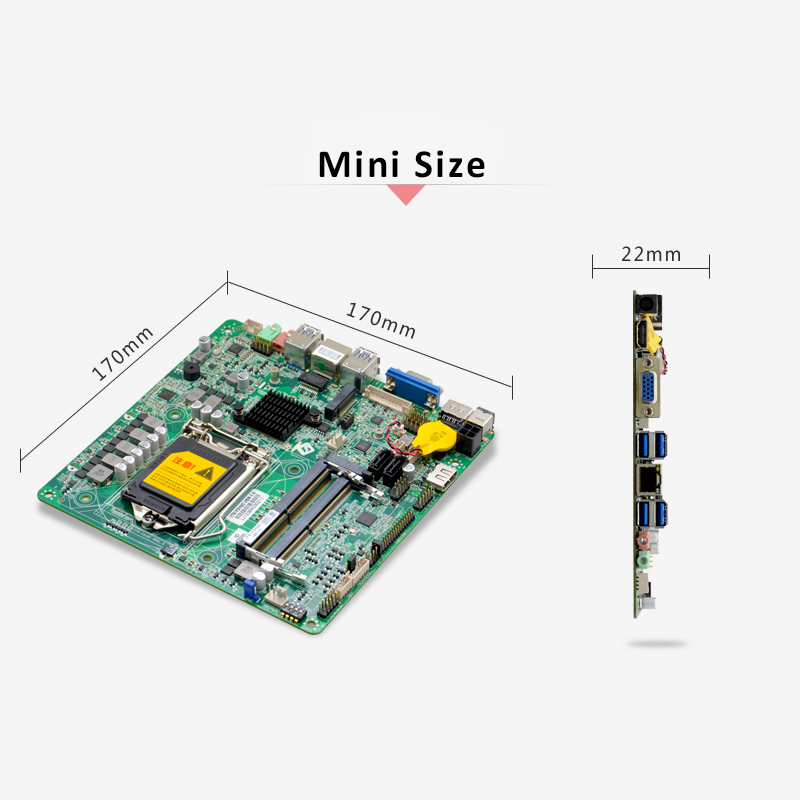

Size: 170mm x 170mm
