Overview
The W680MS VER:1.0 industrial ATX motherboard, equipped with the Intel W680 Express chipset, fully supports multiple series of 12th/13th Gen processors such as Celeron and Pentium via the LGA1700 interface, with a maximum TDP of 125W, ensuring stable operation in harsh industrial environments. Integrated with Intel HD Graphics and equipped with 2 HDMI and 1 VGA interfaces, it meets diverse display requirements. Two DDR4 3200MHz SO-DIMM slots support up to 64GB of ECC memory, providing a solid foundation for data processing.
This industrial ATX motherboard features a powerful interface configuration, including 1 RJ45 Gigabit Ethernet port, 10 USB3.2 interfaces, 4 USB2.0 interfaces, and 2 COM interfaces supporting multiple protocols. Paired with 4 SATA3.0 interfaces supporting RAID 0,1,5,10, 1 M.2 NVMe SSD interface, and 1 mSATA interface, it offers excellent storage and transmission performance. In addition, 1 PCIE5.0 x16, 1 PCIE3.0 x1, 2 PCIE3.0 x4 interfaces, along with TPM and PS2 interfaces, provide strong expandability. The unique 120PIN expansion slot supports the expansion of 6 POE LAN ports, VGA, or GPIO, making it suitable for industrial automation control, intelligent security monitoring, industrial Internet of Things, and other fields. It is an excellent choice for industrial-grade applications.

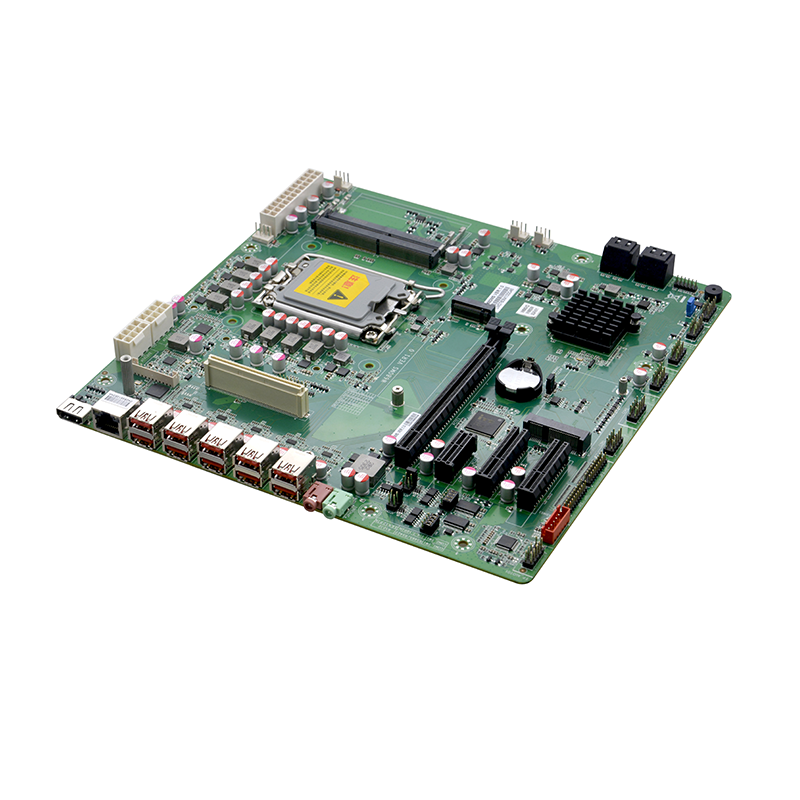

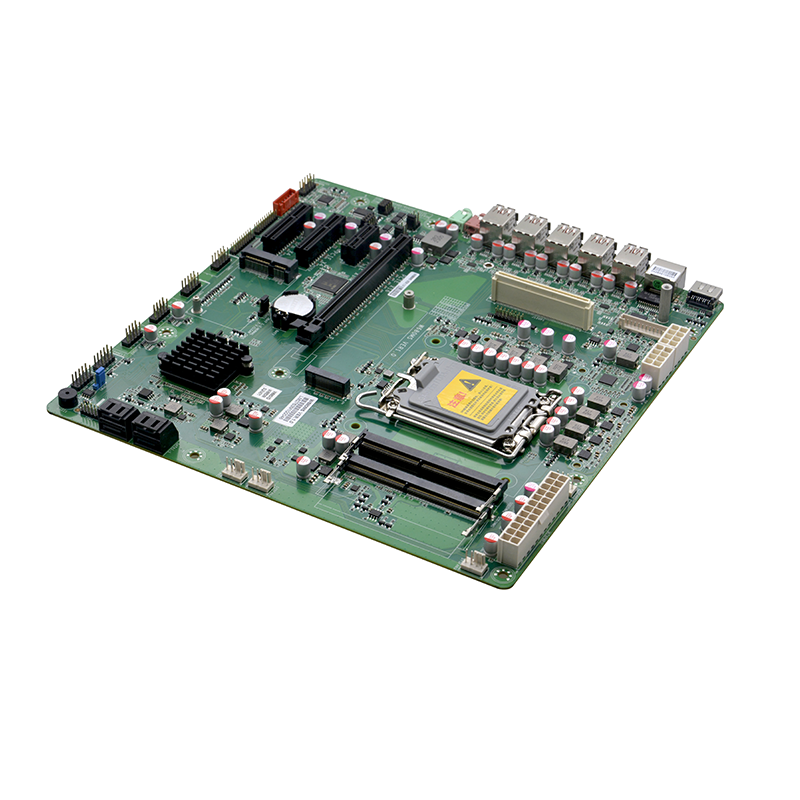

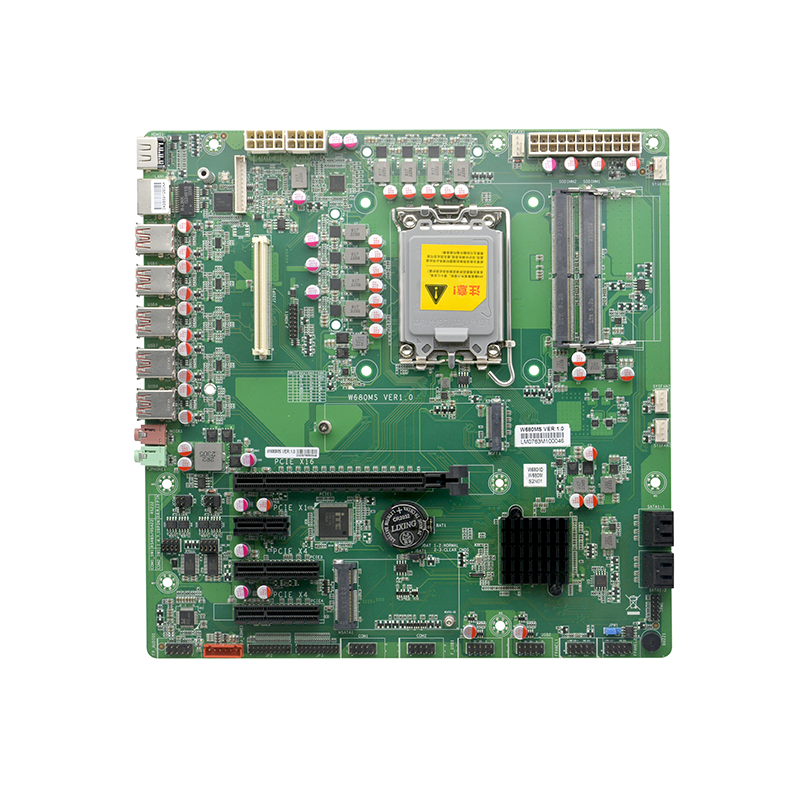

Detail Display
.png)
.png)
Product Description
Product No.: W680MS VER:1.0
Processor:
Support LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 CPU
Note:Support 125W CPU
Chipset: Intel® W680
RAM: 2x DDR4 SODIMM memory slots, support dual-channels up to 3200MHz memory, up to 128GB, support ECC memory
Display: Integrated Intel®HD Graphics, support DirectX12.1,OpenGL4.5, support 4K display
1x VGA, support the highest resolution of 1920X1200@60Hz
2x HDM1.4, support the highest resolution of 4096x2160 @24Hz
Ethernet: 1x I210AT Gigabit Ethernet chip, supports Wake on LAN/PXE function
Storage:
4x SATA3.0 hard disk interface, the transfer speed up to 6Gbps
1x MSATA slot, support Intel protocol SSD
1x M.2 slot, support M.2 Key M 2280 NVME PCIE X4 SSD
Audio: Onboard ALC897 7.1+2 vocal channels high fidelity audio controller,supports MIC/Line-out and Line-in
Expansion slot:
1x PCIE3.0 X16
1x PCIE 3.0 X1
2x PCIE 3.0 X4

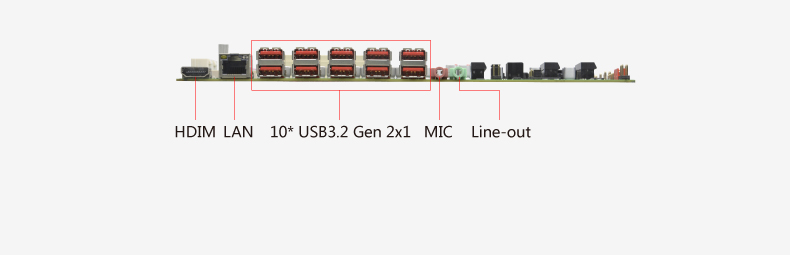

Rear I/O interfaces:
1x HDMI1.4
1x RJ45 Gigabit Ethernet interface

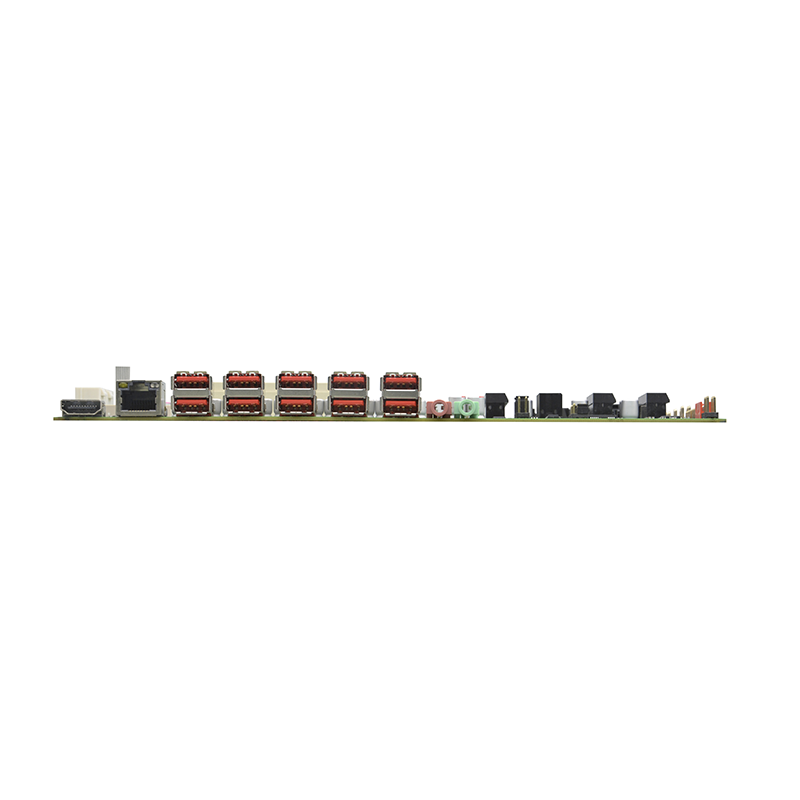

10x USB3.2 Gen 2x1 (10Gbps)
1x Three-layer audio interface, support Line-out, MICK, Line-in

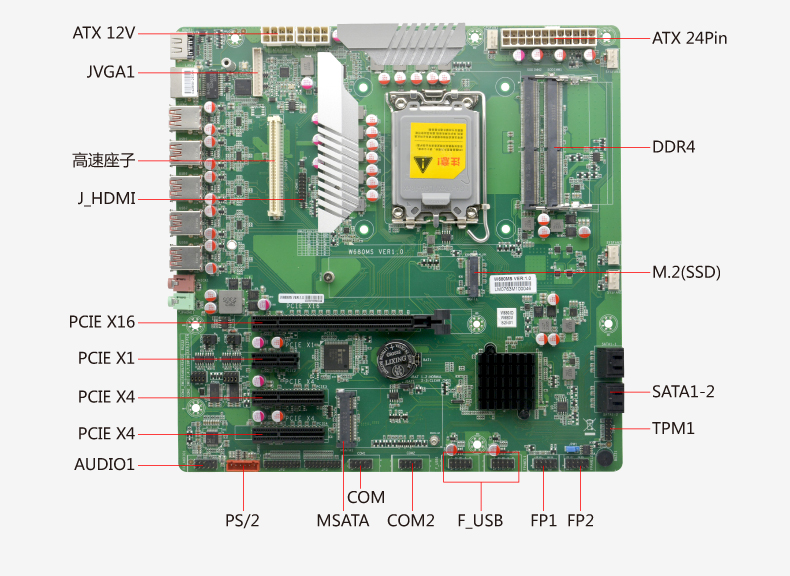

Inner I/O interfaces:
1x JVGA, 1x 12pin
1x JHDMI, 2x 8pin
4x USB2.0, 2x 5pin
2x RS232 COM, support RS485/422
1x Front panel audio interface, 2x 5pin
2x Front panel function button and indicator interface, 2x 5pin
1x 24pin ATX power socket, 2x 8pin ATX power socket
1x PS/2 keyboard and mouse interface, 1x 6pin
1x TPM, 2x 6pin
1x JHDMI, 2x 8pin
1x 120pin high speed slot, including 6x PCIE ,1x VGA, VCC and other signals, used to expand 1 VGA interface and 6 POE network ports (W680MS-POE small board)
2x 10pin,used to expand 16-in and 16-out GPIO (MS-GPIO small board)
Fan interfaces: 1x 4pin CPU fan connector; 3x 4pin system fan connector
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
operating system: Windows 10/Windows 11/Linux
Power type: Powered by ATX 24Pin and 8pin power supply
Operating temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working humidity: Relative humidity 5%-95%, no condensation

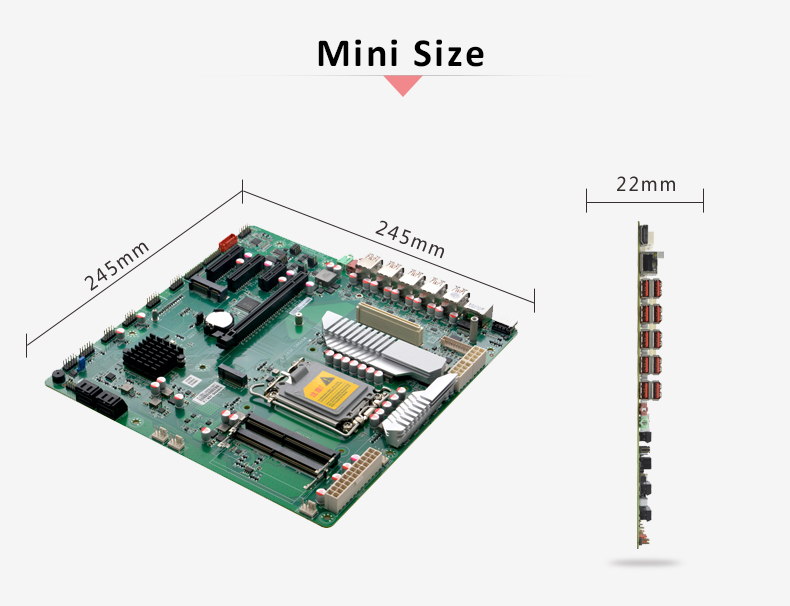

Size: 245mm x 245mm
