Overview

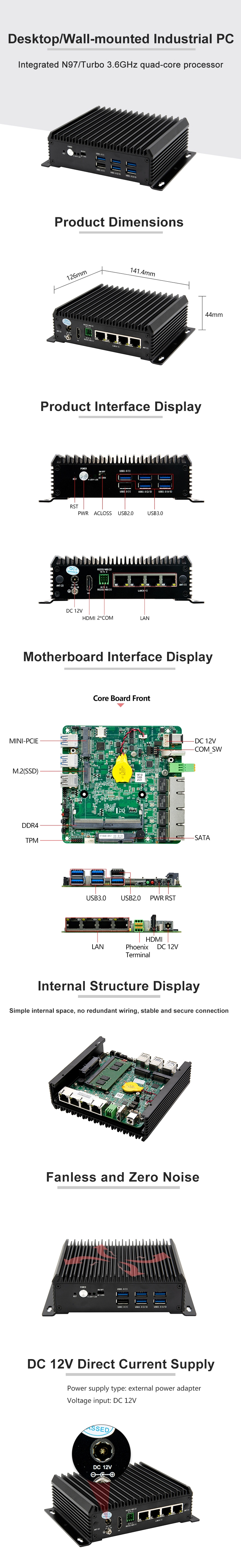

The C2120Z-L4 V2.0(N97) industrial mini firewall features an all-aluminum alloy structure and fanless cooling. Equipped with Intel®Alder Lake-N N97/Turbo 3.6GHz quad-core CPU, this next gen firewall can efficiently realize firewall control. It comes with 1 DDR4 RAM slot (up to 16GB), 1 SATA + 1 M.2 interface, 4 RJ45 Lan ports, 1 HDMI1.4 port, 1 Mini-PCIe port for 4G/WIFI, 5 USB3.0 and 1 USB2.0 ports, and uses DC 12V power input, ensuring stable performance.
Product Description
Model NO.: C2120Z-L4 V2.0(N97)
Chassis:
Structure: All aluminum alloy, fanless cooling structure
Dimension: 141.4mm*126mm*44mm
Color:Black
Weight:0.7KG
Installation:Support desktop/wall-mounted installation
Motherboard:
Processor: Integrated Onboard Intel®Alder Lake-N N97/Turbo 3.6GHz quad core processor，TDP 12W
Chipset: Intel SoC
Memory: 1x SO-DIMM slot,3200MHz DDR4 Memory, up to 16GB

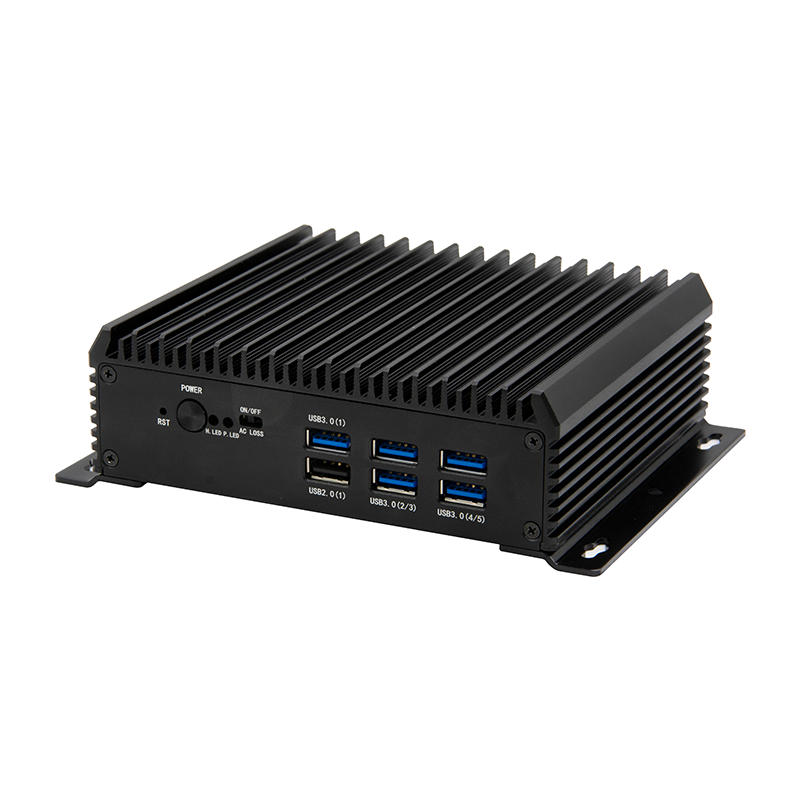

Front Panel:
POWER: 1x Power button,1x One-key recovery, 1x ACLOSS（auto power ON/OFF）
LED: 1x Power LED, 1x HDD LED
USB: 5x USB3.0, 1x USB2.0

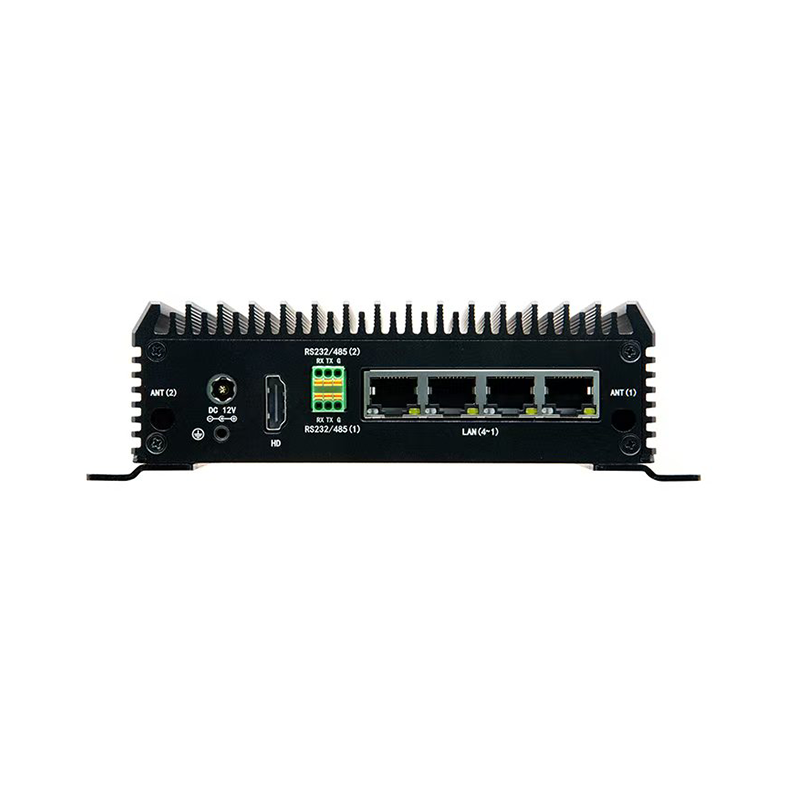

Rear Panel:
Display: 1x HDMI1.4(4096x2160@60Hz)
Lan: 4x Intel I210 Gigabit LAN port，support Wake on LAN、PXE
COM: 2x RS232/RS485 Phoenix connector (2*3P P=2.54)
Power: 1x DC 12V（5.5*2.5）
Storage:
SATA :1x 2.5-inch HDD (7mm thickness)
M.2: 1x M.2, supports Key-M, 2280, NVME PCIE x1/SATA adaptive SSD
Expansion: Mini PCIE: 1x Min-PCIE, supports WIFI/4G module
OS Support:
Windows: Windows 10
Linux: Ubuntu
Watch Dog: Support hardware reset function (level 256, 0~255 seconds)
Power Supply:
Power supply: External power adapter
Voltage input: DC 12V
Power output: AC TO DC 36W
Reliability:
Working Temp.: - 10℃ ~ 50℃
Storage Temp.: -20℃ ~ 70℃

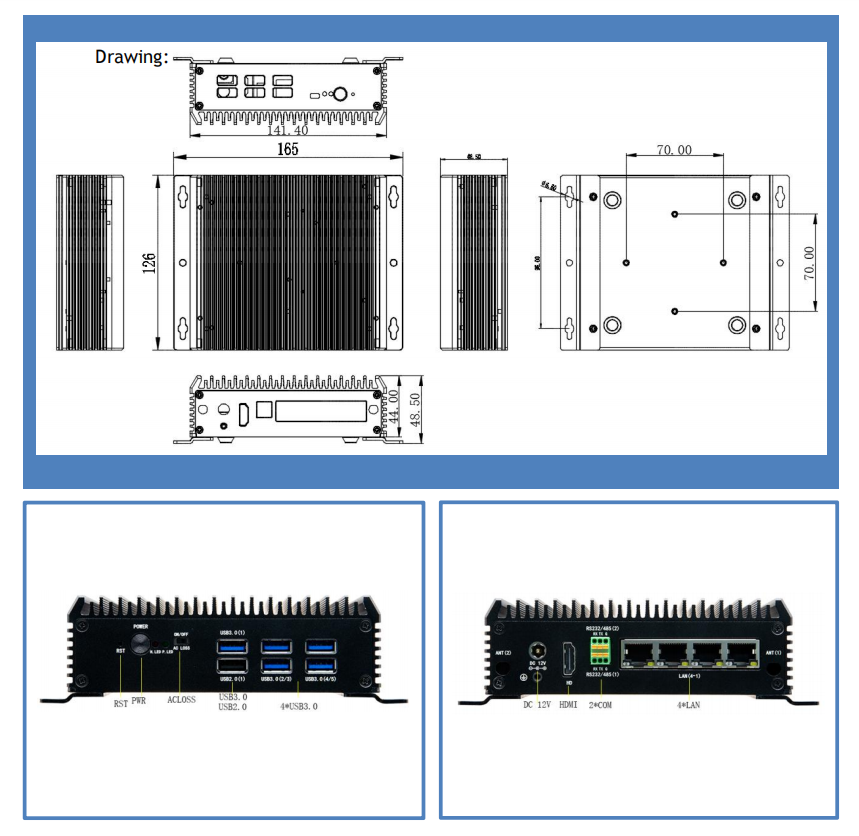

%20_drawing.png)

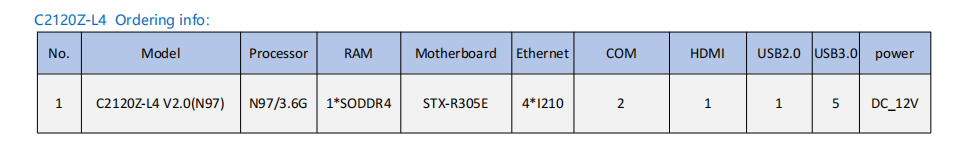

%20_order.png)
Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
