Product Description

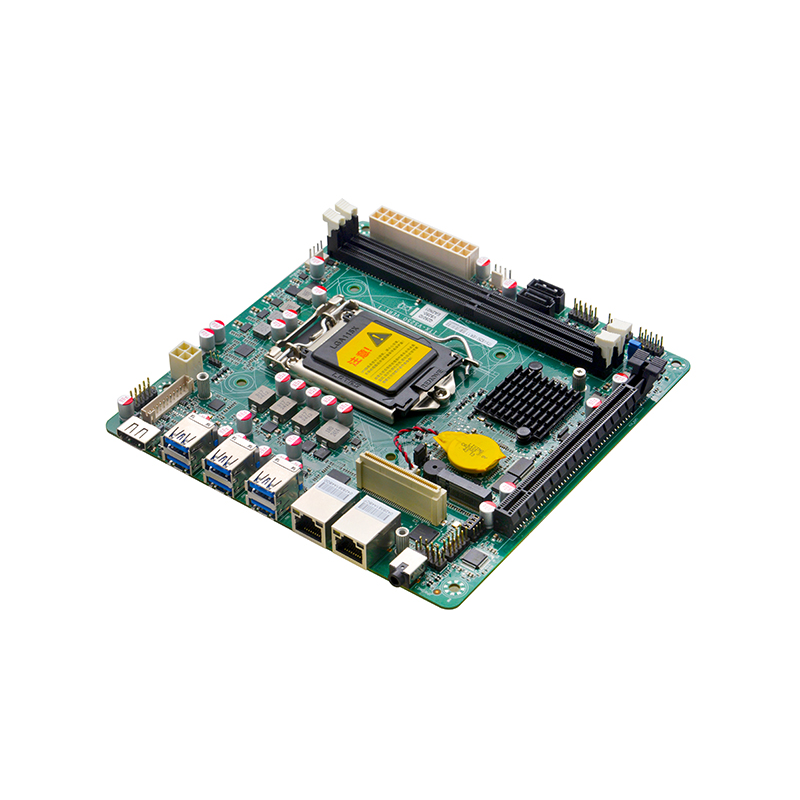

Model No.: ITX-VS250 VER:1.0
Processor: Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor
Note:support 6/7gen 95W，8/9 gen only support：6-core 65W and below CPU
Chipset: Adopt Intel® Q250 high speed chipset,
Memory: 2x DDR4 DIMM memory slot, supports dual channels 2400MHz memory, up to 64GB
Display: Integrated Intel®HD Graphics ,support DirectX12.1,OpenGL4.5,support 4K
1x VGA,the highest resolution supported:1920x1080@60Hz
1x HDMI1.4,the highest resolution supported:4096x2304 @24Hz
Ethernet: 2x Intel ®I210AT Gigabit Ethernet , supports Wake on LAN/PXE function
Storage: 2x SATA3.0 , the transfer rate is up to6Gbps，
1x M.2 slot,support M.2 2280 NVME PCIE X4 standard SSD
Audio: Onboard ALC888S 7.1+2-channel high-fidelity audio controller, supports MIC/Line-out
Expansion Slot:
1x PCIE3.0 X16

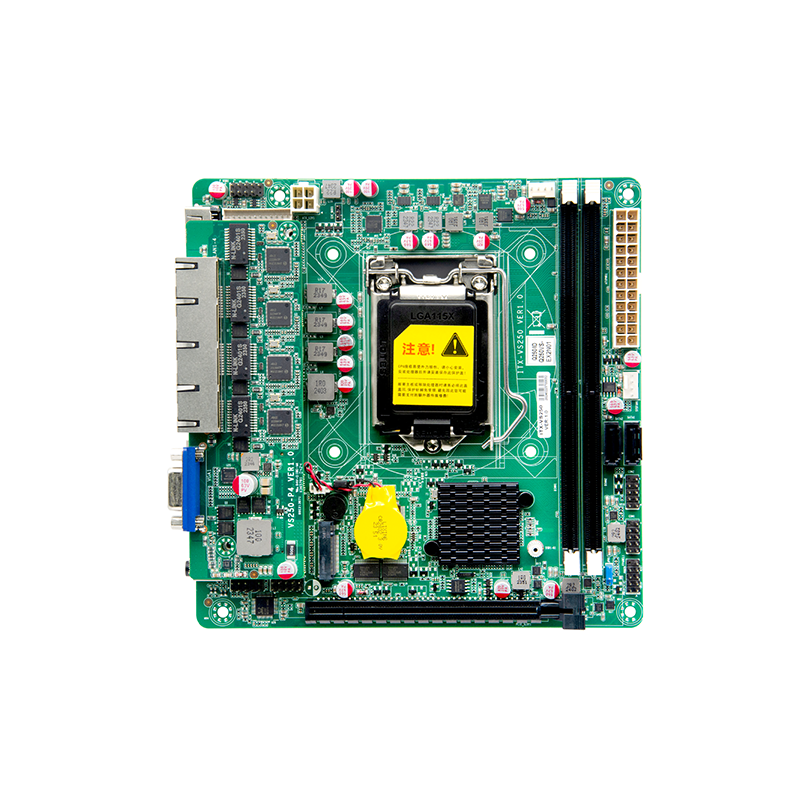

1x 80pin high-speed connector, including 4*PCIE signals, 1x VGA signal (matched with VS250-P4 small board)

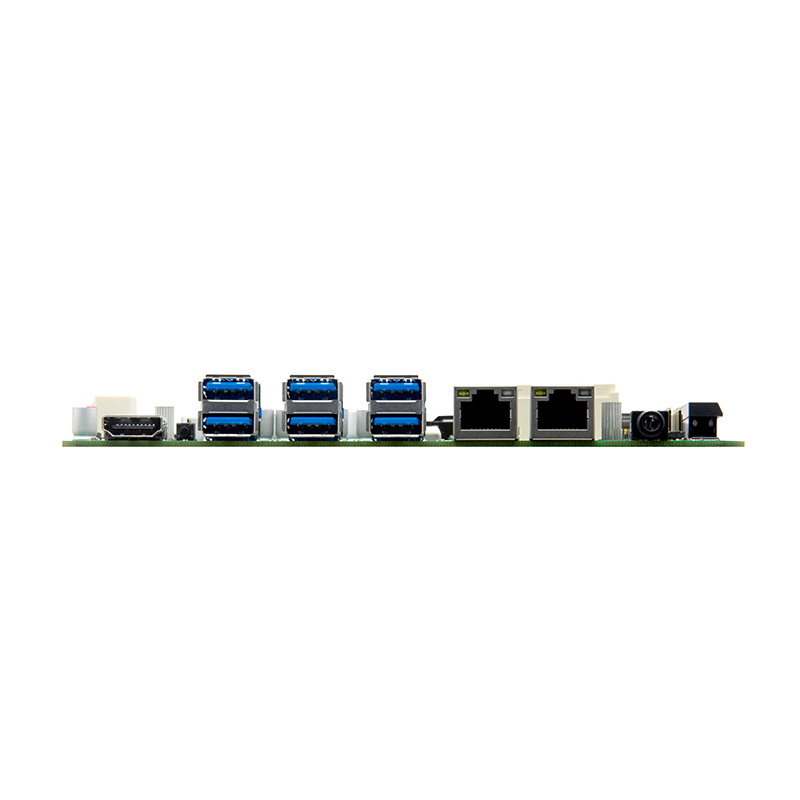

Rear I /O interface:
1x HDMI
6x USB3.0(5Gbps)
2x RJ45 Gigabit Ethernet
1x Audio two and one interface (support Line-out/MICK)
Built in I/O interface:
1x VGA pin header, choose one from VGA in 80pin high speed
2x USB2.0, 2x 5pin
1x Front audio interface, 2x 5pin
1x Front panel function button and indicator light interface, 2x 5pin
2x RS232, 2x 5pin
1x 2*2pin ATX power input interface
1x 24pin ATX power input interface
Fan Connector: 1x 4pin CPU smart fan connector;1x 4pin system smart fan connector
GPIO: Supports four-in and four-out GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows7/Windows10/Linux
Power Type: Powered by ATX 24Pin and 4pin power supplies
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

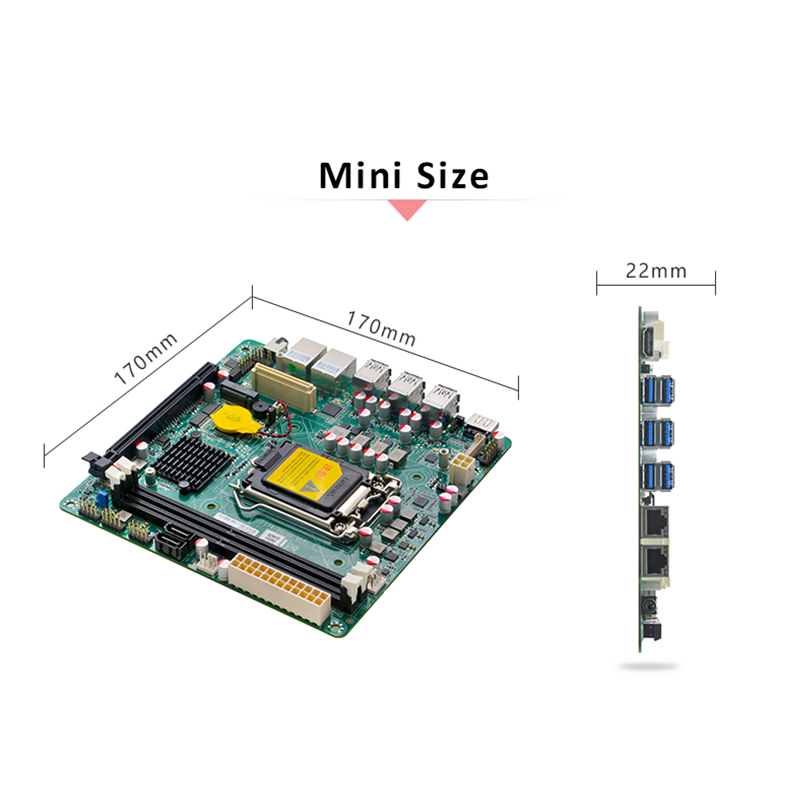

Dimension: 170mm x 170mm
