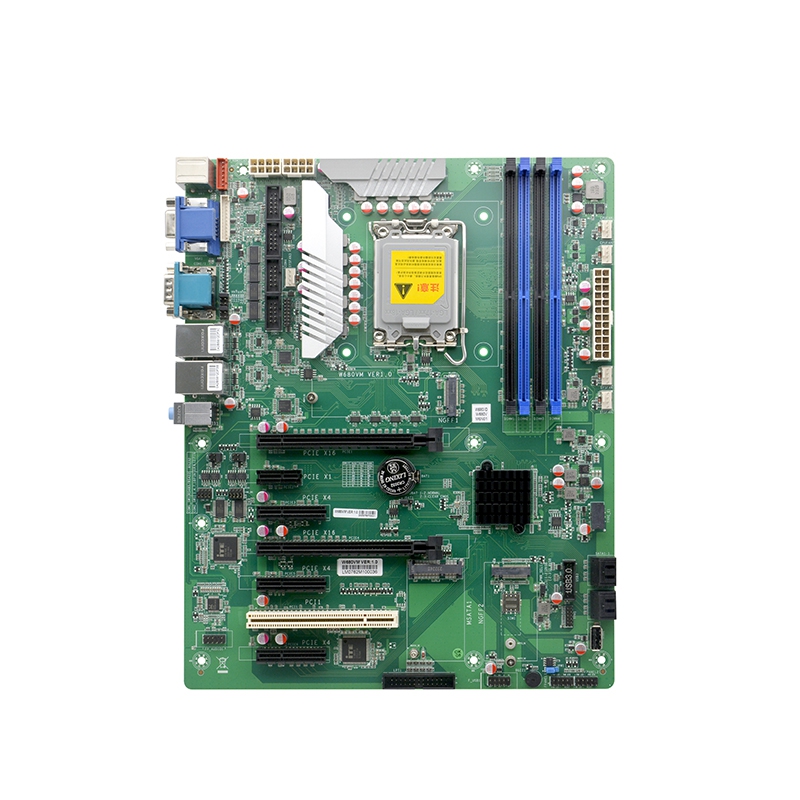

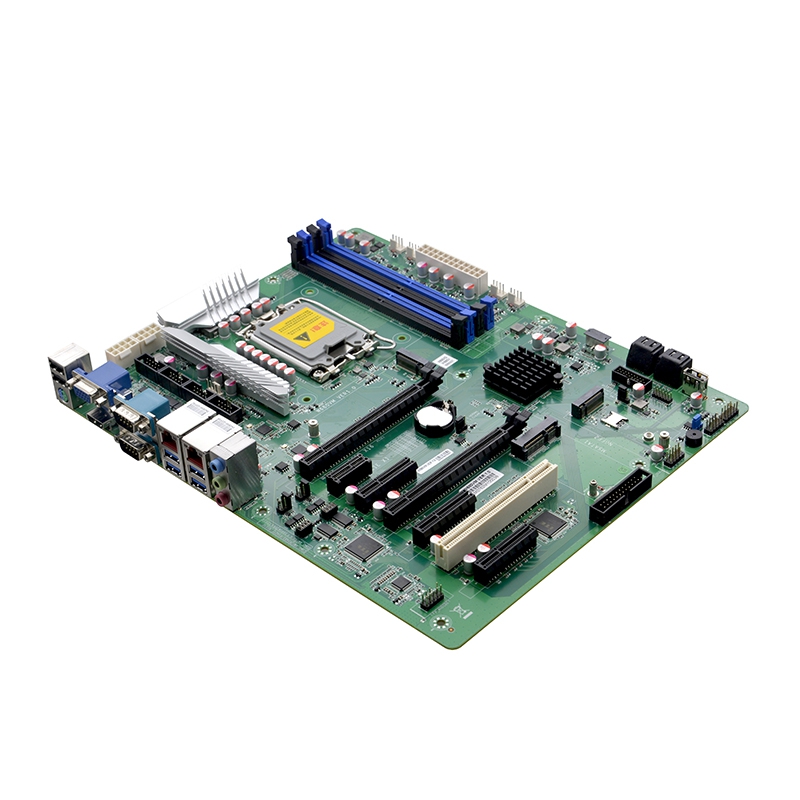

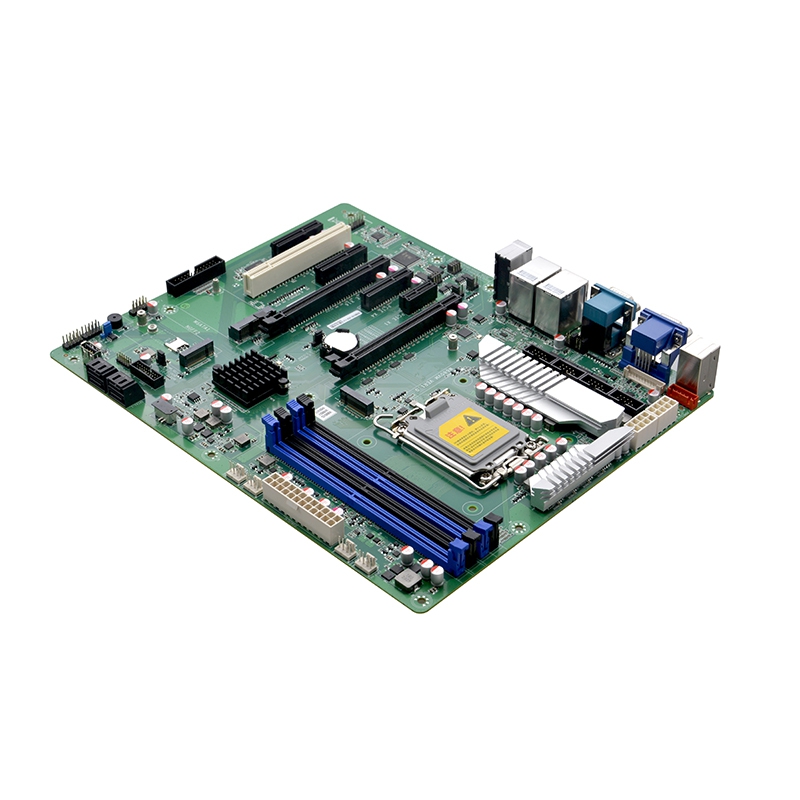

Overview
The W680VM VER:1.0 industrial ATX motherboard, featuring the Intel W680 Express chipset, supports multiple 12th/13th Gen processors via the LGA1700 interface with a TDP of up to 125W, ensuring stable operation under complex industrial loads. Integrated with Intel HD Graphics and equipped with 2 HDMI and 1 VGA interfaces, it caters to multi-screen display needs. Four DDR4 3200MHz memory slots support up to 128GB of ECC memory, enabling efficient and stable data processing.
This industrial ATX motherboard offers an extensive range of interfaces, including 2 RJ45 Gigabit Ethernet ports, 4 USB3.2, 3 USB3.0 (including 1 type-E), and 5 USB2.0. Paired with 4 SATA3.0, 1 M.2 NVMe SSD, 1 mSATA, and 1 M.2 (4G/5G) interface, it provides flexible storage expansion. With 2 PCIE3.0 x16, 1 PCIE3.0 x1, 3 PCIE3.0 x4, 1 PCI interfaces, and a TPM module, it enables powerful functionality expansion. Additionally, 2 PS2, 1 LPT, 1 SIM card slot, and 6 COM interfaces supporting various protocols make it excel in industrial automation, the Internet of Things, intelligent transportation, and other fields, serving as a reliable choice for industrial-grade applications.
Product Description
Product No.: W680VM VER:1.0
Processor: Support LGA1700 12th/13th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 CPU
Chipset: Intel® W680
RAM: 4x DDR4 DIMM memory slots, support dual-channel up to 3200MHz memory, up to 128GB, support ECC memory
Display: Integrated Intel®HD Graphics, support DirectX12.1,OpenGL4.5, support 4K display
1x VGA , support the highest resolution of 1920X1200@60Hz
2x HDMI1.4 , support the highest resolution of 4096x2160 @24Hz
Ethernet: 2x Intel ®I226V Gigabit Ethernet chip, supports Wake on LAN/PXE function
Storage: 4x SATA3.0 hard disk interface, the transfer speed up to 6Gbps
1x MSATA slot, support Intel protocol SSD
1x M.2 slot, support M.2 Key M 2280 NVME PCIE X4/SATA, adaptive SSD
Audio:Onboard ALC897 7.1+2 vocal channels high fidelity audio controller,supports MIC/Line-out and Line-in
Expansion slot:
2x PCIE3.0 X16
1x PCIE 3.0 X1
3x PCIE 3.0 X4
1x PCI
1x M.2 slot，support M.2 Key B 2242/2252 4G/5G module

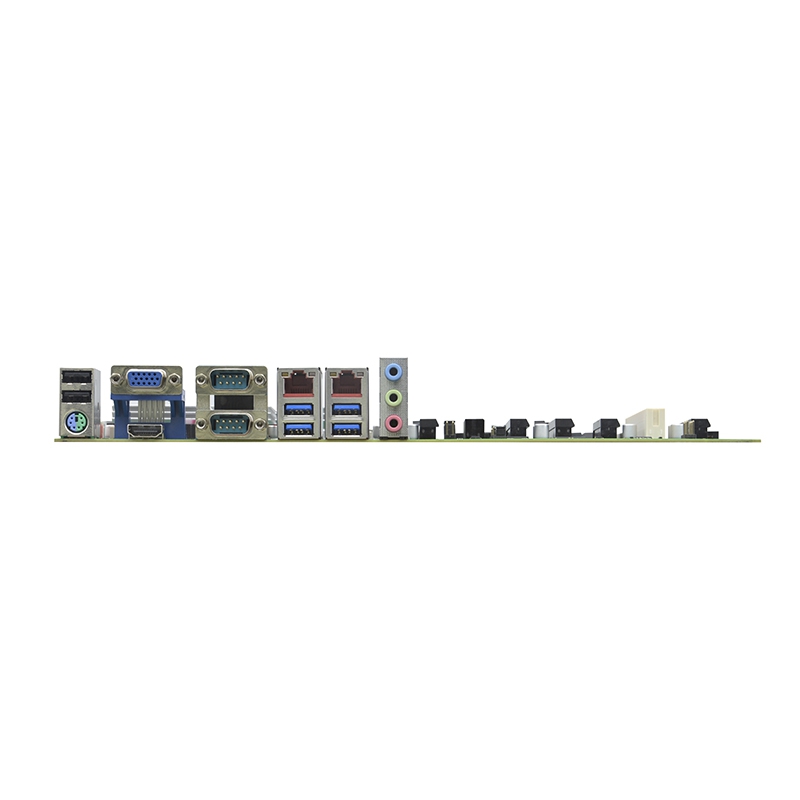

Rear I/O interfaces:
1x PS/2 interface (expandable keyboard and mouse)
1x DB15 VGA
1x HDMI1.4
2x DB9 RS232 serial port, supports the 9th pin charged function, support RS485/422
2x USB2.0
4x USB3.0
2x RJ-45
1x Three-layer audio interface, support Line-out, MICK, Line-in
Inner I/O interfaces:
2x USB2.0, 2x 5pin
1x Vertical USB2.0 interface
1x TYPE-E USB3.0
2x USB3.0, 2x 10pin
1x Front panel audio interface (2x 5pin)
1x Front panel function button and indicator interface (2x 5pin)
1x 24pin ATX power socket, 2x 8pin ATX power socket
1x PS/2 keyboard and mouse interface, 1x 6pin
1x JVGA interface, 1x 12pin (the same signal as DB15)
1x JHDMI, 2x 8pin
1x TPM, 2x 6pin
4x RS232，2x 5pin
1x SIM
1x LPT, 2x 13pin
Fan interfaces: 1x 4pin CPU fan connector; 4x 4pin system fan connector
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Operating system: Windows 10/Windows 11/Linux
Power type: Powered by ATX 24Pin and 8pin power supply
Operating temperature: 0℃～60℃
Storage temperature: -20℃~70℃
Working humidity: Relative humidity 5%-95%, no condensation
Size: 305mm x 245mm
