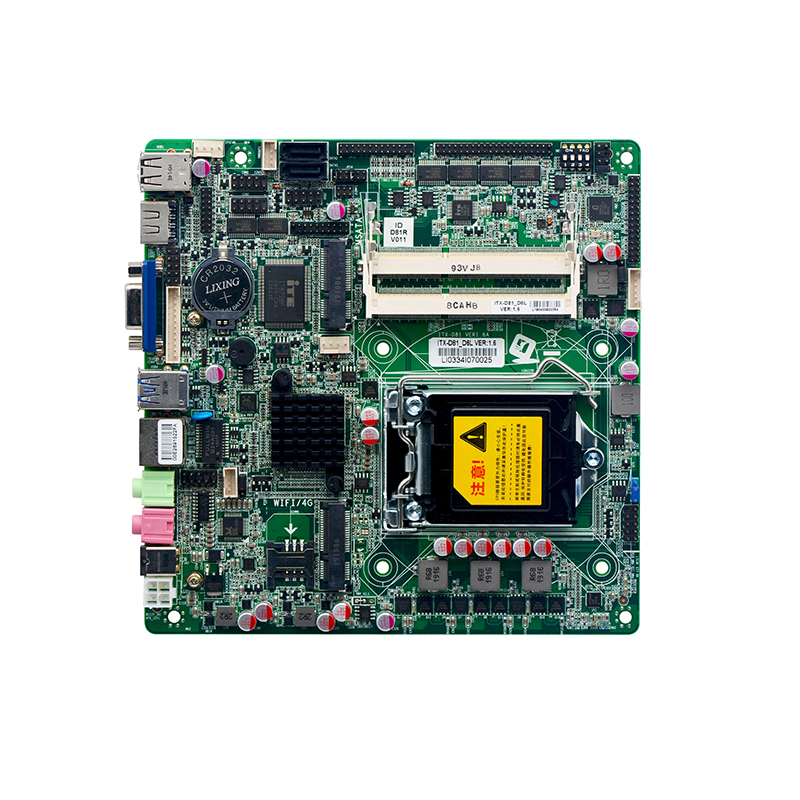

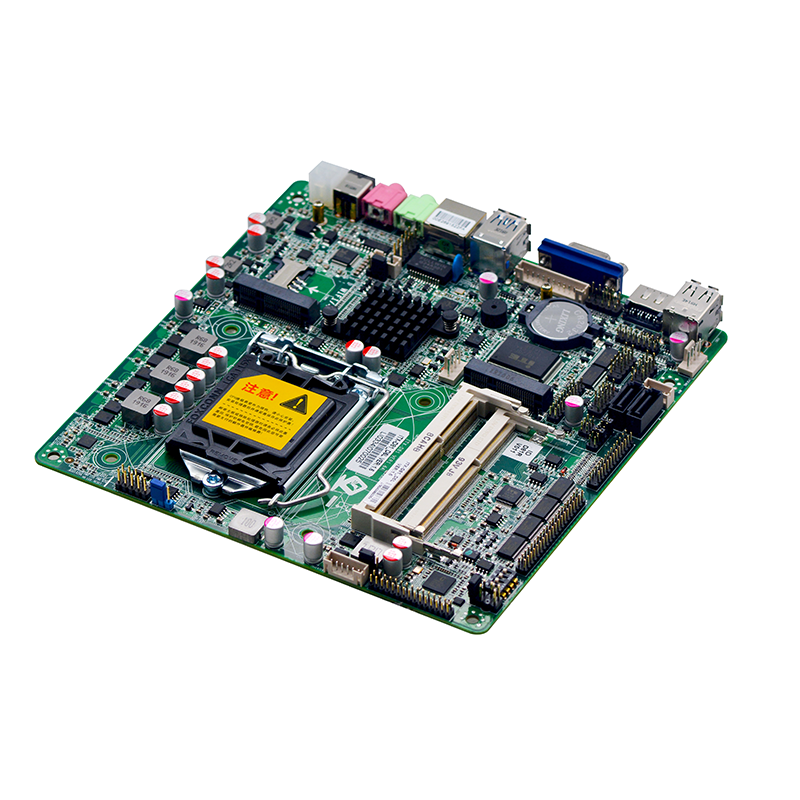

Product Description
Mode No.: ITX-D81_D6L VER:1.6
Processor: Support LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 32nm/22nm processor
Chipset: Adopt Intel® H81 high speed chipset
Memory: 2x DDR3 SODIMM,support dual channel1333/1600MHz memory,up to 16GB
Display: Integrated Intel® HD
1x VGA，2x HDMI，1x support dual channels 24bit LVDS
Support single display, double display, double extension..
Network: 1x RTL8111F Gigabit Ethernet , supports wake on LAN/PXE.
Storage: 1x SATA3.0 HDD interface and 1x SATA2.0 HDD interface
Audio: Onboard ALC662 6-channel high fidelity audio controller, support MIC /Line-out,amplifier
Amplifier proposed using3Ω2W speakers
Expansion slot: 1x Mini-PCIE slot,support WIFI、4G module,
1x MSATA slot, support SSD,the transfer rate up to 6Gbps.

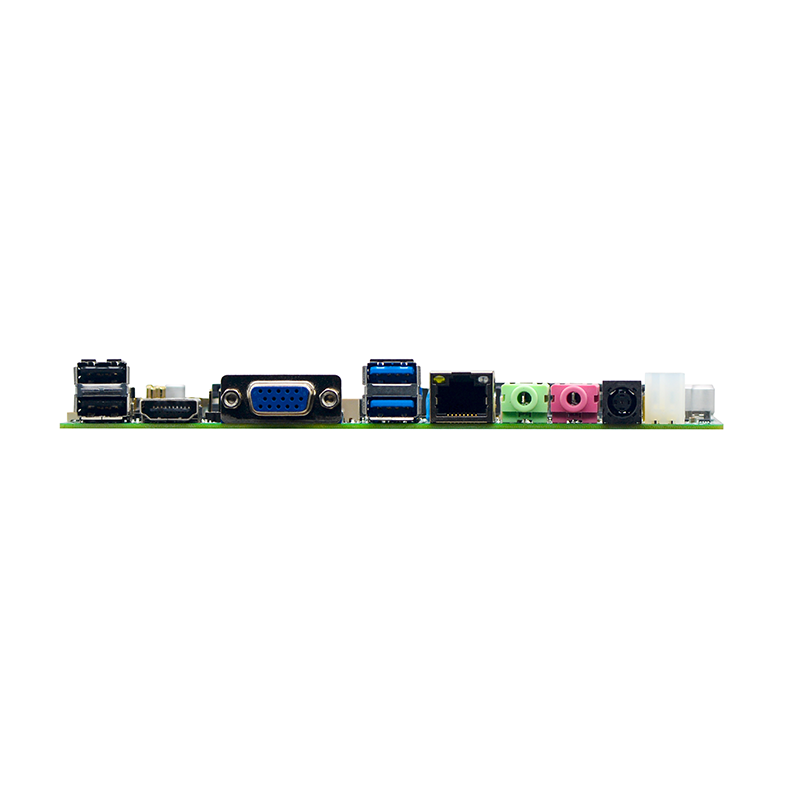

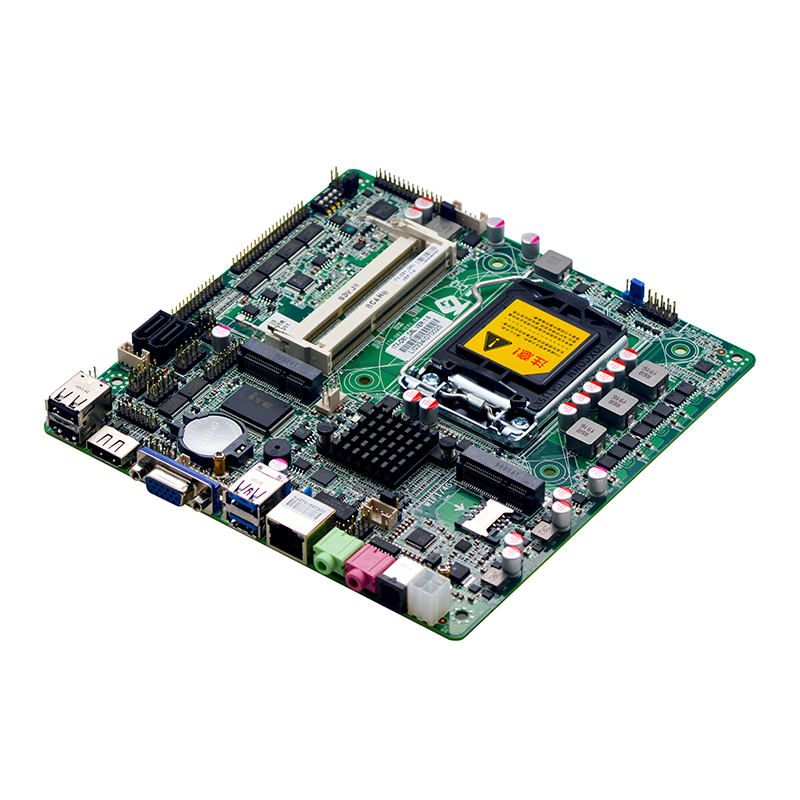

Rear I/O:
2x USB 2.0
2x USB 3.0
1x VGA DB15
1x HDMI
1x RJ-45 Gigabit Ethernet connector
1x Line out(Green)
1x Mic (Red)
1x 12～19V DC power input
Internal I/O:
1x LVDS, 2x 15pin
1x JVGA, 1x 12pin (same signal with VGA)
1x JHDMI 2x 8pin, support dual HDMI display
6x RS232 serial ports, COM3 support RS422/RS485 mode
1x LPT print port, 2x 13pin
2x USB 2.0, 2x 5pin
2x USB 3.0, 2x 10pin (B85/H87/Q87/Q85/Z87 chipset can support)
1x front audio port, 2x 5pin
1x power amplifier, 1x 4pin
1x front panel function buttons and indicator connector, 2x 5pin
1x ATX, 4pin power interface,support 12V～19V power input/output (According to the output voltage of the power supply)
1x LVDS Backlight power supply connector 1x 6pin
1x HDD power supply port 1x 4pin
FAN interface: 1x 4pin CPU Intelligent fan connector, 1x 3pin system fan connector
GPIO: support 4 way input/output/GPIO
BIOS: 32Mb Flash ROM
Watch dog: Support hardware reset function (L256, 0~255 seconds)
OS: Windows 7/Windows 10/Linux
Power input: Adapt DC 12V～19V power input
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95% (relative humidity; non-condensing)

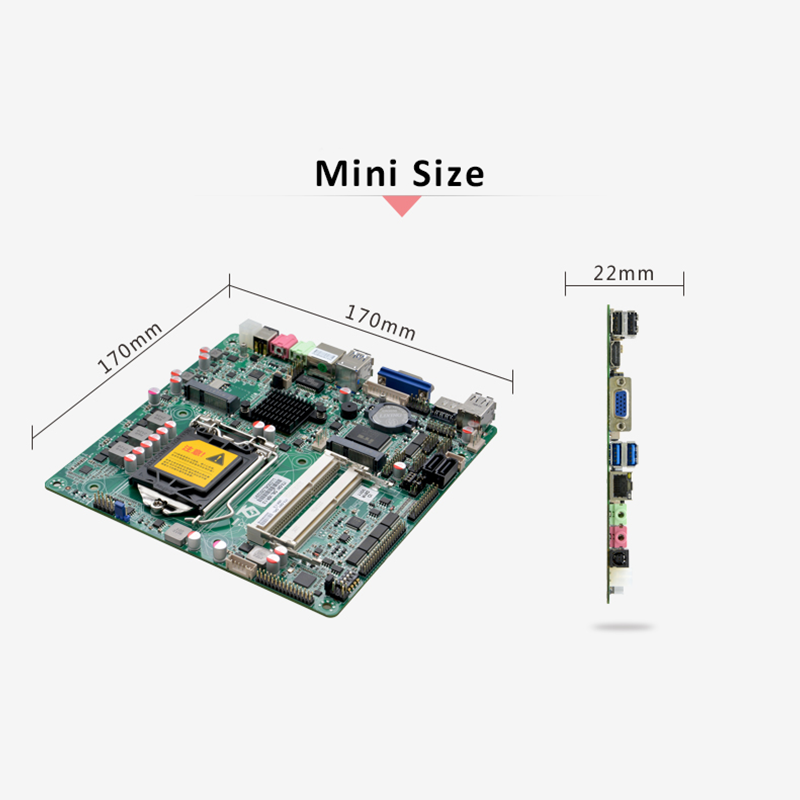

Dimension: 170mm x 170mm
