Products

New Products

4 Lan N97 DDR4 Fanless Mini Firewall

♦Model No.:C2120Z-L4 V2.0(N97)

♦All aluminum alloy, fanless cooling structure

♦Intel®Alder Lake-N N97/Turbo 3.6GHz quad-core CPU

♦1x DDR4 RAM slot, up to 16GB

♦1x SATA + 1x M.2

♦4x RJ45 Lan

♦1x HDMI1.4

♦1x Mini-PCIe for 4G/WIFI

♦5x USB3.0, 1x USB2.0

♦DC_12V Power Input
8 Lan LGA1151 DDR4 SFP Pfsense Firewall System Security

♦ Model No.:R320E-L8 V1.0(R270)

♦ Intel®LGA1151 6th/7th/8th/9th i3/i5/i7 series processor

♦ Intel®Q270/Q250 High speed chipset

♦ 2*DDR4 SODIMM 2400MHz ,max up to 64GB

♦ 8*Intel I210 Gigabit Ethernet port，4 or 2 SFP+ ports can be extended

♦ 2*USB3.0, 1*VGA

♦ 4 or 2 light ports can be extended

♦ Support two groups of BYPASS(Optional)

♦ Standard with 1U AC220V ATX power supply 250W

♦ 1U standard case, high-quality galvanized steel plate / Support Windows&Linux OS
4 Lan N97 DDR4 Machine Vision Motherboard

♦Model No.:ITX-VL305 VER:1.0(N97)

♦Based on Inte Alder Lake-N SOC platform

♦Integrated Intel®Alder Lake-N N97 3.6GHz quad-core processor

♦Intel® UHD Graphics; VGA+HDMI+LVDS/1* EDP for display

♦1*DDR4 2133MHz SO-DIMM Socket, up to 16GB

♦4* Intel WGI210AT Gigabit Ethernet/ 8*USB/ 6*COM /1*SIM/ 1* TPM

♦1*SATA3.0/ 1* M.2 SSD/ 1* Mini-PCIE (Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Support DC_12V Input
RK3576 ARM Motherboard

♦Model No.:CX3576-A V1.0 (4G+128G) VER:4G

♦WIFI use FCS960K,support 2.4G/5G dual-band,Bluetooth5.3

♦Bottom plate thread DC2.0*1（12V-36V input)

♦RJ45*1、HDMI*1、USB3.0*1、USB2.0*1、USB2.0 socket*4、TF*1、Audio 3.5mm*1

♦Size:157*100mm

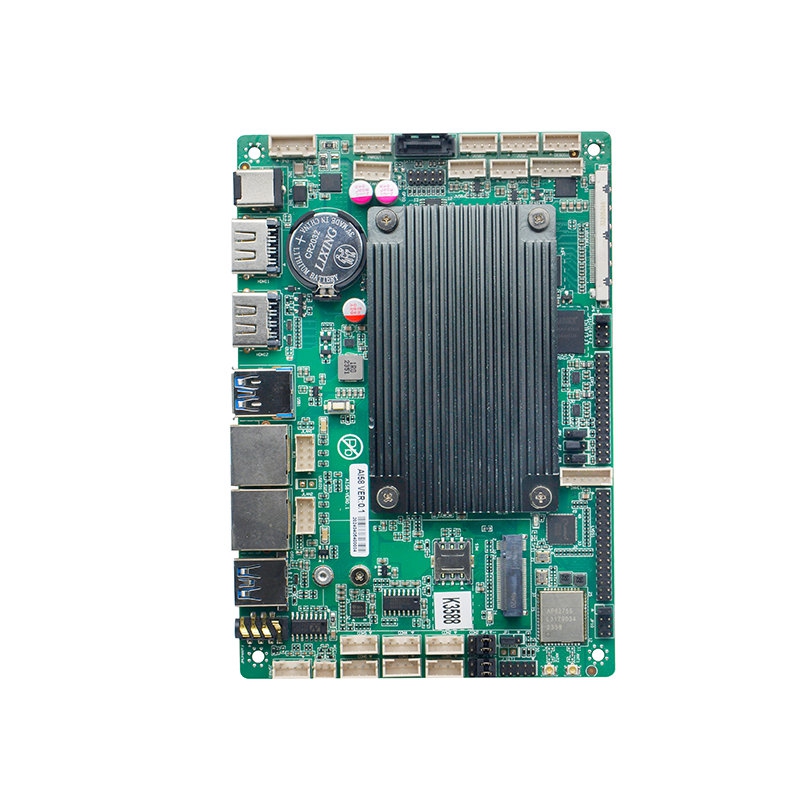

RK3588 Dual CPU ARM Motherboard

♦Model No: AI58J VER:0.1

♦Integrated Rockchip RK3588 Cortex-A76/2.4GHz and Cortex-A55/1.7GHz quad-core Processors

♦1*DDR4 RAM slot,up to 8GB

♦1*SATA3.0 , 1*TF card ,1*eMMC (up to 64GB)

♦2*RJ45 GbE ports

♦1*HDMI-OUT,1*HDMI-IN,1*EDP,1*LVDS,V-BY-ONE

♦1*M.2,support 4G/5G module

♦6*USB

♦DC_12V Power Input

Read More Make an inquiry

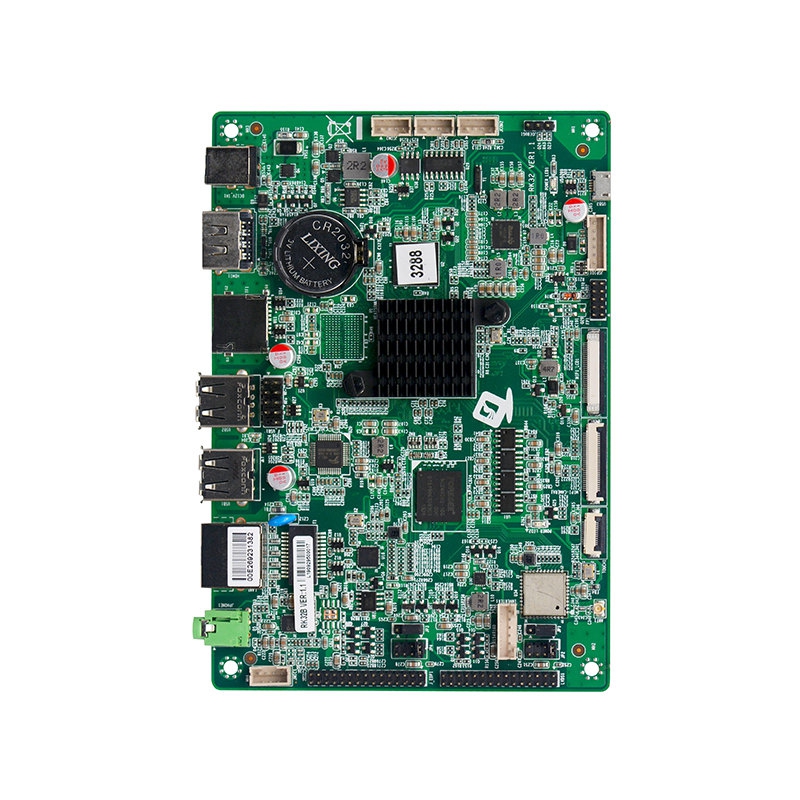

RK3288 ARM Motherboard

♦Model No.: RK32B VER:1.1

♦Based on Rockchip RK3288 SOC platform

♦Integrated Quad-core Cortex-A17 up to 1.8GHz processor

♦ARM Mali-T764 GPU ; HDMI + LVDS + eDP for Display

♦Onboard LPDDR3 2GB memory.

♦Network: 1* RTL8211F Gigabit Ethernet ; 1*WIFI/ bluetooth module

♦Storage: 1*eMMC 16GB ; 1*TF card socket, up to 64G

♦2* MIPI ; 2*RS232 ; 1*RS485 ; 1*CTP ; 5*USB2.0 ; 1*GPIO

♦1*DC_12V Input ; OS: Android 7.1/Ubuntu 16.04/Linux(Qt+eglfs)

Read More Make an inquiry

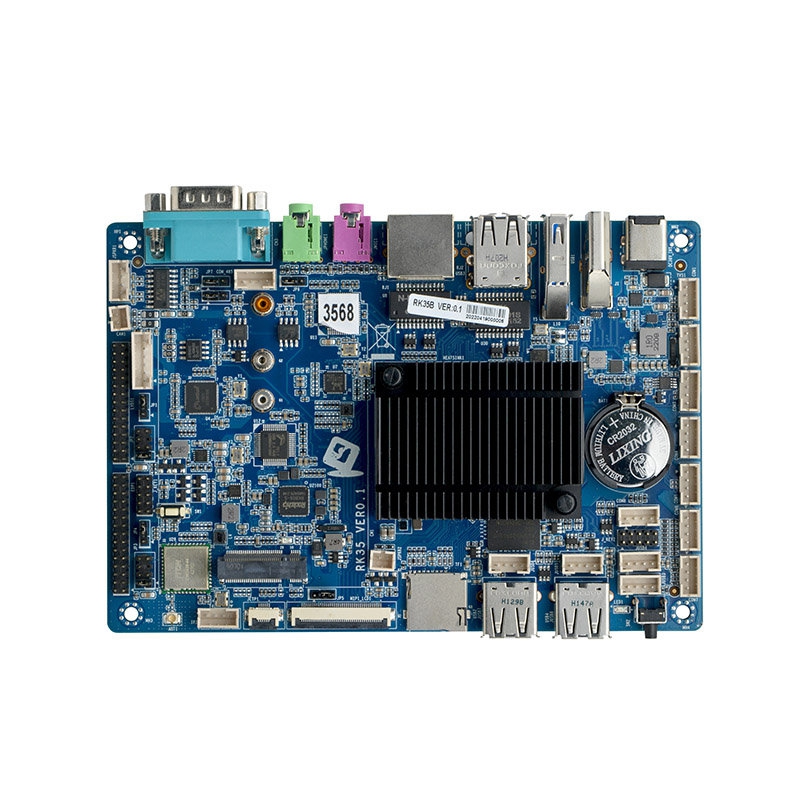

RK3568 ARM Motherboard

♦Model No.: RK35B VER:0.1

♦Based on Rockchip RK3568 SOC platform

♦Integrated Quad-core Cortex-A55 up to 2.0GHz processor

♦ARM Mali-G52 GPU ; HDMI + LVDS + eDP + MIPI for Display

♦Onboard LPDDR4 2GB memory.

♦Network: 1* RTL8211F Gigabit Ethernet ; 1*WIFI/ bluetooth module

♦Storage: 1*eMMC 16GB ; 1*TF card socket, up to 64G; 1*M.2 Key-b(4G/5G)

♦8*RS232 / 485 ; 1*CTP ; 9*USB ; 1*SPK; 1*TTL; 1*CAN; 1*IrDA

♦1*DC_12V Input ; OS: Android 11/Ubuntu 16.04/Linux(Qt+eglfs)

Read More Make an inquiry

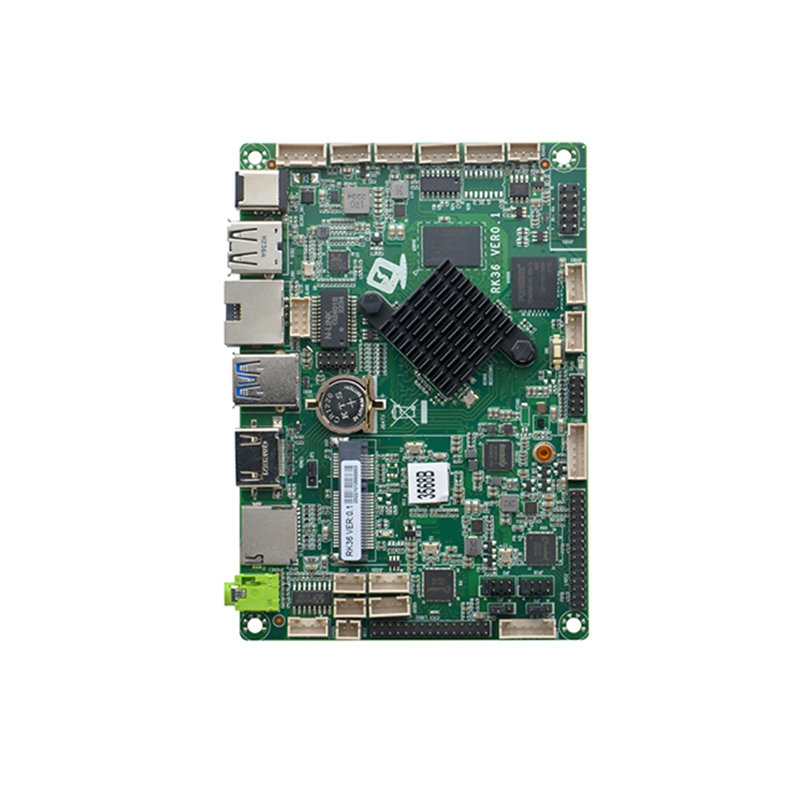

RK3568 ARM Motherboard

♦Model No.: RK36B VER:1.0

♦Rockchip RK3568B2 Cortex-A55/2.0GHz quad-core Processors

♦1* DDR4 RAM slot(1GB/2GB/8GB optional）

♦1* eMMC + 1* TF card

♦1* RJ45 GbE ports

♦1* HDMI,2* LVDS

♦1* Mini-PCIe

♦6* USB

♦DC_12V Power Input

Read More Make an inquiry

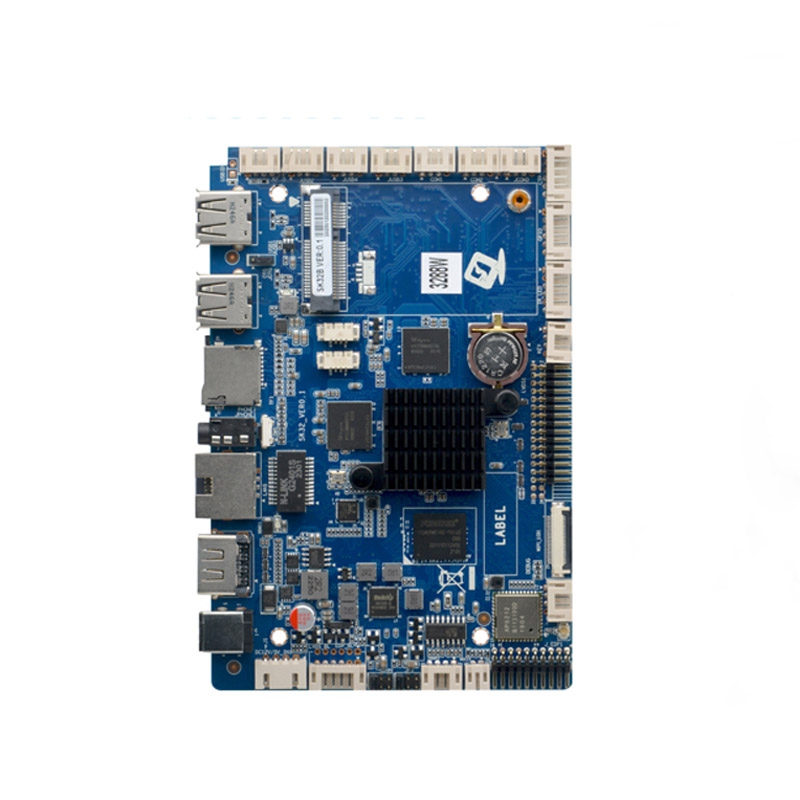

RK3288 ARM Motherboard

♦Model No.: SK32B VER:1.0

♦Based on Rockchip RK3288 SOC platform

♦Integrated Quad-core Cortex-A17 up to 1.8GHz processor

♦ARM Mali-T764 GPU ; HDMI_in + HDMI_out + LVDS + eDP for Display

♦Onboard LPDDR4 2GB memory.(4GB optional) ; 2KB EEPROM

♦1* RJ45 Eth ; 1*WIFI/BT ; 1*GPS(optional) ; 1*mini-pcie(4G module)

♦1*eMMC 16GB(32/64G optional) ; 1*TF socket, up to 64G

♦2*MIPI ; 1*CTP ; 9*USB2.0 ; 1*SPK ; 3*TTL ; 1*I2C ; 1*SIM slot

♦1*DC_12V Input ; OS: Android 7.1/Ubuntu 16.04/Linux(Qt+eglfs)

Read More Make an inquiry
RK3288 ARM Motherboard

♦Model No.: TS32B VER:1.0

♦Based on Rockchip RK3288 SOC platform

♦Integrated Quad-core Cortex-A17 up to 1.8GHz processor

♦ARM Mali-T764 GPU ; MIPI + eDP for Display (HDMI optional)

♦Onboard LPDDR3 2GB memory.

♦Network: 1* RTL8211F Gigabit Ethernet ; 1*WIFI/ bluetooth module

♦Storage: 1*eMMC 16GB ; 1*TF card socket, up to 64G

♦3*TTL(COM) ; 1*I2C ; 1*CTP ; 1*SPI ; 1*KEY ; 1*SPK ; 5*USB ; 1*GPIO

♦1*DC_12V Input ; OS: Android 7.1/Ubuntu 16.04/Linux(Qt+eglfs)

Read More Make an inquiry
RK3288 Cortex-A17 core and bottom ARM motherboard

♦Model No.: CK32B(CK32-V ) VER:1.0

♦Onboard Rockchip RK3288 Cortex-A17/1.8GHz quad-core Processor

♦Onboard LP DDR3 2G RAM ; up to 4G

♦Onboard eMMC 16G memory (up to 32GB);1x TF card slot(up to 64GB)

♦1x RJ45 GbE ports ; 6x USB2.0

♦1x VGA, 1x HDMI, 1x LVDS, 1x EDP, 1x MIPI

♦1x Mini-PCIE,support 4G module

♦Built-in WIFI&BT module

♦3x COM;1x Cash drawer;1x CTP;1x SIM slot

♦DC_12V Power Input

Read More Make an inquiry
RK3399 Cortex-A72 and Cortex-A53 core and bottom ARM motherboard

♦Model No.: CK33H(CK33-H2) VER:1.0

♦Onboard Rockchip RK3399 Cortex-A72/1.8GHz dual-core and Cortex-A53/1.4GHz Quad-core Processor

♦Onboard LP DDR4 4G RAM

♦Onboard eMMC 32G memory (up to 128GB);1*TF card slot(up to 64GB)

♦2*RJ45 GbE ports ; 4*USB2.0,4*USB3.0

♦2*HDMI,1*EDP

♦1*M.2,support M.2 B-KEY 2242 /2252 4G/5G module

♦Built-in WIFI&BT module

♦4*COM;1*SPI;1*I2C

♦DC_9~36V Power Input

Read More Make an inquiry
RK3568 Cortex-A55 core and bottom ARM motherboard

♦Model No.: CK35H(CK35-L5) VER:1.0

♦Onboard Rockchip RK3568B2 Cortex-A55/2.0GHz Quad-core Processor

♦Onboard LP DDR4 4G RAM

♦Onboard eMMC 32G memory (up to 128GB);1*TF card slot(up to 64GB)

♦1*WAN, 4*GbE ports ; 5*USB2.0,1*USB3.0

♦1*HDMI

♦1*Mini-PCIE,support 5G module;1*SATA

♦Built-in WIFI&BT module

♦4*COM;1*SIM/TF;1*CONSOLE

♦2*12PIN Phoenix terminal

♦DC_12V Power Input

Read More Make an inquiry
RK3399 Cortex-A72 and Cortex-A53 core and bottom ARM motherboard

♦Model No.:CK33H(CK33-HL) VER:1.0

♦Onboard Rockchip RK3399 Cortex-A72/1.8GHz dual-core and Cortex-A53/1.4GHz Quad-core Processor

♦Onboard LP DDR4 4G RAM

♦Onboard eMMC 32G memory (up to 128GB);1*TF card slot(up to 64GB)

♦2*RJ45 GbE ports ; 4*USB2.0,4*USB3.0

♦1*HDMI,1*EDP,1*LVDS

♦1*M.2,support M.2 B-KEY 2242 /2252 4G/5G module

♦Built-in WIFI&BT module

♦4*COM;1*SPI;1*I2C

♦DC_9~36V Power Input

Read More Make an inquiry
RK3399 Cortex-A72 and Cortex-A53 core and bottom ARM motherboard

♦Model No.: CK33H(CK33-V) VER:1.1

♦Onboard Rockchip RK3399 Cortex-A72/1.8GHz dual-core and Cortex-A53/1.4GHz Quad-core Processor

♦Onboard LP DDR4 4G RAM

♦Onboard eMMC 32G memory (up to 128GB);1*TF card slot(up to 64GB)

♦1*RJ45 GbE ports ; 4*USB2.0,1*USB3.0

♦1*VGA, 1*HDMI, 1*LVDS, 1*EDP , 1*MIPI

♦1*Mini-PCIE,support 4G module

♦Built-in WIFI&BT module

♦4*COM;1*TTL;1*Cash drawer;1*CTP;1*SIM card

♦ DC_12V Power Input

Read More Make an inquiry
RK3568 Cortex-A55 core and bottom ARM motherboard

♦Model No.: CK35H(CK33-HV) VER:1.0

♦Onboard Rockchip RK3568B2 Cortex-A55/2.0GHz Quad-core Processor

♦Onboard LP DDR4 4G RAM

♦Onboard eMMC 32G memory (up to 128GB);1*TF card slot(up to 128GB)

♦2*GbE ports,support WIFI&BT module ; 5*USB2.0,1*USB3.0

♦1*VGA,1*HDMI

♦1*Mini-PCIE,support 3G/4G/5G module

♦4*COM;1*SATA

♦DC_12V Power Input

Read More Make an inquiry
