Product Description

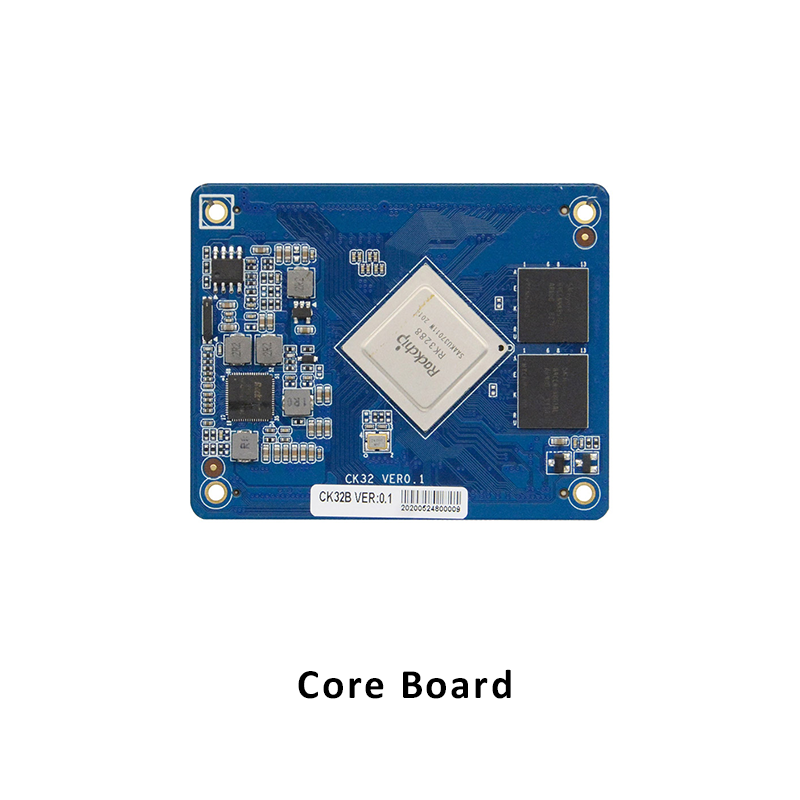

Model No.: CK32B(CK32-V ) VER:1.0
Processor: Onboard Rockchip RK3288 Cortex-A17 1.8GHz quad-core processor
Chipset: Based on RK3288 SOC
Memory: Onboard LP DDR3 2G memory ( 1G/2G optional); up to 4G
Display: Integrated ARM Mali-T764 GPU，supports OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11
1x VGA, 1x HDMI, 1x LVDS, 1x EDP, 1x MIPI
Support dual-screen simultaneous display/dual-screen different display
Network: 1x RTL8211F Gigabit Ethernet
1x WIFI & bluetooth module
Storage: 1x TF card slot, up to 64GB
1x eMMC5.1 memory chip, 16G（8GB/16GB optional); up to 32GB
Audio: Onboard Everest ES8316 Audio chip, supports Line-out,MIC, power amplifier
Supports power amplifier 2Ω5W dual channels
Expansion slots: 1x Mini-PCIE slot, supports 4G LTE module

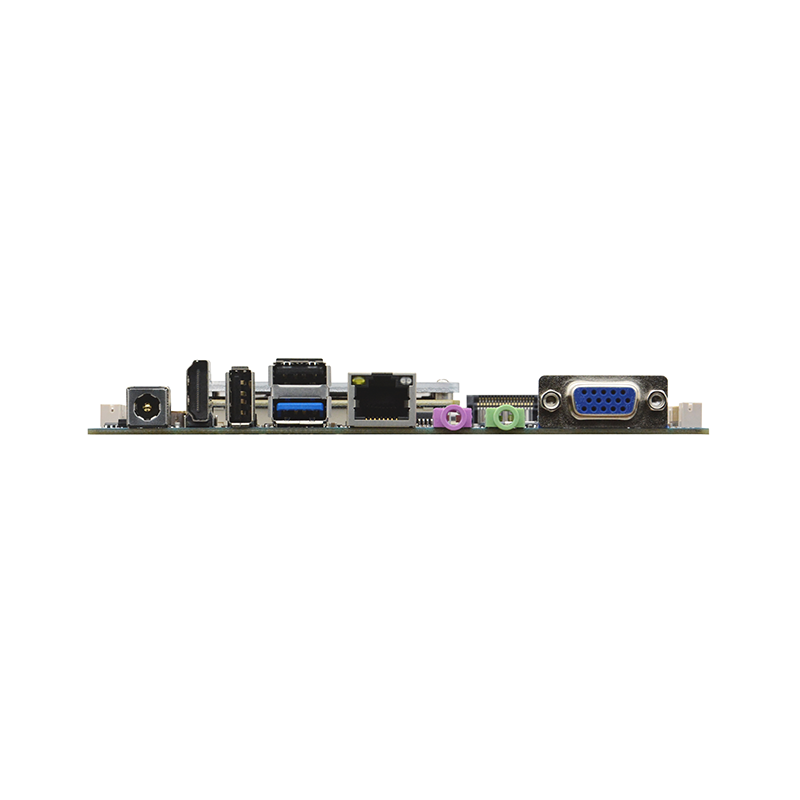

Backplane I/O interface:
3x USB2.0
1x HDMI
1x Gigabit Network Interface
1x Line-out (Green)
1x MICK (Red)
1x VGA
1x DC 12V power interface, supports 12V power input output

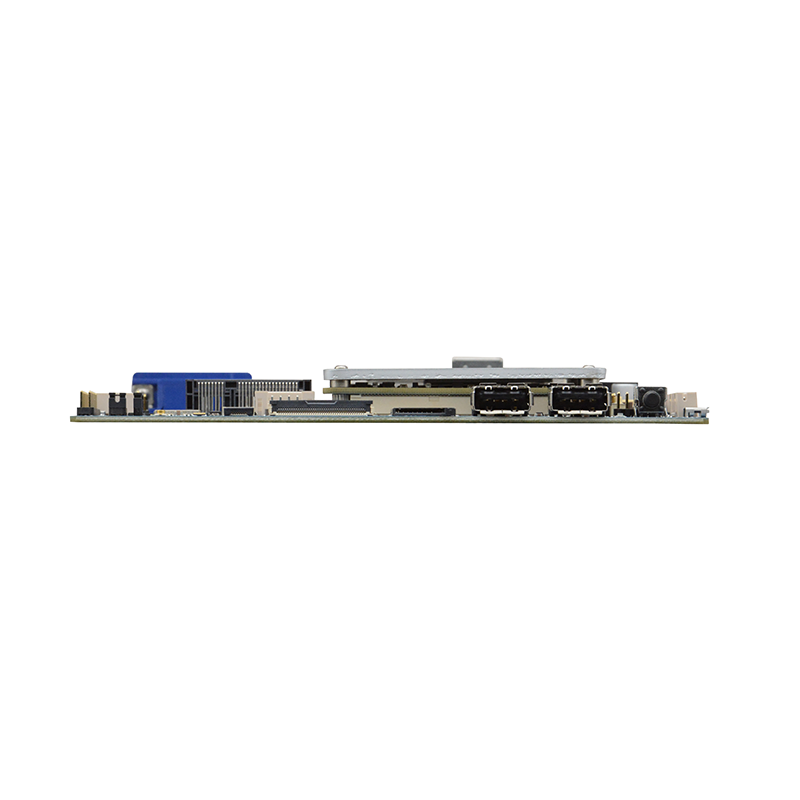

Front panel I/O interface: 1x TF card slot
2x USB2.0
1x MICRO_USB2.0
1x Power switch

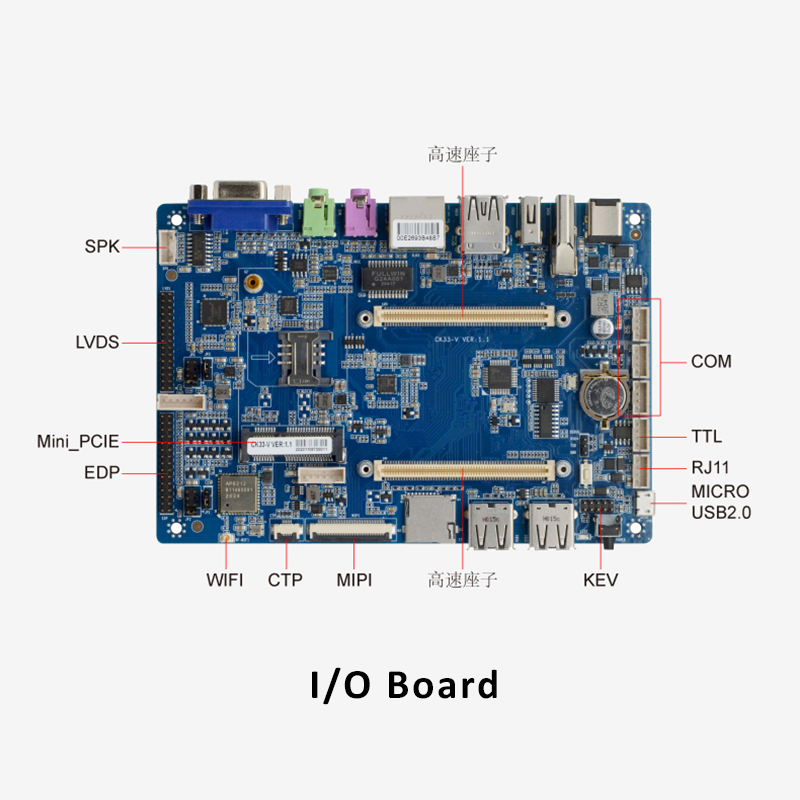

Built in I/O interface: 1x LVDS，2x 15pin，supports dual channels 24BIT
1x EDP，2x 15pin，
2x RS232 COM, 1x 4pin
1x RS485 COM, 1x 4pin
1x Cash drawer interface, 1x 4pin
1x MIPI，FPC Specification, 40pin,used to connect to MIPI screen
1x CTP，FPC Specification, 6pin，for touch screen
1x Screen backlight power supply interface, 1x 6pin
1x Power amplifier interface, 1x 4pin
1x USB2.0, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
1x SIM card slot
Power Type: DC 12V single power input
GPIO: N/A
OS: Android 7.1、Ubuntu18.04、debian9 etc.
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 148mm x 102mm
