Key Specifications
●Memory: 2GB LPDDR4 (optional 4GB), 2KB EEPROM
●Storage: 16GB eMMC (expandable to 32GB/64GB), TF card slot (up to 64GB)
●OS Support: Android 7.1 / Ubuntu 16.04 / Linux (Qt+eglfs)
Display & Multimedia
●Multi-Display: HDMI In/Out (4K), LVDS, eDP, 2×MIPI
●Touch Control: 1×CTP (Capacitive Touch Panel Interface)
●Audio: 1×SPK (Speaker output)
Networking & Connectivity
●Wired: 1×RJ45 Gigabit Ethernet
●Wireless: WiFi/BT, optional GPS
●Cellular: 1×mini-PCIE (4G module support) + 1×SIM slot
I/O Expansion
●USB: 9×USB 2.0 (for peripherals)
●Serial & Bus: 3×TTL, 1×I2C
●Power: 12V DC input
Applications:
Product Description
Model No.: SK32B VER:1.0
Processor: Integrated Quad-core Cortex-A17 up to 1.8GHz processor
Chipset: Based on Rockchip RK3288 SOC
Memory: Onboard LPDDR4 2GB memory (4GB optional)
ROM: 2KB EEPROM (Built_in)
Display: Integrated ARM Mali-T764 GPU, supporting OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11Resolution max:3840 x 2160
1x LVDS, 1x EDP, 1x HDMI_out, 1x HDMI_in
Play Mode: Loop playback / Inter cut / Timed playback
Video Format: AVI(H.264、DIVX、XVID), rm, rmvb, MKV(H.264、DIVX、XVID), WMV, MOV, MP4(H.264、MPEG、 DIVX、XVID), DAT(VCD), VOB(DVD), PMP, MPEG, MPG, FLV(H.263、H.264), ASF, TS, TP, 3GP etc...
Ethernet: 1x RJ45 GbE LAN ( RTL8211F Gigabit Ethernet controller)
WLAN: 1x WIFI&BT module builtin ; 1x Mini-pcie socket ( sopporting 4G module)
GPS: 1x external GPS (optional)
Storage: 1x eMMC 16GB onboard (32G/64G optional)
1x TF card socket, up to 64G
Audio: Support L/R audio dual_channal output, Builtin 2x power amplifier (8R 5W)

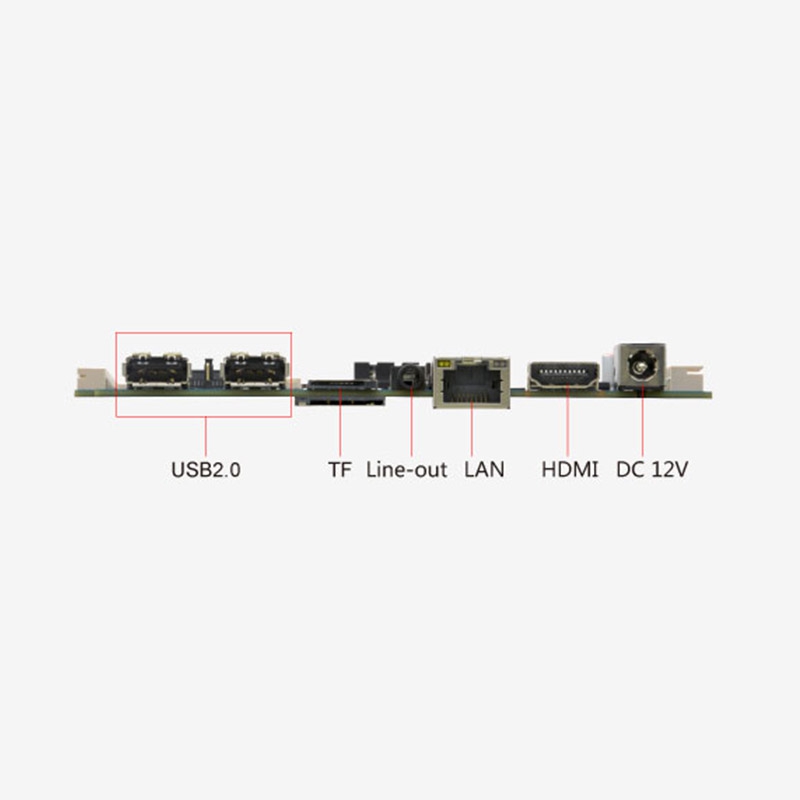

Rear I / O interface:
1x HDMI_out (1080P @60Hz / 4K @30Hz)
2x USB2.0
1x RJ45 LAN (10M/100M/1000M self-adaption)
1x TF card slot
1x Line-out
1x DC_Jack (DC_ 12V input)

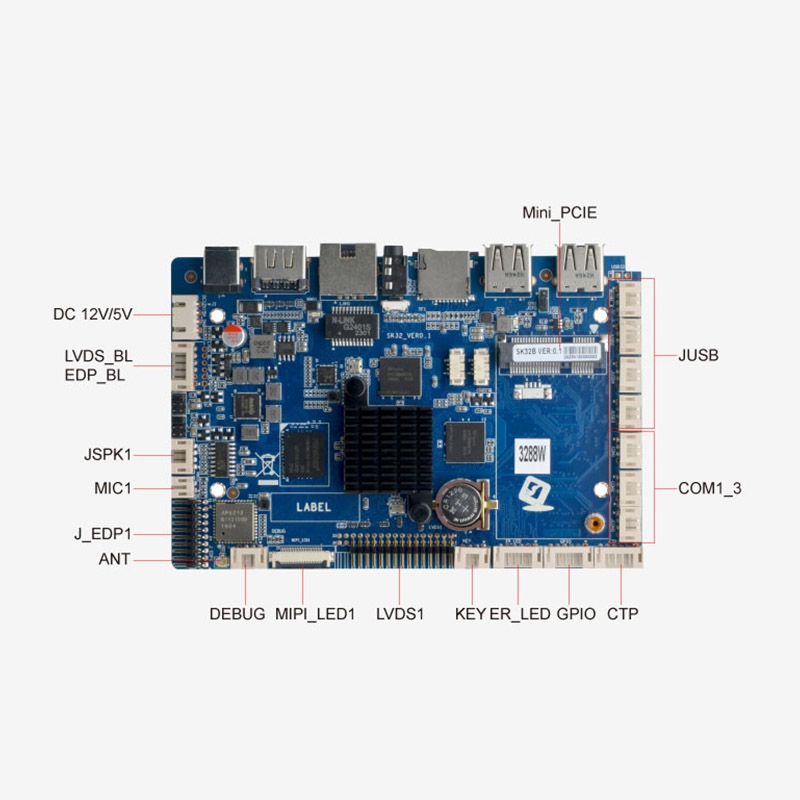

Built in I / O interface:
1x MIPI_in (24pin)
1x EDP (30pin)
1x LVDS (2*15pin ，supports dual channels 24BIT)
1x Upgrade key
5x USB2.0 (PH: 2.0mm) ; 2x USB2.0 (PH: 1.25mm)
1x HDMI_out
1x MIC
1x MIPI camera port (30pin) (FPC port ,1300W camera optional)
1x Audio Power amplifier
1x I2C
3x TTL (RS-232/485 optional)
1x CTP (for touch panel)
1x Front panel function button (4pin)
1x ER_LED (4pin)
1x Serial port adjust socket
RTC: Support
GPIO: Support 4-way input and output GPIO
BIOS: AMI 64Mb Flash ROM
Timed ON/OFF: Support
OS: Android 7.1
OS upgrade: Support SD card / PC upgrade
Power Type: DC_12V
Working temperature: - 10℃~60℃
Storage temperature: -20℃~70℃
Working humidity: 5%-95%(Relative humidity, non condensing)

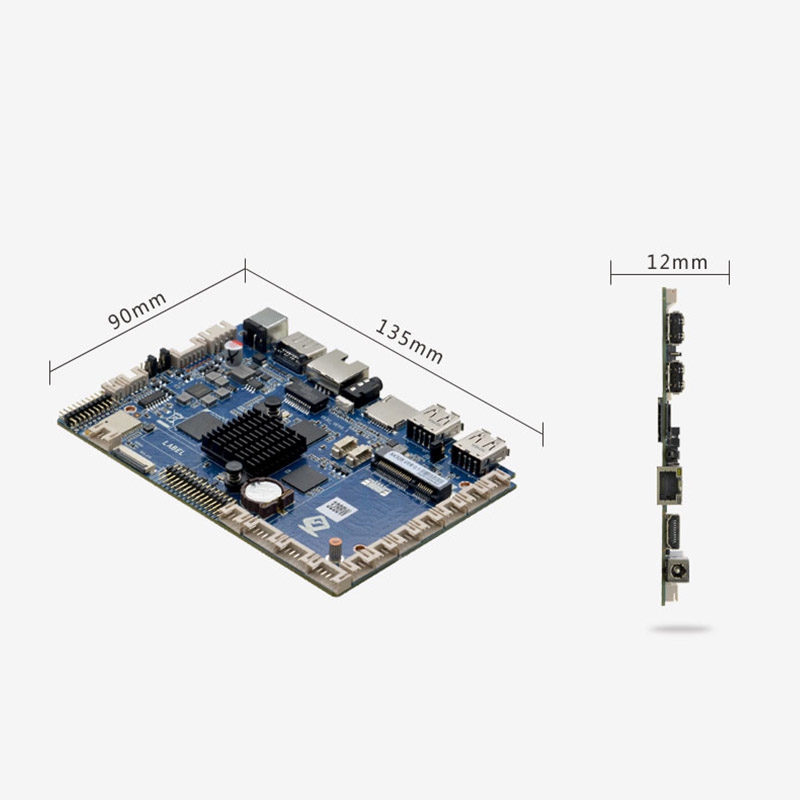

Dimension: 135mm x 90mm

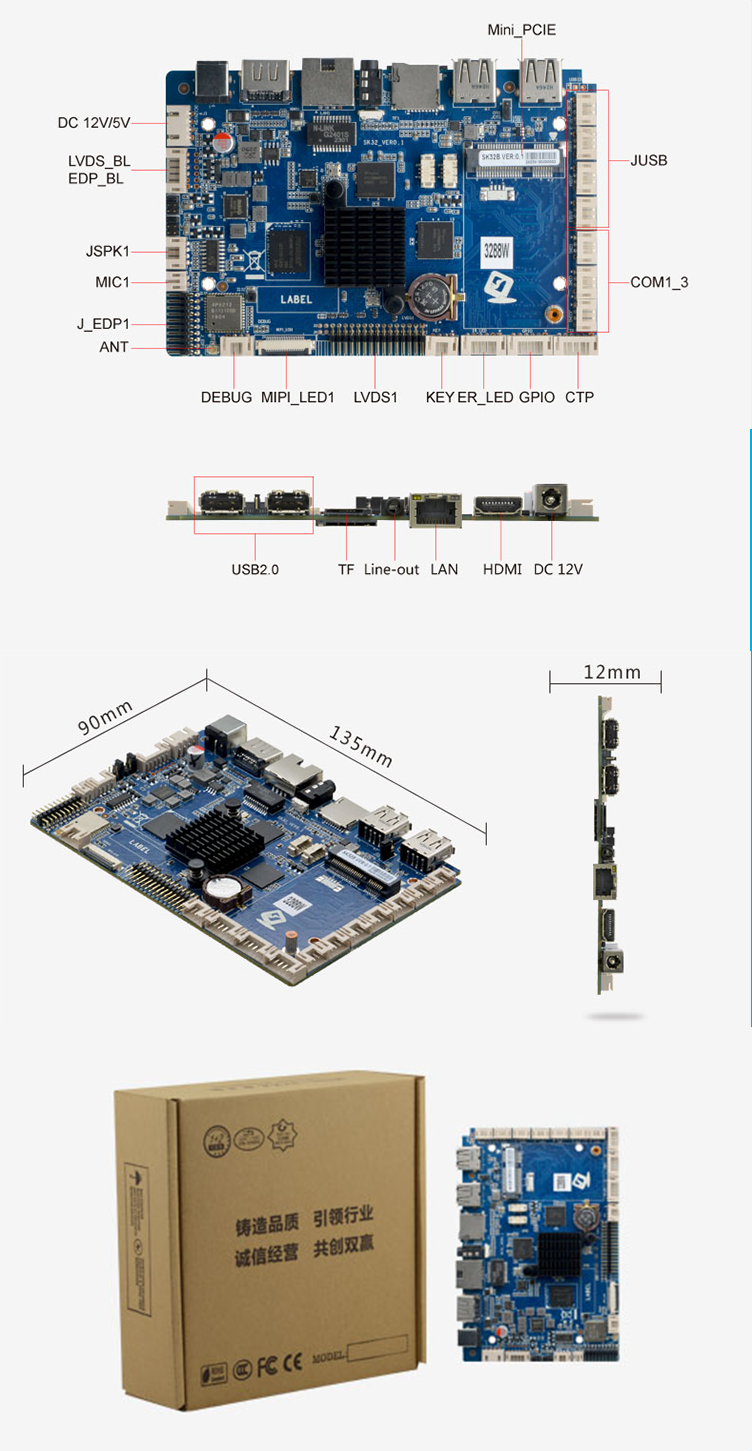

Detail Display
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

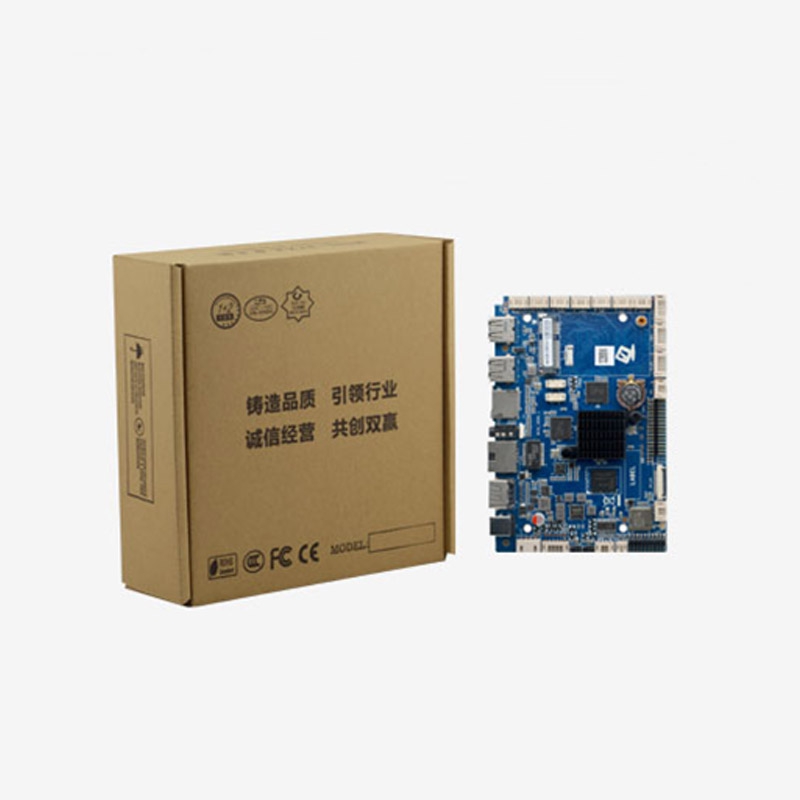

Packing & Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1: Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2: What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
