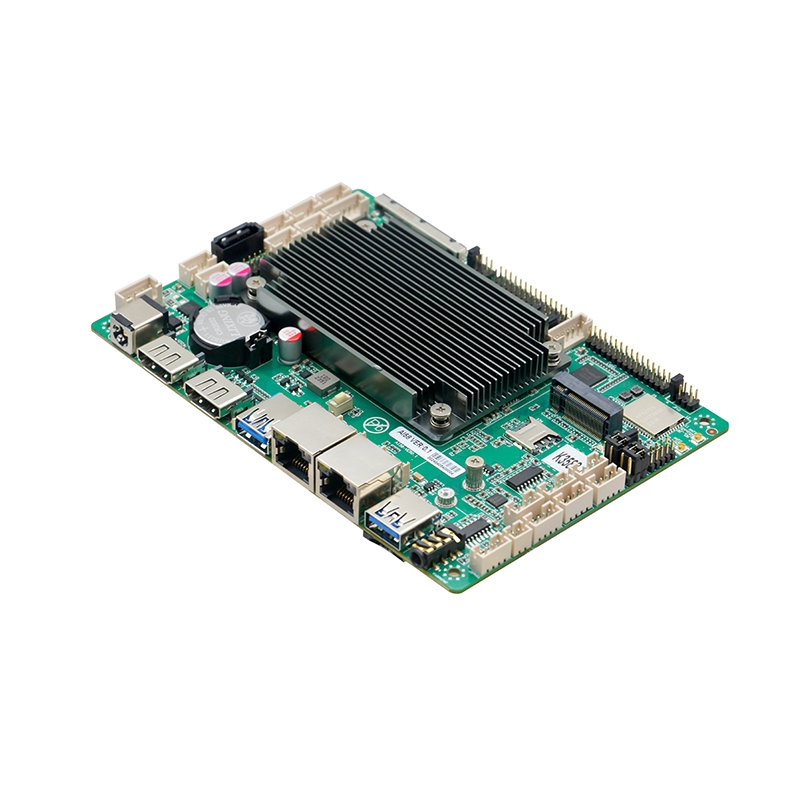

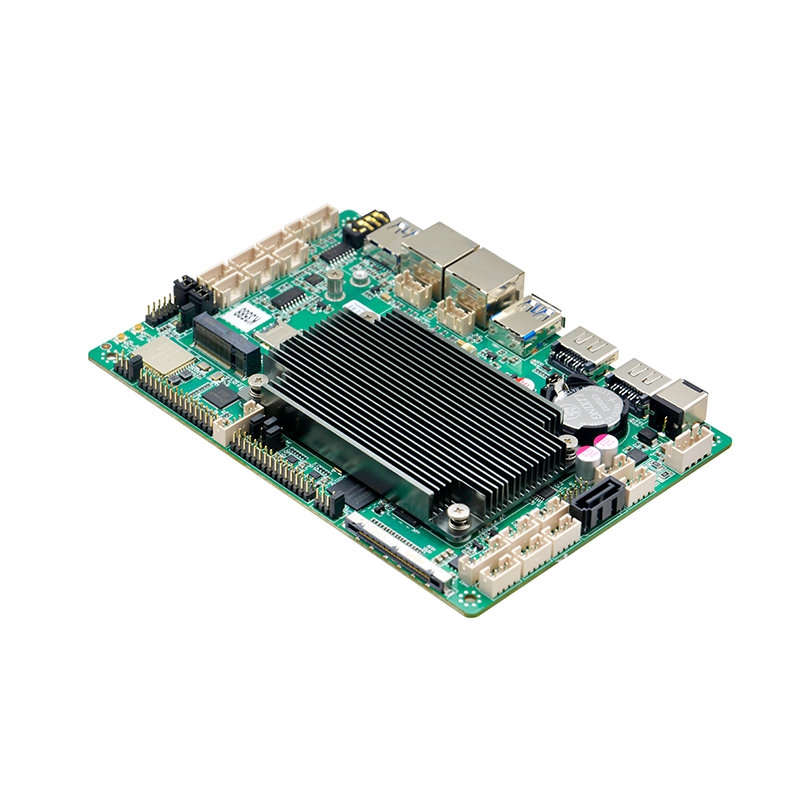

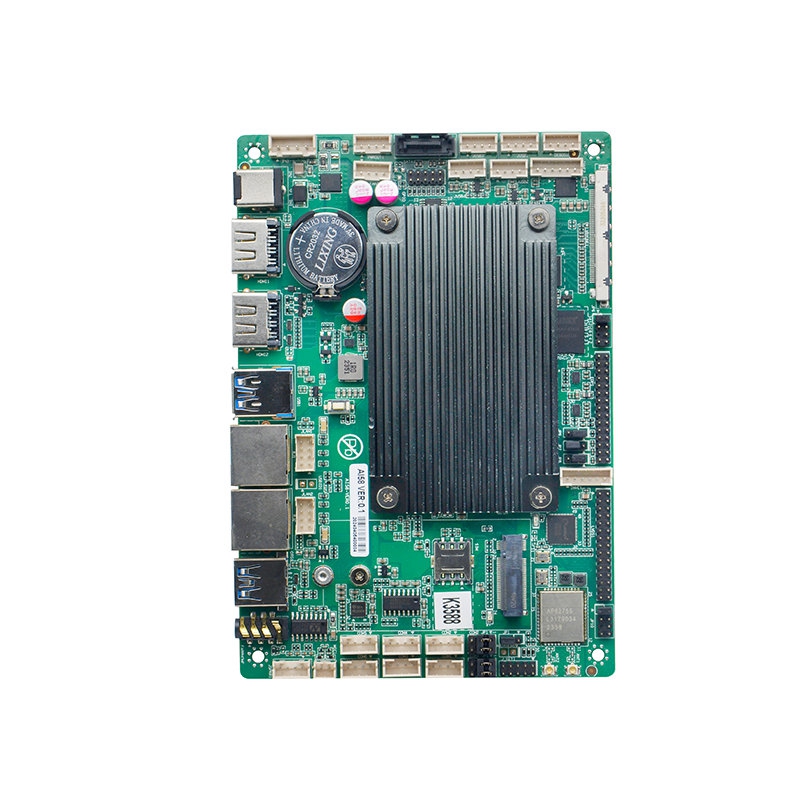

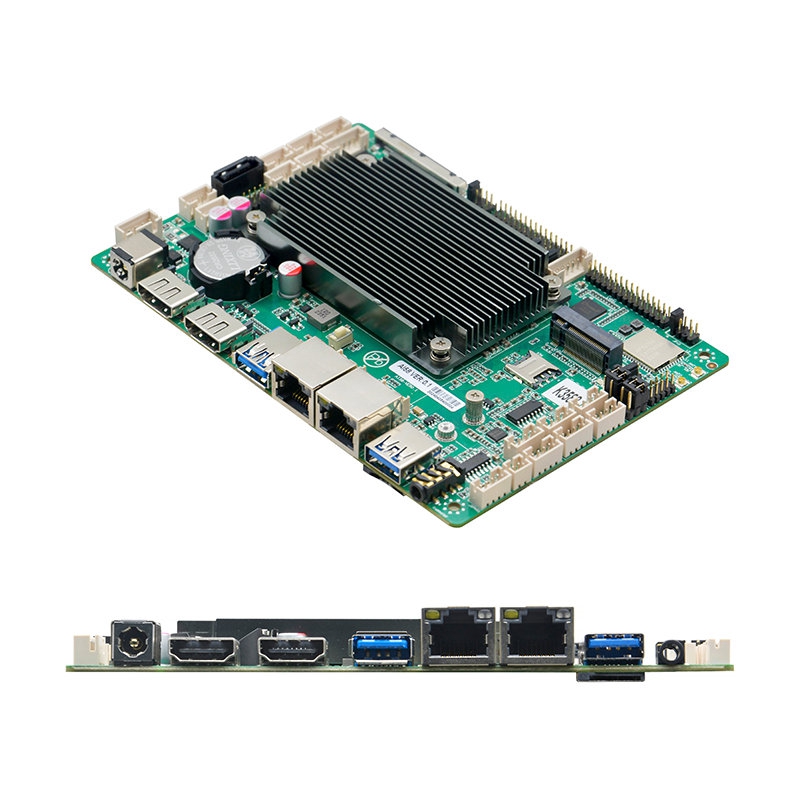

Overview
The AI58J is a high-performance Android mainboard powered by Rockchip RK3588 (4×Cortex-A76@2.4GHz + 4×Cortex-A55@1.7GHz), supporting 8GB DDR4 RAM and multiple storage options (SATA3.0, TF card, eMMC up to 64GB).
Versatile display interfaces: HDMI-IN/OUT, EDP, LVDS, V-BY-ONE, ideal for multi-screen applications. Features dual Gigabit Ethernet and M.2 slot for 4G/5G modules. With 6×USB ports and 12V DC power input, it is suitable for smart terminals, digital signage, industrial control, and more.

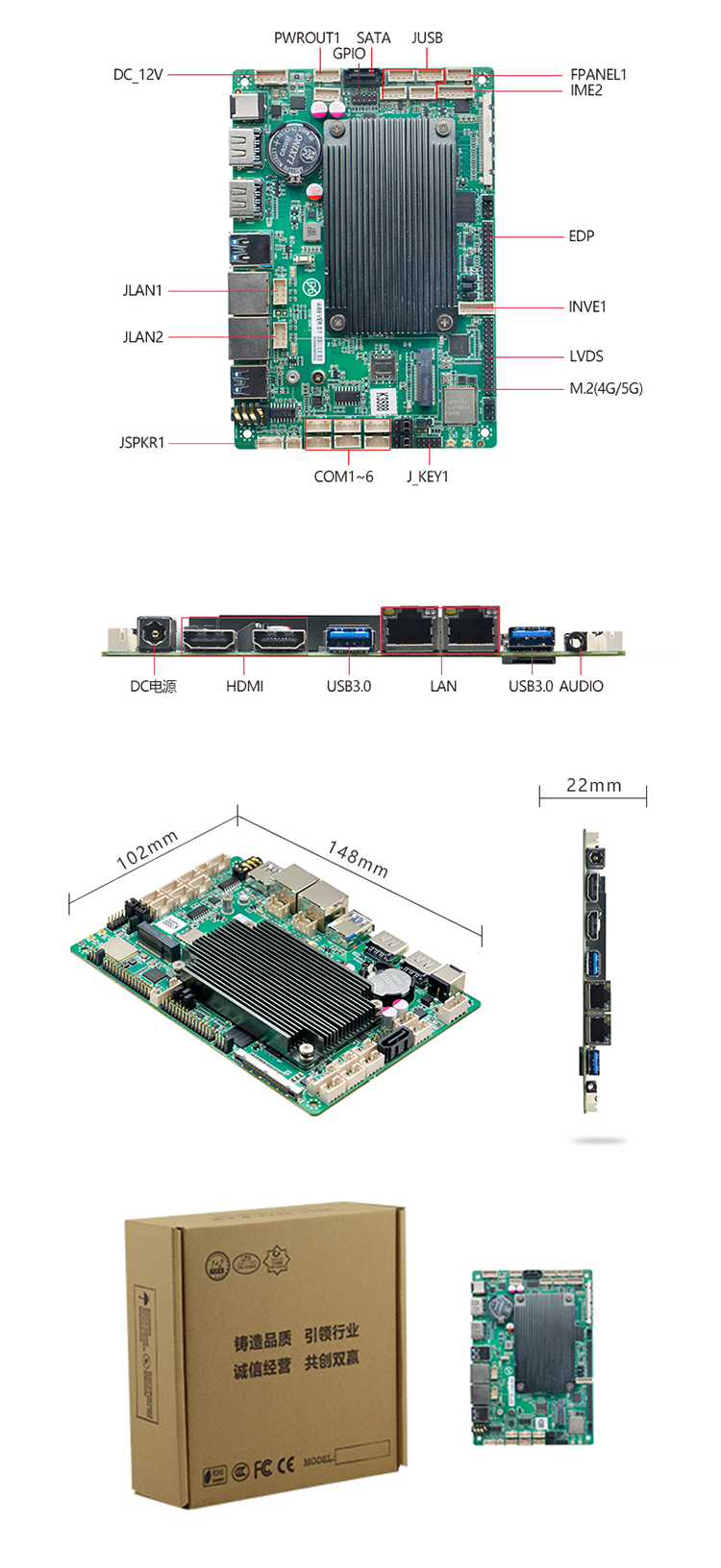

Detail Display
Product Description

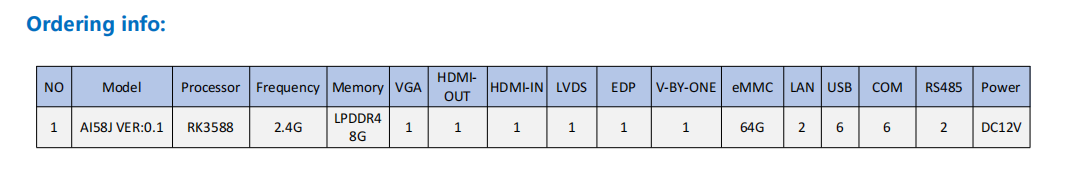

Model No: AI58J VER:0.1
Processor: Integrated RK3588 quad-core Cortex-A76, 2.4GHz and quad-core Cortex-A55, 1.7GHz (8 cores in total) processor, NPU, computing power up to 6 TOPS
Chipset: Based on RK3588 SOC platform
Memory: Onboard LPDDR4 8G memory
Graphics: ARM Mali-G610 MP4 quad-core GPU, supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
1x HDMI-OUT,1x HDMI-IN,1x EDP,1x LVDS,V-BY-ONE
Network: 2x RJ45 Gigabit network card chip
1x WIFI 6 /BT
Storage: 1x 7pin SATA3.0 hard disk interface
1x Support TF card
1x eMMC5.1 memory chip 64G
Audio: Onboard ALC6626 channel high-fidelity audio controller, supports MIC/Line-out. amplifier
Power amplifier 2Ω 5W speaker
Expansion slots: 1x M.2 slot,support 4G/5G module

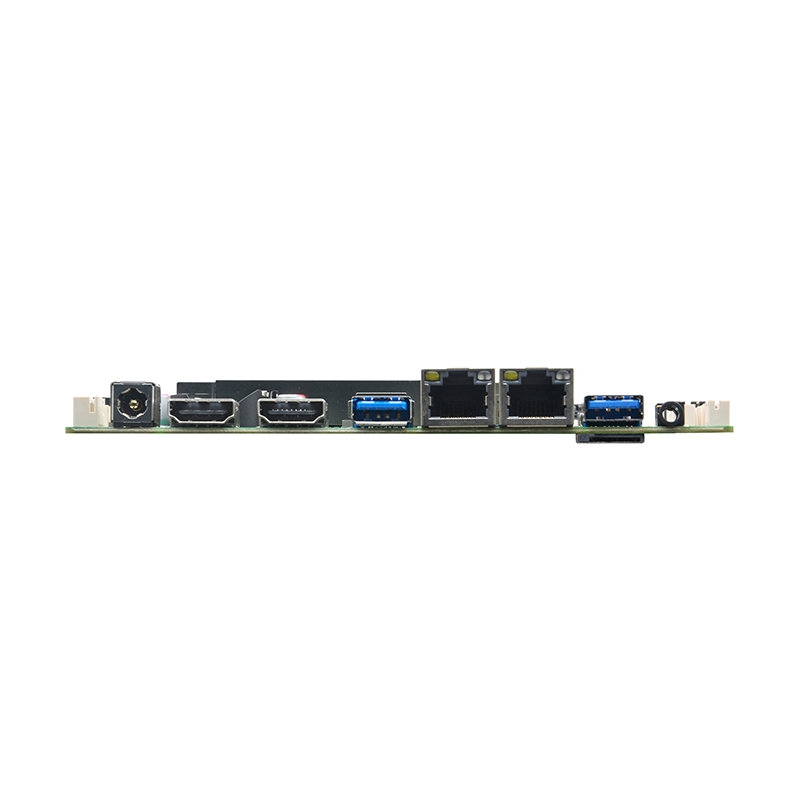

Rear I/O interface: 1x DC 12V power interface
2x USB3.0
1x HDMI-OUT,1x HDMI-IN
2x Gigabit network interface
1x Line-out/MIC 2-in-1（black）
1x TF card slot
Built in I/O interface:
1x DC12V_IN,1x 4pin，PH=2.5mm
1x LVDS,2x 15pin,PH=2.0mm
1x EDP interface, 2x 15pin, PH=2.0mm and V-BY-ONE interface for switching, choose one of the two
1x V-BY-ONE output interface, supports up to 4K @ 60fps output, switch with V-BY-ONE, choose one of the two
1x Screen backlight power supply interface 1x 6pin, PH=2.0mm
4x USB2.0,2x 5pin,PH=2.0mm
1x SATA3.0,7pin
1x Hard disk power supply interface 1x 4pin, PH=2.0mm
1x FAN interface, 1x 4pin, PH=2.0mm (reserved)
1x Front panel function button and indicator light interface 2x 5pin, PH=2.0mm
6x RS232 interface, COM1/COM2 supports RS232/RS485 function, jumper switch, COM3/4/5/6 is not defaulted RS232, supports TTL function
1x MIC, 1x 2pin,PH=2.0mm
1x Power amplifier interface 1x4pin, PH=2.0mm
1x Burning key
1x LAN1, 1x Choose one of LAN2 and RJ45, 2x 4pin, PH=2.0mm
1x COM_SW (jumping port)
1x SIM card set
Fan interface: Fanless cooling, 1x 4pin system fan interface reserved
Power input: DC 12V
GPIO: Supports 4 input and 4 output GPIO interfaces
OS: Android 12，Ubuntu 20.04
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)
Dimension: 148mm x 102mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
