Product Description

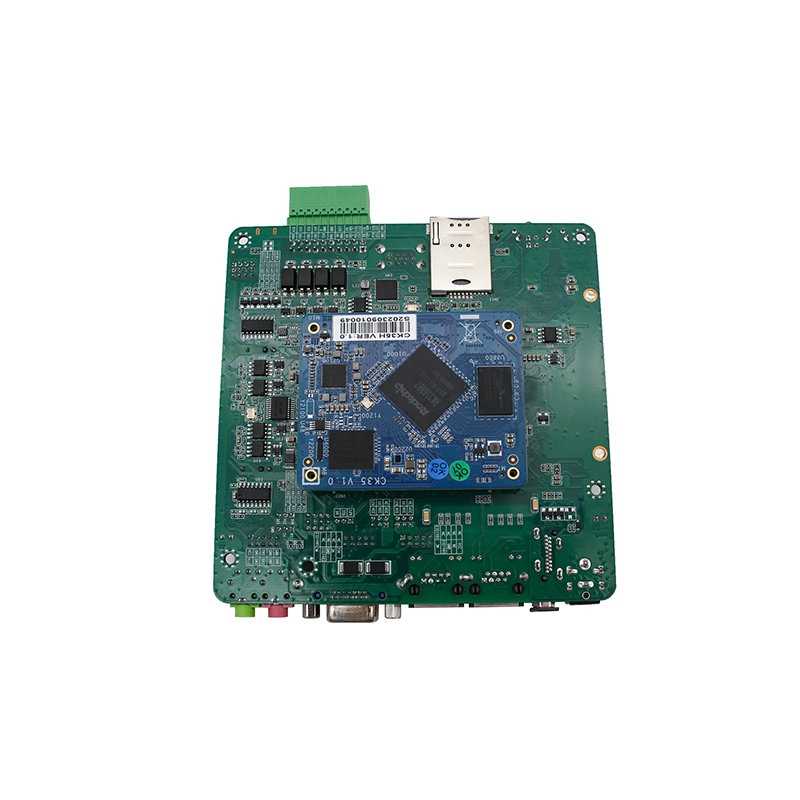

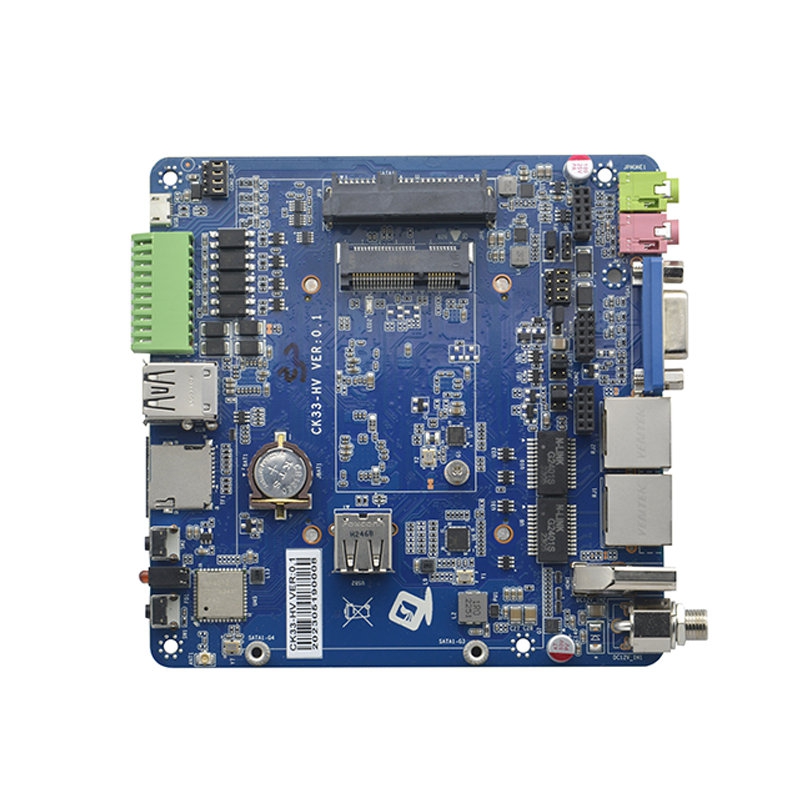

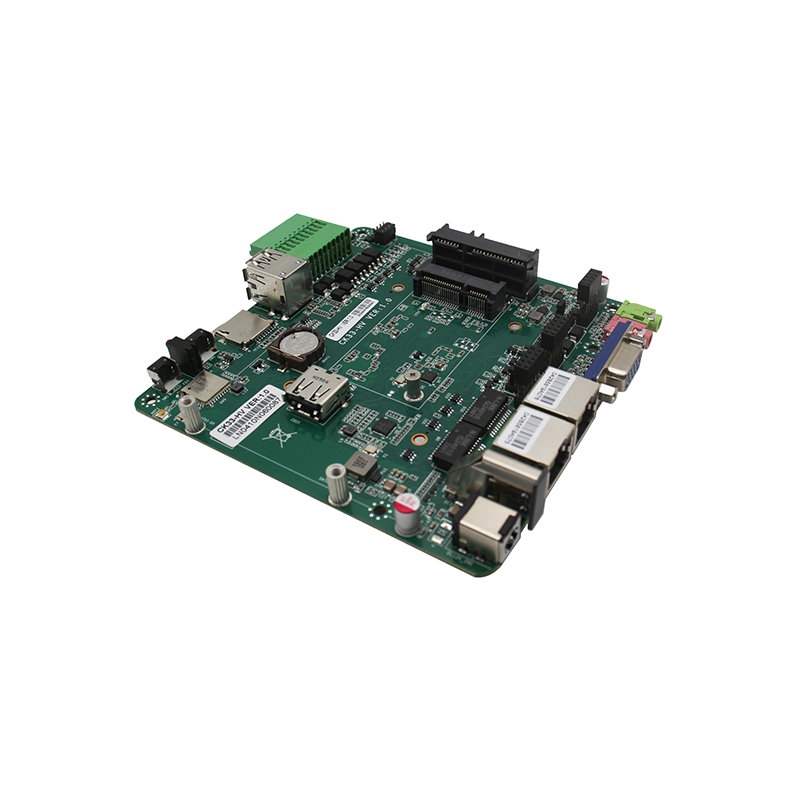

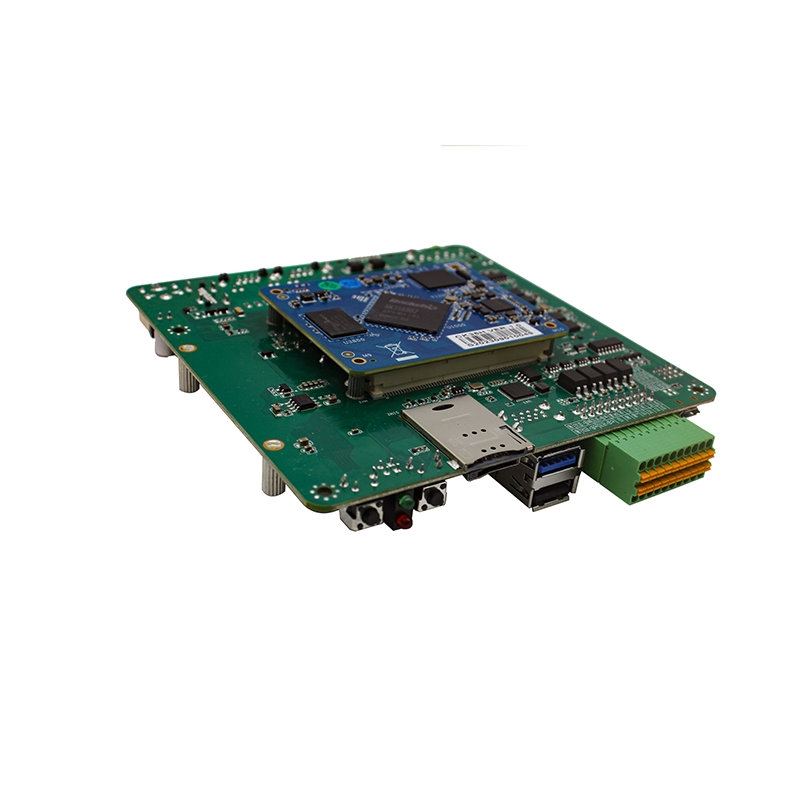

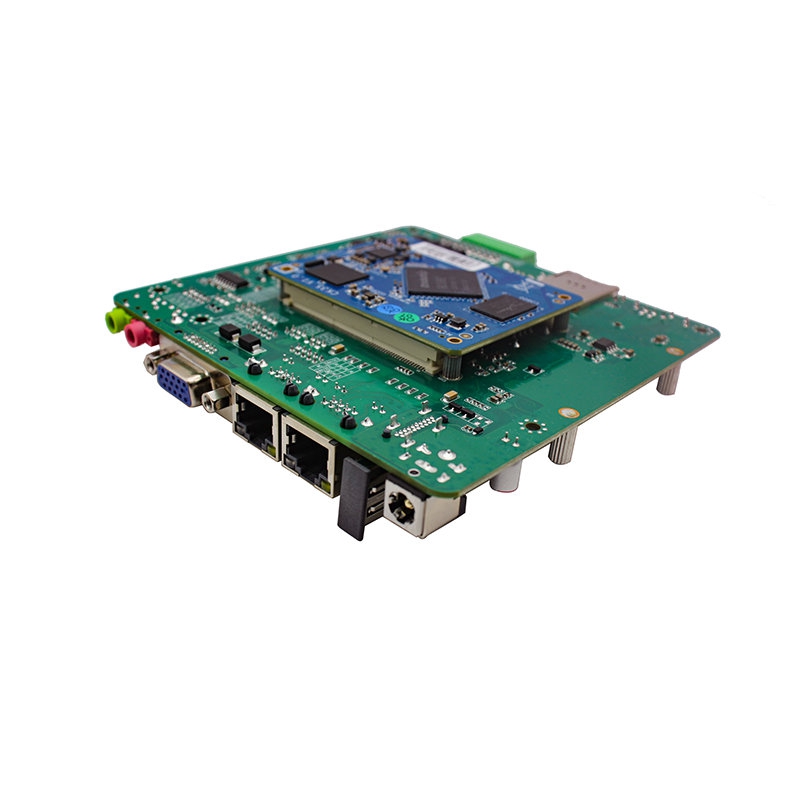

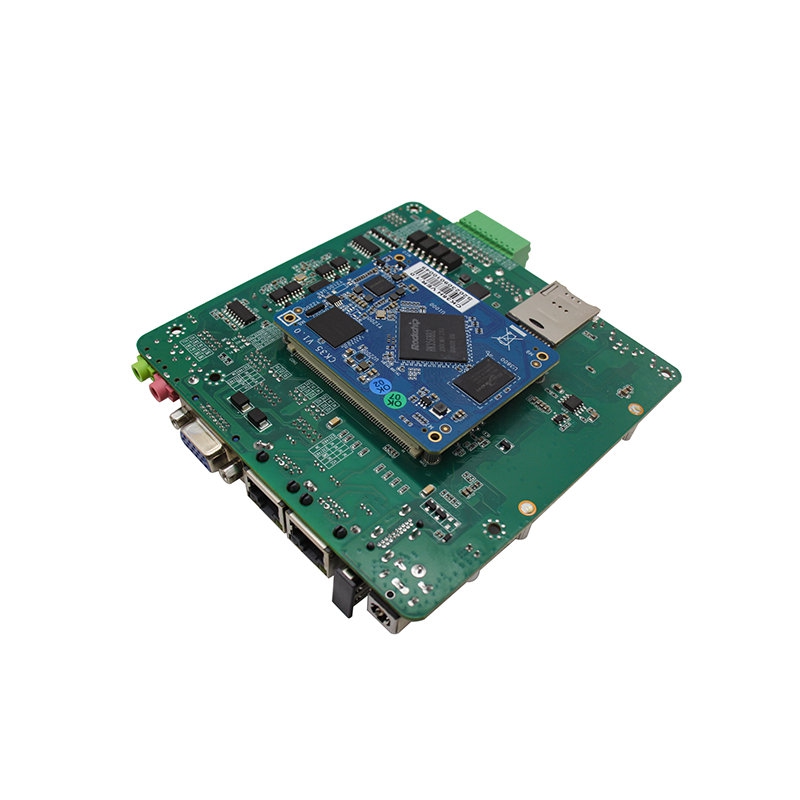

Model No.: CK35H(CK33-HV) VER:1.0

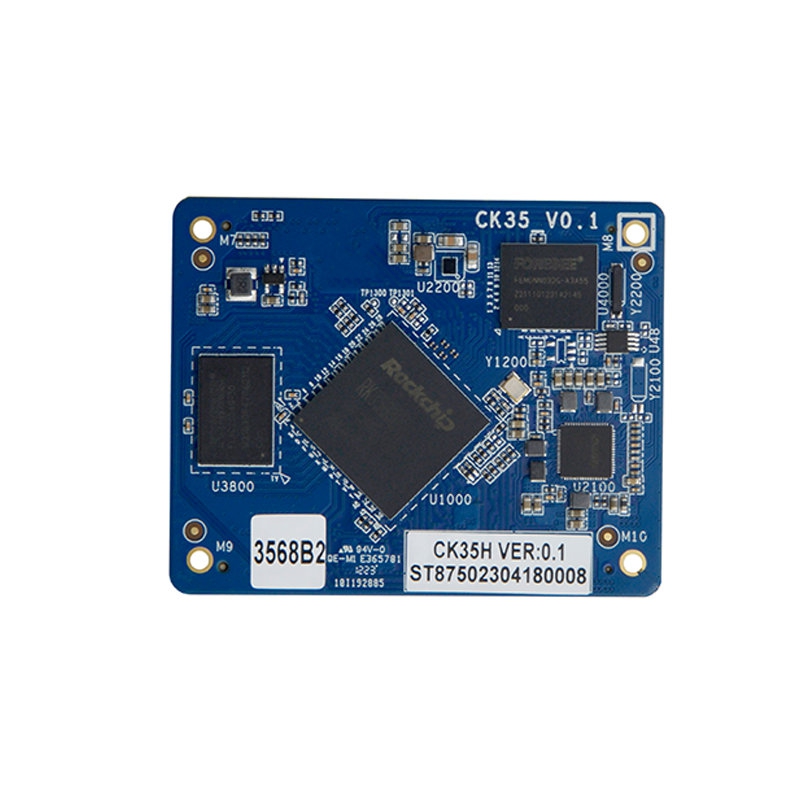

Processor: CPU Rockchip RK3568B2 Quad-core Cortex-A55 up to 2.0GHz
Chipset: Based on RK3568B2 SOC platform
Memory: Onboard LPDDR4 4G memory (2G/8G optional)
Display: 1x VGA,1xHDMI
Network: 2x RTL8211F Lan
Support WIFI&Bluetooth module
Storage: 1x eMMC5.1 memory chip 32G
1x TF Card slot,up to128G
Audio: Onboard Everest ES8316 Audio chip,support Line-out,MIC
Expansion slots: 1x mini PCIe (Internal USB3.0 signal, can support 3G/4G/5G)
Backplane I/O interface: 1x DC9~24V power input interface (maximum support 24V)
1x HDMI
2x RJ45 Gigabit network interface
1x VGA
1x Line-out（Green）
1x MICK (Red)
Front panel I/O interface: 1x Power switch
1x Power/hard disk indicator light
1x Burning key
1x USB2.0 interface (upper), 1x USB3.0 interface (lower)
2x 10pin Phoenix terminals (4*DO upper/4*DI lower/VCC/GND/Power/COM3/COM4), among which COM3 and COM4 support RS232 and RS485, which are realized through jump caps
1x MicroUSB2.0 (OTG)
Built in I/O interface: 1x USB2.0 interface (single-layer socket)
1x Hard drive power supply interface ,1x 4pin
1x SATA interface (elevated 2.5 inches)
1x Mini-PCIE interface (including USB3.0 interface)
1x COM1 interface, supports RS232 and RS485, realized through jump cap
1x COM2 interface, supports RS232 and RS485, realized through jump cap
1x USB2.0 (implemented by external small board)
1x DC 9~24V power interface 1x 4pin
Power Type: DC 12V input
DIO: Support 4-way DI, 4-way DO
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
OS: Android 11、Ubuntu 20.04、Debian 10、debian 11、debian 12.
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% relative humidity, no condensation
Dimension: 120mm x 120mm, plate thickness 1.6mm
PCB: 6 layer board
Screw hole specifications: Ø3.2mm x 4
