Product Description

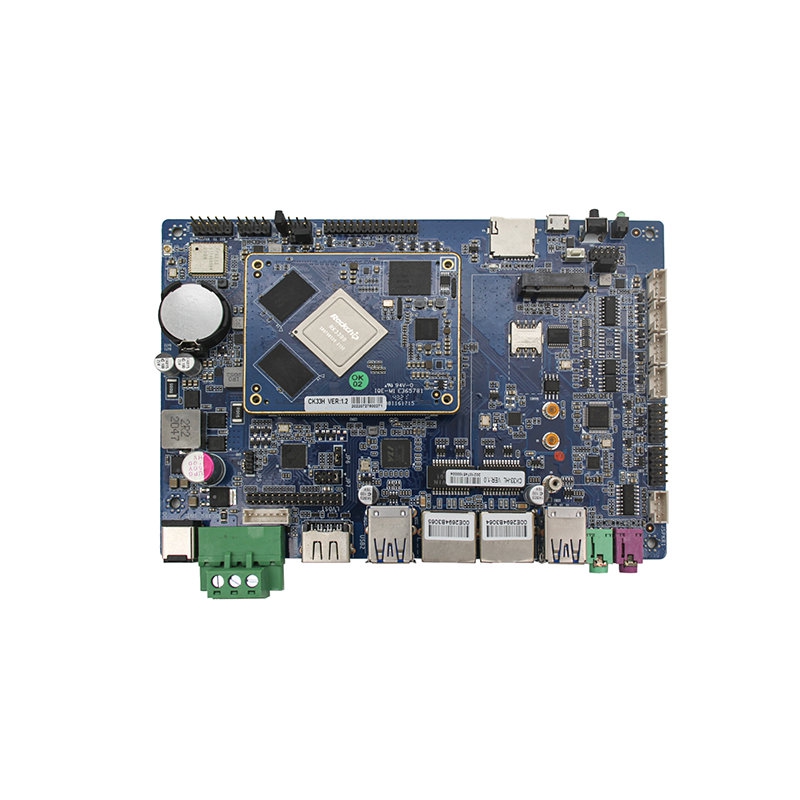

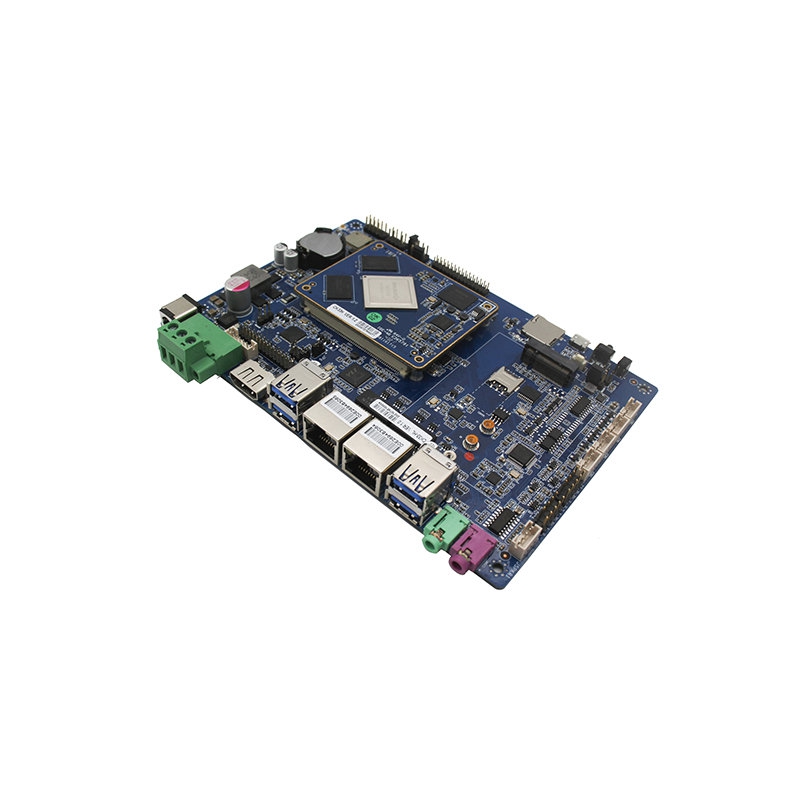

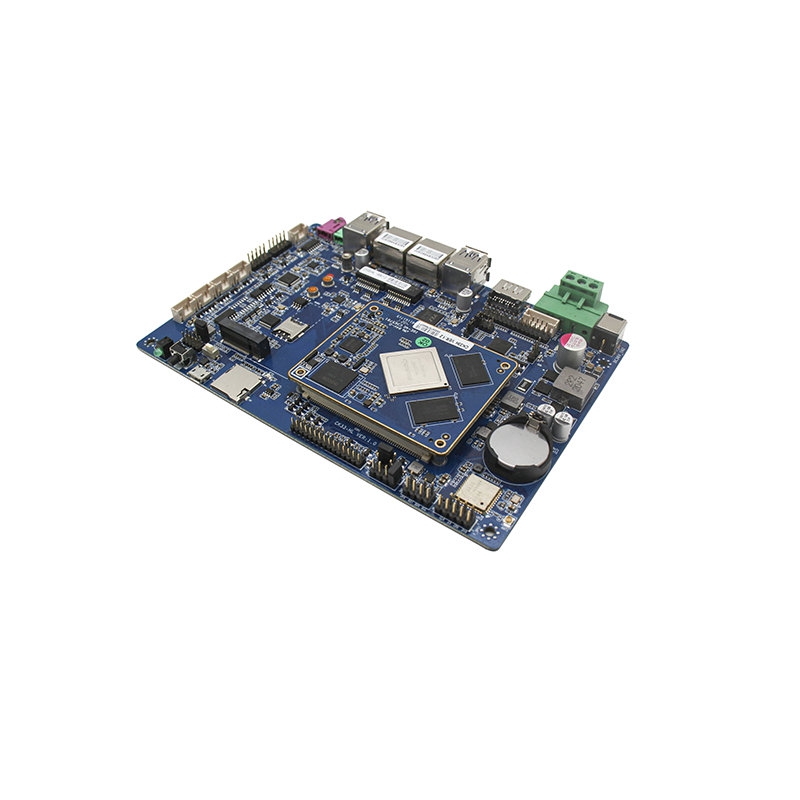

Model No.:CK33H(CK33-HL) VER:1.0
Processor: CPU Rockchip RK3399 Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz
Chipset: Based on RK3399 SOC platform
Memory: Onboard LPDDR4 4G memory
Display: ARM Mali-T864 GPU，OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
1x HDMI,1x EDP,1x LVDS
support two screen display different /two screen display the same
Network: 1x RTL8211F Gigabit Ethernet
1x RTL8111H Gigabit Ethernet
1x WIFI/Bluetooth module
Storage: 1x TF Card slot, maximum support 64G
1x eMMC5. 1 memory chip 32G ( 16GB/32GB/ 128GB optional)
Audio: Everest ES8316 Audio chipset onboard,support Line-out,MIC，power amplifier
The power amplifier supports a 2 Ω 5W dual-channel
Expansion slots: 1x M.2, support M.2 B-KEY 2242 /2252 4G/5G module

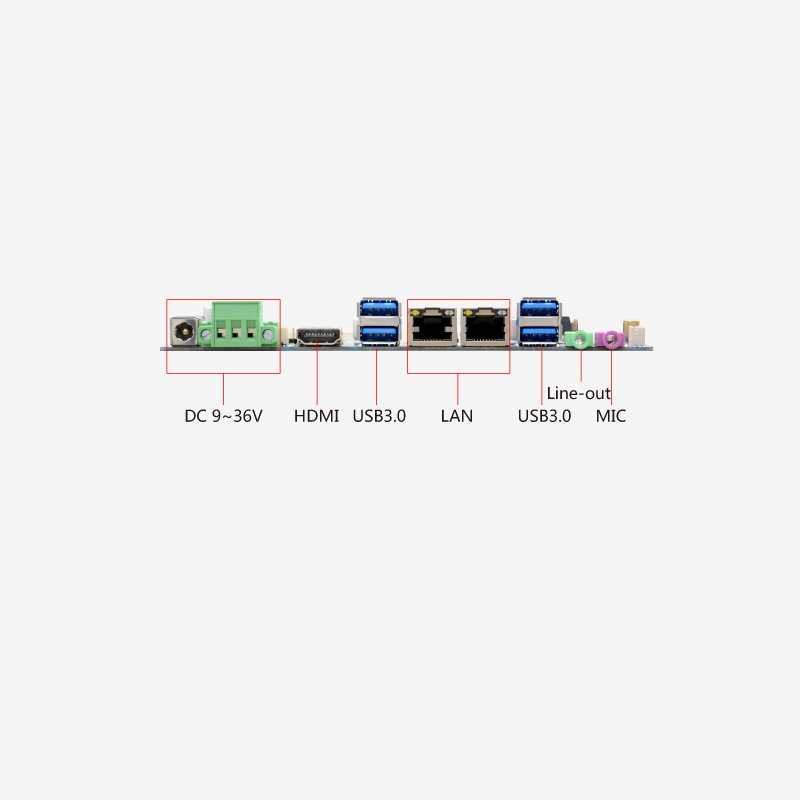

Backplane I/O interface:
4x USB3.0
1x HDMI
2x RJ45 Gigabit network interface
1x Line-out（Green）
1x MICK(Red)
1x 3pin DC，Support for 9 V to 36 V power supply input and output
1x DC ,Support for 9 V to 36 V power supply input and output
Front panel I/O interface: 1x TF Card slot
1x Power light
1x MICRO_USB2.0
1x Power switch

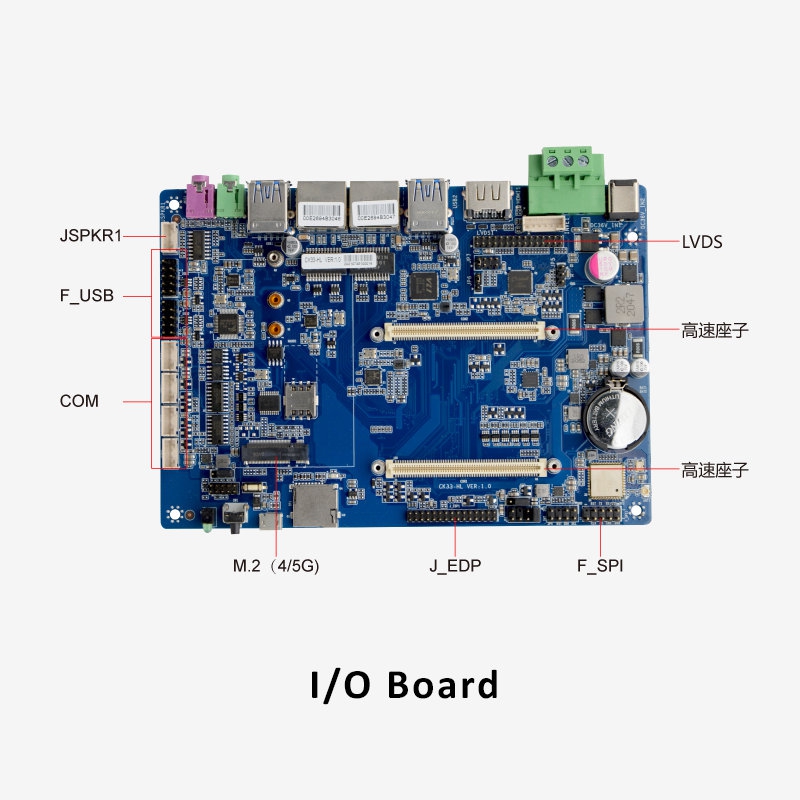

Built in I/O interface:
1x EDP, 2x15pin
1x LVDS, 2x 15pin
1x Screen backlight power supply interface, 1x 6pin
4x USB2.0, 2x 5pin
1x Power amplifier, 1x 4pin
1x Front panel function button and indicator light interface, 2x5pin
4x RS232 serial port,COM3/COM4 support RS485 through software switching
1x SPI,2x 5pin,Support for 4 serial port extensions
1x I2C,2x 4pin,Available to expand the IO ports
Power Type: DC 9~36V Single power input
GPIO: N/A
OS: Android 7. 1, Ubuntu16.04, Linux (Qt+eglfs, pure command mode).
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 165mm x 115mm

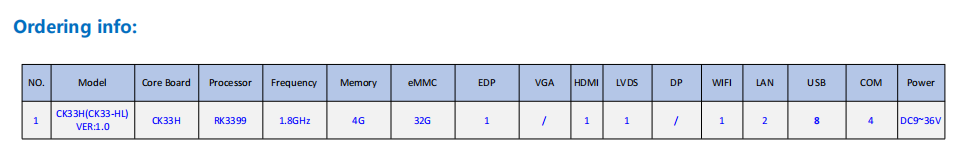

--order.png)
