Product Description
Model No.: CK33H(CK33-H2) VER:1.0

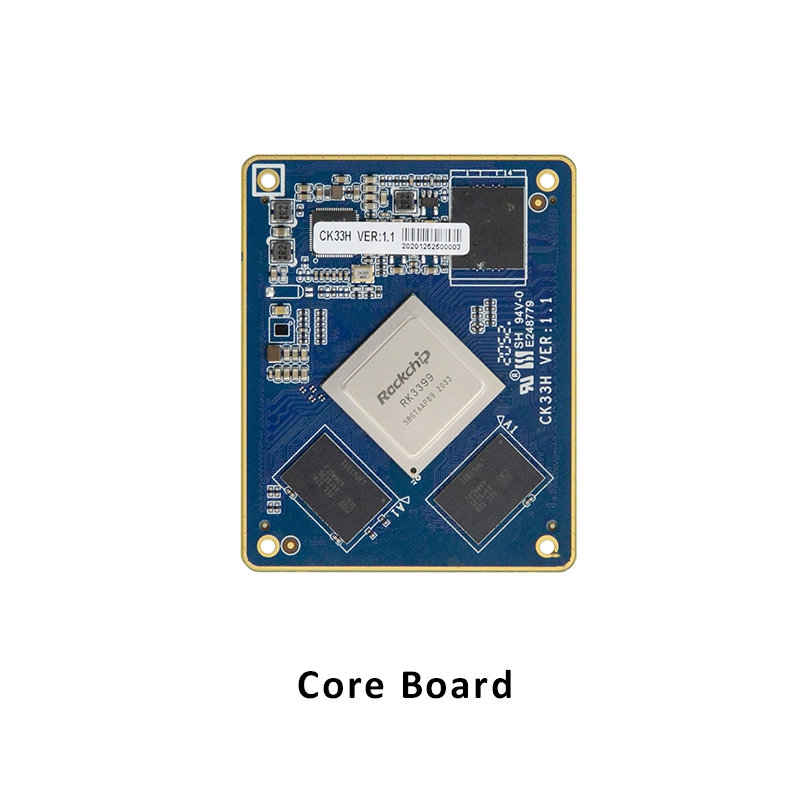

Processor: CPU Rockchip RK3399 Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz
Chipset: Based on RK3399 SOC platform
Memory: Onboard LPDDR4 4G memory
Display: Integrated ARM Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
2x HDMI,1x EDP
Support three-screen simultaneous display/three-screen different display
Network: 1x RTL8211F Gigabit Ethernet
1x RTL8111H Gigabit Ethernet
1x WIFI / bluetooth module
Storage: 1x TF Card slot, maximum support 64G
1x 7pin SATA3.0,the transfer rate is up to 6Gbps
1x eMMC5. 1 memory chip 32G ( 16GB/32GB/ 128GB optional)
Audio: Onboard Everest ES8316 Audio chip, supports Line-out,MIC，power amplifier
Supports power amplifier 2Ω5W dual channels
Expansion slots: 1x M.2, support M.2 B-KEY 2242 /2252 4G/5G module

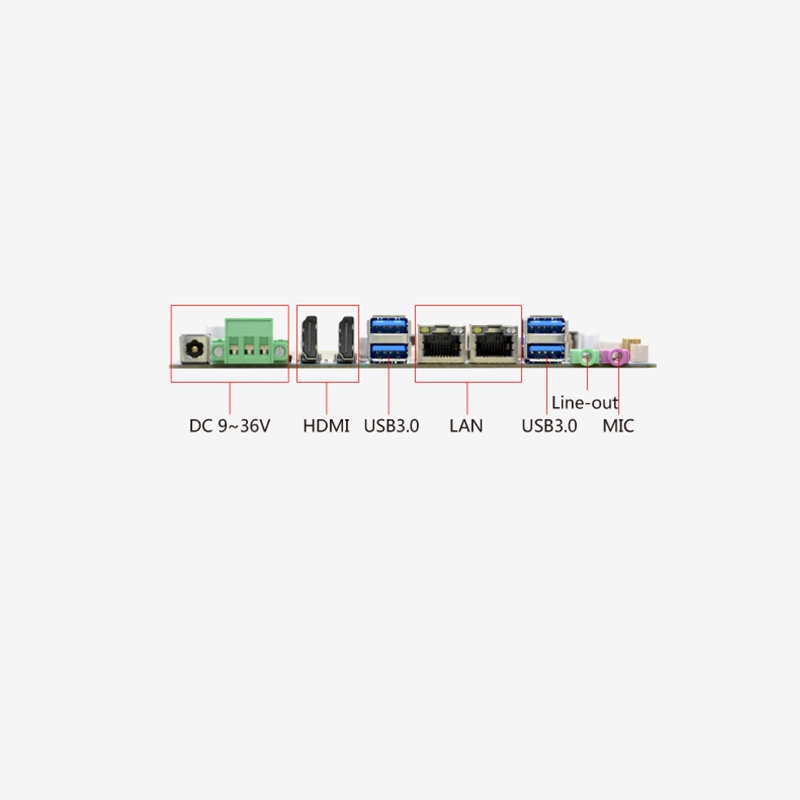

Backplane I/O interface:
4x USB3.0
2x HDMI
2x RJ45 Gigabit network interface
1x Line-out（Green）
1x MICK(Red)
1x 3pin DC，Support for 9 V to 36 V power supply input and output
1x DC ,Support for 9 V to 36 V power supply input and output
Front panel I/O interface:
1x TF Card slot
1x HDD indicator,1x power indicator
1x MICRO_USB2.0
1x Power switch

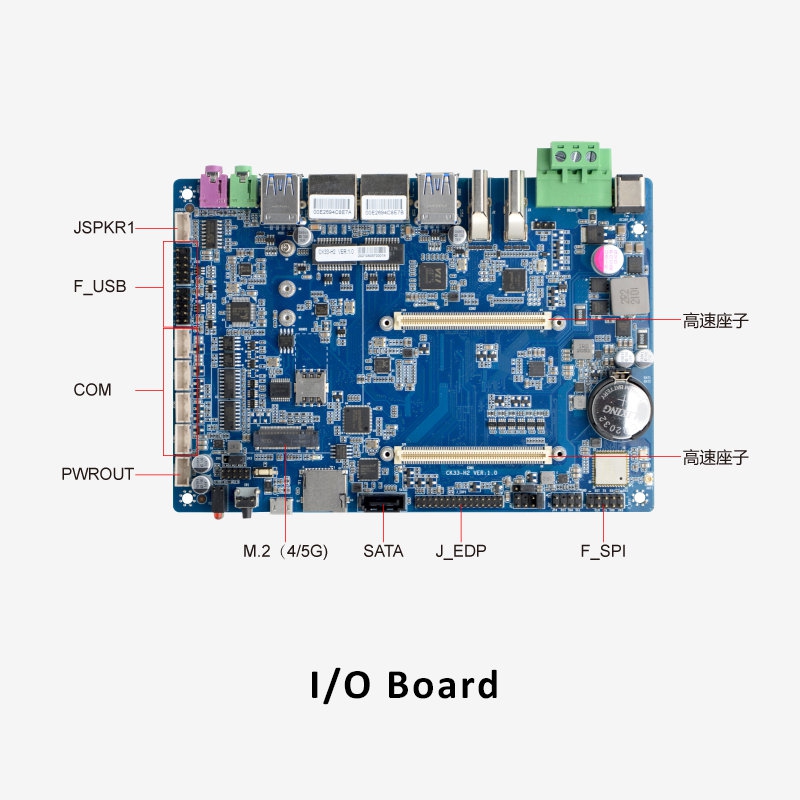

Built in I/O interface:
1x EDP, 2x15pin
4x USB2.0, 2x 5pin
1x Power amplifier interface, 1x 4pin
1x Hard disk power supply interface, 1x 4pin
1x Front panel function button and indicator light interface, 2x 5pin
4x RS232 , COM3/COM4 can support RS485 switch by software
1x SPI,2x 5pin,support 4 serial port expansion
1x I2C,2x 4pin,can be used to expand the IO port
Power Type: DC 9~36V Single power input
GPIO: N/A
OS: Android 7. 1, Ubuntu16.04, Linux (Qt+eglfs, pure command mode).
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 165mm x 115mm

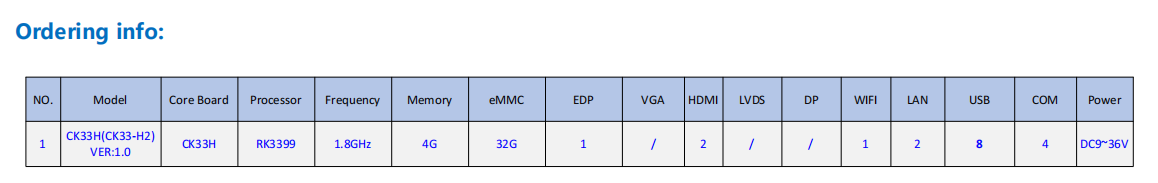

--order.png)
