Overview
The RK35B is a high-performance ARM board featuring Rockchip RK3568 quad-core CPU (Cortex-A55, 2.0GHz) with Mali-G52 GPU, supporting Android 11/Ubuntu/Linux. Comes with 2GB LPDDR4 and 16GB eMMC, expandable via TF card.
Offers versatile display outputs (HDMI/LVDS/eDP/MIPI) with touch support. Network options include Gigabit Ethernet, WiFi/BT, and M.2 Key-B (4G/5G). Rich I/Os: 8x RS232/485, 9x USB, CAN bus, etc. Powered by 12V DC.
Product Description

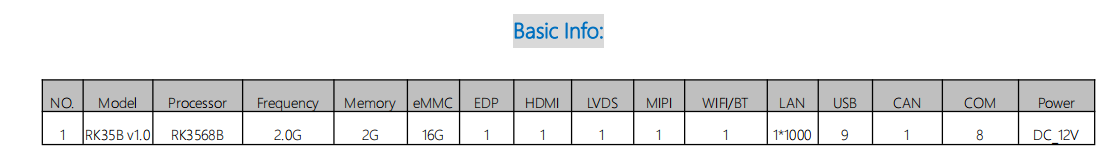

Model No: RK35B VER:0.1
Processor: CPU Rockchip RK3568B2 Quad-core Cortex-A55 up to 2.0GHz processor
Memory: Onboard LPDDR4 2G memory
Graphics: Integrated ARM Mali-G52 GPU, support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0 Vulkan 1.1
1*HDMI，1*LVDS，1*EDP，1*MIPI
Support multi-screen different display
Network: 1* RTL8211F Gigabit network card chip
1*WIFI/bluetooth module
Storage: 1* eMMC memory chip 16G
1* TF card slot, maximum support 64G
Audio: PMIC power management chip RK809-5 comes with sound card, supports Line-out, MICK, power amplifier
Amplifier support 2Ω5W dual channels
Expansion slots: 1* M.2 slot，support M.2 Key-B 4G/5G module

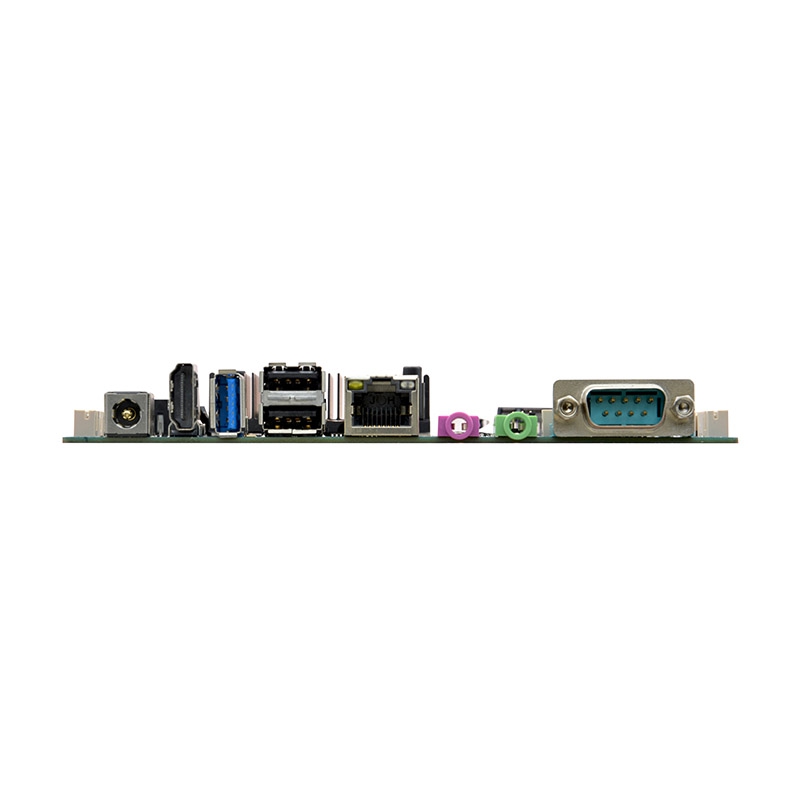

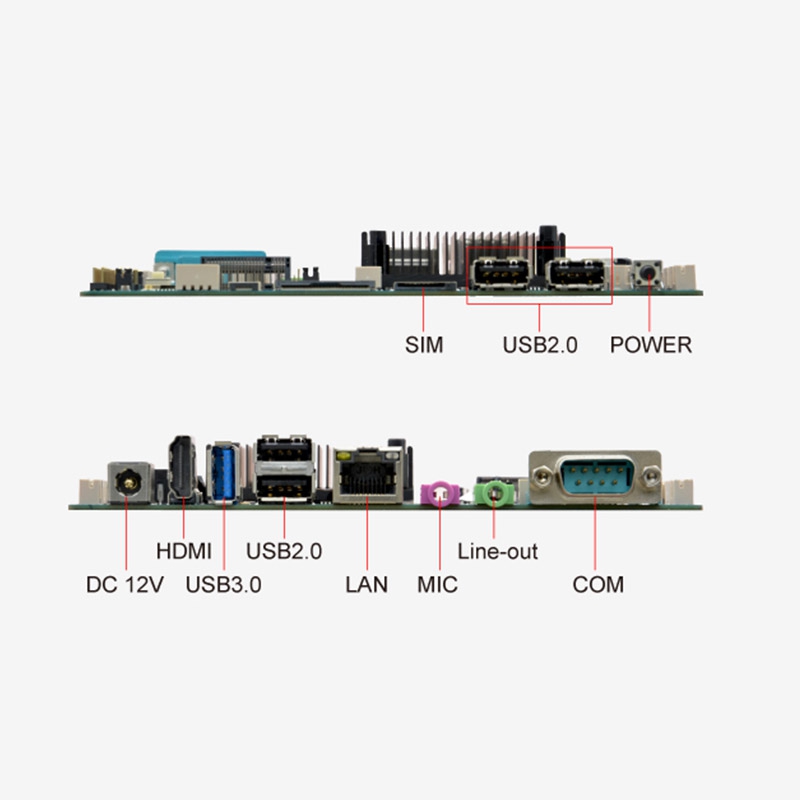

Rear I/O interface:
2* USB2.0，(choose USB or LAN2)
1* USB3.0
1* HDMI
1* Gigabit network interface，choose USB3 or LAN2，can be used as two Gigabit Ethernet ports
1* Line-out（green）
1* MICK（purple）
1* RS232，support RS485 function
1* DC 12V power interface

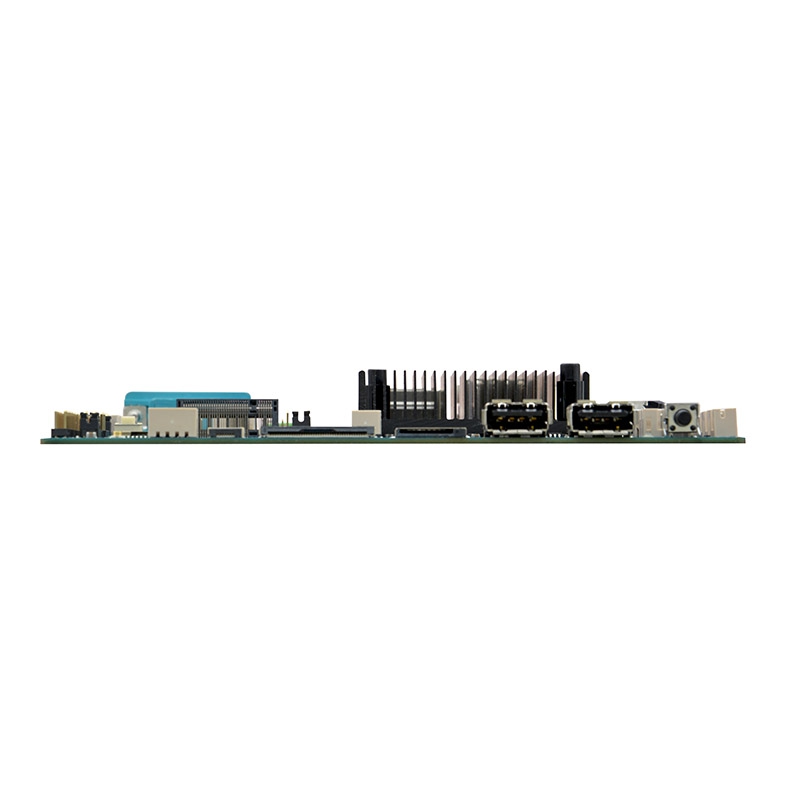

Front panel I/O interface:
1* TF card slot
2* USB2.0
1*SIM card slot
1*Power switch

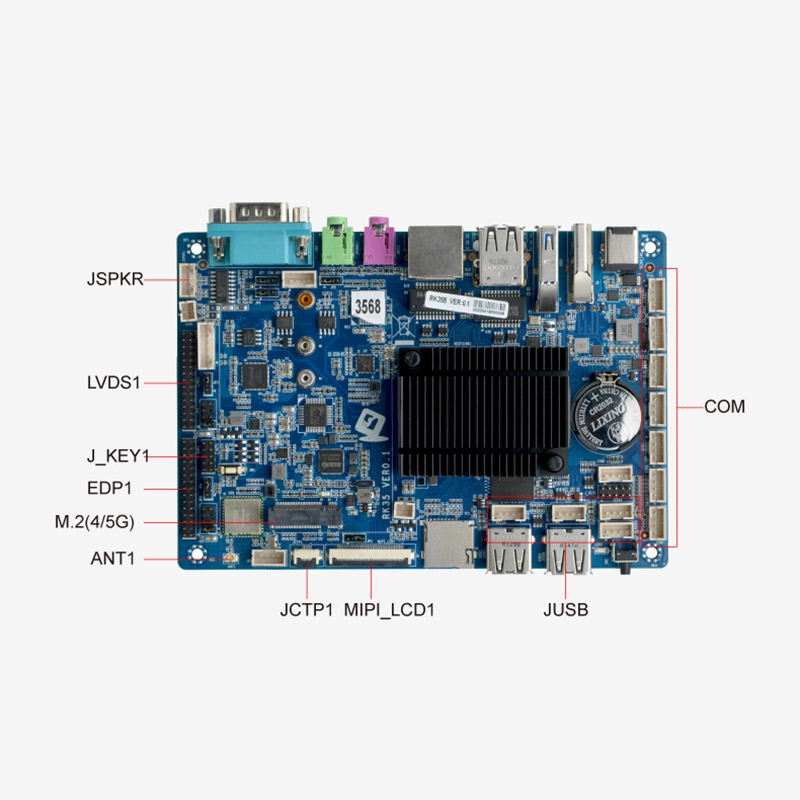

Built in I/O interface:
4*USB2.0, 1*4pin
6* RS232 COM，1*4pin
2* TTL COM，1*4pin
1* COM,1*4pin(support RS485/422)
1* Touch Panel，6pin，FPC specification，for touch screen
1* MIPI, 40pin, FPC specification，used to connect to MIPI screen
1*LVDS, 2*15pin，support dual channel 24bit
1* EDP，2*15pin
1* screen backlight power supply port, 1*6pin
1* Power amplifier（2Ω5W） 1*4pin
1* Power amplifier（8Ω1.3W） 1*2pin
1* Front panel function button and indicator light interface, 2*5pin
1* CAN, 1*2pin
1* Infrared interface, 1*4pin
Power input: DC 12V single power input
GPIO: Support 4 way GPIO
OS: Android 11,Ubuntu16.04、Linux（Qt+eglfs，pure command mode）
Working Temp.: 0℃～60℃
Storage Temp.: -20℃～70℃
Working Humidity: 5%-95%(relative humidity; non-condensing)

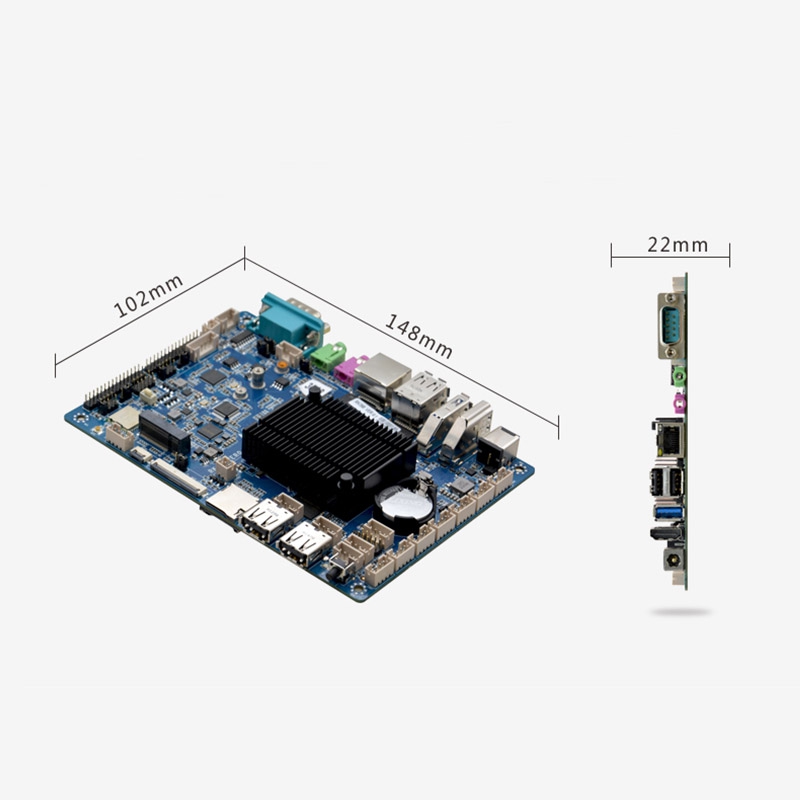

Dimension: 148mm x 102mm

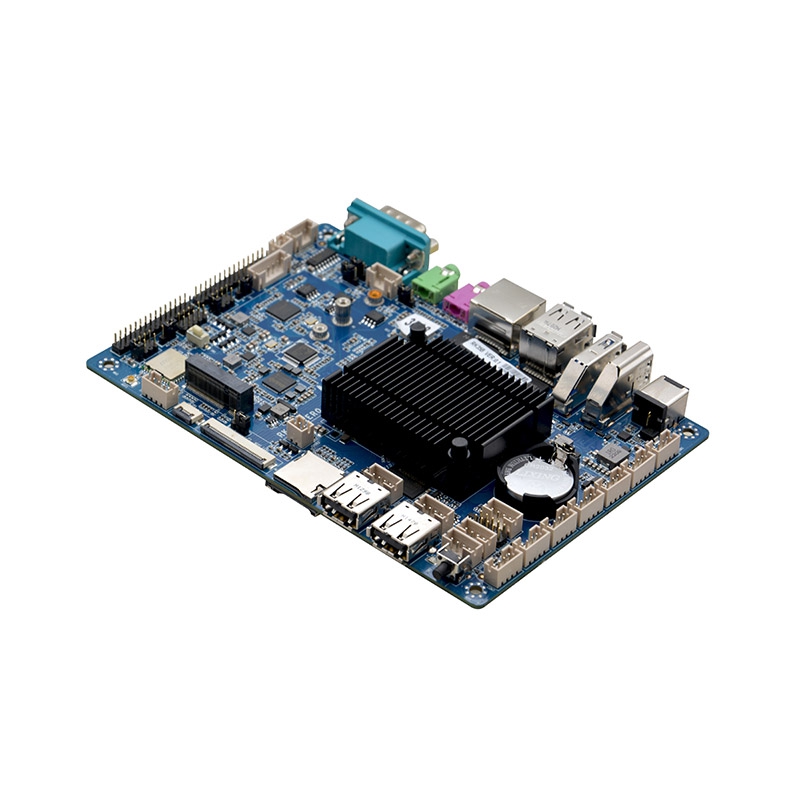

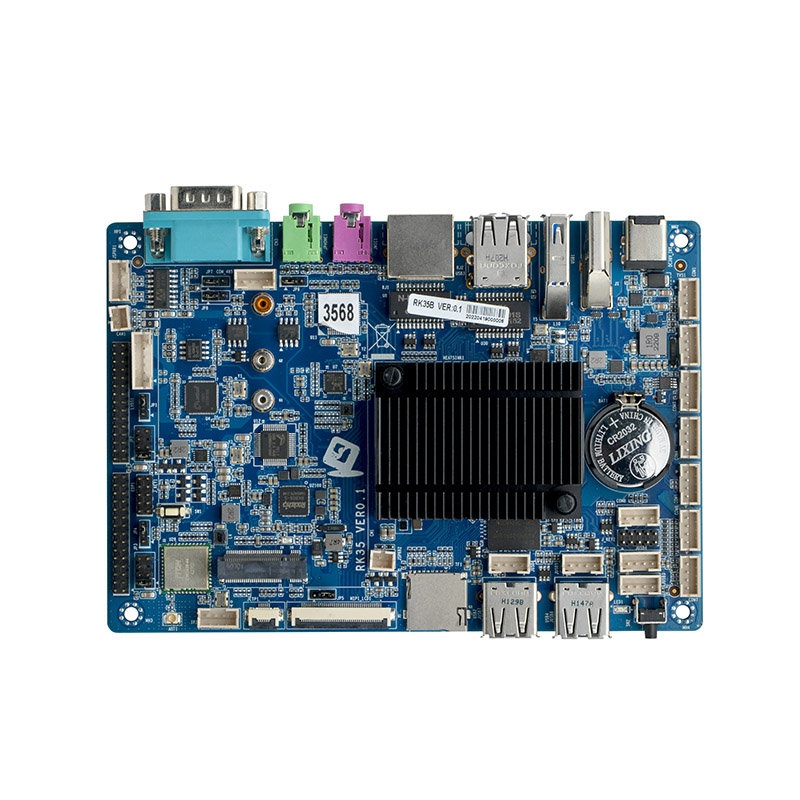

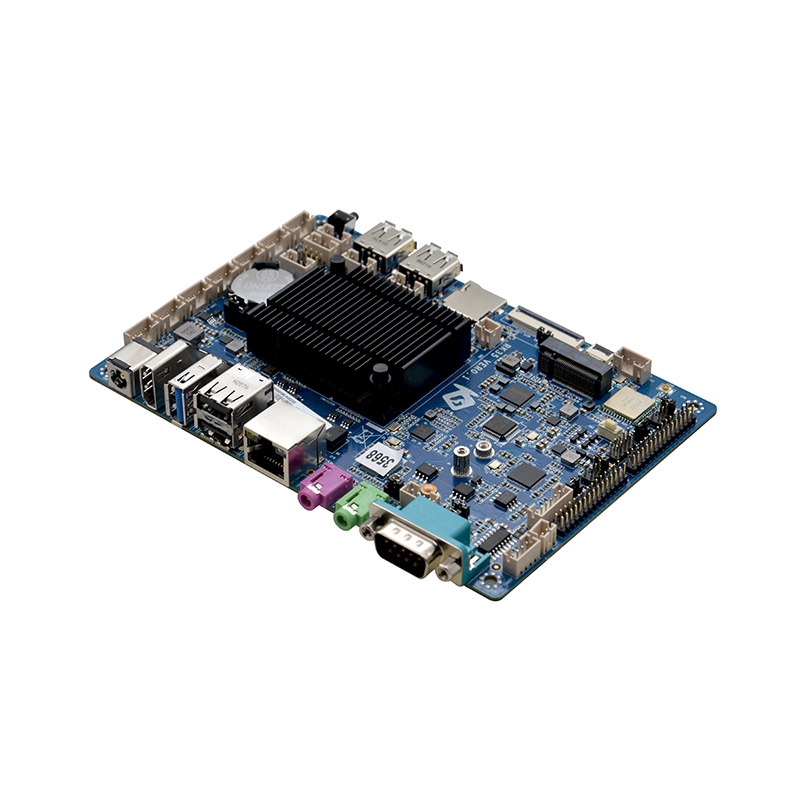

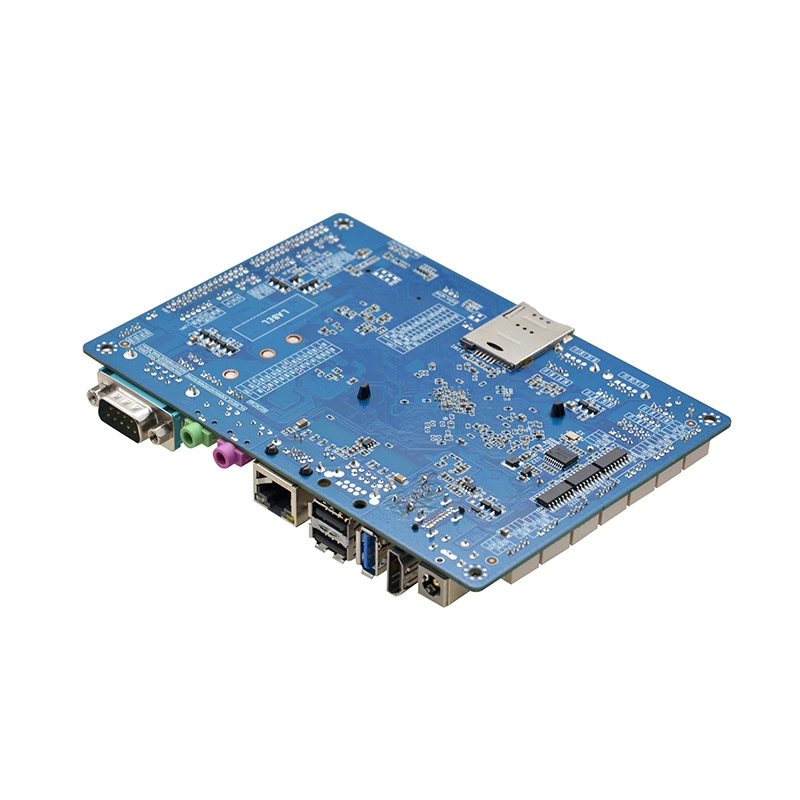

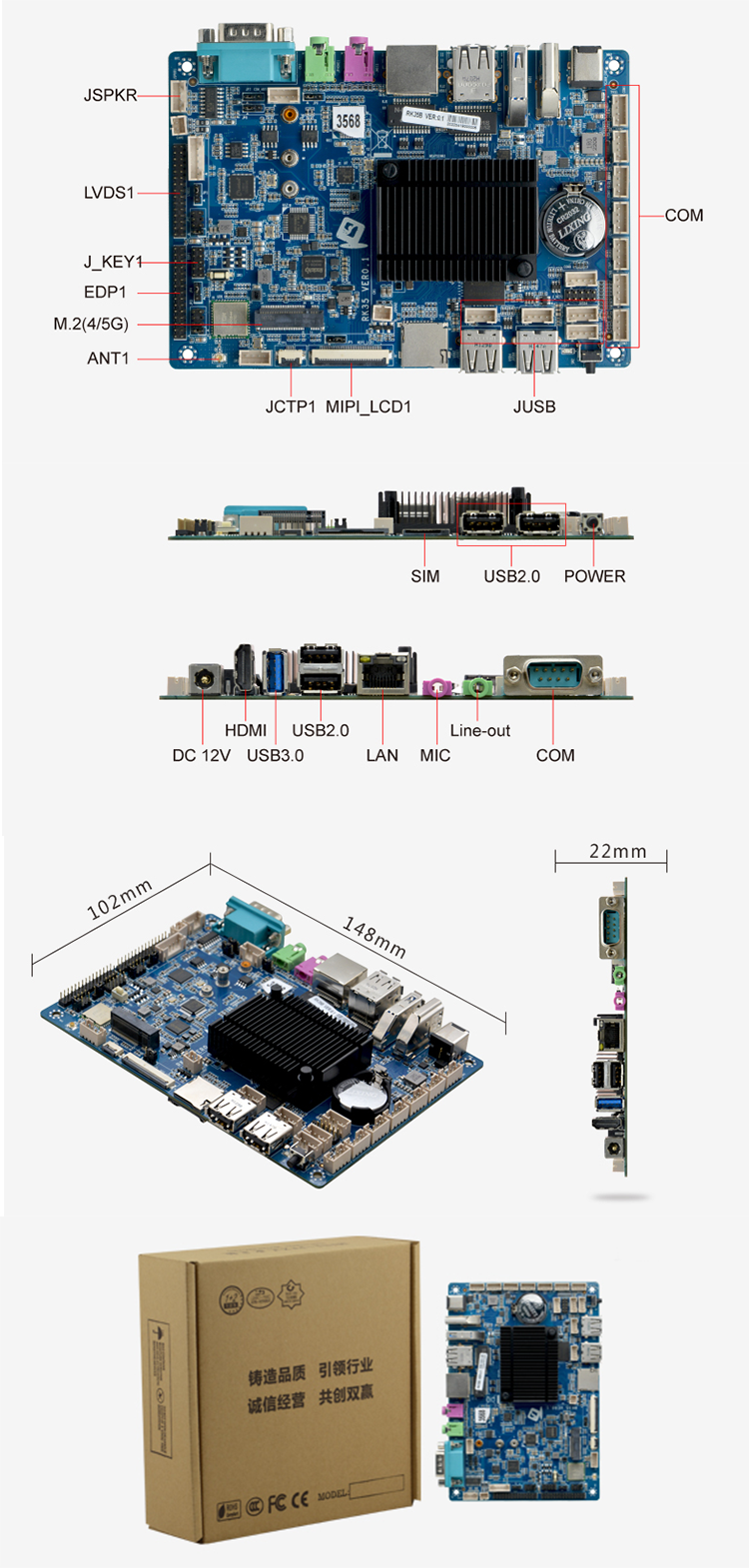

Detail Display
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.

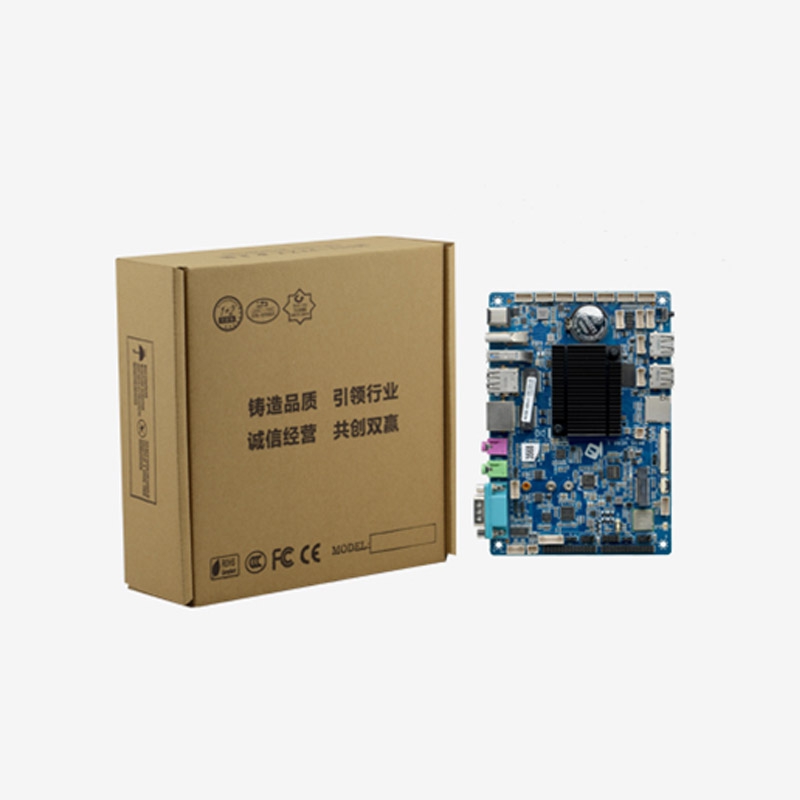

Packing & Delivery
