Overview

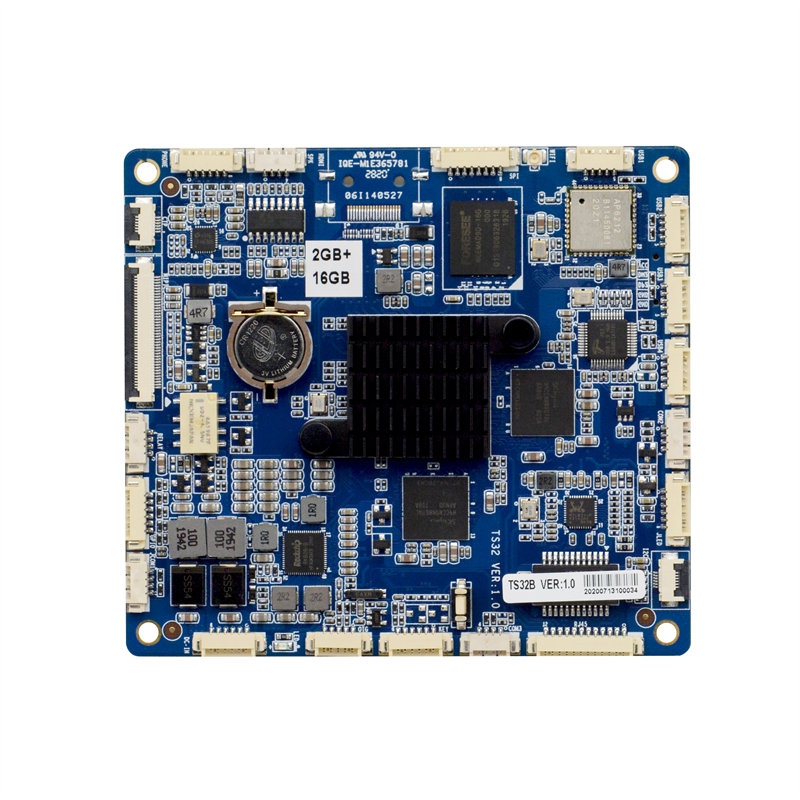

Android Motherboard Model TS32B VER:1.0
Key Features:
●Onboard 2GB LPDDR3 + 16GB eMMC (expandable via TF card up to 64GB).
●Dual display support (MIPI + eDP, optional HDMI) for interactive kiosks, digital signage, and smart devices.
●Rich connectivity: 1× Gigabit Ethernet (RTL8211F), Wi-Fi/Bluetooth, 5× USB, and multiple interfaces (TTL, I2C, SPI, GPIO).
●Flexible OS support: Android 7.1, Ubuntu 16.04, Linux (Qt+eglfs).
Ideal for: Android POS systems, smart displays, industrial tablets, and embedded IoT solutions.
Detail Display
Product Description

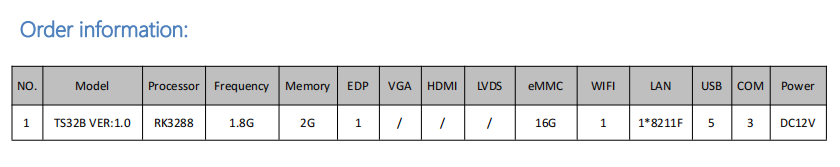

Model No.: TS32B VER:1.0
Processor: CPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz Processor
Chipset: Based on RK3288 SOC
Memory: Onboard LPDDR3 2G memory
Display: Integrated ARM Mali-T764 GPU，supports OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11
1x EDP, 1x MIPI
Ethernet: 1x RTL8211F Gigabit Ethernet chip
1x WIFI/bluetooth module
Storage: 1x eMMC memory chip, 16G
1x TF card slot, is up to 64G
Audio: Onboard Everest ES8316 Audio chip, supports Line-out,MIC,power amplifier
Supports power amplifier 2Ω5W/4Ω3W dual channels
Expansion Slot: N/A

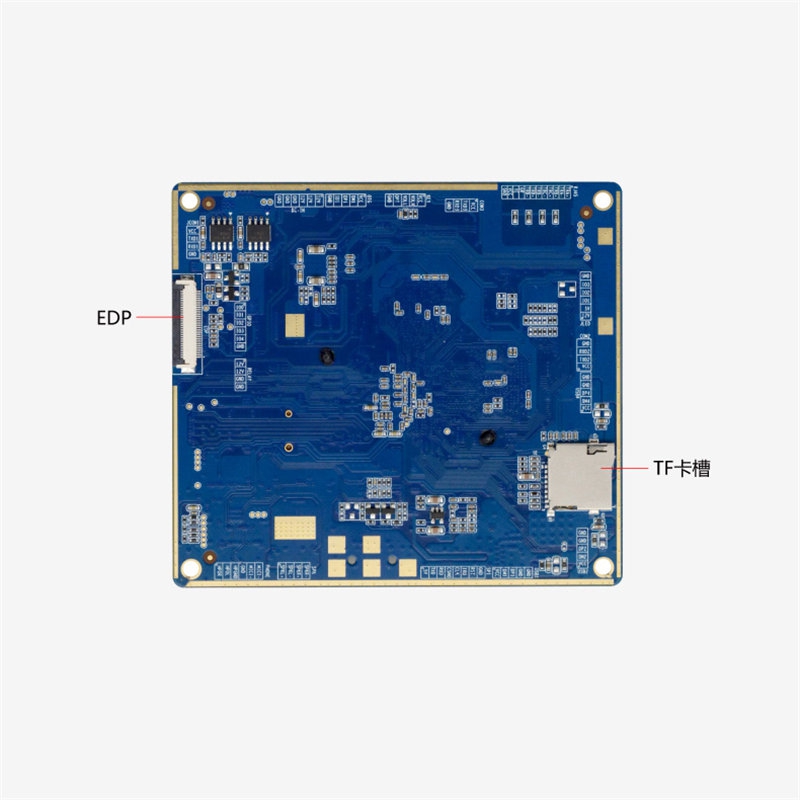

Rear I/O interface: 1x TF card slot（rear）

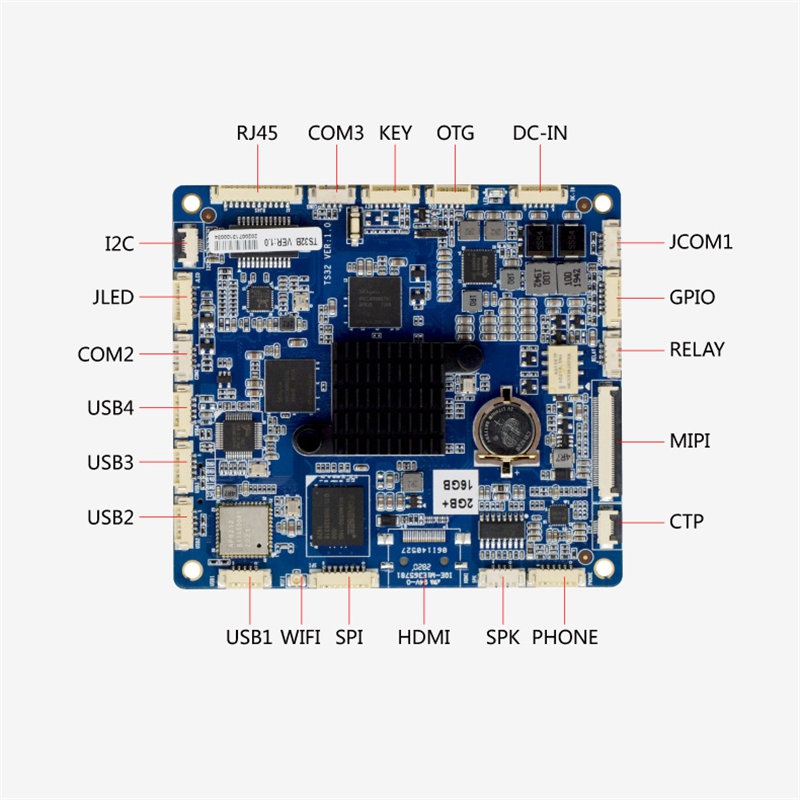

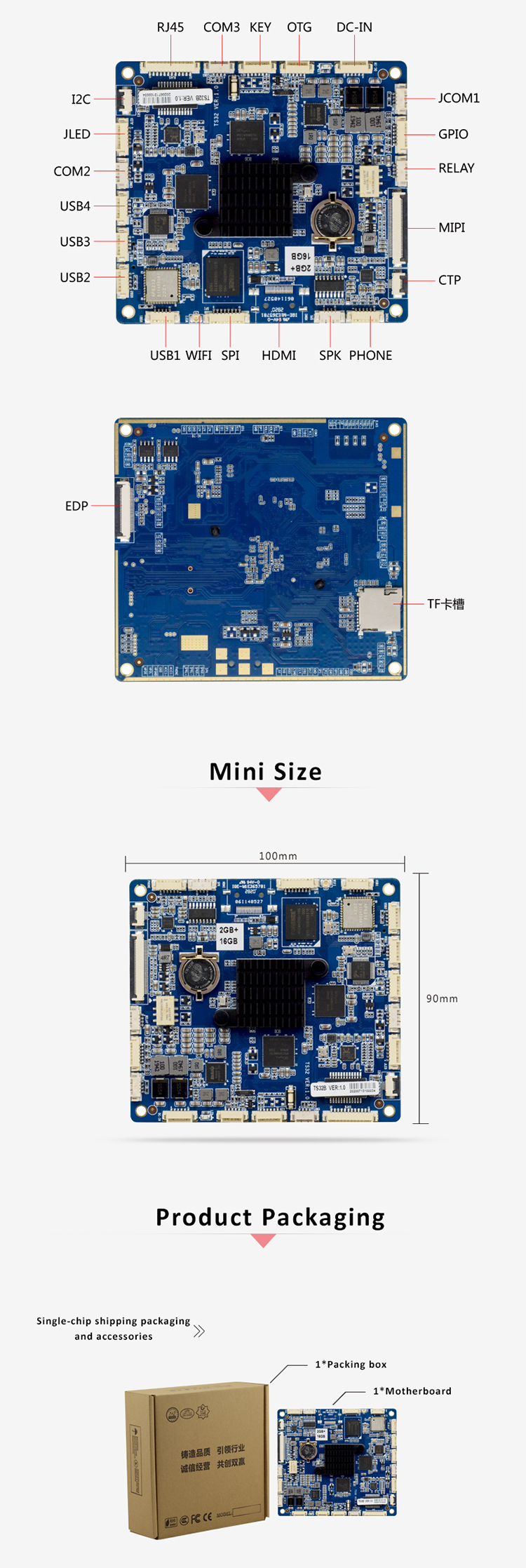

Built in I/O interface:
1x EDP, FPC specification, 30pin
1x MIPI, FPC specification, 40pin，used to connect to MIPI screen
3x TTL serial interface, 1x 4pin, PH=1.25mm
1x Touch screen interface, FPC specification, 6pin
1x Audio interface, 1x 6pin PH=1.25mm
1x power amplifier interface, 1x 4pin PH=1.25mm
4x USB2.0, 1x 5pin PH=1.25mm
1x Network interface, 1x12pin PH=1.25mm
1x I2C, FPC specification, 6pin
1x SPI, 1x 8pin PH=1.25mm, used to extend to COM
1x LED interface, 1x 6pin PH=1.25mm
1x Front panel function button and indicator light interface, 1x 6pin, PH=1.25mm
1x OTG USB2.0, 1x 5pin PH=1.25mm
1x DC12V power interface, 1x 6pin PH=1.25mm
1x Relay control lock interface, 1x 4pin PH=1.25mm
Power Type: DC 12V single power input
GPIO: Support 4-way input output GPIO function
OS: Android 7.1, Ubuntu16.04,Linux（Qt+eglfs，pure command mode)
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)

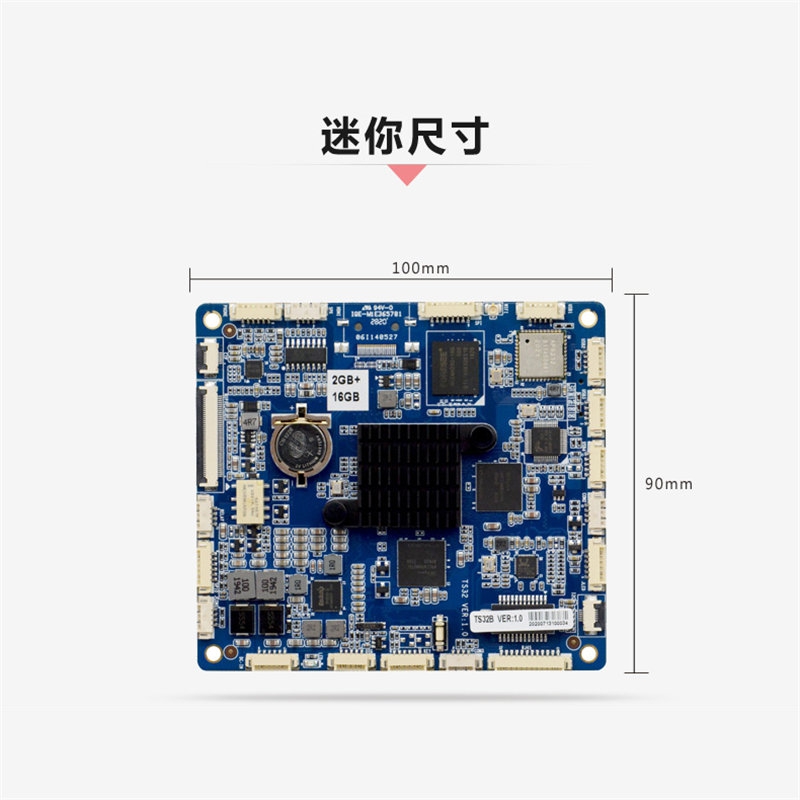

Dimension: 100mm x 90mm
