Product Description

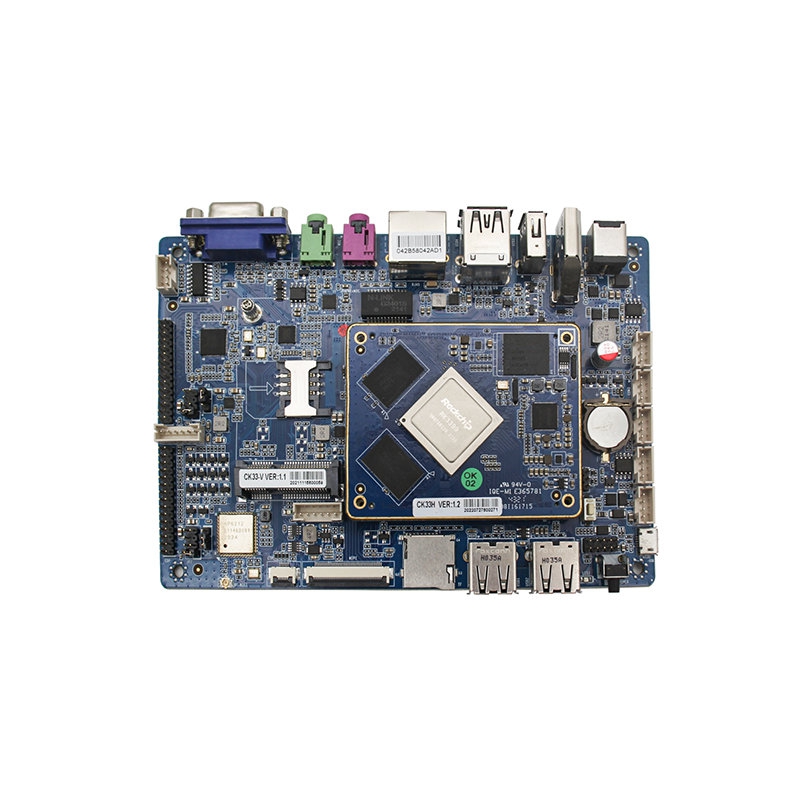

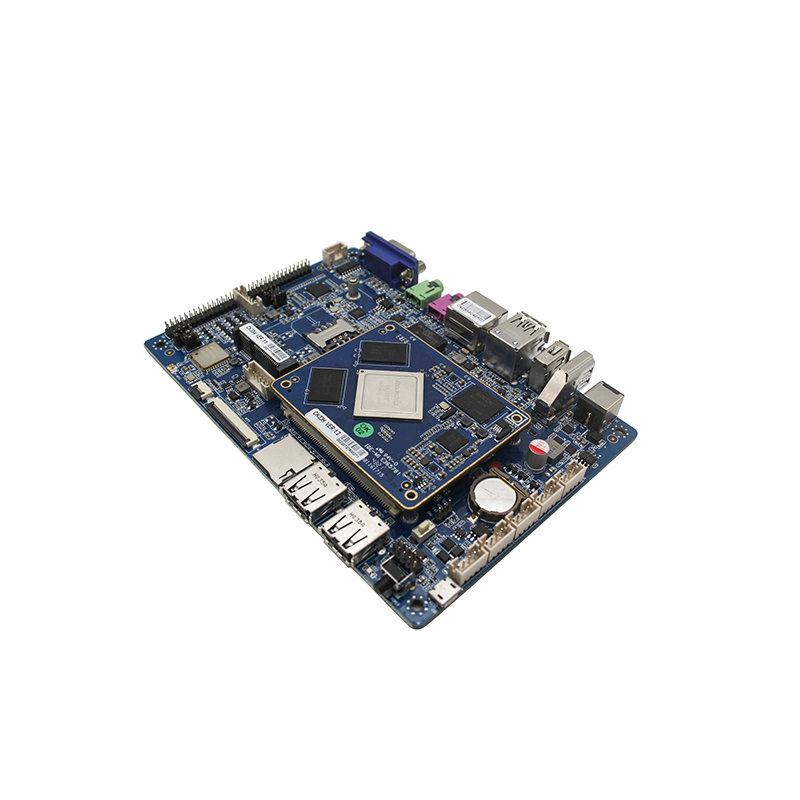

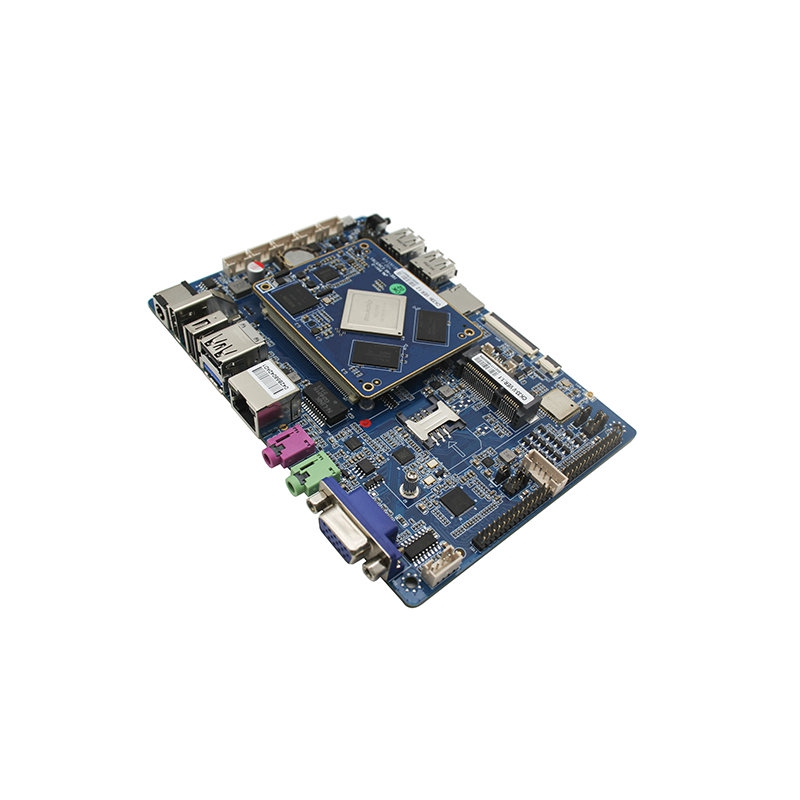

Model No.: CK33H(CK33-V) VER:1.1
Processor: CPU Rockchip RK3399 Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz
Chipset: Based on RK3399 SOC platform
Memory: Onboard LPDDR4 4G memory
Display: Integrated ARM Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
1x VGA, 1x HDMI, 1x LVDS, 1x EDP , 1x MIPI
Support three screens with the same display / three screens with different display
Network: 1x RTL8211F Gigabit Ethernet
1x WIFI/Bluetooth module
Storage: 1x TF Card slot, maximum support 64G
1x eMMC5. 1 memory chip 32G ( 16GB/32GB/ 128GB optional)
Audio: Onboard Everest ES8316 Audio chip, support Line-out, MIC, power amplifier support 2Ω5W dual channel
Expansion slots: 1x Mini-PCIE slot, support 4G module

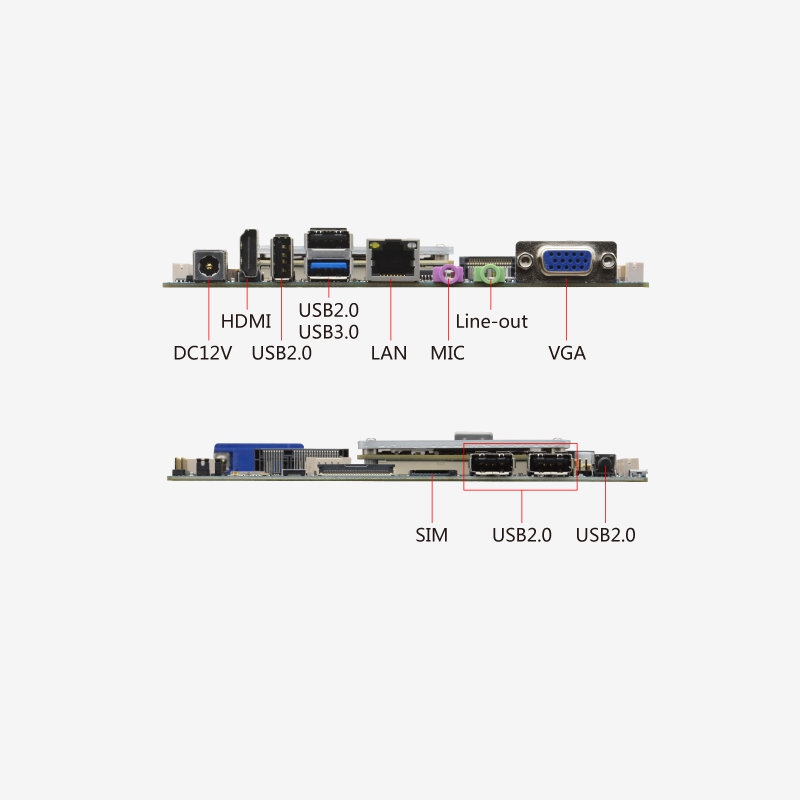

Backplane I/O interface: 2x USB2.0 interface, 1x USB3.0 interface
1x HDMI port
1x Gigabit network interface
1x Line-out (green)
1x MICK (red)
1x VGA port
1x DC 12V power interface, support 12V power input and output
Front panel I/O interface: 1x TF card slot
2x USB2.0 interface
1x MICRO_USB2.0 interface
1x Power switch

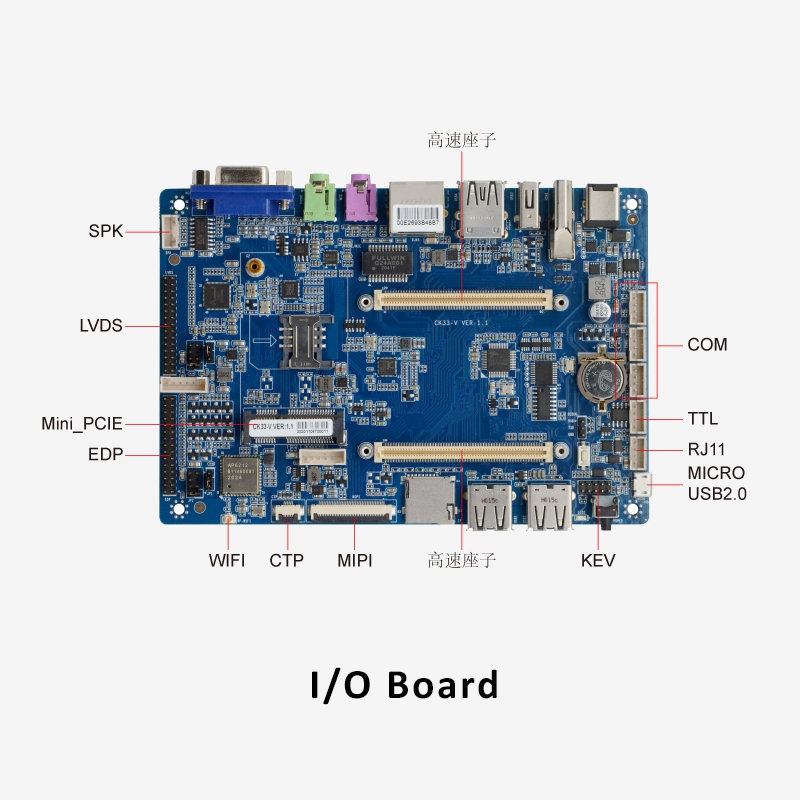

Built in I/O interface: 1x LVDS interface, 2x 15pin, support dual channel 24BIT
1x EDP interface, 2x 15pin
2x RS232 serial interface, 1x 4pin
1x RS485 serial interface, 1x 4pin
1x TTL serial interface, 1x 4pin
1x Cash drawer interface, 1x 4pin
1x MIPI interface, FPC specification 40pin for connecting to MIPI screen
1x CTP interface, FPC specification 6pin, used to connect to touch screen
1x Screen backlight power supply interface, 1x 6pin
1x power amplifier interface, 1x 4pin
1x Front panel function button and indicator port, 2x 5pin
1x SIM card slot
Power Type: DC 12V single power input
GPIO: Support 4 GPIO functions
OS: Android 7. 1, Ubuntu16.04, Linux (Qt+eglfs, pure command mode).
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 148mm x 102mm
