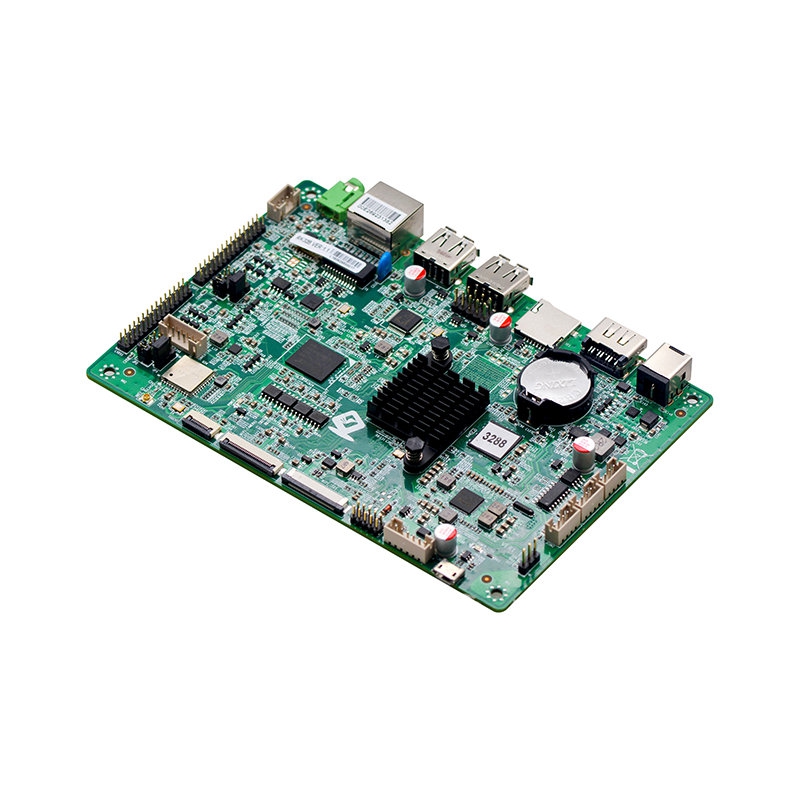

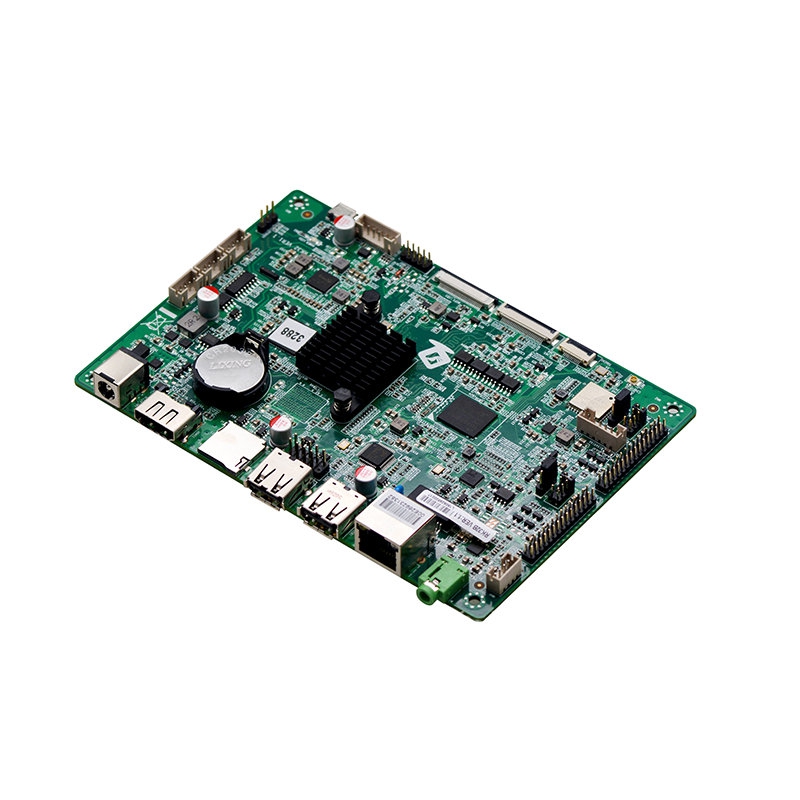

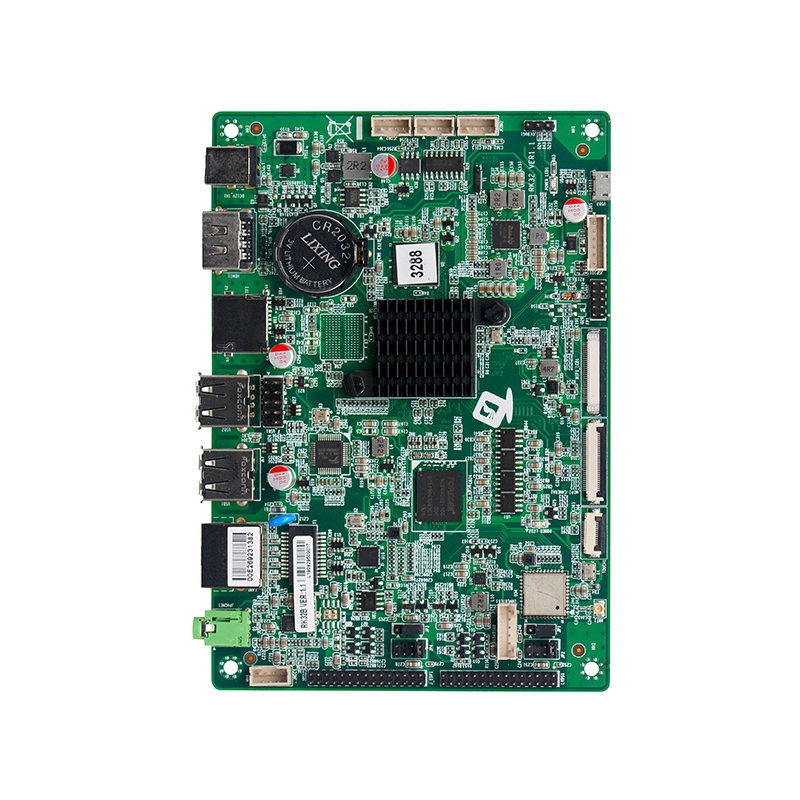

RK3288 ARM Motherboard

Model No.: RK32B VER:1.1
♦Based on Rockchip RK3288 SOC platform
♦Integrated Quad-core Cortex-A17 up to 1.8GHz processor
♦ARM Mali-T764 GPU ; HDMI + LVDS + eDP for Display
♦Onboard LPDDR3 2GB memory.
♦Network: 1* RTL8211F Gigabit Ethernet ; 1*WIFI/ bluetooth module
♦Storage: 1*eMMC 16GB ; 1*TF card socket, up to 64G
♦2* MIPI ; 2*RS232 ; 1*RS485 ; 1*CTP ; 5*USB2.0 ; 1*GPIO
♦1*DC_12V Input  ;     OS: Android 7.1/Ubuntu 16.04/Linux(Qt+eglfs)
  • Description
    Product Description
    Model No.: RK32B VER:1.1 ( Android7.1 installed )
    Processor: CPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor
    Chipset: Based on RK3288  SOC platform
    Memory: On board LPDDR3  ( 1Gb memory )
    Graphics: Integrated ARM Mali-T764 GPU,support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11
             1x HDMI,1x LVDS,1x EDP
             Support dual-screen synchronous/asynchronous display
    Network: 1x RTL8211F Gigabit Ethernet, support wake on LAN
            1x WIFI/ bluetooth module
    Storage: 1x eMMC ( 8Gb )
            1x TF card socket , up to 64G
    Audio:  Onboard Everest ES8316 Audio , support Line-out,MIC
    Expansion slots: NA

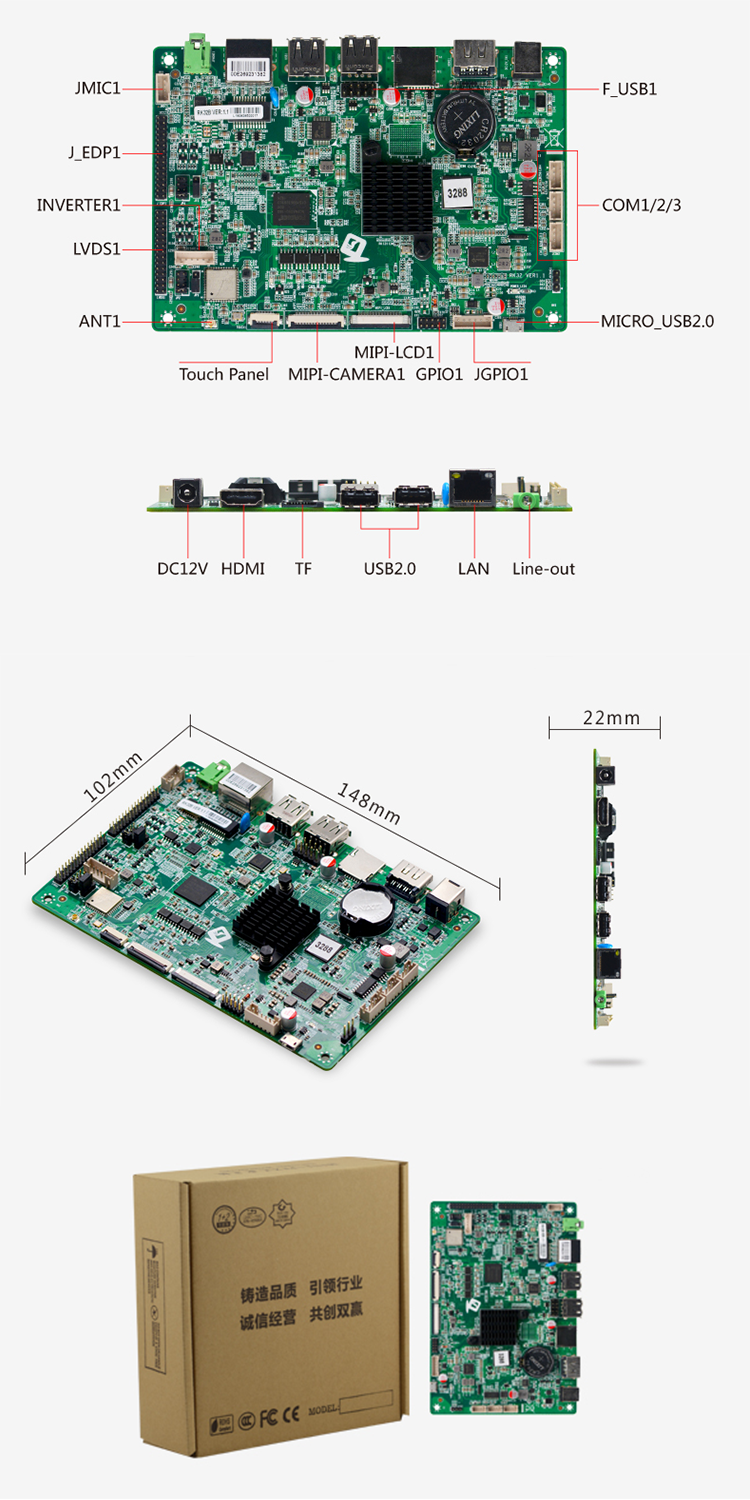

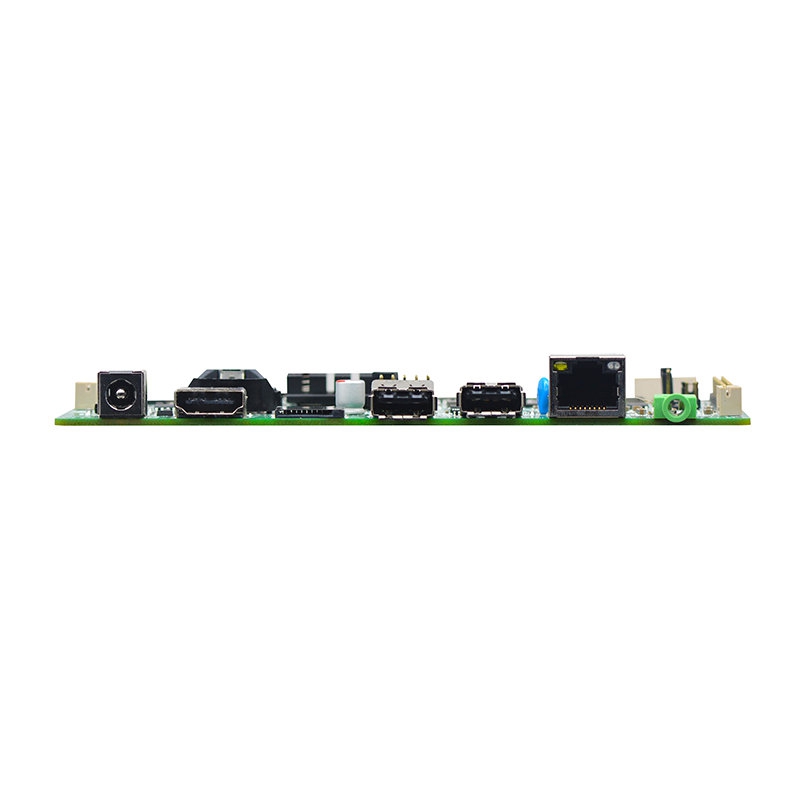

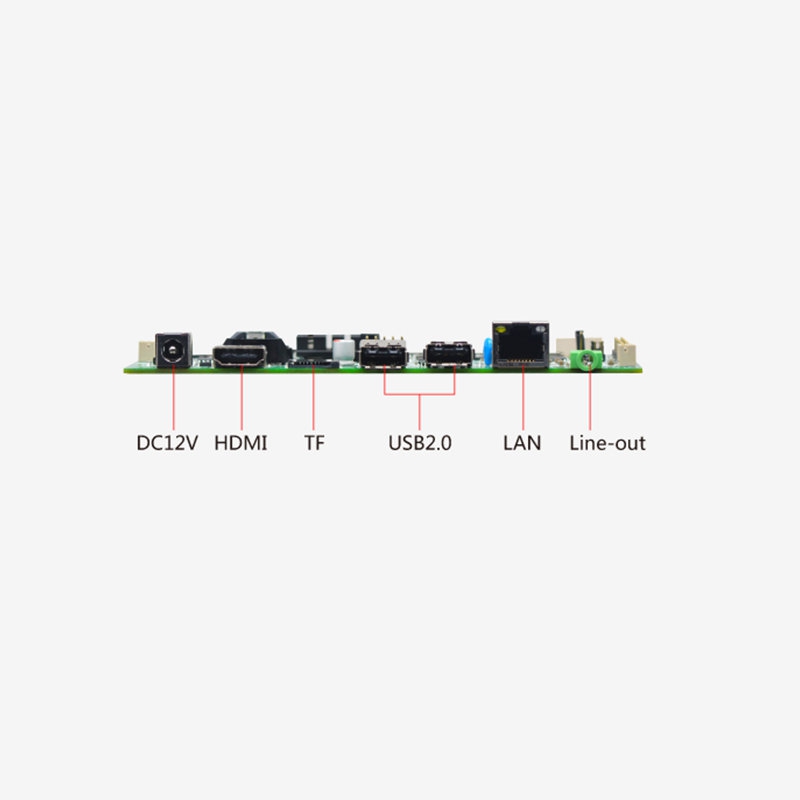

    Rear I/O:         2x USB2.0
    1x HDMI
    1x Gigabit Ethernet connector
    1x Line-out(Green)
    1x TF card socket
    1x MICRO_USB2.0
    1x DC12V power input port

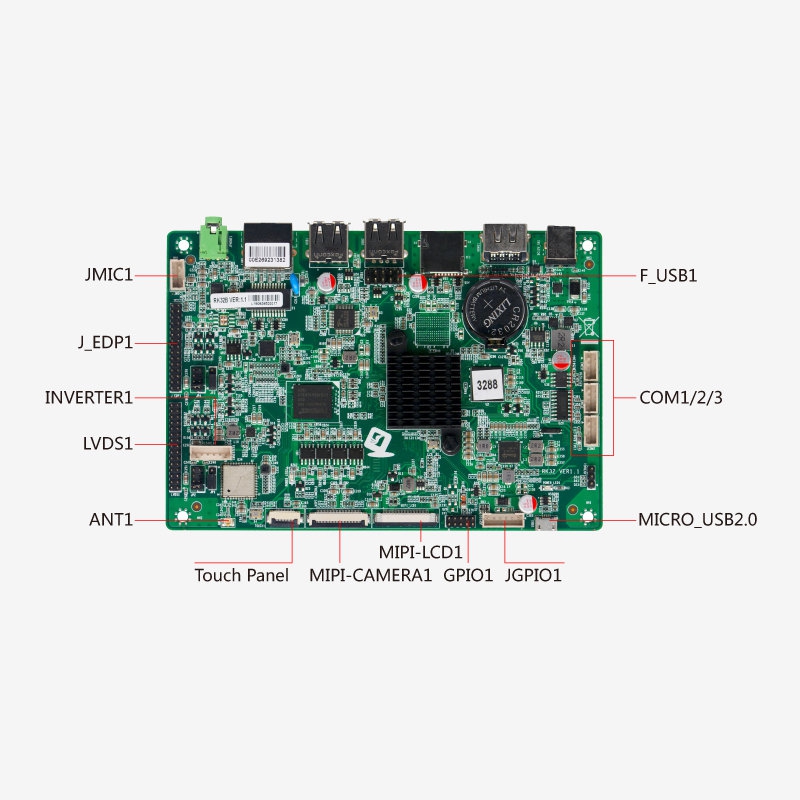

    Internal I/O:         2x USB2.0
    2x RS232 serial ports, 1x 4pin
    1x RS485 serial port , 1x 4pin
    1x Touch Panel port
    2x MIPI ports,used to connect camera for one ,another used to connect MIPI screen
    1x LVDS, 2x 15pin,support dual channel 24bit
    1x EDP port,2x 15pin
    1x screen backlight power supply port 1x 6pin
    1x MIC port 1x 4pin
    Power input: DC 12V power input
    GPIO: Support 4 way GPIO
    OS: Android 7.1
    Working Temp.: 0℃~60℃
    Storage Temp.: -20℃~70℃
    Working Humidity: 5%-95%(relative humidity; non-condensing)

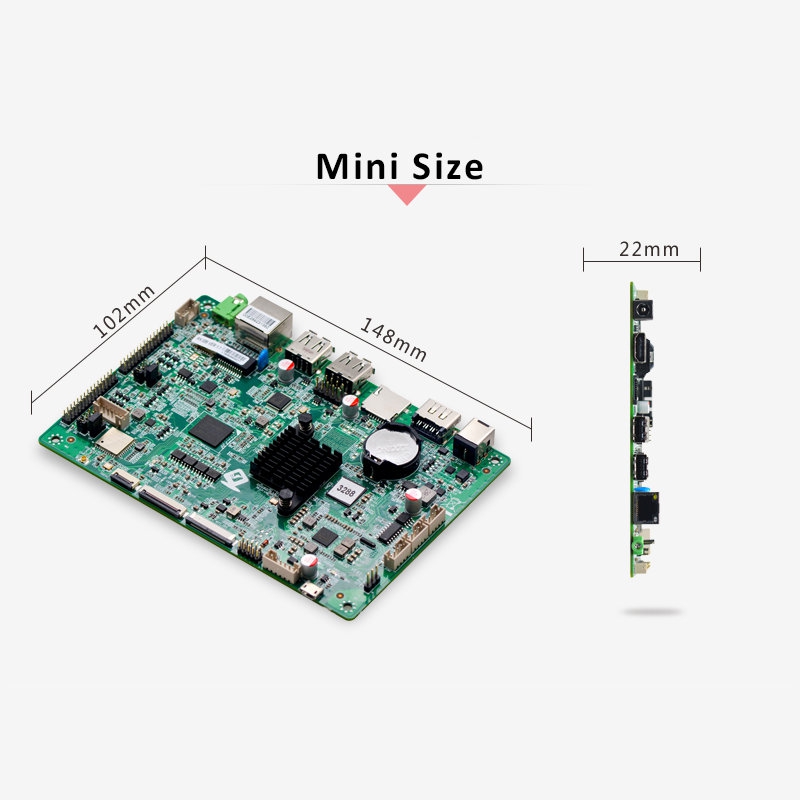

    Dimension:148mm x 102mm
