Products

New Products

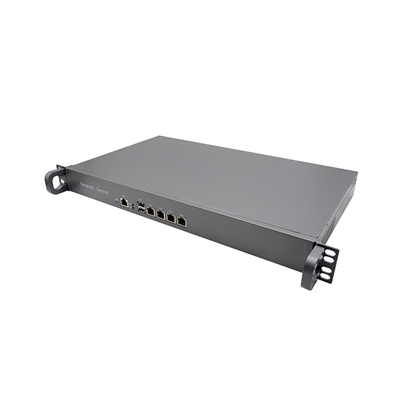

LGA1151 1+1 Power Supply 1U Firewall Appliance

♦Model NO.:ST-C2468L-2P V1.0

♦1U Standard Rack_mount Chassis

♦Intel Socket LGA1151 processors

♦2x DDR4 RAM slot, up to 32GB

♦4x SATA3.0 + 1x MSATA + 1x M.2

♦8x 2.5GbE Ports (RJ45)

♦2x PCI-E x8 (SFP+ Expansion)

♦(Bypasss/Vpro) Optional

♦1x Mini-pcie&M.2 (Wifi&BT&4G/5G LTE)

♦2x USB3.0 ; 4x USB2.0(inner)

♦1+1 Redundant Power Supply (Hot_Swap)
4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router

♦Model NO.:ST-AD12N-6S V1.0

♦Aluminum Alloy ; Active Cooling

♦Intel N97/N100/N200/N305 CPUs

♦1x DDR5 RAM slot, up to 32GB

♦1x SATA3.0 + 1x M.2 NVMe X1 + 1x TF slot

♦4x 2.5GbE RJ45 + 2x SFP+ (10Gb)

♦DP+HDMI+Type_C Triple Display

♦1x Mini-PCIe for 4G LTE

♦1x SIM slot

♦5x USB2.0 ; 1x USB3.0

♦DC_12V Power Input
23.8 inch RK3588 Android Industrial Tablet PC support 5G module

♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU

♦Capacitive / Resistive touch:23.8" TFT LCD / 1920*1080 / 250 cd/m²

♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.

♦Pure flat panel IP65 dust-proof and waterproof.

♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power

♦6TOPS AI computing power

♦Support 8K ultra-high definition display, support double display,can be customized four display

♦Provide SDK package, support secondary development and upgrade customization
15.6 inch RK3588 Android Industrial Tablet PC support 5G module

♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU

♦Capacitive / Resistive touch:15.6" TFT LCD / 1920*1080 / 300 cd/m²

♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.

♦Pure flat panel IP65 dust-proof and waterproof.

♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power

♦6TOPS AI computing power

♦Support 8K ultra-high definition display, support double display,can be customized four display

♦Provide SDK package, support secondary development and upgrade customization

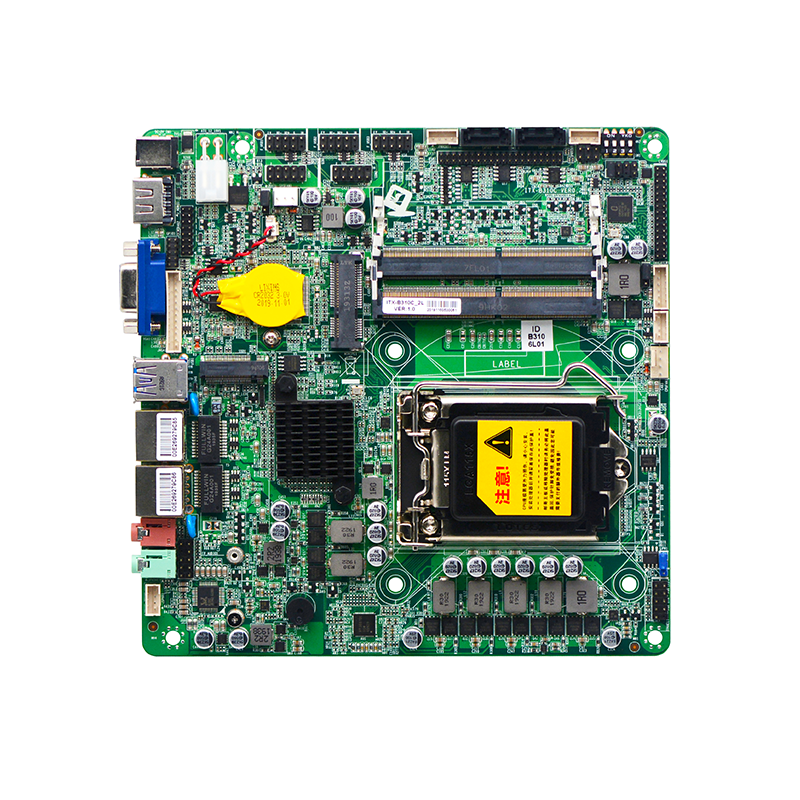

2 Lan LGA1151 mini itx motherboard

♦Model No.: ITX-B310C_2L VER:1.0

♦Adopt Intel H310C Express chipset

♦Support LGA1151 6th/7th/8th/9th Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; VGA + 2*HDMI1.4 + 1*LVDS for display

♦2*DDR4 2400/2133MHz SO-DIMM socket, up to 64GB

♦2*RJ45 Gigabit Ethernet / 8*USB / 6*COM(RS232/485)

♦2*SATA3.0 / 1*M.2 SSD / 1*mini-pcie(Wifi)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W

♦Provide: 1* DC_Jack 19V Input ; 1*ATX 4pin 12V~19V input

Read More Make an inquiry

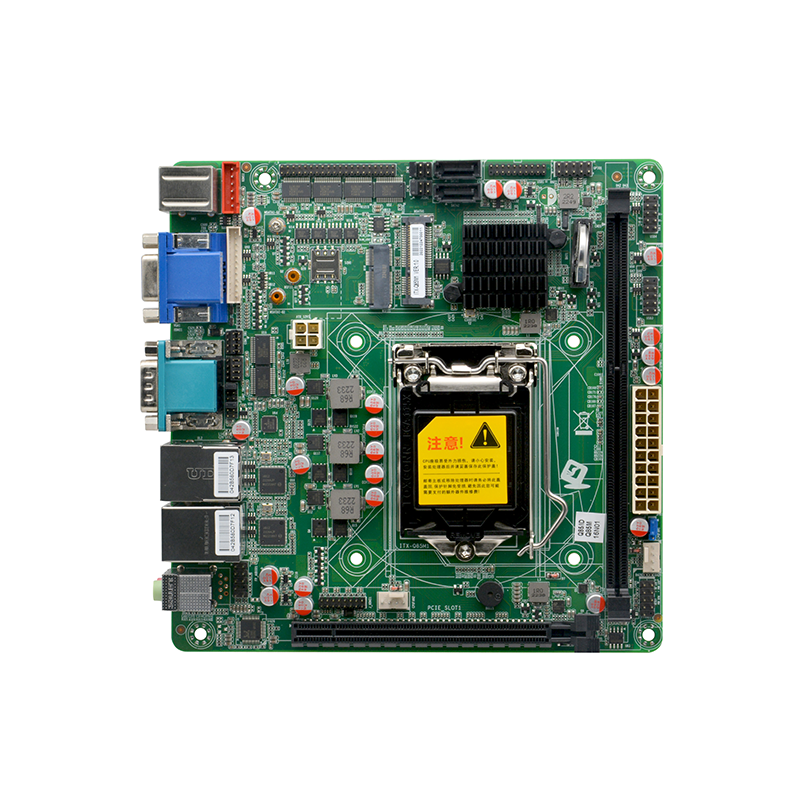

2 Lan LGA1150 mini itx motherboard

♦Product model: ITX-Q85M1 VER:1.0

♦Adopt Intel Q85 Express chipset

♦Support socket LGA1150 Intel Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; VGA + 2*HDMI1.4 for display

♦1*DDR3 1600/1333MHz DIMM socket, up to 8GB

♦2*RJ45 Gigabit Ethernet / 12*USB / 6*COM(RS232/485/422) / 2* PS2

♦2*SATA3.0 / 1*mSATA SSD / 1*M.2 2230(Wifi module) / 1*PCIE x16

♦Support GPIO ; Watchdog Timer ; 1*SIM slot

♦Provide: 1* ATX 20PIN Input ; 1*ATX 4pin input

Read More Make an inquiry

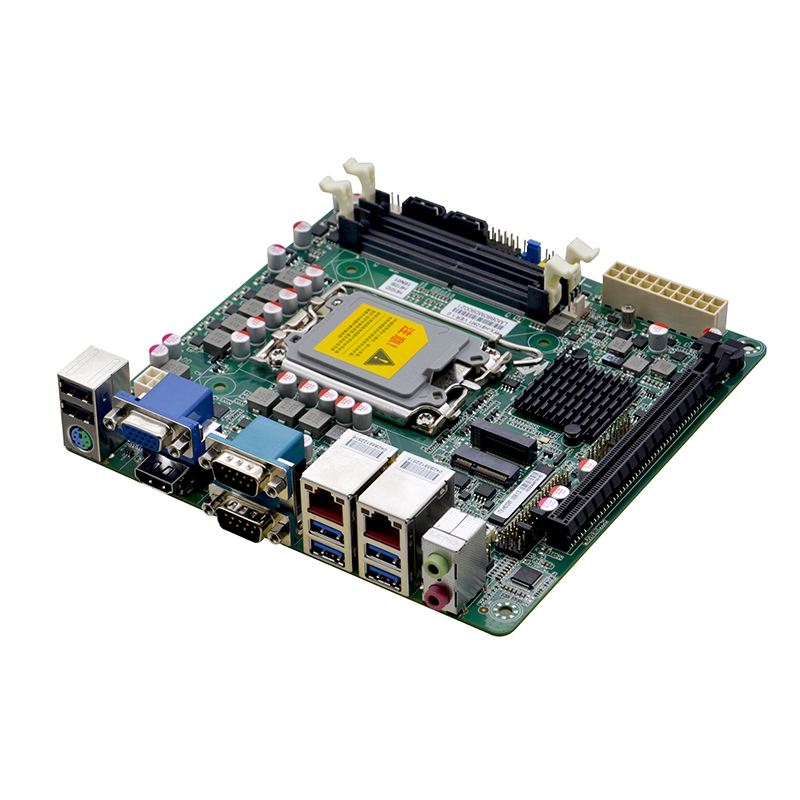

2 Lan LGA1700 mini itx motherboard

♦Model No.: ITX-H610M1 VER:1.0

♦Adopt Intel H610 Express chipset

♦Support LGA1700 12nd/13rd Gen Pentium/Core i3/i5/i7/i9 processors

♦Integrated Intel HD Graphics; HDMI1.4 + VGA for display

♦2*DDR4 3200MHz SO-DIMM socket, up to 64GB

♦2*RJ45 Gigabit Ethernet / 9*USB / 6*COM(RS232/485/422)

♦2*SATA3.0 / 1*M.2 NVMe SSD / 1*M.2 (Wifi) / 1*PCIE3.0 x16

♦Support GPIO ; Watchdog Timer ; 2*PS2

♦Provide: 1* ATX 24PIN Input ; 1*ATX 8pin input

Read More Make an inquiry

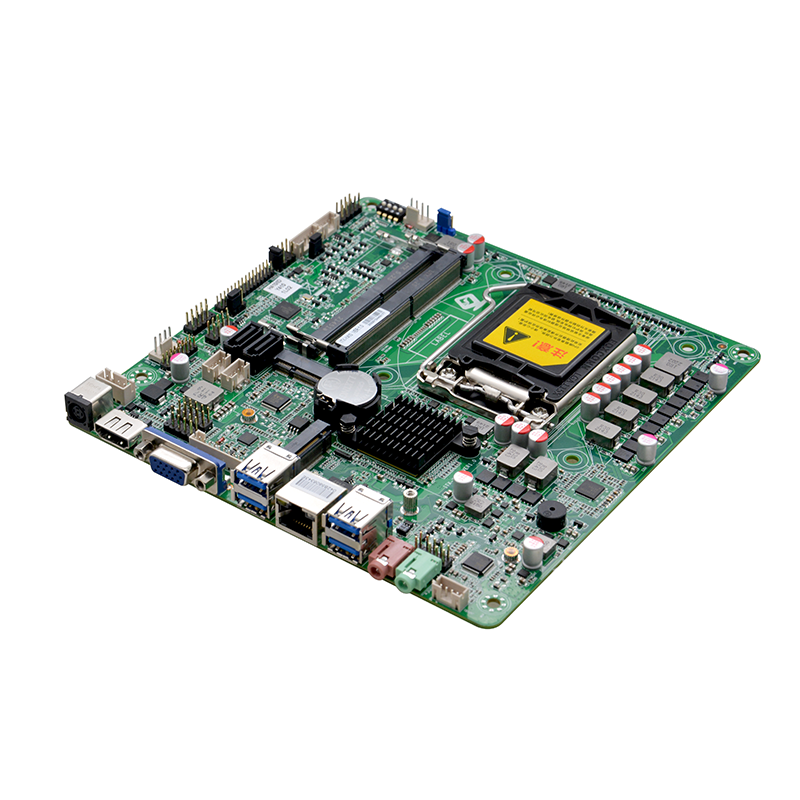

LGA1200 mini itx motherboard

♦Model No.: ITX-Y410 VER:1.0

♦Adopt Intel H410 Express chipset

♦Support LGA1200 10th Gen Celeron/Pentium/Core i3/i5/i7/i9 processor

♦Integrated Intel HD Graphics; DP + 2*HDMI + LVDS/eDP for display

♦2*DDR4 2933MHz SO-DIMM socket, up to 128GB

♦1*RJ45 Gigabit Ethernet / 8*USB / 1*COM(RS232)

♦2*SATA3.0 / 1*M.2 2260/2280 SATA SSD / 1*M.2 2230 (Wifi module)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W

♦Provide: 1* DC_Jack 12V~19V Input ; 1*ATX 4pin 12V~19V input

Read More Make an inquiry

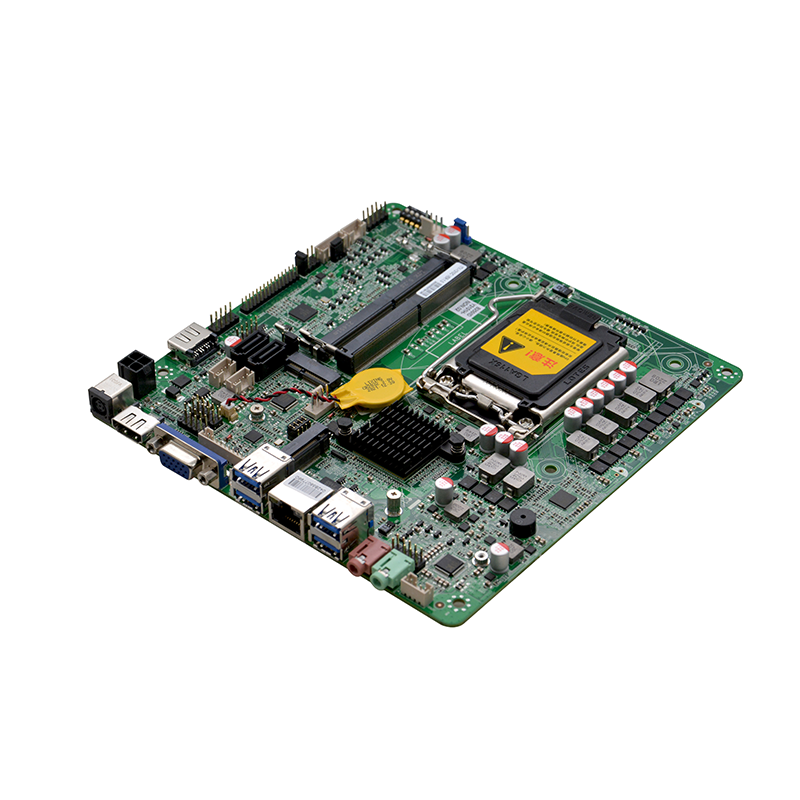

H310C chipset LGA1151 mini itx motherboard

♦Model No.: ITX-Y310C VER: 1.0

♦Adopt Intel H310C Express chipset

♦Support LGA1151 6th/7th/8th/9th Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; DP + 2*HDMI + LVDS for display

♦2*DDR4 2400/2133MHz SO-DIMM socket, up to 64GB

♦1*RJ45 Gigabit Ethernet / 8*USB / 1*COM(RS232)

♦2*SATA3.0 / 1*M.2 PCIE x2/SATA SSD / 1*M.2 2242 (Wifi module)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W

♦Provide: 1* DC_Jack 12V~19V Input ; 1*ATX 4pin 12V~19V input

Read More Make an inquiry

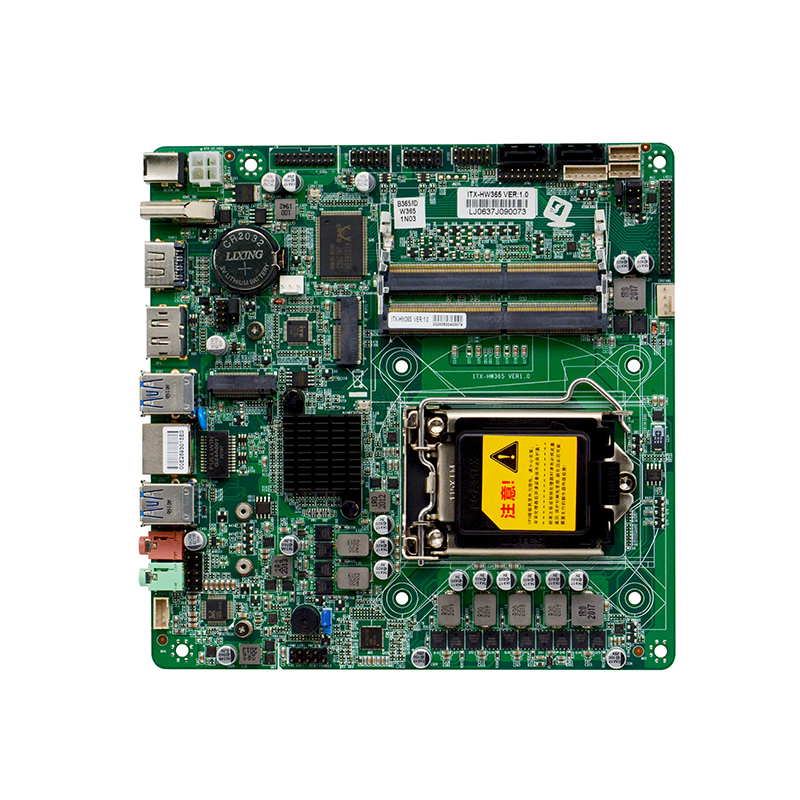

B365 chipset LGA1151 mini itx motherboard

♦Mode No.: ITX-HW365 VER:1.0

♦Adopt Intel B365 Express chipset

♦Support LGA1151 6th/7th/8th/9th Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; DP + HDMI + LVDS + HDMI_in for display

♦2*DDR4 2400/2133MHz SO-DIMM socket, up to 32GB

♦1*RJ45 Gigabit Ethernet / 10*USB / 1*COM(RS232) / 1*TPM

♦2*SATA3.0 / 1*M.2 SSD / 1*M.2 2230 (Wifi module)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W

♦Provide: 1* DC_Jack 12V~19V Input ; 1*ATX 4pin 12V~19V input

Read More Make an inquiry

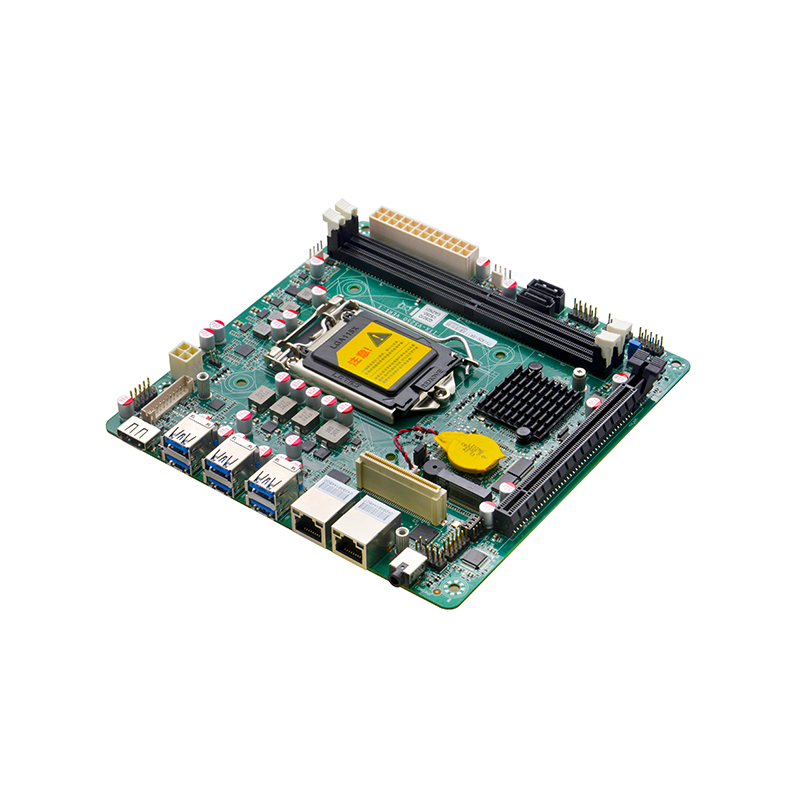

2 Lan Q250 chipset LGA1151 mini itx motherboard

♦Model No.: ITX-VS250 VER:1.0

♦Based on Intel Q250 Chipset

♦Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors

♦Intel HD Graphics ; 1*VGA + 1*HDMI for Display

♦2*DDR4 2400MHz DIMM socket, up to 64GB

♦2*RJ45 Gigabit Eth / 8*USB / 2*COM(RS232)

♦2*SATA / 1*M.2 NVME SSD / 1* PCIE3.0 X16/ 1* 80pin

♦Socket(including 4*PCIE signal, 1*VGA signal, can expand 4*POE LAN+ 1*VGA)

♦Support GPIO ; Watchdog Timer

♦Support ATX 24Pin ; 1*socket 4pin 12V

Read More Make an inquiry

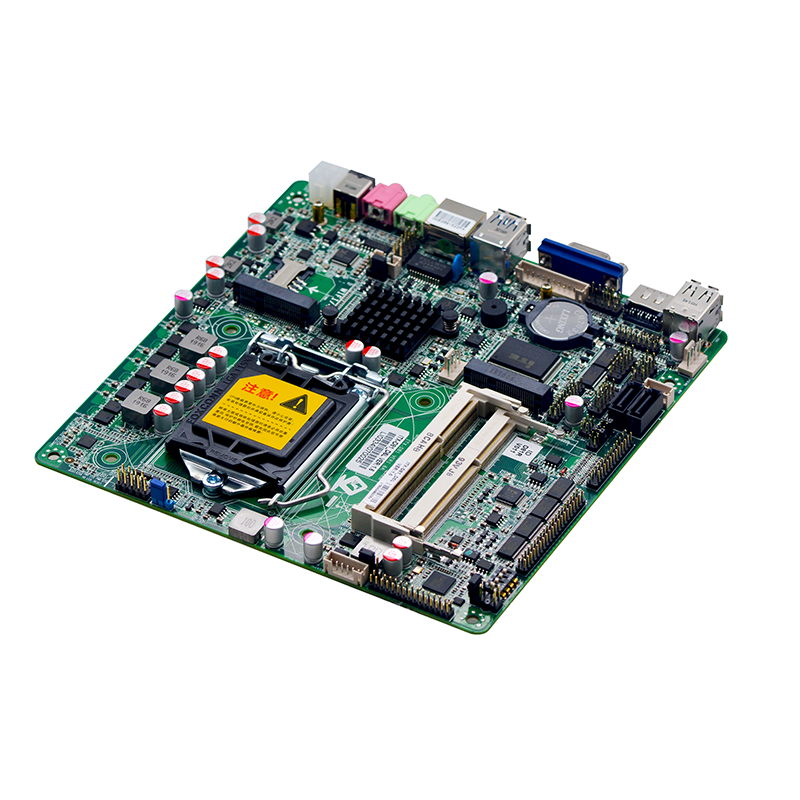

H81 chipset LGA1150 mini itx motherboard

♦Mode No.: ITX-D81_D6L VER:1.6

♦Adopt Intel H81 Express chipset

♦Support LGA1150 4th Gen Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; VGA + 2*HDMI1.4 + LVDS for display

♦2*DDR3 1600/1333MHz DIMM socket, up to 16GB

♦1*RJ45 Gigabit Ethernet / 6*USB / 6*COM(RS232/485/422)

♦2*SATA / 1*mSATA SSD / 1*Mini-pcie(Wifi/4G)

♦Support GPIO ; WDT ; 1*SIM slot ; 1*LPT ; SPK 3Ω/2W

♦Provide: 1* DC_Jack 19V Input ; 1*ATX 4pin 12V~19V input

Read More Make an inquiry

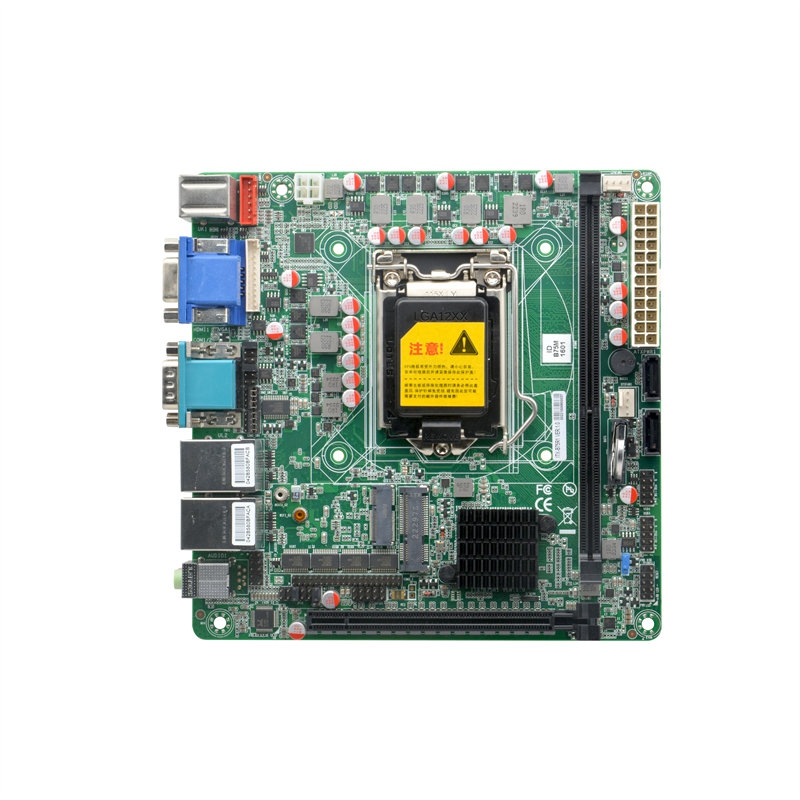

2 Lan Z77/B75 chipset LGA1155 mini itx motherboard

♦Model No.: ITX-B75R1 VER:1.0

♦Adopt Intel Z77/B75 Express chipset

♦Support LGA1155 2nd/3rd Gen Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; VGA + HDMI1.4 for display

♦1*DDR3 1600/1333MHz DIMM socket, up to 8GB

♦2*RJ45 Gigabit Ethernet / 10*USB / 6*COM(RS232/485/422) / 2* PS2

♦2*SATA2.0 / 1*mSATA SSD / 1*M.2 (Wifi module) / 1*PCIE2.0 x16

♦Support GPIO ; Watchdog Timer

♦Provide: 1* ATX 24PIN Input ; 1*ATX 4pin input

Read More Make an inquiry

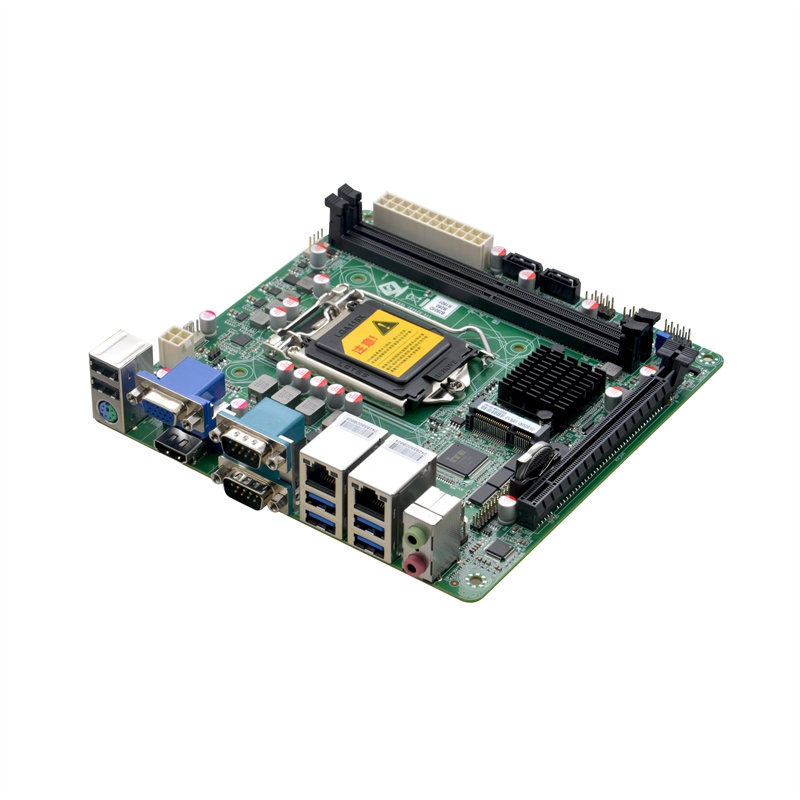

2 Lan B250 chipset LGA1151 mini itx motherboard

♦Model No.: ITX-B250R1 VER:1.0A

♦Adopt Intel B250 Express chipset

♦Support LGA1151 6th/7th/8th/9th Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; VGA + HDMI1.4 for display

♦2*DDR4 2666/2400/2133MHz DIMM socket, up to 64GB

♦2*RJ45 Gigabit Ethernet / 10*USB / 6*COM(RS232/485/422) / 2* PS2

♦2*SATA3.0 / 1*mSATA slot for (SSD/Wifi) / 1*PCIE3.0 x16

♦Support GPIO ; Watchdog Timer

♦Provide: 1* ATX 24PIN Input ; 1*ATX 4pin input

Read More Make an inquiry

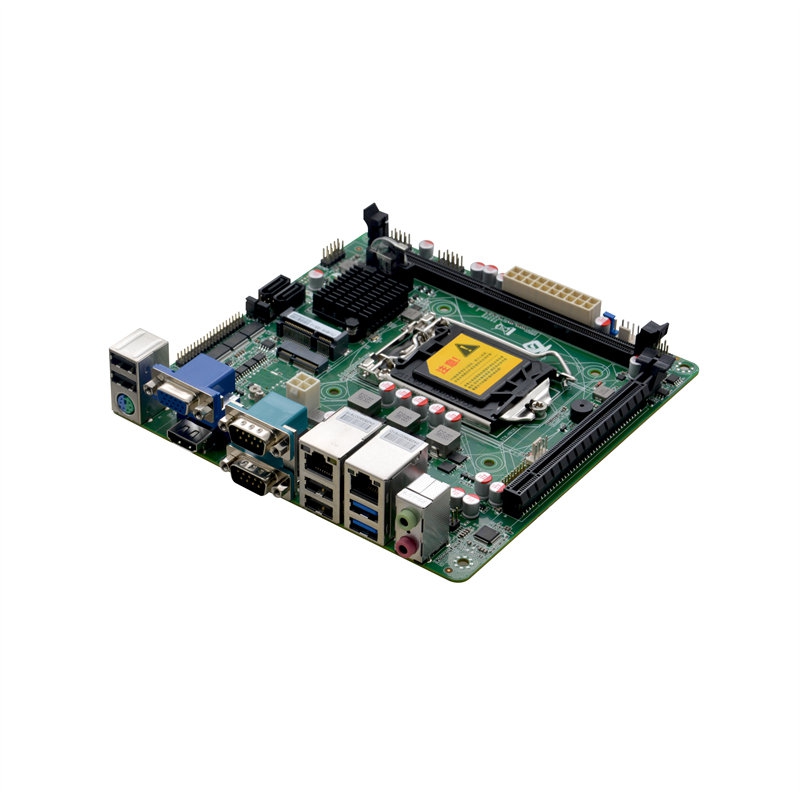

2 Lan H81 Chipset LGA1150 mini itx motherboard

♦Model No.: ITX-H81R1 VER:1.0

♦Adopt Intel H81 Express chipset

♦Support socket LGA1150 Intel Celeron/Pentium/ i3/i5/i7 processors

♦Integrated Intel HD Graphics; VGA + 2*HDMI1.4 for display

♦1*DDR3 1600/1333MHz DIMM socket, up to 8GB

♦2*RJ45 Gigabit Ethernet / 10*USB / 6*COM(RS232/485/422) / 2* PS2

♦2*SATA3.0 / 1*mSATA SSD / 1*M.2 2230(Wifi) / 1*PCIE x16 slot

♦Support GPIO ; Watchdog Timer ; 1*SIM slot

♦Provide: 1* ATX 20PIN Input ; 1*ATX 4pin input

Read More Make an inquiry

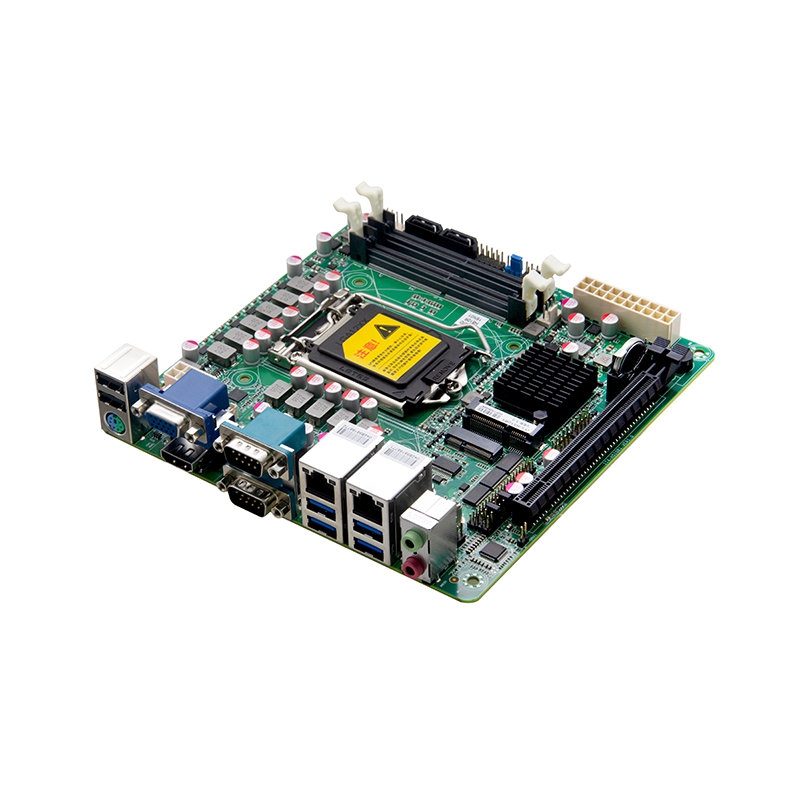

2 Lan H510 chipset LGA1200 mini itx motherboard

♦Model No.: ITX-H510R1 VER:1.0

♦Adopt Intel H510 Express chipset

♦Support LGA1200 10th/11st Gen Pentium/Core i3/i5/i7/i9 processors

♦Integrated Intel HD Graphics; HDMI1.4 + VGA for display

♦2*DDR4 3200MHz SO-DIMM socket, up to 64GB

♦2*RJ45 Gigabit Ethernet / 10*USB / 6*COM(RS232/485/422)

♦2*SATA3.0 / 1*mSATA SSD / 1*M.2 (Wifi module) / 1*PCIE3.0 x16

♦Support GPIO ; Watchdog Timer ; 2* PS2

♦Provide: 1* ATX 24PIN Input ; 1*ATX 8pin input

Read More Make an inquiry
