Product Description

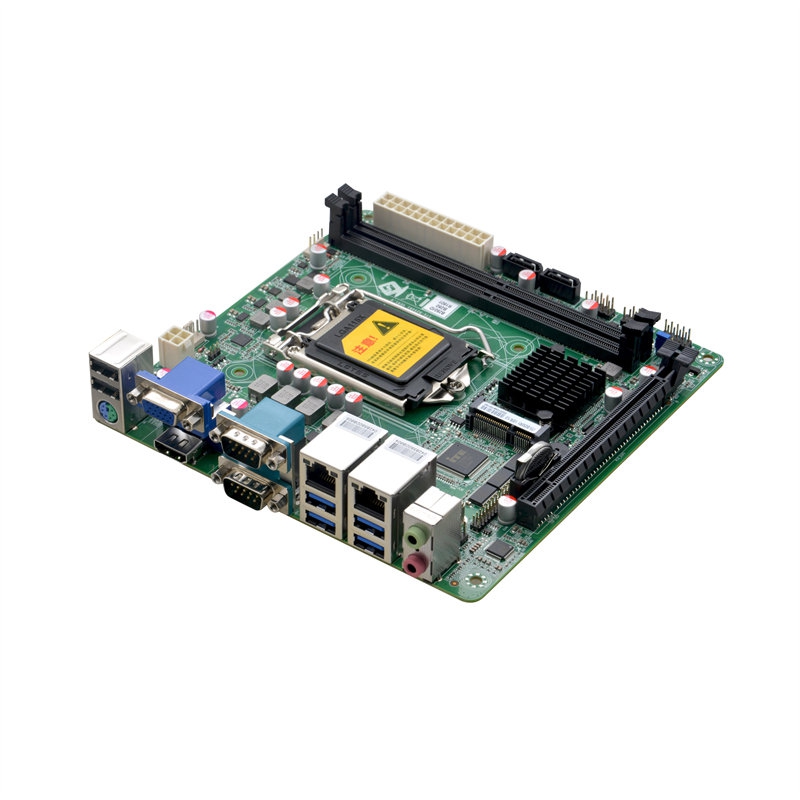

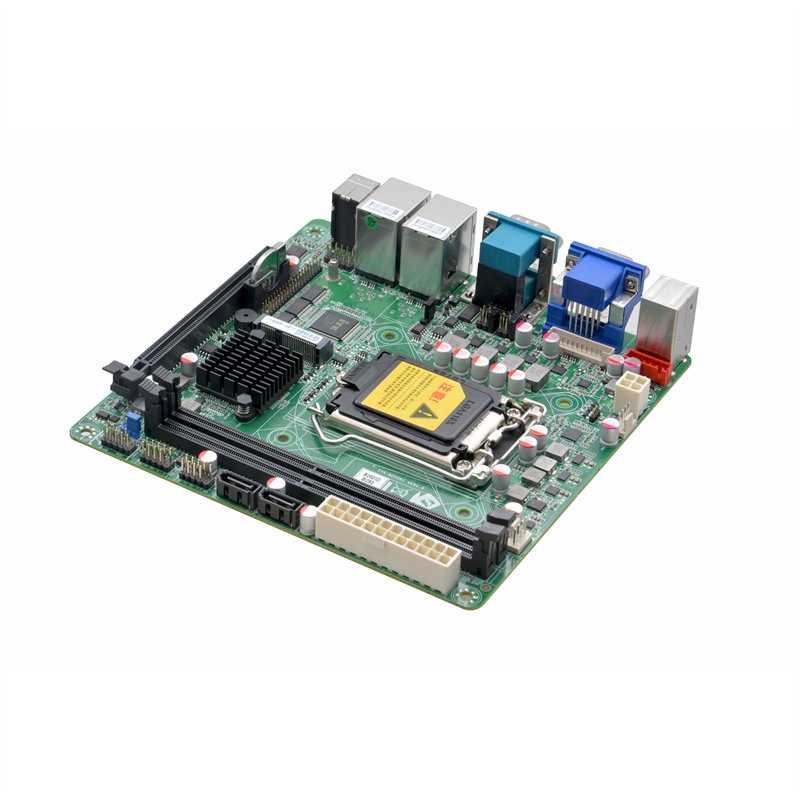

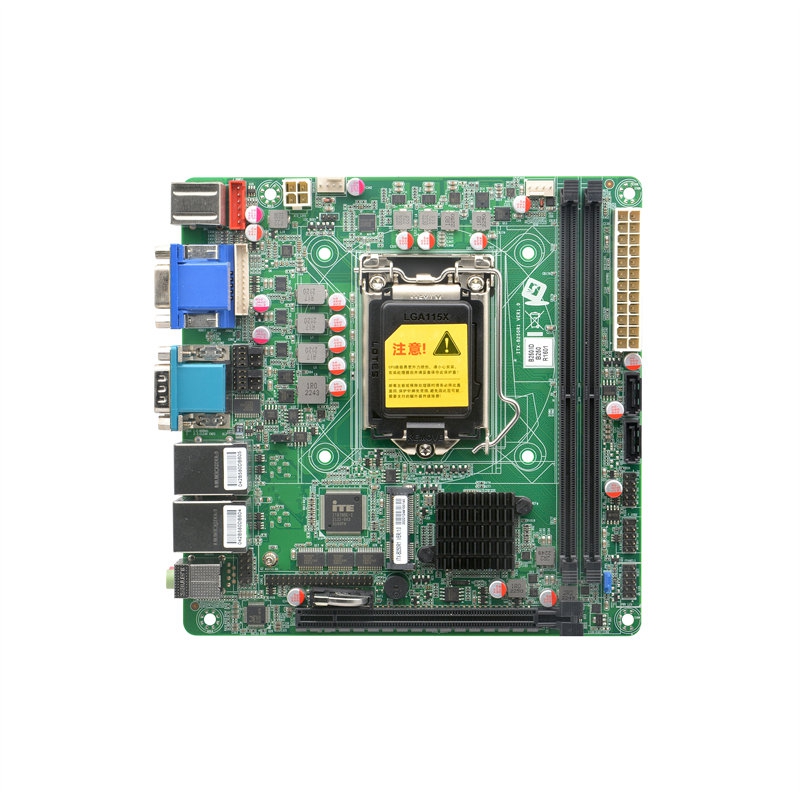

Model No.: ITX-B250R1 VER:1.0A
Processor: Supports LGA1151 6th/7th/8th/9th Celeron/Pentium/Core™ i3/i5/i7 CPU
Note: Supports 6th/7th 95W, 8th/9th only support 6 core 65W and below CPU，8 core 35W CPU
Chipset: Intel Q250 high speed chipset
Memory: 2x DDR4 DIMM memory slot, supports dual channels 2133/2400/2666MHz memory, up to 64GB
Display: Integrated Intel® HD Graphics
1x VGA
1x HDMI1.4
Supports independent display,dual display and extended mode
Ethernet: 2x RTL8111H Gigabit Ethernet , supports Wake on LAN/PXE function
Storage: 2x SATA3.0 , the transfer rate is up to 6Gbps
1x MSATA slot, supports Intel protocol SSD，the transfer rate is up to 6Gbps(default), can support WIFI（optional）
Audio: Onboard ALC888S high fidelity audio controller, supporting Mic and Line out
Expansion Slot: 1x PCIE3.0 x16

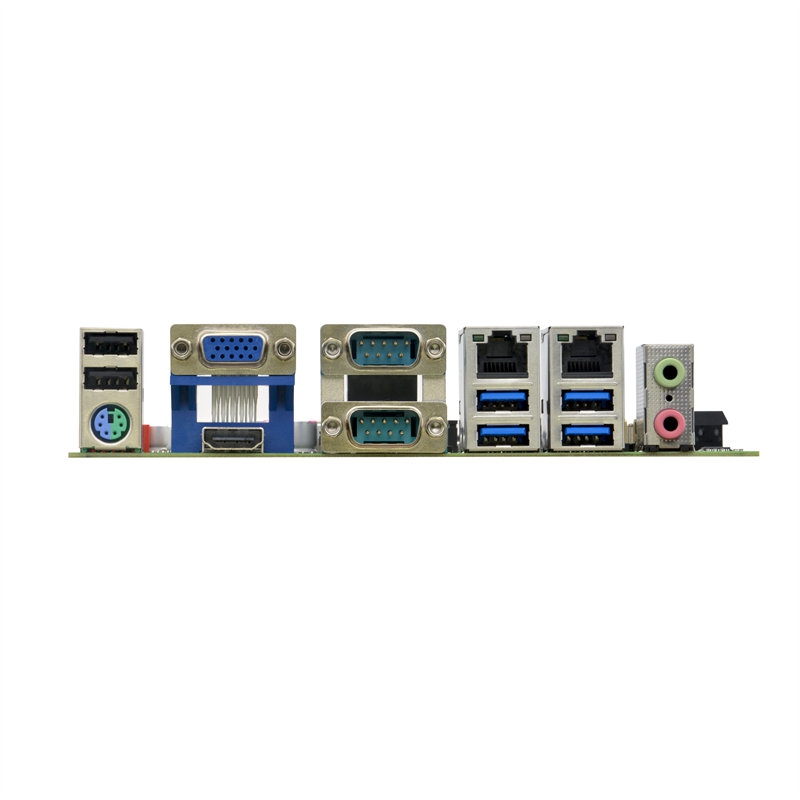

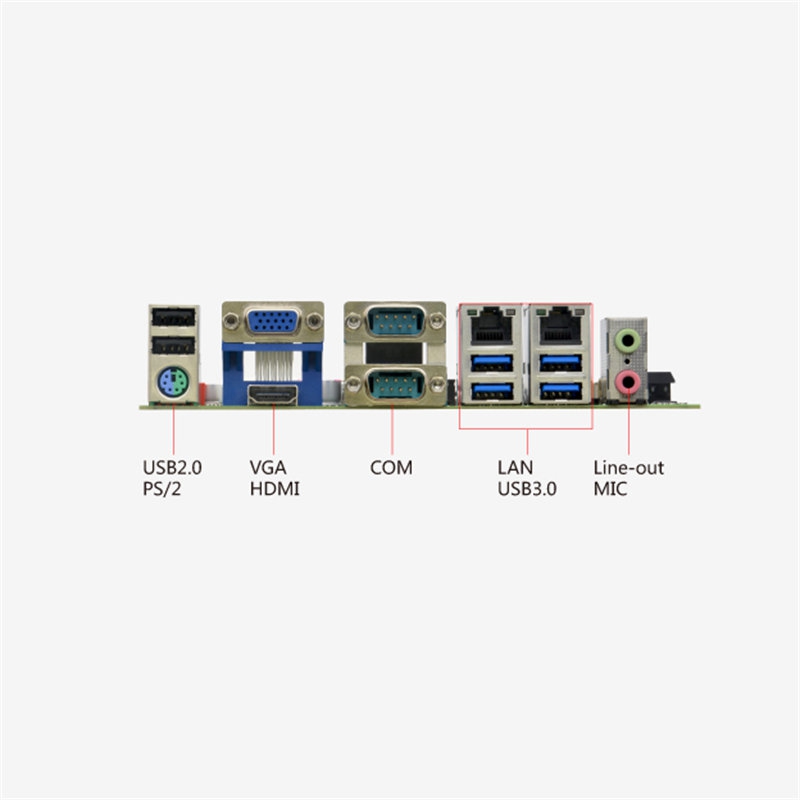

Rear I /O interface:
1x PS/2 keyboard and mouse interface
1x VGA
1x HDMI
2x RS232 (COM1/2 support RS485/422 function)
2x RJ45 Gigabit Network Interface
2x USB 2.0
4x USB 3.0
1x Line out (Green), 1x Mic (Red)

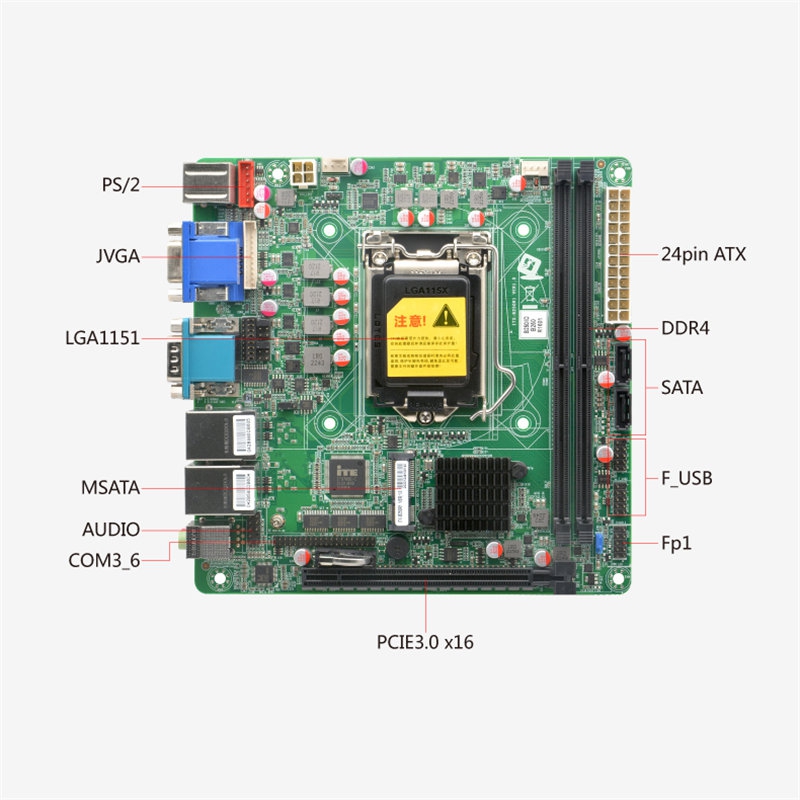

Built in I/O interface:
1x PS/2 keyboard and mouse interface, 1x 6pin (same signal as UK1)
1x JVGA, 1x 12pin (same signal as DB15)
4x RS232, 2x 20pin
1x Front audio interface, 2x 5pin
4x USB 2.0, 2x 5Pin
1x Front panel function button and indicator light interface, 2x 5pin
1x 24pin ATX power input interface
1x 4pin ATX power input interface
Fan Connector: 1* 4pin CPU smart fan connector, 1x 4pin system smart fan connector
BIOS: 64Mb Flash ROM
OS: Windows 7 / 10 / Linux
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: ATX power input
Working temperature: 0℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

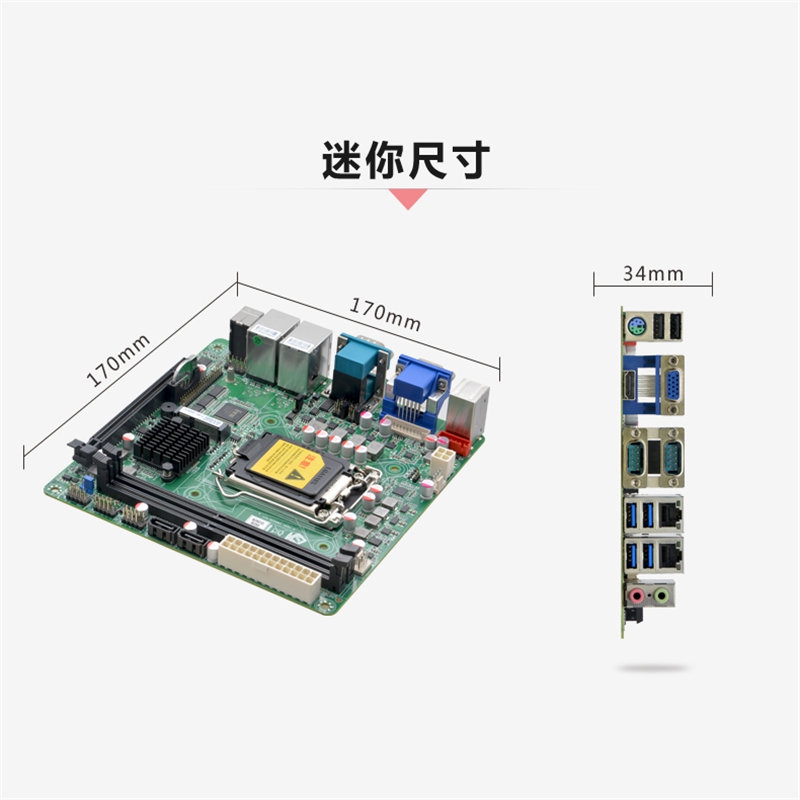

Dimension: 170mm x 170mm
