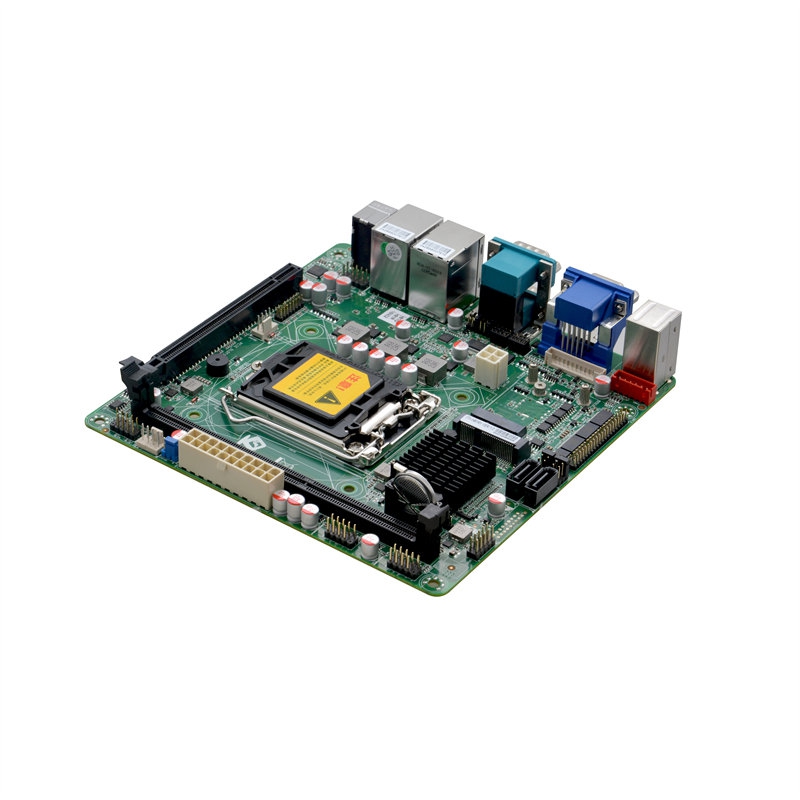

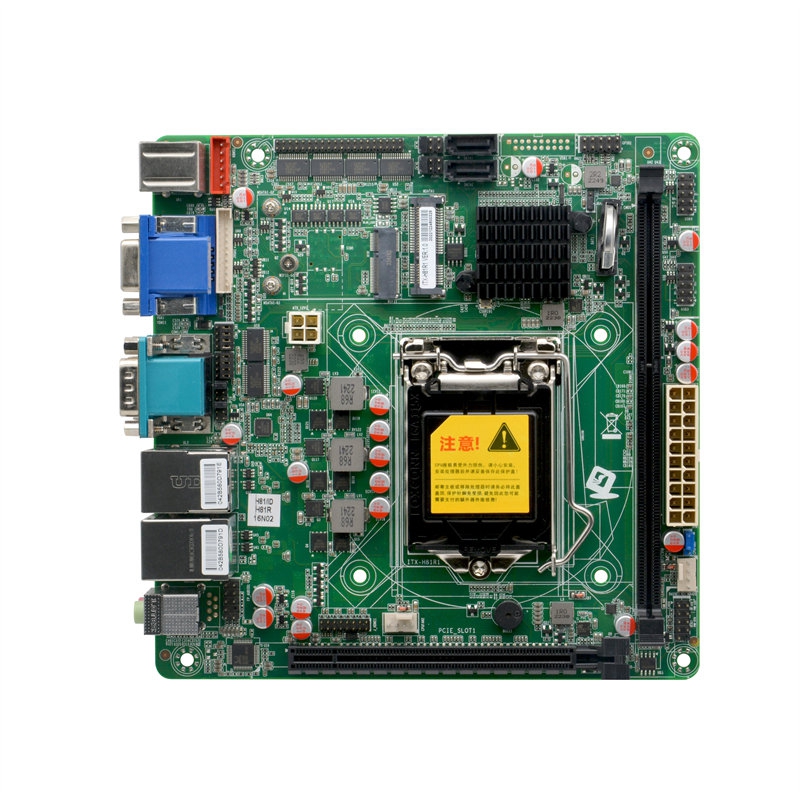

Product Description
Model No.: ITX-H81R1 VER:1.0
Processor: Supports LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
Chipset: Using Intel® H81 Express Chipset
Memory: 1x DDRIII DIMM memory slot，supports single channel 1600/1333MHz memory,up to8GB
Display: Integrated Intel® HD graphics controller,supports DirectX11.2,OpenGL4.3
1x VGA, 2x HDMI display output, support VGA/HDMI synchronous/asynchronous display
Ethernet: 2x RTL8111H Gigabit Ethernet,supports Wake on LAN/PXE function
Storage: 2x SATA hard disk interface(SATA1 supports SATA3.0,transmission speed up to 6Gbps)
1x MSATA slot,support SSD,support Intel protocol SSD solid state drive,transmission speed up to 6Gbps
Note:MSATA support TPM-4COM expand 4 serial ports, need to change material and BIOS
Audio: Onboard ALC888S 7.1+2 channel high-fidelity audio controller, support MIC/Line-out
Expansion Slot:
1x PCIE X16
1x M.2,support M.2 Key E 2230 WIFI module

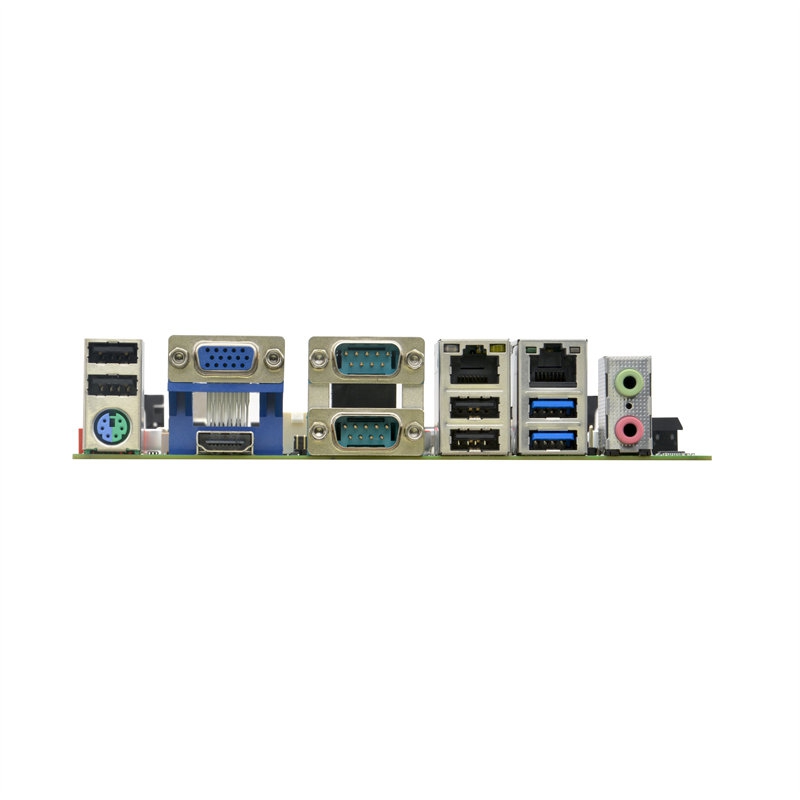

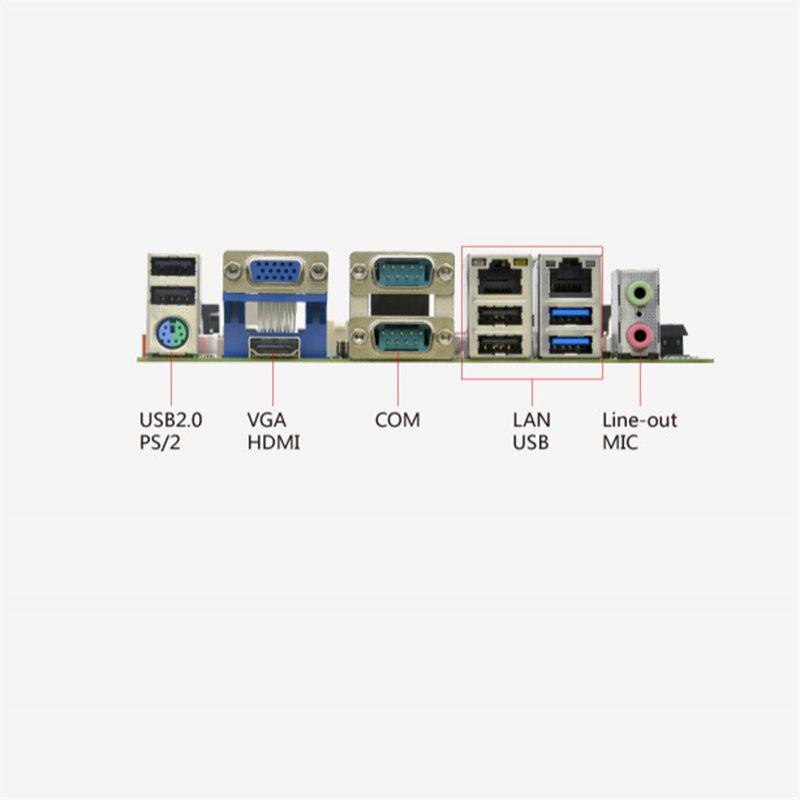

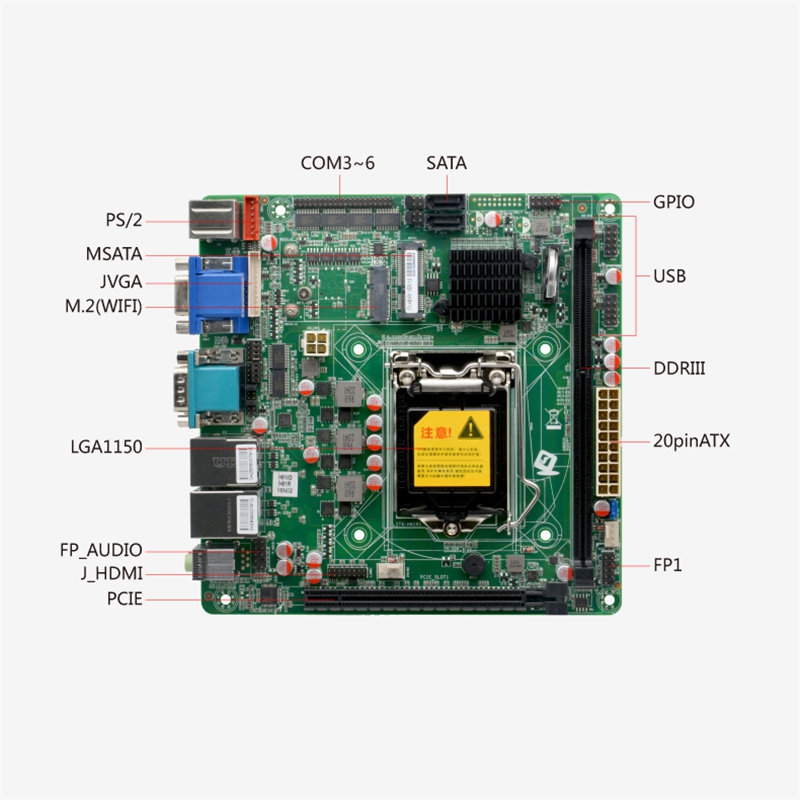

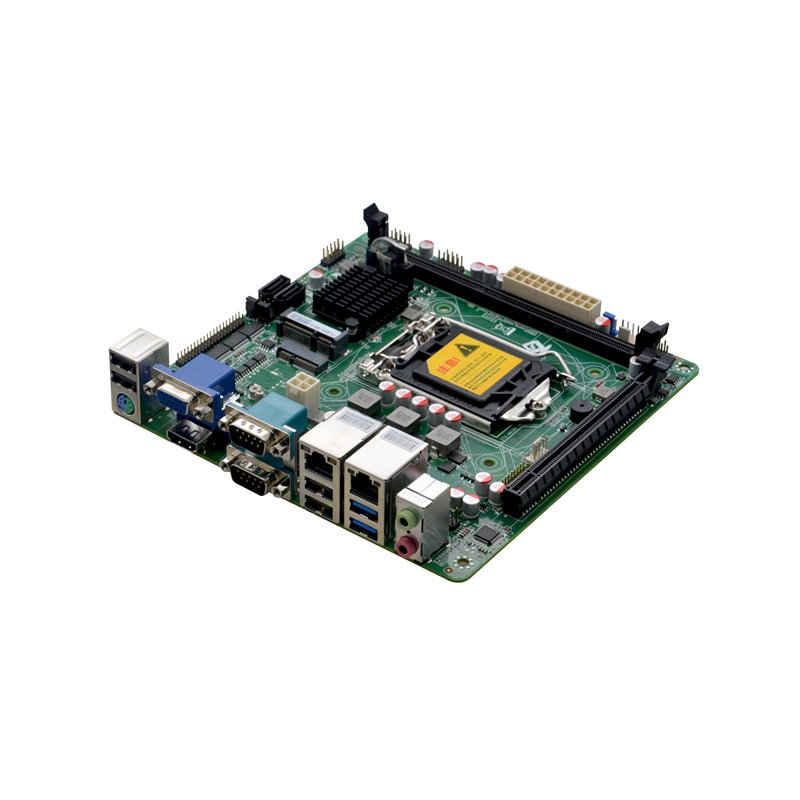

Rear I /O interface:
1x PS/2 interface (expandable keyboard and mouse)
1x VGA
1x HDMI
2x DB9 COM serial port,support the 9th pin charged function，support RS485/422
4x USB 2.0
2x USB 3.0
2x RJ-45 Gigabit Network Interface
1x Double-layer audio interface (sound output and MIC input)
Built in I/O interface:
1x 20pinATX power outlet，
1x 4pin ATX power interface
1x HDMI(2x 8Pin)
1x PS/2 Keyboard and mouse interface 1x 6Pin
4x RS232 com, 2x 20pin
1x Front audio interface,2x 5pin
1x HDMI interface ,2x 8Pin
1x JVGA interface 1x 12pin(Same signal as DB15)
4x USB 2.0 interface ,2x 5Pin
1x Front panel function button and indicator light interface, 2x 5pin
Fan Connector: 1x 4pinCPU fan interface;1x 4pin system smart fan interface
BIOS: 64Mb Flash ROM
GPIO: Support 4-way input and output GPIO function
Watchdog: Support hardware reset function(L256, 0~255 seconds)
OS: Windows 7/Windows 10/Linux
Power Type: powered by ATX 24Pin and 4pin power supply
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

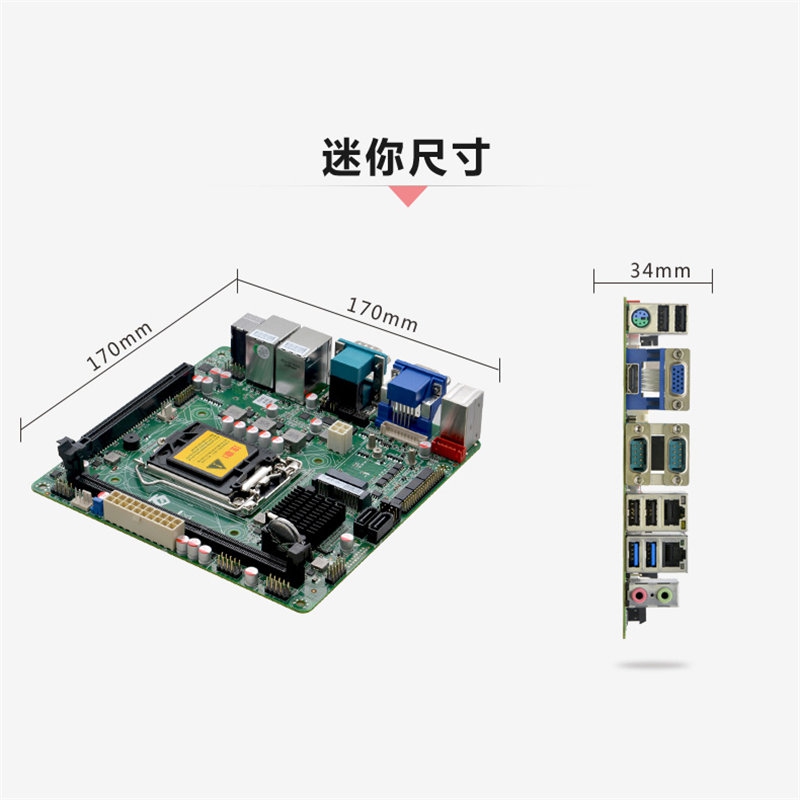

Dimension: 170mm x 170mm
