Products

New Products

LGA1151 1+1 Power Supply 1U Firewall Appliance

♦Model NO.:ST-C2468L-2P V1.0

♦1U Standard Rack_mount Chassis

♦Intel Socket LGA1151 processors

♦2x DDR4 RAM slot, up to 32GB

♦4x SATA3.0 + 1x MSATA + 1x M.2

♦8x 2.5GbE Ports (RJ45)

♦2x PCI-E x8 (SFP+ Expansion)

♦(Bypasss/Vpro) Optional

♦1x Mini-pcie&M.2 (Wifi&BT&4G/5G LTE)

♦2x USB3.0 ; 4x USB2.0(inner)

♦1+1 Redundant Power Supply (Hot_Swap)
4 Lan N100 2x SFP+ (10Gb) Firewall MIni Router

♦Model NO.:ST-AD12N-6S V1.0

♦Aluminum Alloy ; Active Cooling

♦Intel N97/N100/N200/N305 CPUs

♦1x DDR5 RAM slot, up to 32GB

♦1x SATA3.0 + 1x M.2 NVMe X1 + 1x TF slot

♦4x 2.5GbE RJ45 + 2x SFP+ (10Gb)

♦DP+HDMI+Type_C Triple Display

♦1x Mini-PCIe for 4G LTE

♦1x SIM slot

♦5x USB2.0 ; 1x USB3.0

♦DC_12V Power Input
23.8 inch RK3588 Android Industrial Tablet PC support 5G module

♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU

♦Capacitive / Resistive touch:23.8" TFT LCD / 1920*1080 / 250 cd/m²

♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.

♦Pure flat panel IP65 dust-proof and waterproof.

♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power

♦6TOPS AI computing power

♦Support 8K ultra-high definition display, support double display,can be customized four display

♦Provide SDK package, support secondary development and upgrade customization
15.6 inch RK3588 Android Industrial Tablet PC support 5G module

♦Support RK3588, Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz CPU

♦Capacitive / Resistive touch:15.6" TFT LCD / 1920*1080 / 300 cd/m²

♦3mm Super Thin Front Bezel, Best for Embedded Cabinet.

♦Pure flat panel IP65 dust-proof and waterproof.

♦RK3588 eight-core high-end CPU ，Built-in independent NPU with 6TOPS AI computing power

♦6TOPS AI computing power

♦Support 8K ultra-high definition display, support double display,can be customized four display

♦Provide SDK package, support secondary development and upgrade customization

I5-7267U 4 Lan Thin ITX Motherboard

♦Model No.:ITX-VL68 VER:1.0(7267U)

♦Integrated Intel® I5-7267U 3.1GHz dual-core four-thread processor

♦1x SODIMM 2133MHz DDR4,up to 32GB

♦4x RJ45 GbE ports

♦1x VGA, 1x eDP, 1x HDMI1.4,1x LVDS

♦1x Mini-PCIE slot, supports WIFI / 4G module

♦1x SATA3.0 ; 1x MSATA; 1x M.2

♦2x COM; 8x USB

♦DC_12V power supply

Read More Make an inquiry
I7-1195G7 Dual Lan Thin ITX Motherboard

♦Model No.:ITX-YL110V1_I726L VER:1.0(1195G7)

♦Integrated Intel®11th Core I7-1195G7 2.9GHz quad-core eight-thread processor

♦2x SODIMM 3200MHz DDR4,up to 64GB

♦2x RJ45 GbE ports

♦1x eDP, 2x HDMI1.4,1x LVDS

♦1x M.2 , support WIFI module; 1x M.2, support 5G module

♦1x SATA3.0 ; 1x M.2

♦6x COM; 8x USB

♦DC_12V power supply

Read More Make an inquiry
2 Lan i5-8260U thin itx motherboard

♦Model No.: ITX-B82_I526L VER:1.6(8260U)

♦Based on Intel Coffee Lake-U SOC platform

♦Integrated 8th Gen i5-8260U 1.6~3.9GHz (4 Cores / 8 threads) CPU

♦Intel UHD Graphics ; VGA+HDMI+LVDS/eDP (4K Display)

♦2*DDR4 2666MHz SO-DIMM socket, up to 64GB

♦2*RJ45 Giga Eth / 8*USB / 6*COM(RS232/485/422)

♦1*SATA3.0 / 1*mSATA SSD / 1*M.2 SSD / 1*mini-pcie(Wifi/4G)

♦Support GPIO ; Watchdog Timer ; SPK 4Ω/3W ; 1*LPT ; 1*SIM

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input

Read More Make an inquiry
2 Lan i7-8565U thin itx motherboard support 4K display

♦Model No.: ITX-B81_I726L VER:1.6(8565U)

♦Based on Intel Whiskey Lake-U SOC platform

♦Onboard 8th Gen i7-8565U 1.8~4.6GHz (4 Cores / 8 threads) CPU

♦Intel UHD Graphics ; VGA+HDMI+LVDS/eDP (4K Display)

♦2*DDR4 2666MHz SO-DIMM socket, up to 64GB

♦2*RJ45 Giga Eth / 8*USB / 6*COM(RS232/485/422)

♦1*SATA / 1*mSATA SSD / 1*M.2 NVMe / 1*mini-pcie(Wifi/4G)

♦Support GPIO ; Watchdog Timer ; SPK 2Ω/5W ; 1*LPT

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input

Read More Make an inquiry
2 Lan i5-6300U thin itx motherboard support 4K

♦Model No.: ITX-B670_I526L VER:1.1（6300U）

♦Based on Intel Skylake-U SOC platform

♦Integrated 6th Gen Core i5-6300U 2.4GHz dual core processor

♦Intel HD Graphics 520 ; VGA+HDMI+LVDS (4K Display)

♦2*DDR3L 1600MHz SO-DIMM socket, up to 16GB

♦2*RJ45 Gigabit Ethernet / 8*USB / 6*COM(RS232/485/422) / 1*PS2

♦2*SATA3.0 / 1*mSATA SSD / 1*mini-pcie(Wifi/3G/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input

Read More Make an inquiry
2 Lan i5-4300U thin itx motherboard

♦Model No.: ITX-B430_I526L VER:1.5(4300U)

♦Based on Intel Haswell-U/Broadwell-U SOC platform

♦Integrated 4th Gen Core i5-4300U 1.90GHz dual core processor

♦Intel HD Graphics 4400 ; VGA+HDMI+LVDS/eDP for Display

♦1*DDR3L 1600/1333MHz SO-DIMM socket, up to 8GB

♦2*RJ45 Gigabit Eth / 8*USB / 6*COM(RS232/485/422) / 1*PS2

♦2*SATA3.0 / 1*mSATA SSD / 1*mini-pcie(Wifi/3G/4G) / 1*LPT

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input

Read More Make an inquiry

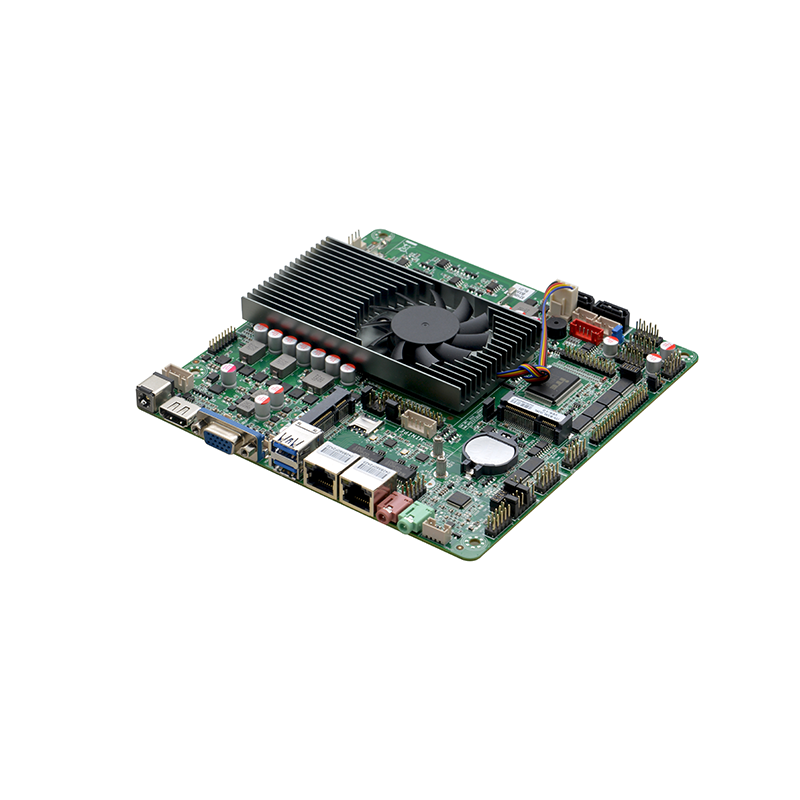

i5-3210M thin itx motherboard

♦Model No.: ITX-B330_I516L VER:1.0

♦Adopt Intel HM76 Express chipset

♦Integrated 3rd Gen Core i5-3210M 2.5GHz dual core processor

♦Intel HD Graphics 4000 ; VGA + 2*HDMI + 2*eDP/LVDS for display

♦1*DDR3 1600/1333MHz SO-DIMM socket, up to 8GB

♦1*RJ45 Gigabit Ethernet / 10*USB / 6*COM(RS232/485/422)

♦2*SATA2.0 / 1*mSATA SSD / 1*mini-pcie(Wifi/4G) / 1*PS2 / 1*LPT

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input

Read More Make an inquiry
2 Lan N100 thin itx motherboard

♦Model No.: ITX-B305_N126L VER:1.0(N100)

♦Based on Intel Alder Lake-N SOC platform

♦Integrated 12nd Gen Celeron N100 3.4GHz Quad core processor

♦Intel UHD Graphics ; VGA+ HDMI2.0 + LVDS/eDP for Display

♦1*DDR4 3200MHz SO-DIMM socket, up to 16GB

♦2*RJ45 Gigabit Eth / 8*USB / 6*COM(RS232/485/422) / 1*SIM slot

♦1*SATA3.0 / 1*mSATA 3.0 / 1*M.2 SSD / 1*M.2 Wifi / 1*M.2 (4G/5G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

Read More Make an inquiry
N100 thin itx motherboard

♦Model NO.: ITX-B306_N112L VER:0.1(N100)

♦Based on Intel Alder Lake-N SOC platform N100

♦Integrated Celeron N100 3.4GHz 4 core processor (TDP:6W)

♦Intel UHD Graphics ; 1*VGA + 1*HDMI + 1*LVDS / 1*EDP for Display

♦1*DDR4 3200MHz SO-DIMM socket, up to 16GB

♦1*RJ45 Gigabit Eth / 10*USB / 2*COM(RS232/485)

♦1*SATA / 1*mSATA SSD / 1*M.2 SSD / 1*M.2 Wifi / 1*M.2 5G / 1*LPT/

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Provide: 1* DC_Jack 12V

Read More Make an inquiry
N4020 thin itx motherboard

♦Model No.: ITX-LS421_J112L VER:1.0（N4020）

♦Based on Intel Gemini Lake SOC platform

♦Integrated Celeron N4020 1.1~2.8GHz dual core processor (TDP:6W)

♦Intel UHD Graphics 600 ; VGA + 2*LVDS / 2*EDP for Display

♦1*DDR4 2400MHz SO-DIMM socket, up to 8GB

♦1*RJ45 Gigabit Eth / 10*USB / 2*COM(RS232)

♦1*SATA / 1*mSATA SSD / 1*M.2 SSD / 1*M.2 Wifi / 1*LPT / 1*PS2

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Provide: 1* DC_Jack 12V ; 1*socket 4pin 12V (Fanless)

Read More Make an inquiry
2 HDMI i5-3210M thin itx motherboard

♦Model No.: ITX-B321_I512L VER:1.0(3210M)

♦Adopt Intel HM76 Express chipset

♦Integrated 3rd Gen Core i5-3210M 2.5GHz dual core processor

♦Intel HD Graphics 4000 ; VGA + 2*HDMI + 2*eDP/LVDS for display

♦1*DDR3 1600/1333MHz SO-DIMM socket, up to 8GB

♦1*RJ45 Gigabit Ethernet / 10*USB / 2*COM(RS232) / 1*PS2 / 1*LPT

♦2*SATA2.0 / 1*mSATA SSD / 1*mini-pcie(Wifi/4G)

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input

Read More Make an inquiry
2 Lan J1900 thin itx motherboard

♦Model NO.: ITX-B190_D926L VER:1.5

♦Based on Intel Bay trail SOC platform

♦Integrated Intel J1900 2.00GHz Quad core processor

♦Intel HD Graphics ; VGA+HDMI+LVDS for Display

♦1*DDR3L 1600/1333MHz SO-DIMM Socket, up to 8GB

♦2*RJ45 Gigabit Eth / 9*USB / 6*COM(RS232/485) / 1*SIM slot / 1*LPT

♦2*SATA2.0 / 1*mSATA SSD / 1*mini-pcie(Wifi/4G) / 1*PS2

♦Support GPIO ; Watchdog Timer ; Audio power amplifier 4Ω/3W

♦Provide: 1* DC_Jack 12V Input ; 1*DC 2pin 12V input (Fanless)

Read More Make an inquiry
