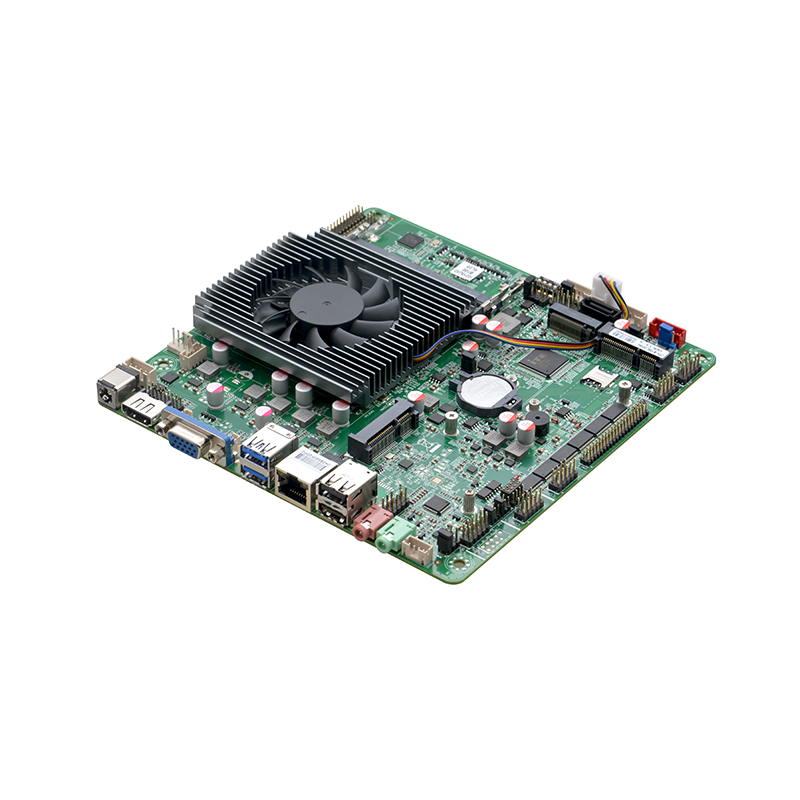

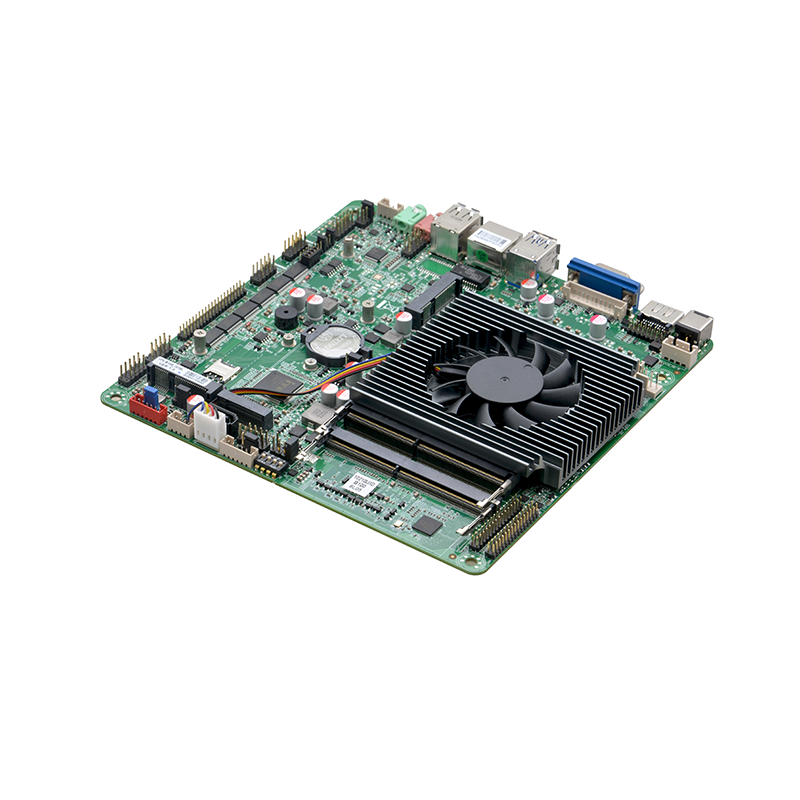

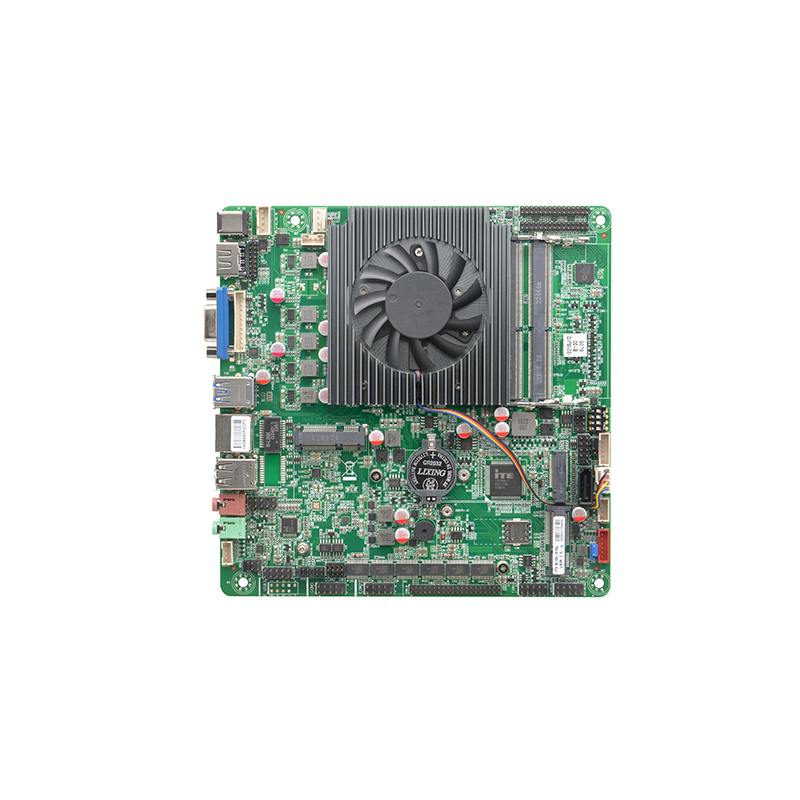

This cost-effective Thin Mini-ITX motherboard is built on Intel Comet Lake-U SOC platform, featuring the 10th Gen Core™ i5-10310U processor (4C/8T, 1.6-4.2GHz) with Intel UHD Graphics. The space-saving Thin Mini-ITX form factor (170×170mm) delivers reliable performance for industrial applications requiring compact solutions without compromising functionality.
Key Features:
✔ Efficient Processing: Intel i5-10310U with 4.2GHz Turbo Boost
✔ Multi-Display Support: VGA + HDMI1.4 + LVDS + eDP (quad-display capable)
✔ Memory Configuration: Dual-channel DDR4 2400MHz (max 64GB)
✔ Industrial I/O:
●1×GbE (RTL8111H) + 8×USB ports
●6×COM ports (RS232/485/422 configurable)
✔ Storage Flexibility:
●1×SATA3.0 + 1×mSATA SSD
●1×M.2 NVMe + 1×mini-PCIe (for WiFi/4G modules)
✔ Rugged Design Elements:
●Programmable GPIO + Hardware Watchdog
●4Ω/3W audio amplifier + Legacy PS/2 port
✔ Dual Power Input: 12V DC jack or standard ATX 4-pin connector
Ideal for: Factory Automation | Kiosk Systems | Medical Devices | Transportation
Product Description
Model No.: ITX-B100_I516L VER:1.6(10310U)
Processor:
Integrated 10 generation Intel®I5-10310U 1.70~4.40GHz quad-core eight-thread processor, TDP 15W
Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low power processors
Chipset: SOC
Memory: 2*DDR4 SODIMM memory slot,supports 2400MHz memory,up to 64GB
Display:
Integrated Intel® UHD Graphics ,supports DirectX 12 OpenGL 4.5, supports 4K
1*VGA, the highest resolution supported：1920X1200@60Hz
1*HDMI1.4, the highest resolution supported：4096x2304@24Hz
1* Support dual channel 24bit LVDS interface, and EDP for adaptive choice
Ethernet: 1* RTL8111H Gigabit NIC, supports Ethernet wake up and PXE functions
Storage:
1* SATA3.0, the transfer rate is up to 6Gbps
1* MSATA slot, supports Intel protocol SSD,the transfer rate is up to 6Gbps
1* M.2 slot, supports M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD
Audio:
Integrated ALC897 7.1+2 channel high fidelity audio controller, supports MIC, Line_out, power amplifier
Supports power amplifier 4Ω3W speaker Expansion Slot 1* Mini-PCIE,supports WIFI/4G

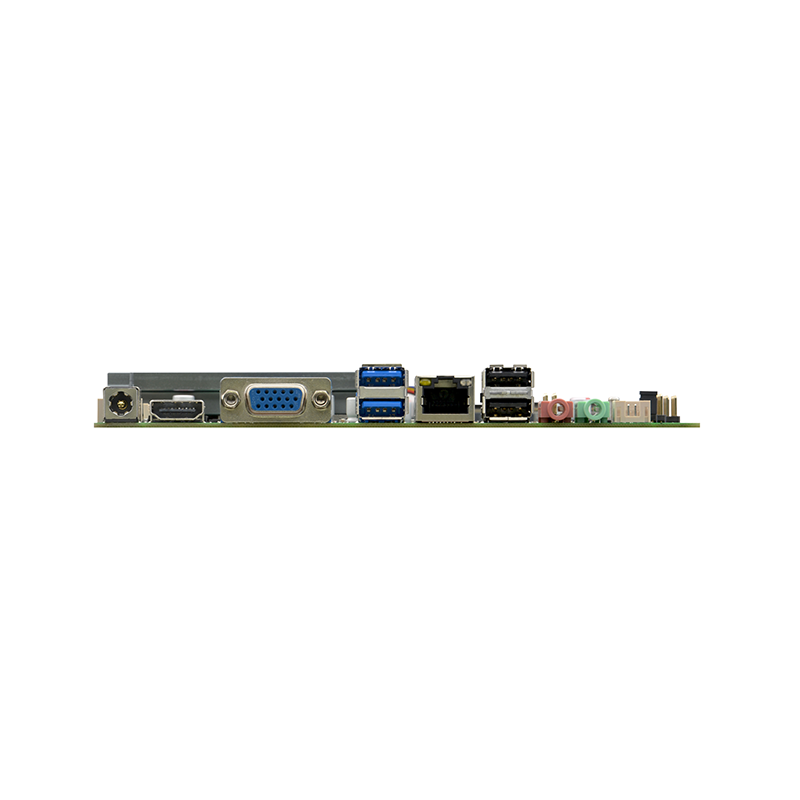

Rear I /O interface:
2* USB3.0, 2*USB2.0
1* HDMI
1* DB15 VGA
1* RJ45 Gigabit Network Interface 1* Line-out(green),1*MIC(red）
1* DC12Vpower port, supports12V power input
Built in I/O interface:
1* JVGA1, 1*12pin(Same signal as DB15)
1* JHDMI, 2*10pin(Same signal as HDMI)
1* LVDS, 2*15pin,Supports dual-channel 24bit
1* LVDS backlight power supply interface 1*6pin
1* EDP interface, and LVDS interface for adaptive one
6* RS232 serial interface,COM1/2 support the 9pin with power, COM2 support RS485/422 function
1* PS/2 Keyboard and mouse interface (red), 1*6Pin
4* USB2.0 interface, 2*5pin
1* front audio interface, 2*5pin
1* Front panel switch button and indicator port, 2*5Pin
1* hard drive power port, 1*4pin
1* power amplifier interface, 1*4pin
1* DC power port, 1*4pin, support 12V power input and output
1* SIM card seat
Fan Connector :1*4pin CPU smart fan connector, 1* 4pin system fan connector GPIO Supports 4 input/output GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function(L256，0~255 seconds)
Power: Type Adopts DC 12V power supply
OS: Windows /Linux Working temperature -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% (relative humidity, non-condensing)
Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
