This high-performance Thin Mini-ITX motherboard is built on Intel Alder Lake SOC platform, featuring the 12th Gen Core™ i5-1235U processor (10C/12T) with Intel UHD Graphics. Its ultra-compact form factor delivers exceptional computing power while saving valuable space in industrial applications.
Key Features:
●Multi-display Support: DP + HDMI1.4 + LVDS + eDP (4K ready)
●Dual-channel DDR4 3200MHz (max 64GB) for smooth multitasking
●Rich I/O Connectivity: 2×GbE, 8×USB, 6×COM (RS232/485/422), TPM security
●Expansion Options: M.2 NVMe SSD + SATA3.0 + M.2 WiFi + Mini-PCIe (4G/WiFi) + SIM slot
●Industrial Reliability: GPIO, watchdog timer, 4Ω/3W audio amplifier
●12V DC Input: Energy-efficient power design
Ideal for: Industrial PCs | Digital Signage | Automation Control | Medical Equipment
Detail Display

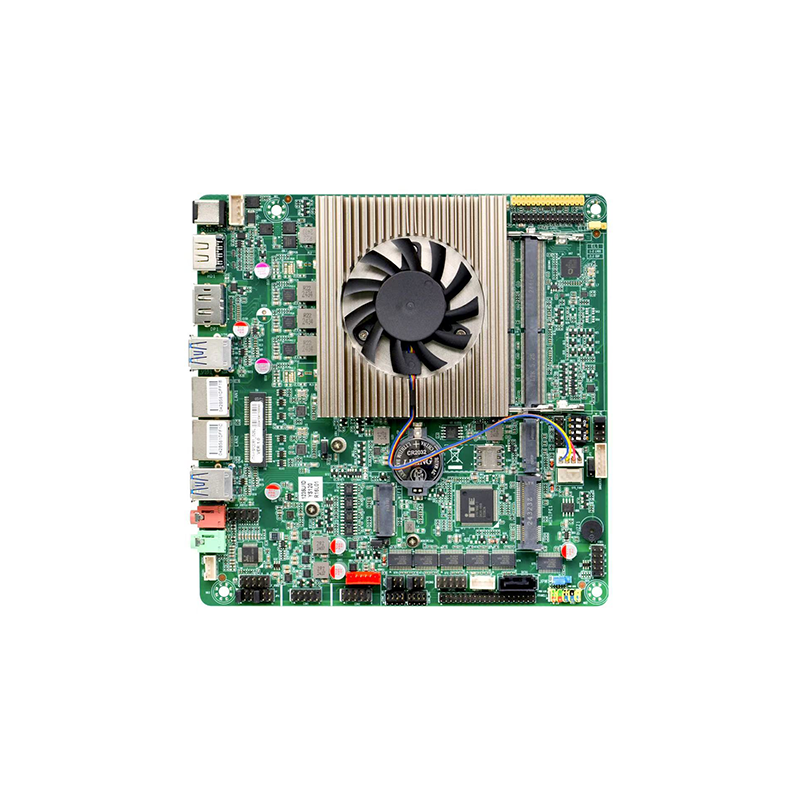

.png)

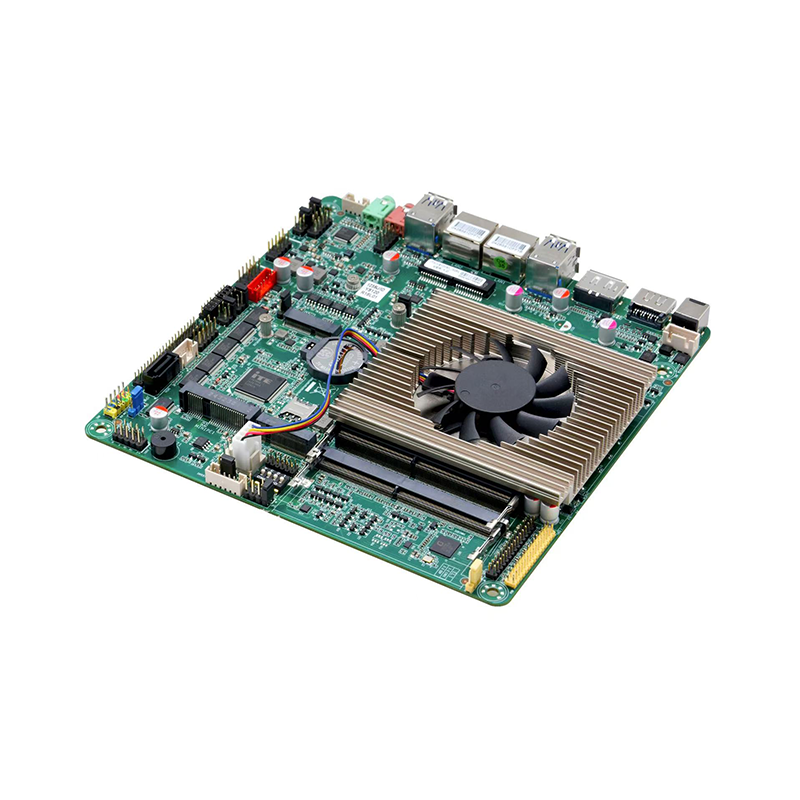

.png)
Product Description
Model No.: ITX-YS120R1_I526L VER:1.0(1235U)
Processor:
Integrated IIntel®Alder Lake 12th Core I5-1235U 10 cores 12 thread processor, TDP 15W
Compatible with Intel®Tiger Lake-U/P Celeron Penium Core I3/I5/I7 Processor
Chipset: SOC
Memory: 2x DDR4 SODIMM memory slot, Supports 3200MHz, up to 64GB
Display:
Integrated Intel® UHD Graphics, Supports DirectX12.1,OpenGL 4.5, support 4K display
1x HDMI1.4,The highest resolution supported is 3840x2160@24Hzz
1x DP, The highest resolution supported is 3840x2160@60Hzz
1x LVDS, supporting dual-channel 24BIT
1x EDP interface, and LVDS interface through the jumper(EDP and LVDS are optional)
Ethernet: 2x RTL8111H Gigabit Ethernet , supports network wake up /PXE function
Storage:
1x SATA3.0 hard disk interface, transmission rate up to 6Gbps
1x M.2 slot, supporting M.2 2280 NVME PCIE X4 SSD
Audio:
Onboard ALC897 7.1+2 channel high-fidelity audio controller, support MIC/Line_out, power amplifier
The amplifier supports 4Ω/3W
Expansion Slot:
1x M.2 slot, supporting the M.2 2230 WIFI module
1x MINI-PCIE slot, supporting WIFI/4G module

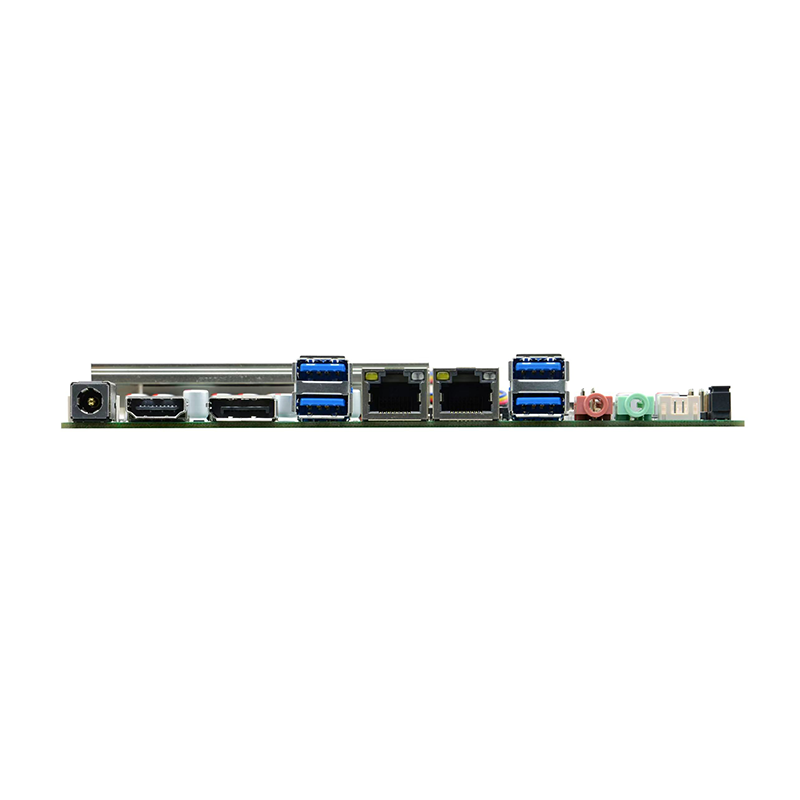

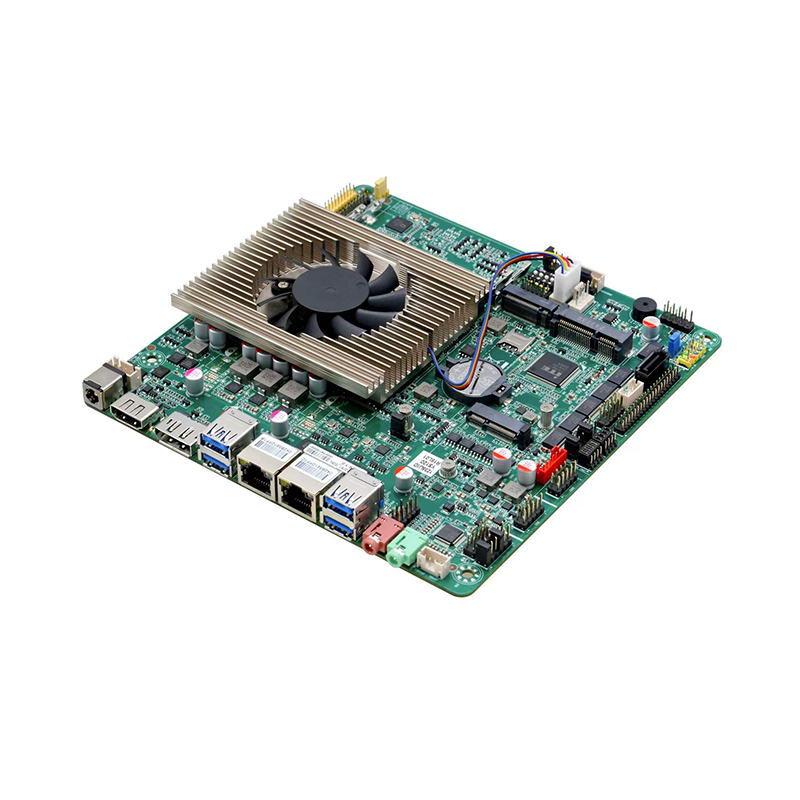

Rear I/O interface:
4x USB3.0
1x HDMI1.4
1x DC12V power port ,supports 12V power input and output
1x DP
2x RJ45 Gigabit network interface
1x Line out interface (green), 1x MIC interface (red)

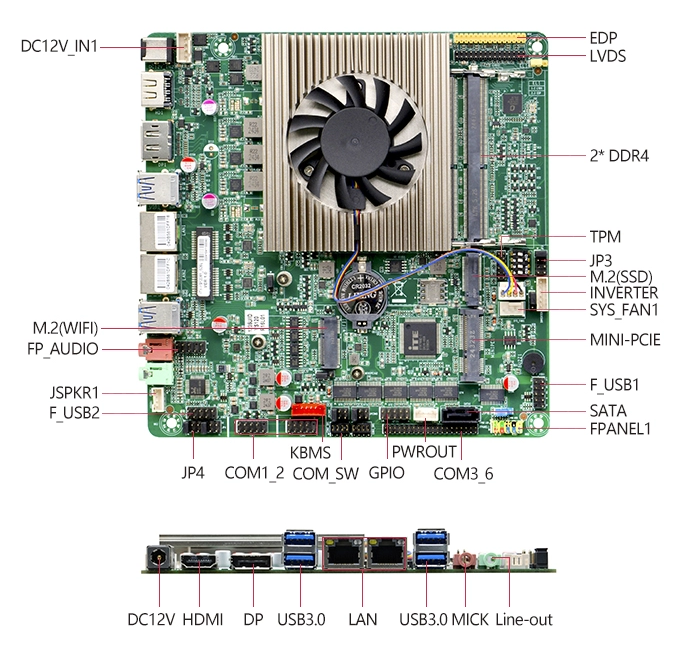

Built in I/O interface:
1x LVDS, 2x15PIN, supporting dual-channel 24BIT
1x Screen backlight power supply interface, 1x 6pin
1x EDP interface, 2x 15pin ( LVDS are optional by jumping)
6x RS232 serial port, COM1/2 supports the 9pin live function, COM2/3 supports RS485/422
1x PS/2 keyboard and mouse interface(Red), 1x 6pin
4x USB2.0, 2x 5pin
1x Front audio interface, 2x 5Pin
1x Function buttons and indicators on the front panel, 2x 5Pin
1x Hard drive power port, 1x 4pin
1x power amplifier interface , 1x 4Pin
1x 4pin DC power interface, support 12v power input and output
1x SIM card slot
1x TPM, 2x 6pin
Fan Connector: 1x 4pin CPU intelligent fan interface; 1x 4pin system fan port
GPIO: Support 4-way input output GPIO function
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC12V power supply
Operating system: Windows 10/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

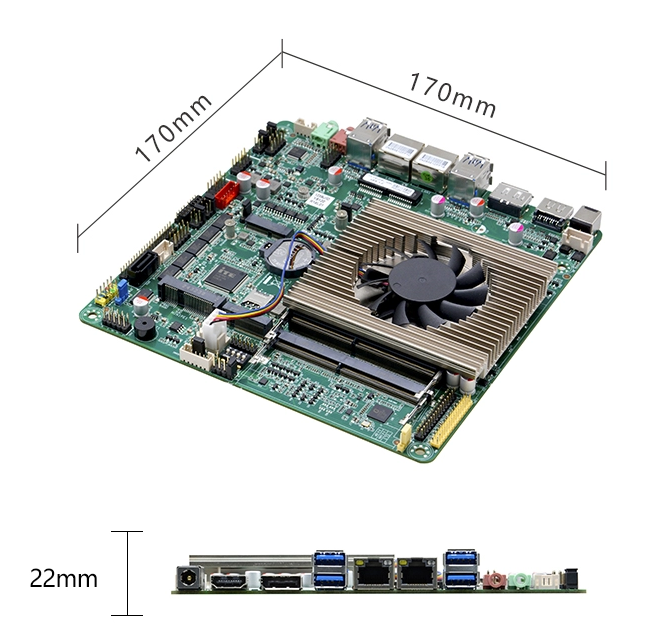

Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
