This ultra-compact Thin Mini-ITX motherboard integrates Intel® Core™ Ultra 5 125H processor (14C/18T, up to 4.5GHz) with advanced DDR5 memory support (2x SODIMM slots, 5600MHz, max 96GB). Featuring dual GbE ports and versatile display outputs (EDP + dual HDMI 2.0 + LVDS), it delivers exceptional performance for space-constrained applications. The board offers rich expansion including:
●Wireless connectivity: M.2 Key E (2230 WiFi) + Key B (2242/3042 5G)
●Storage options: 2x SATA3.0 + M.2 NVMe
●Industrial I/O: 6x COM, 10x USB, SIM card slot
Designed for 12V DC power input, this Thin Mini-ITX solution is ideal for digital signage, kiosks, and embedded systems requiring high performance in minimal form factor.

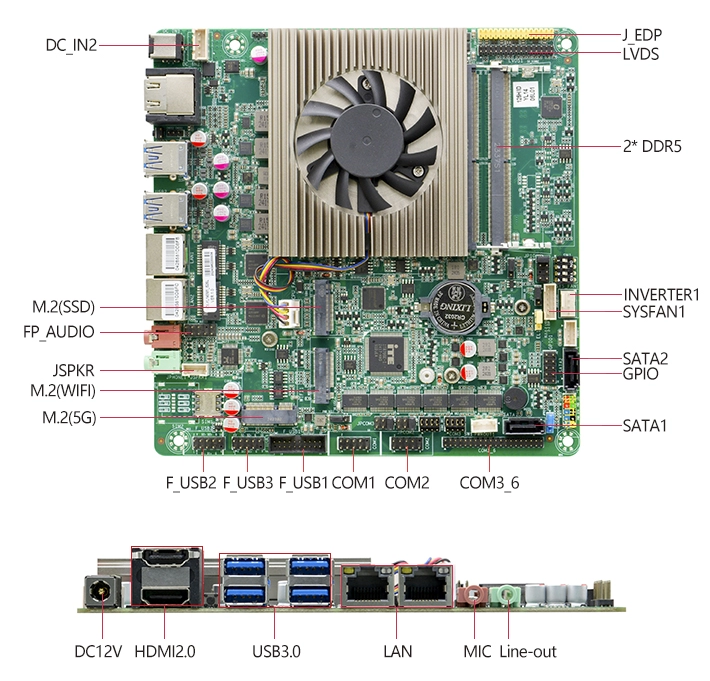

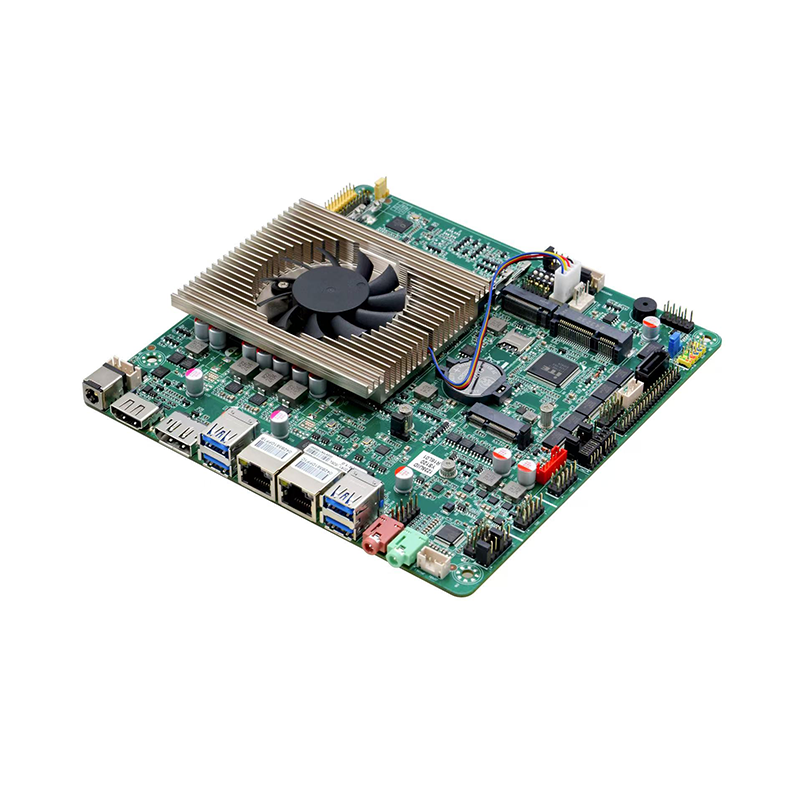

Detail Display
.png)
.png)
Product Description
Model No.: ITX-YL140M1_I526L VER:0.1(125H)
Processor:
Integrated Intel®Meteor Lake Core™ Ultra 5 125H 4.5GHz, 14 core 18 thread processor, TDP 28W
Compatible with Intel® Meteor Lake-U/H 14th processor
Chipset: SOC
Memory: 2x SODIMM slot, supports 5600MHz DDR5 memory up to 96GB
Display:
Integrated Intel® Arc™ graphics, supports DirectX 12.1 OpenGL 4.6, supports 4K
2x HDMI2.0, the highest resolution supported is: 4096 x 2304 @ 60Hz
1x Support dual-channel 24bit LVDS interface
1x EDP interface, choose one of two with LVDS through pop-up
Network: 2x Intel I210AT Gigabit ethernet, supports network wake-up and PXE functions
Storage:
2x SATA3.0 hard disk interface, transmission speed up to 6Gbps
1x M.2 slot, supports M.2 2280 NVME PCIE x4/SATA specification SSD
Audio:
Integrated ALC897 7.1+2 channel high-fidelity audio controller, supports MIC, Line_out, power amplifier
Support amplifier 4Ω 3W speaker
Expansion slots:
1x M.2 slot, supports M.2 Key E 2230 WIFI module
1x M.2 slot, supports M.2 Key B 2242/4452 5G module
Backplane I/O interface:
4x USB3.0
2x HDMI2.0
2x RJ45 Gigabit ethernet
1x Line-out(green),1x MIC(red)
1x DC12V power interface, supports 12V power input
1x Clear CMOS button (reserved)
Built in I/O interface:
1x LVDS interface 2x 15pin, supports dual channel 24bit
1x LVDS backlight power supply interface 1x 6pin
1x EDP interface 2x 15pin, choose one of the two with LVDS through pop-up
6x RS232 serial interface, COM2/3 supports RS485/422 function
4x USB2.0 interface 2x 5pin
2x USB3.0 interface 2x 10pin, 1 USB3.0 and 5G are optional, the default is 5G, so USB3.0 only supports 1 USB3.0 by default
1x Front audio interface 2x 5pin
1x Front panel switch button and indicator light interface 2x 5Pin
2x Hard drive power supply interface 1x 4pin
1x Power amplifier interface 1x 4pin
1x DC power interface 1x 4pin (can be used as 12V input power interface)
1x SIM card slot
Fan: 1x 4pin CPU fan interface; 1x 4pin system fan interface
GPIO: Supports four-in and four-out GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: Support hardware reset function (level 256, 0~255 seconds)
OS: Windows 10 /Linux
Power supply: DC 12V
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)

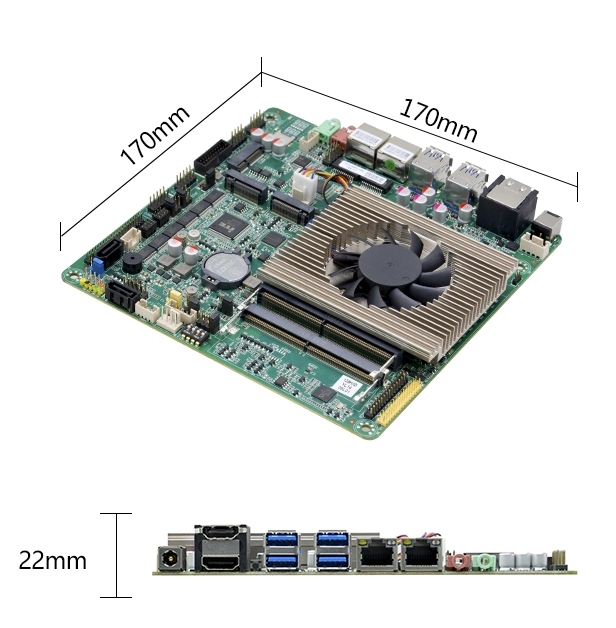

Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
