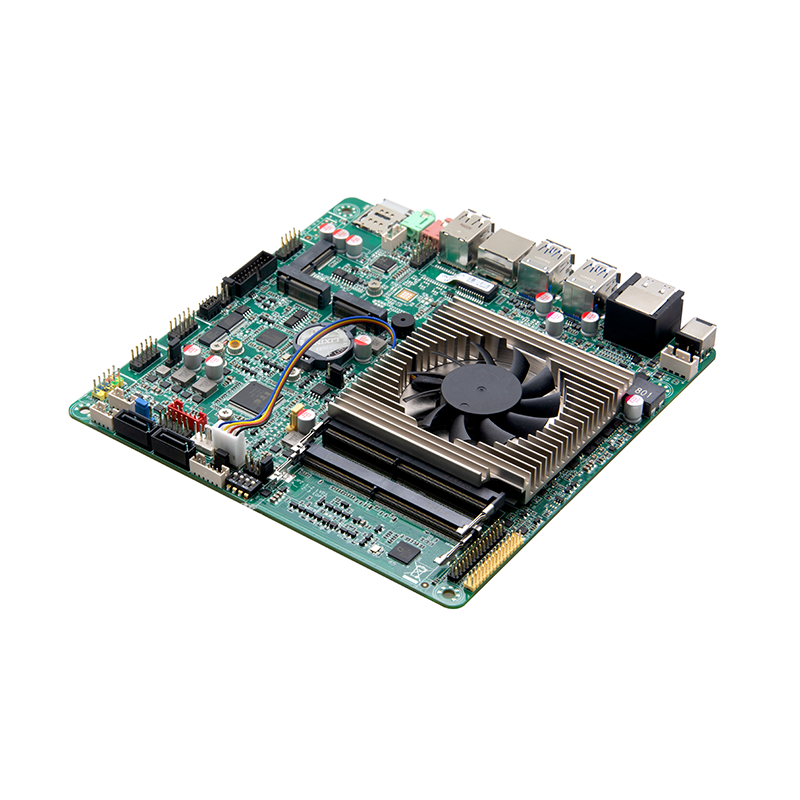

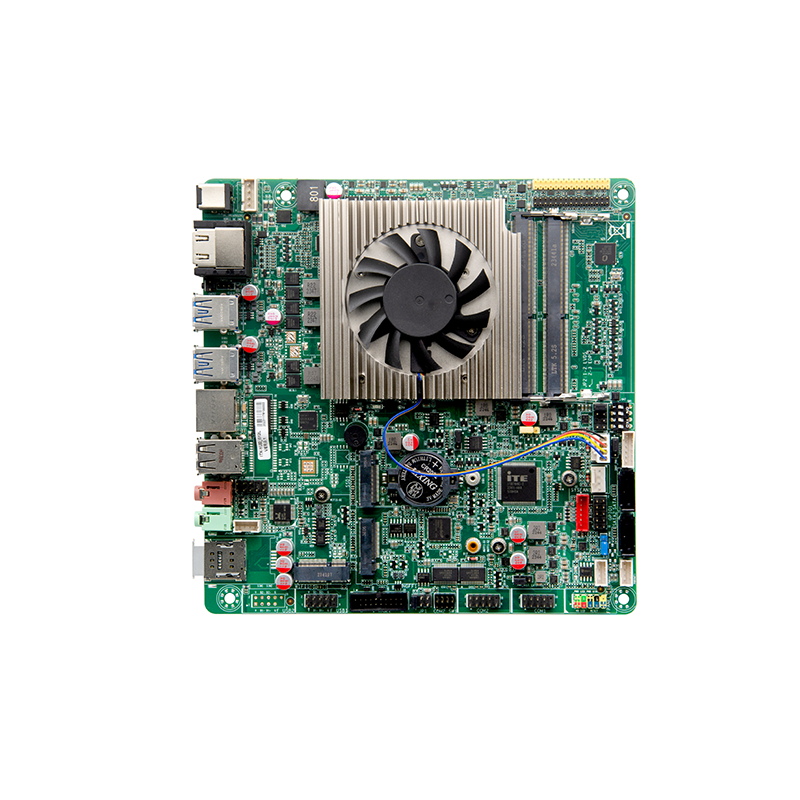

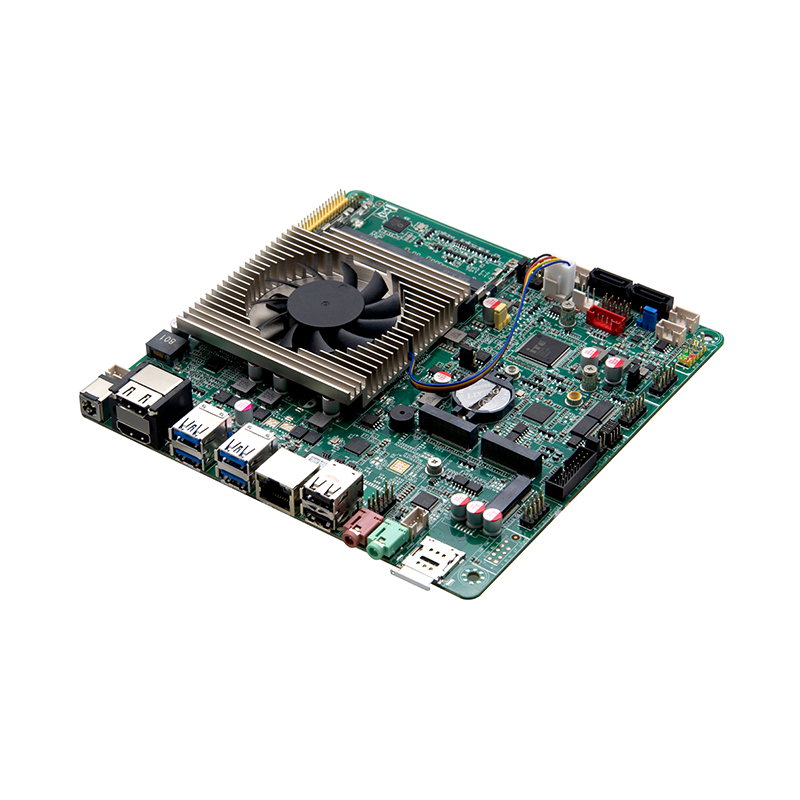

This energy-efficient Thin ITX motherboard utilizes Intel Coffee Lake-U SOC technology, featuring the Intel® Core™ i5-8260U processor (4C/8T, 1.6GHz, 15W TDP) in a compact Thin ITX form factor (170×170mm). Designed for space-sensitive industrial applications, it balances performance with low power consumption while offering extensive connectivity options.
Key Specifications:
✔ Low-Power Processing: Intel i5-8260U with 15W TDP
✔ Multi-Display Support: Dual HDMI + LVDS + eDP (quad-display capable)
✔ Memory Configuration: Dual-channel DDR4 2666MHz (max 64GB)
✔ Industrial I/O:
1×GbE LAN + 10×USB ports
2×COM (RS232/485) + LPT + PS/2 legacy ports
✔ Storage & Expansion:
2×SATA + 1×M.2 NVMe SSD
Dedicated M.2 slots for WiFi 6 & 5G modules
✔ Rugged Features:
GPIO control + Hardware Watchdog
4Ω/3W audio amplifier
✔ Power Input: 12V DC jack
Product Description
Model No.: ITX-YL82_I512L VER:0.1
Processor: Integrated 8th generation Intel®I5 8260U 1.6GHz 4 cores 8 threads processor, TDP 15W
Compatible with Intel® Whiskey Lake-U/Comet Lake-U/Coffe Lake-U 8th/10th Celeron /Pentium/I3/I5/I7 low-power processors
Chipset: Based on SOC platform
Memory: 2x DDR4 SODIMM memory slot, supports 2666MHz memory, supports up to 64GB
Display:
Integrated Intel® UHD Graphics, supports DirectX 12 OpenGL 4.5, supports 4K
2x HDMI1.4 (maximum resolution : 4096x2304 @24Hz )
1x Support dual-channel 24bit LVDS interface,
1x EDP (optional)
Network: 1x Intel I226 Gigabit network card, supports network wake-up and PXE functions
Storage:
2x SATA3.0 hard disk interface, transmission speed up to 6Gbps
1x M.2 slot, supports M.2 2260/2280 NVME PCIE x4/SATA adaptive standard SSD
Audio:
Integrated ALC897 7.1+2-channel high-fidelity audio controller, supports MIC, Line_out, and power amplifier
Support amplifier 4Ω 3W speaker
Expansion slots:
1x M.2 slot, supports M.2 Key E 2230 WIFI module
1x M.2 slot, supports M.2 Key B 2242/2252 5G module

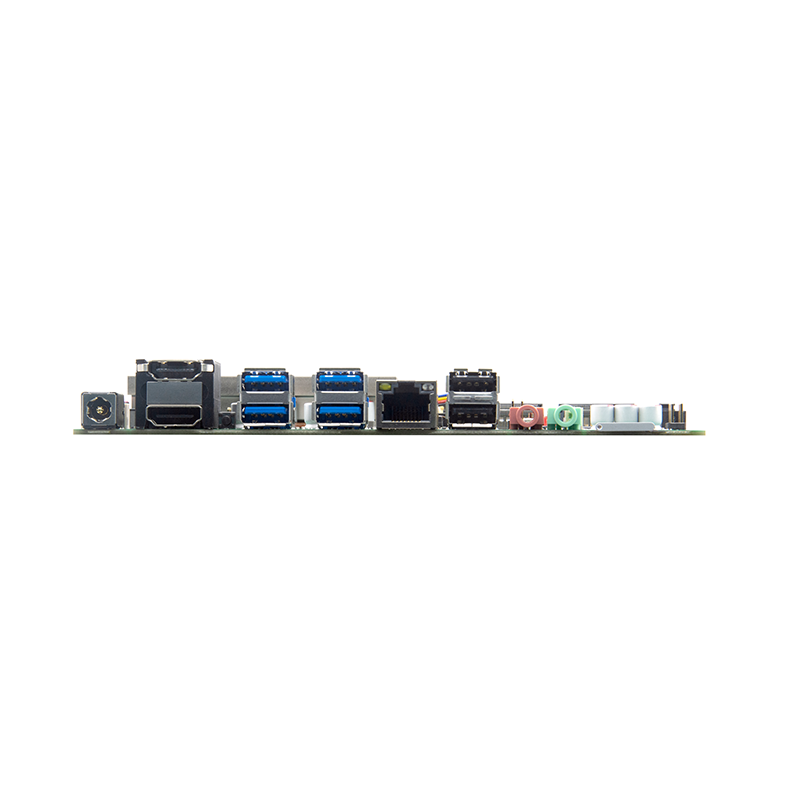

Backplane I/O interface:
4x USB3.0,2x USB2.0
2x HDMI1.4
1x RJ45 Gigabit network interface(one network port is listed with USB2.0)
1x Line-out（Green）
1x MICK(Red)
1x DC12V power, supports 12V power input
1x SIM card slot
Built in I/O interface:
1x LVDS, 2x 15pin, supports dual channel 24bit
1x LVDS backlight power supply interface 1x 6pin
1x EDP , 2x 15pin, choose one of the two with LVDS through pop-up
2x RS232 serial interface, COM2 supports the 9th pin powered function, COM2 supports RS485/422 function
1x PS/2 keyboard and mouse interface (red) 1*6Pin
2x USB2.0 , 2x 5pin
2x USB3.0 , 2x 10pin
1x Front audio interface 2x 5pin
1x LPT printing interface 2x 13pin
1x Front panel switch button and indicator light interface 2x 5Pin
2x Hard drive power supply interface 1x 4pin
1x Power amplifier interface 1x4pin
1x DC power interface 1x 4pin (can be used as 12V input power interface)
Fan interface: 1x 4pin CPU smart fan interface, 1x 4pin system fan interface
Power Type: DC 12V
GPIO: Support 4 input and output GPIO functions
BIOS: 128Mb Flash ROM
Watchdog: supports hardware reset function (level 256, 0~255 seconds)
OS: Windows 10 ,/Linux
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% ( relative humidity, non-condensing)
Dimension: 170mm x 170mm
