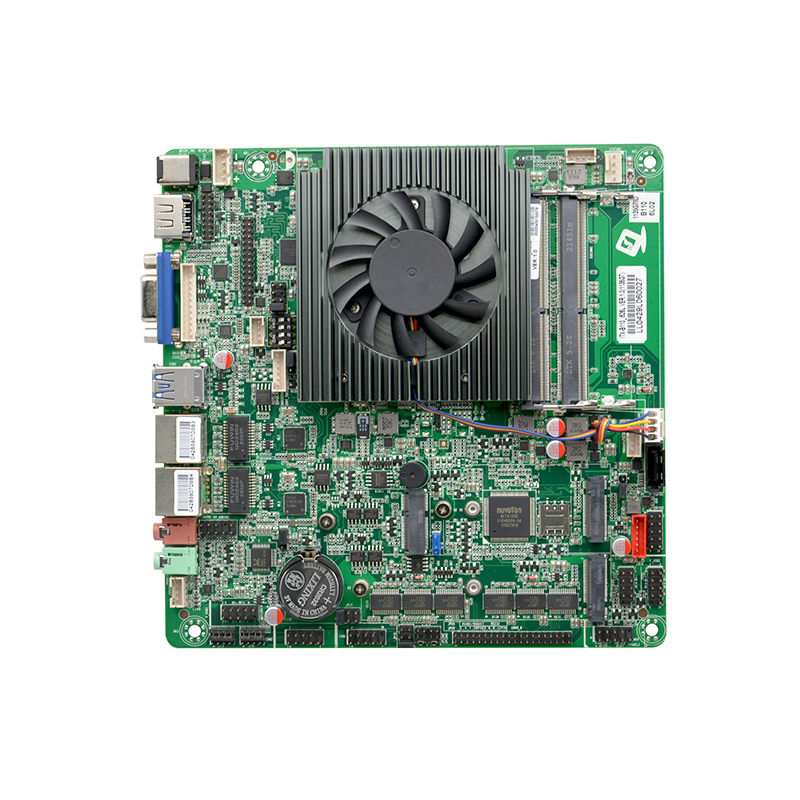

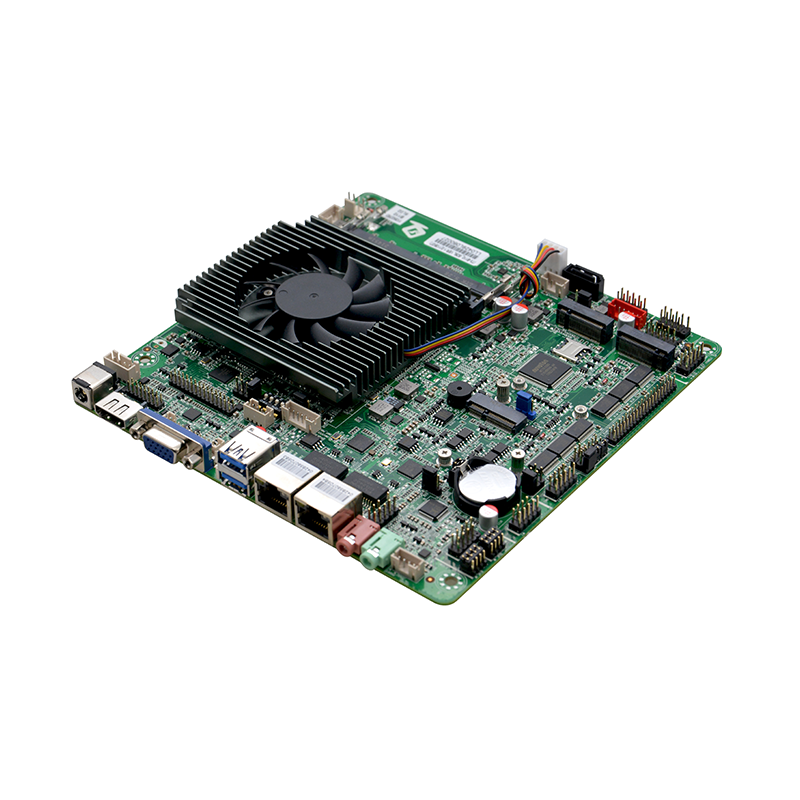

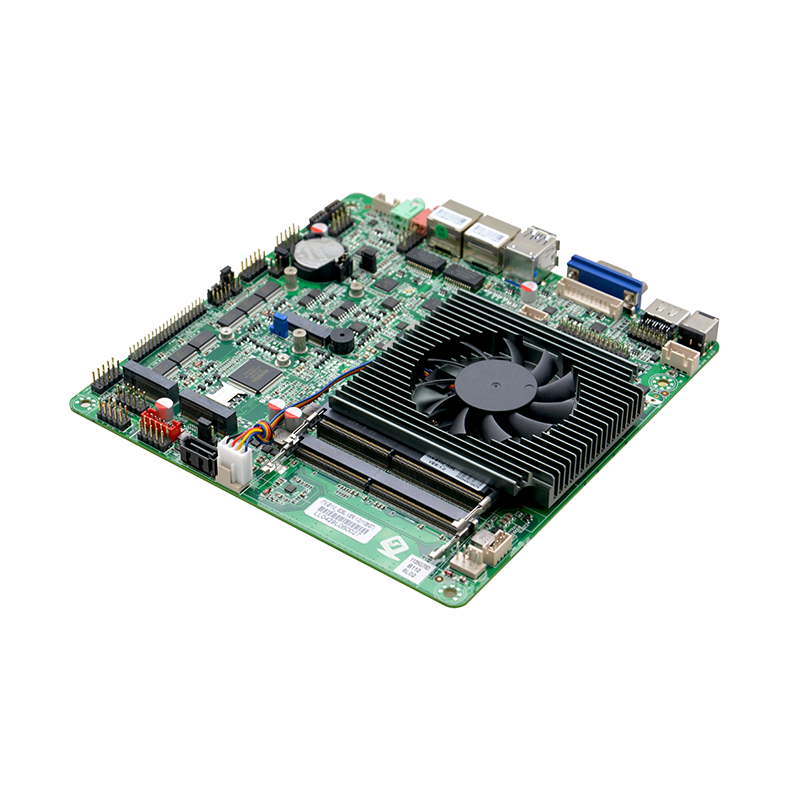

This high-efficiency Thin Mini-ITX motherboard is engineered on Intel Tiger Lake SOC platform, featuring the 11th Gen Core™ i5-1155G7 processor (4C/8T, 2.5-4.5GHz) with Intel Iris Xe Graphics. The compact Thin Mini-ITX form factor delivers exceptional performance-per-watt ratio, making it ideal for space-constrained industrial applications requiring robust computing power.
Key Specifications:
✔ Advanced Processing: Intel i5-1155G7 with Turbo Boost up to 4.5GHz
✔ Professional Graphics: Intel Iris Xe supporting quad-display (VGA + HDMI2.0 + HDMI1.4 + LVDS)
✔ High-Speed Memory: Dual-channel DDR4 3200MHz (max 64GB)
✔ Premium Connectivity:
●Dual 2.5GbE (I225V) + 8×USB ports
●6×Industrial COM ports (RS232/485/422)
✔ Flexible Expansion:
●1×SATA3.0 + 1×M.2 PCIe x1 SSD
●Dedicated M.2 slots for WiFi 6 & 5G modules + SIM card
✔ Industrial Features: GPIO, watchdog timer, 2Ω/5W speaker output, PS/2 legacy port
✔ Dual Power Options: 12V DC jack or ATX 4-pin 12V input
Ideal for: Industrial Automation | Machine Vision | Digital Signage | Edge Computing
Product Description
Model No.: ITX-B110_I526L VER:1.3
Processor: Integrated 11st Gen Intel Core i5-1155G7 2.50GHz 4 cores 8 threads processor,TDP: 28W
Compatible with Intel® Tiger Lake-U Celeron/Pentium/I3/I5/I7 series processors
Chipset: SOC
Memory: 2x DDR4 3200MHz SODIMM memory slot, up to 64GB
Display:
Integrated Intel Iris Xe Graphics ,supports DirectX 12.1, OpenGL 4.6, OpenCL 3.0 ; Support 4K @60Hz
1x VGA (1920X1200 @60Hz) ;
1x HDMI2.0 (4096x2304 @60Hz) ;
1x HDMI1.4_Pin header (4096x2304 @24Hz)
1x LVDS (2ch/24bit)
Ethernet: 2x RJ45 Gigabit Ethernet ports (Intel I225V), support Wake_on_LAN/PXE function
Storage:
1x 7pin SATA3.0，the transfer rate up to 6Gbps
1x M.2 slot, support M.2 2260/2280 NVMe PCIE x1/SATA SSD (auto detect)
Audio:
Onboard ALC888S 7.1+2 channel high fidelity audio controller, support Mic_in / Line_out & Power amplifier
The 2Ω 5W horn for power amplifier recommended
Expansion Slot:
1x M.2 slot (Key-E)，support WIFI6 moudle
1x M.2 slot (Key-B)，support 4G/5G moudle

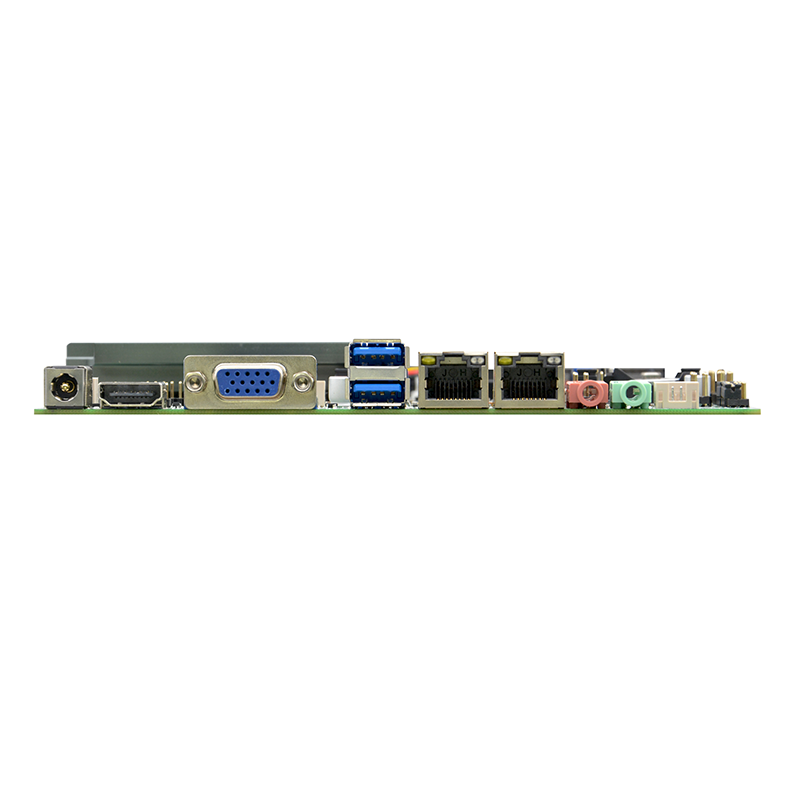

Rear I/O:
1x VGA
1x HDMI2.0
2x USB3.0
2x RJ45 GbE LAN
1x Line-out ; 1x Mic_in
1x DC_Jack (DC_12V input)
Inner I / O:
1x JVGA1, 1*12pin，Same signal as DB15
1x JHDMI, 2*8pin，（HDMI1.4）
1x LVDS， 2*15pin，support 2 channels 24BIT (support eDP, same pin header）
1x Screen backlight power supply interface, 1*6pin
1x Screen brightness adjustment interface, 1*4pin
6x USB2.0, 2*5pin
6x RS232 serial ports (pin header）COM1 provide power on the 9th pin, COM2/3 support RS485/422
1x Hard disk power supply interface, 1*4pin
1x PS/2 KB&MS Connector , 1*6Pin
1x Front panel function button and indicator light interface, 2*5pin
1x Front audio interface, 2*5pin
1x Power amplifier interface, 1*4pin
1* DC power slot, 1*4pin (support DC_12V input/output)
1x SIM card slot
Fan interface: 1x 4Pin smart system fan interface ; 1x 4Pin CPU intelligent fan interface
GPIO: Support 4-way input and output GPIO
BIOS: AMI 128Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0 ~ 255 seconds)
OS: Windows 10/Linux
Power Type: DC_12V
Working temp.: -10℃～60℃
Storage temp.: -20℃～70℃
Working humidity: 5%-95%(Relative humidity, non condensing)
Dimension: 170mm x 170mm
