This rugged Thin ITX motherboard utilizes Intel Kaby Lake SOC technology, featuring Intel 7th Gen Core™ i5-7300U processor (2C/4T, 2.6GHz) in a compact Thin ITX form factor (170×170mm). Designed for industrial automation and embedded systems, it delivers reliable performance with comprehensive I/O options in space-constrained environments.
Key Specifications:
✔ Efficient Dual-Core Processing: Intel i5-7300U with Intel® HD Graphics 620
✔ 4K Multi-Display: VGA + HDMI + LVDS/eDP (triple independent outputs)
✔ Memory Configuration: Dual-channel DDR4 2133MHz (max 32GB)
✔ Industrial Connectivity:
Dual Intel® WGI210AT GbE ports
8×USB ports (4×USB3.0)
6×COM ports (RS232/485 configurable) + SIM slot
✔ Storage & Expansion:
1×SATA3.0 + 1×mSATA
1×M.2 NVMe SSD (PCIe 3.0 x4)
1×mini-PCIe (WiFi/4G modules)
✔ Rugged Features:
GPIO control + Hardware Watchdog
2Ω/5W audio amplifier
✔ Dual Power Input: 12V DC jack or ATX 4-pin
Detail Display

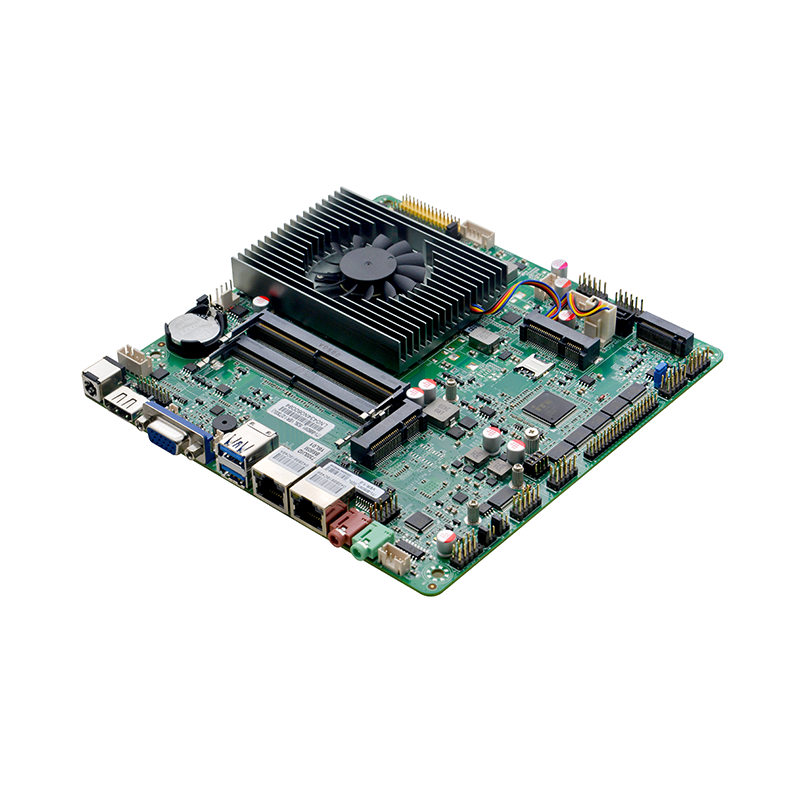

.png)

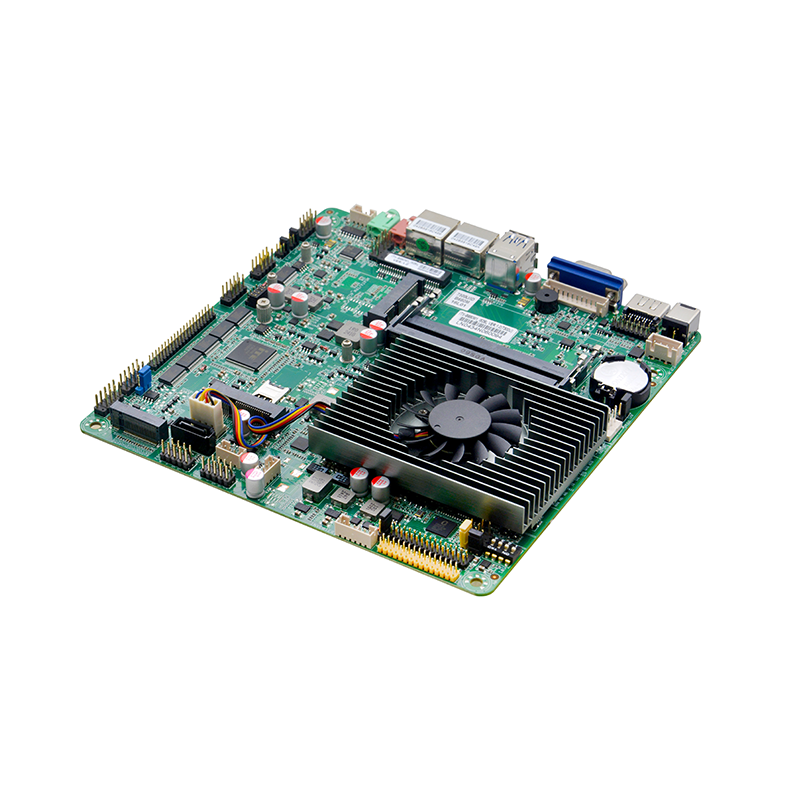

.png)
.png)
Product Description
Model No.: ITX-B680M1_I526L VER:1.0 (7300U)
Processor:
Integrated Intel®I5-7300U 2.6GHz dual-core quad-thread processor, TDP 15W
Compatible with Intel Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors
Chipset: SOC
RAM: 2*DDR4 SODIMM memory slot, support 2133MHz memory, maximum support 32GB
Display:
Integrated Intel®HD Graphics 620, support DirectX 12, OpenGL 4.5, support 4K
1*VGA interface, the highest resolution supported is: 1920X1200@60Hz
1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz
1*Support dual channel 24bit LVDS interface, (1*EDP is optional)
Ethernet: 2* Intel WGI210AT Gigabit network card, support Wake on LAN, PXE function
Storage:
1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps
1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps
Note: It can support TPM-4COM board to expand 4 serial ports, which requires changing BIOS
1* M.2 slot, support M.22280 NVMEPCIE X4/SATA SSD
Audio:
Integrated ALC897 7.1+2 channel high-fidelity audio controller, support MIC, Line_out and power amplifier
Support power amplifier 2Ω5W speaker
Expansion slot:1* Mini-PCIE slot, support WIFI/4G module

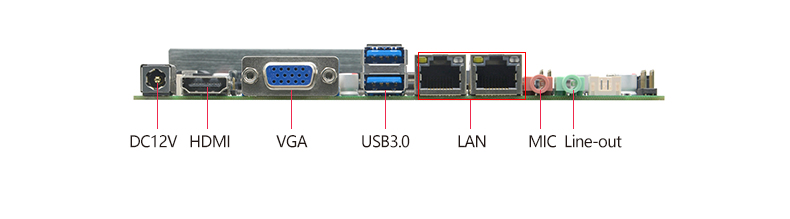

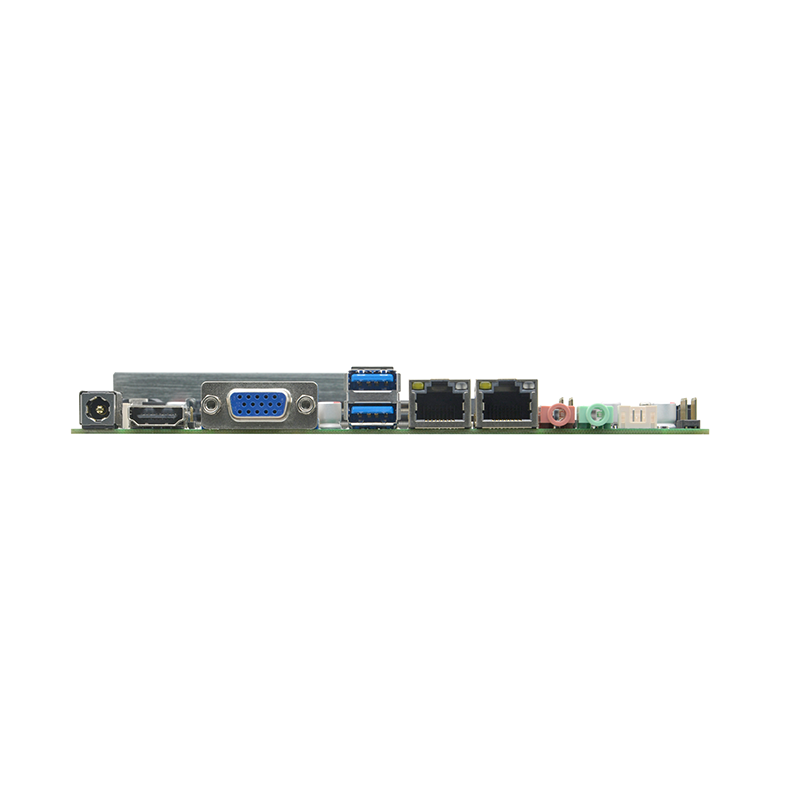

Backplane I/O interface:
2* USB3.0
1* HDMI port
1* DB15 VGA interface
2* RJ45 Gigabit network interface (LAN1 and double-layer USB2.0 are on the same column)
1* Line-out (green), 1*MIC (red)
1* DC12V power supply, support 12V power input and output

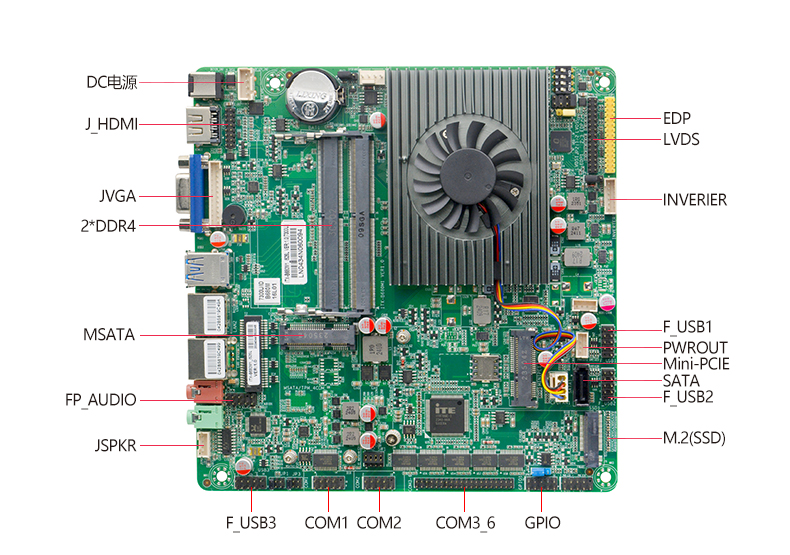

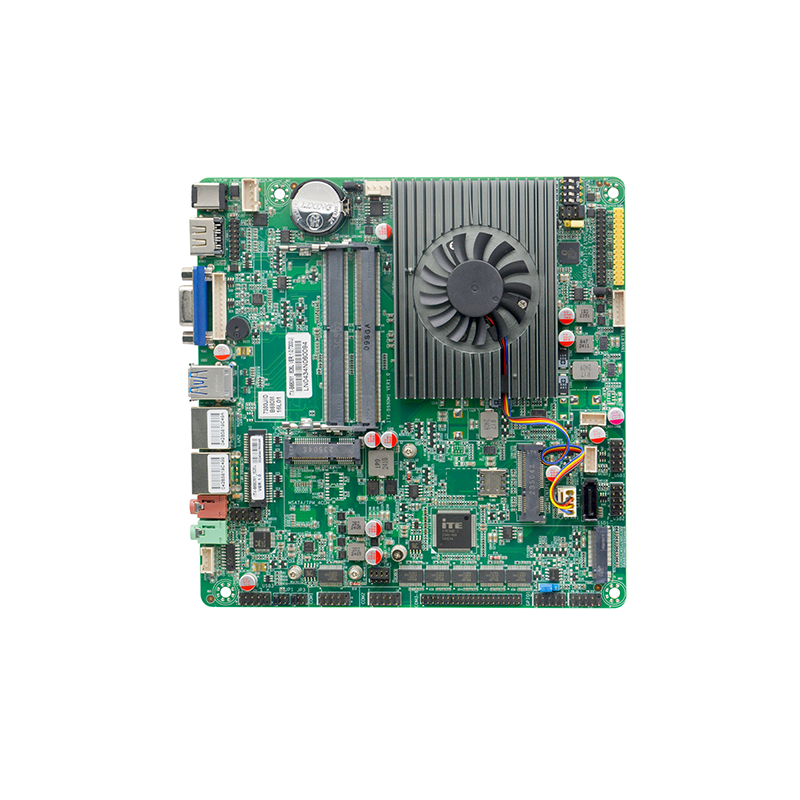

Built-in I/O interface:
1* JVGA1 interface, 1*12pin (same signal with DB15)
1* JHDMI interface, 2*8pin (same signal as HDMI interface)
1* LVDS interface, 2*15pin, support dual channel 24bit
1* LVDS backlight power supply interface, 1*6pin
1* EDP interface (yellow), 2*15pin, select one from LVDS through jumper, default LVDS
6* RS232 serial interface, COM1 supports 9th pin with power, COM2 supports RS485/422 function
6* USB2.0 interface, 2*5pin
1* Front audio interface, 2*5pin
1* Front panel switch button and indicator light interface, 2*5Pin
2* Hard disk power supply interface, 1*4pin
1* power amplifier interface, 1*4pin
1* 4pin DC power interface (can be used as 12V input and output power interface)
1* SIM card slot
Fan interface:1* 4pin CPU smart fan interface, 1* 4pin system fan interface
GPIO: Support 4 input and output GPIO
BIOS: 64Mb Flash ROM
Watchdog: Support hardware reset function (256 levels, 0~255 seconds)
Power type: Powered by DC 12V power supply
Operating system: Windows 7/ Windows 10/ Linux
Operating temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working humidity: 5%-95% relative humidity, non-condensing

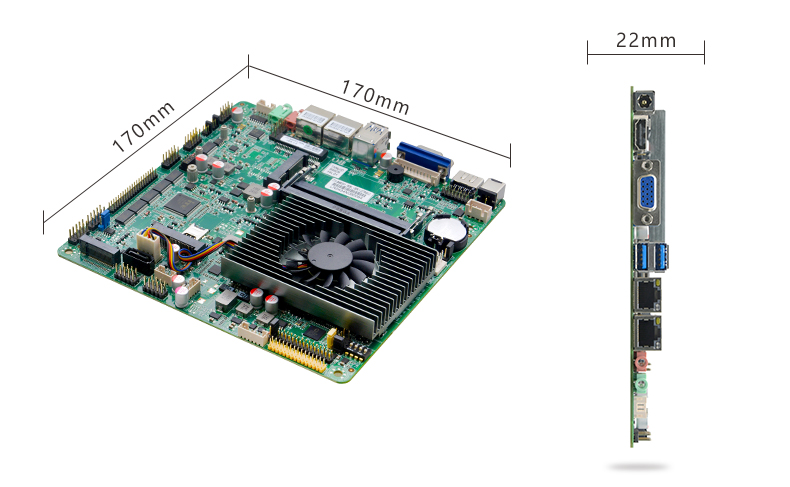

Dimension: 170mm x 170mm
