Overview

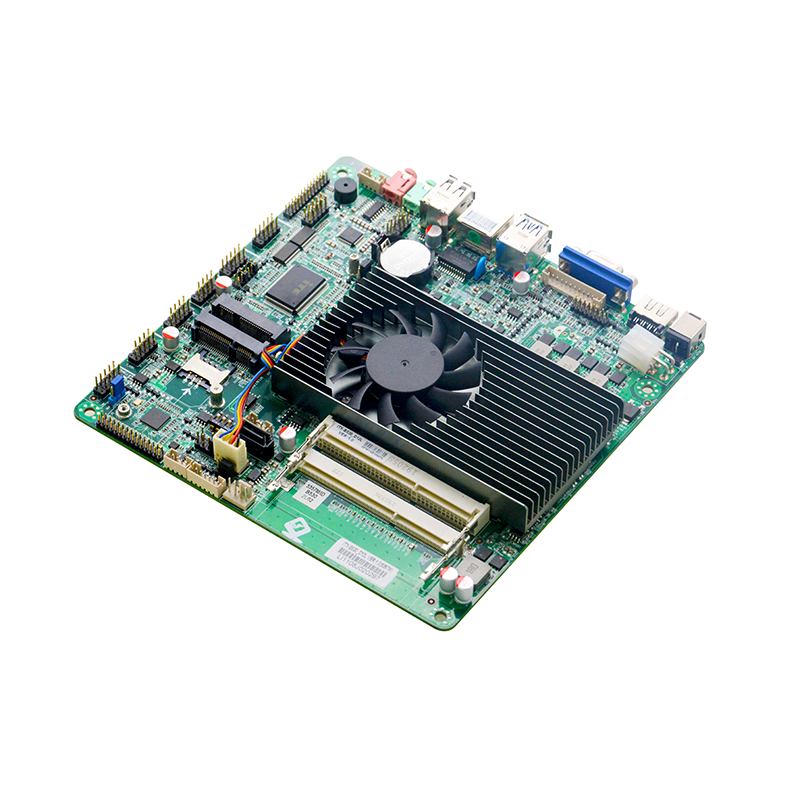

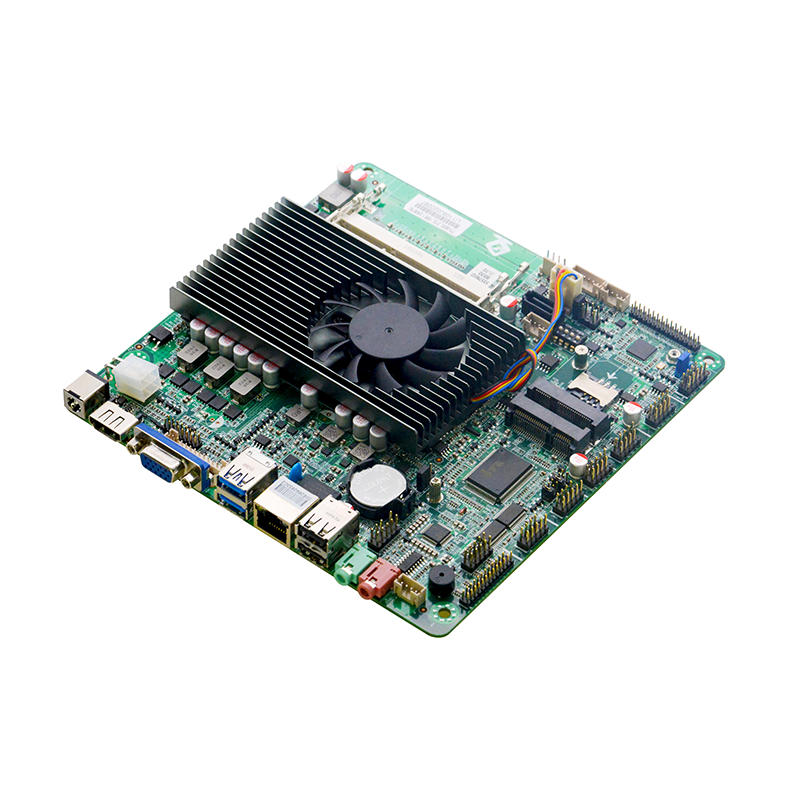

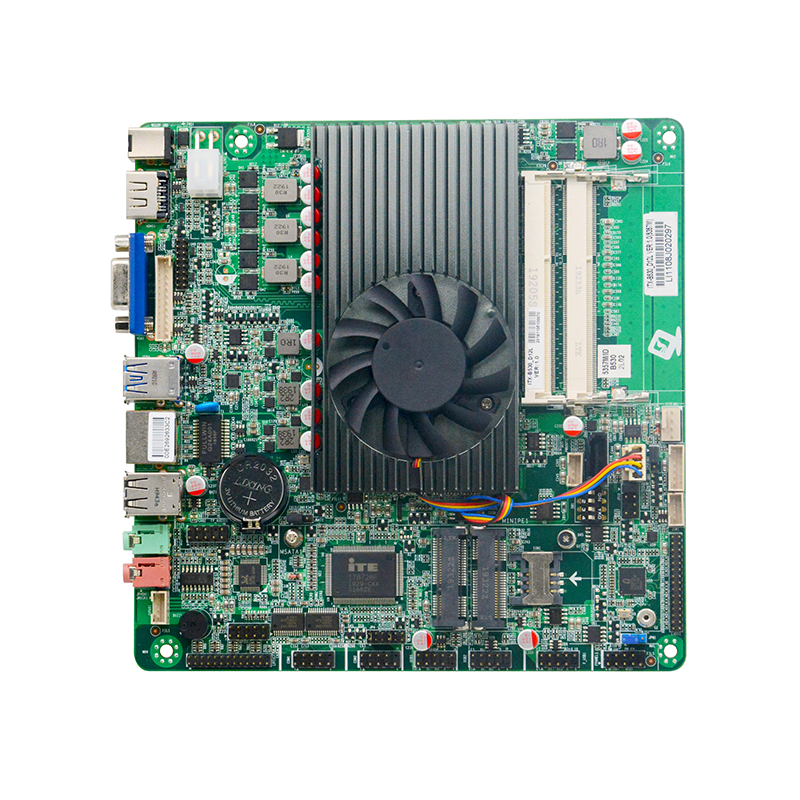

The ITX-B530_D12L VER:1.0 (5357M) AMD Industrial Motherboard is a high-performance embedded AMD motherboard based on the AMD SOC platform, featuring the AMD A6-5357M dual-core processor (2.9GHz) for efficient computing and graphics performance. Equipped with Intel HD Graphics and VGA + dual HDMI + LVDS display outputs, this AMD mini itx motherboard is ideal for industrial automation, digital signage, and smart terminal applications.
Key Features:
●AMD A6-5357M dual-core CPU @ 2.9GHz, balancing power efficiency & performance
●2×DDR3 SO-DIMM slots, supporting up to 16GB RAM
●10×USB, 2×COM (RS232), 1×Gigabit Ethernet (RJ45), extensive I/O options
●1×SATA3.0 + 1×mSATA SSD + 1×mini-PCIe (WiFi/3G/4G support), flexible storage & connectivity
●GPIO, Watchdog Timer, 2Ω/5W audio amplifier, optimized for industrial control
●12V DC power input, ensuring stable operation
Designed for rugged environments, this AMD industrial motherboard is perfect for industrial PCs, automation systems, digital signage, and embedded applications.

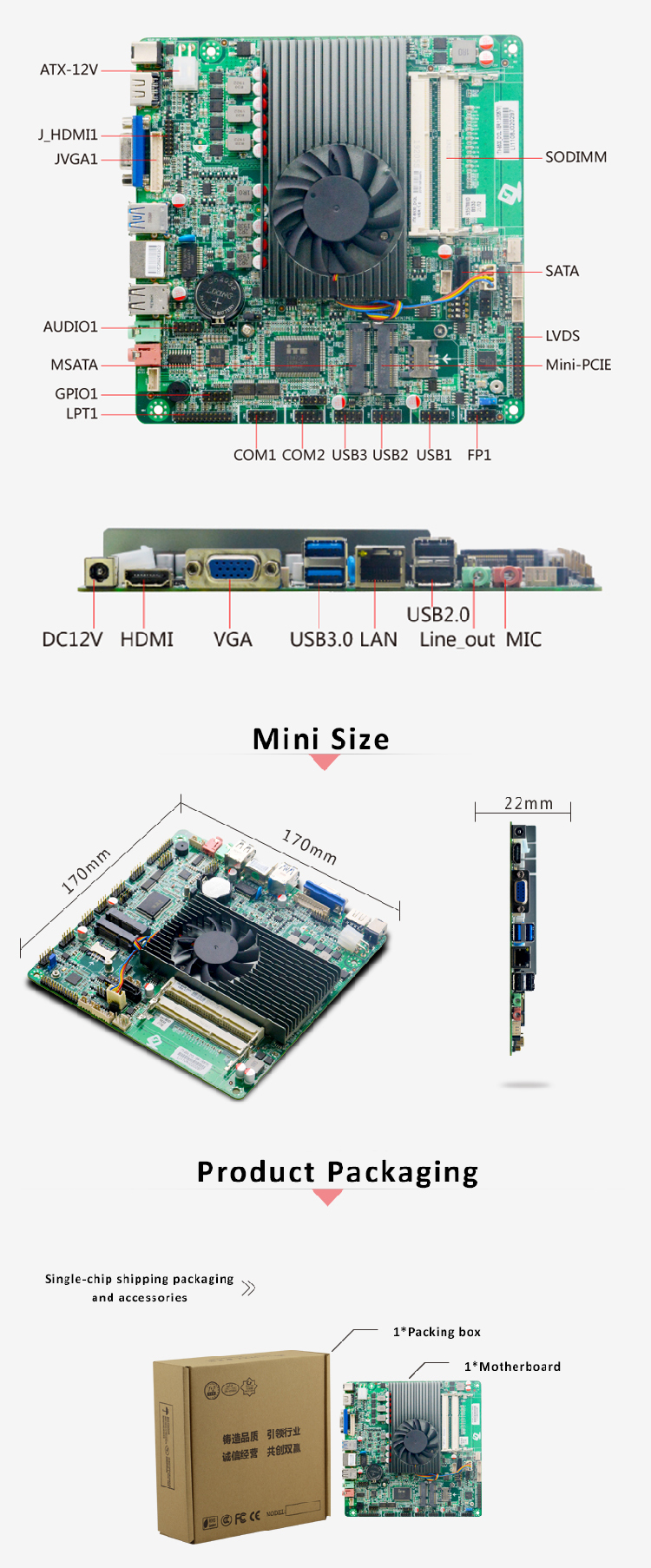

Detail Display
Product Description

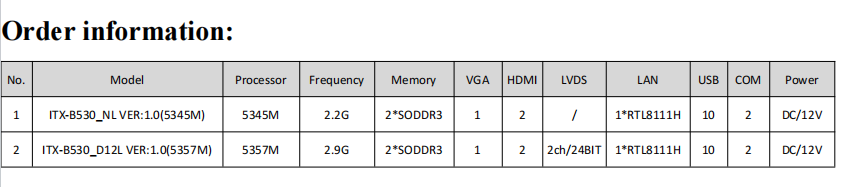

Model No.: ITX-B530_D12L VER:1.0(5357M)
Processor: Integrated AMD A6-5357M@2.9G Dual core Dual thread processor, TDP35W
Compatible with APU A10/A8/A6/A4(FP2 encapsulation) Dual-core, quad-core processor
Chipset: A70(218-0755097) High speed chipset
Memory: 2* SODIMM slot, supports dual channels DDR3 1333MHz memory, up to 16GB
Display:
Integrated AMD Radeon HD 8000
1* VGA, 2*HDMI, 1* LVDS，supports dual channels 24BIT
Ethernet: 1* RTL8111H Gigabit Ethernet ,supports Wake on LAN/PXE function
Storage:
1* SATA3.0,the transfer rate is up to 6Gbps
1* MSATA, supports Intel protocol SSD, the transfer rate is up to 6Gbps
Audio:
Onboard ALC662 6 channels high fidelity audio controller, supports MIC,Line-out and power amplifier
Suggest power amplifier 2Ω5W horn
Expansion Slot: 1* Mini-PCIE, supports WIFI,3G/4G module

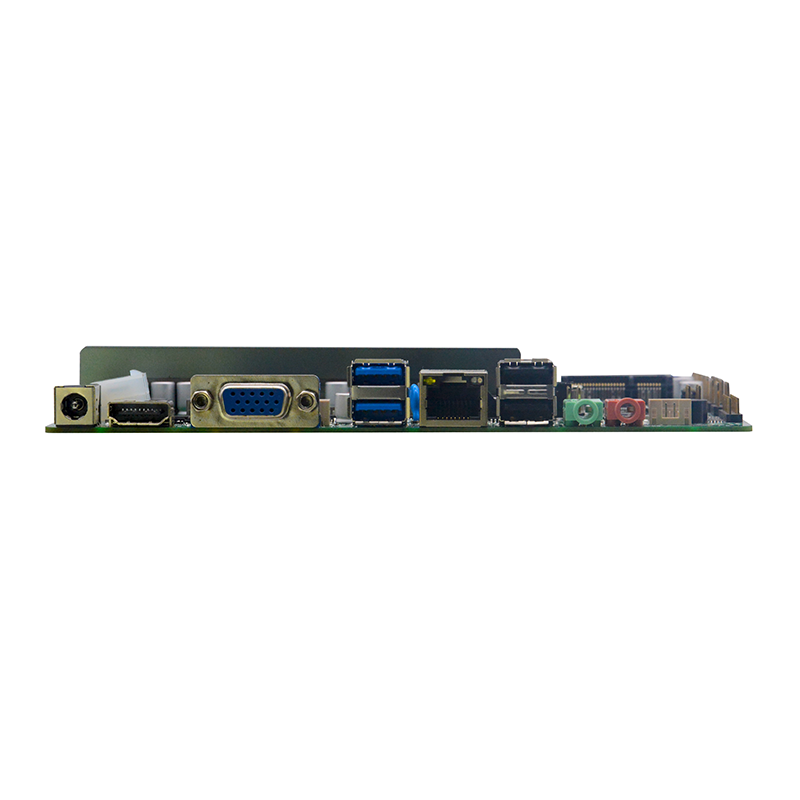

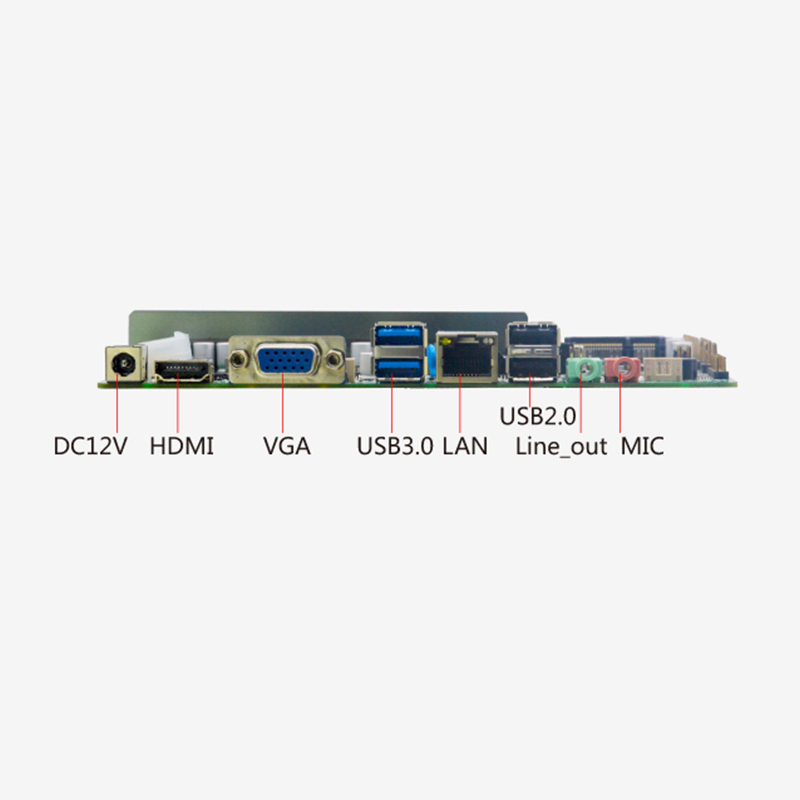

Rear I/O interface:
2* USB 2.0
2* USB 3.0
1* HDMI
1* VGA
1* RJ-45 Gigabit Network Interface
1* Line out（Green）
1* MIC（Red)
1* DC 12V power input interface

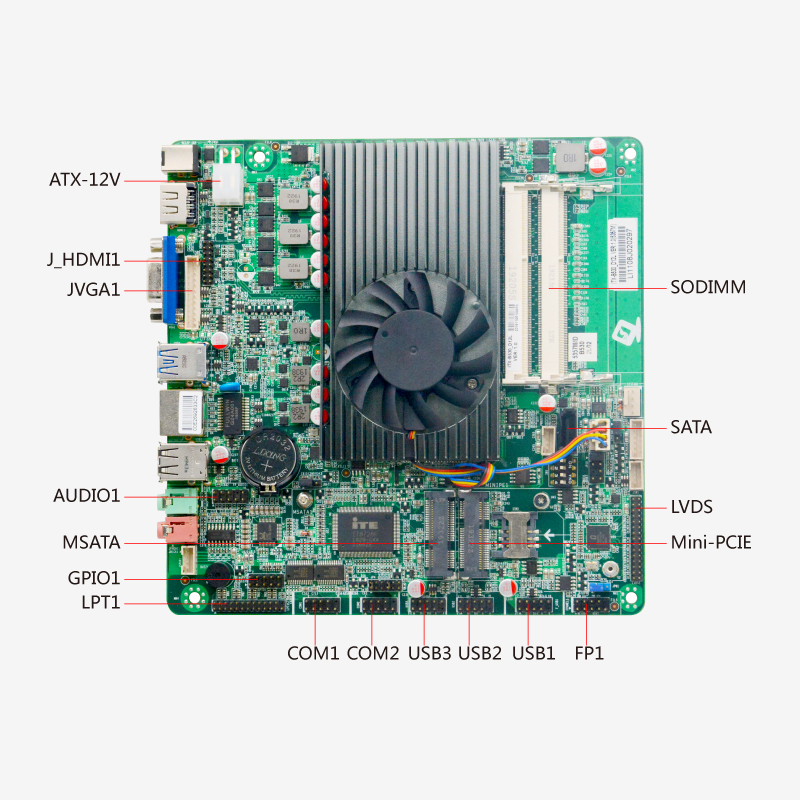

Built in I/O interface:
1* JVGA, 1*12pin (same signal as DB15)
1* JHDMI, 2*8Pin
1* LVDS, 2*15pin
1* Backlight power supply interface, 1*6pin
1* Screen brightness adjustment interface,1*4pin
6* USB 2.0, 2*5pin
2* RS232 COM, supports the 9th pin charged
1* LPT,2*13pin
1* Front audio interface, 2*5pin
1* Power amplifier interface, 1*4pin
1* Front panel function button and indicator light interface, 2*5pin
1* SIM card slot
1* 4pin ATX (can be used as 12V input and output power interface)
1* Hard disk power supply interface, 1*4pin
Fan Connector: 1* 4pin CPU smart fan connector, 1*4Pin system smart fan connector
GPIO: Support 4-way input output GPIO function
BIOS: 32Mb Flash ROM
Watchdog: Support hardware reset function (L256, 0~255 seconds)
Power Type: DC 12V single power supply
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95%( relative humidity, non-condensing)

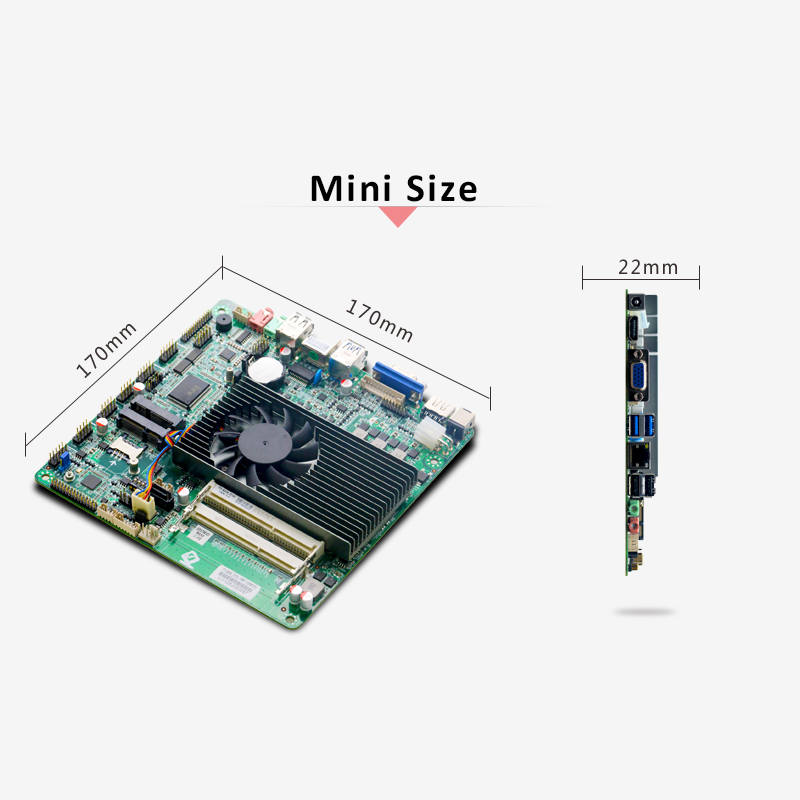

Dimension: 170mm x 170mm
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
