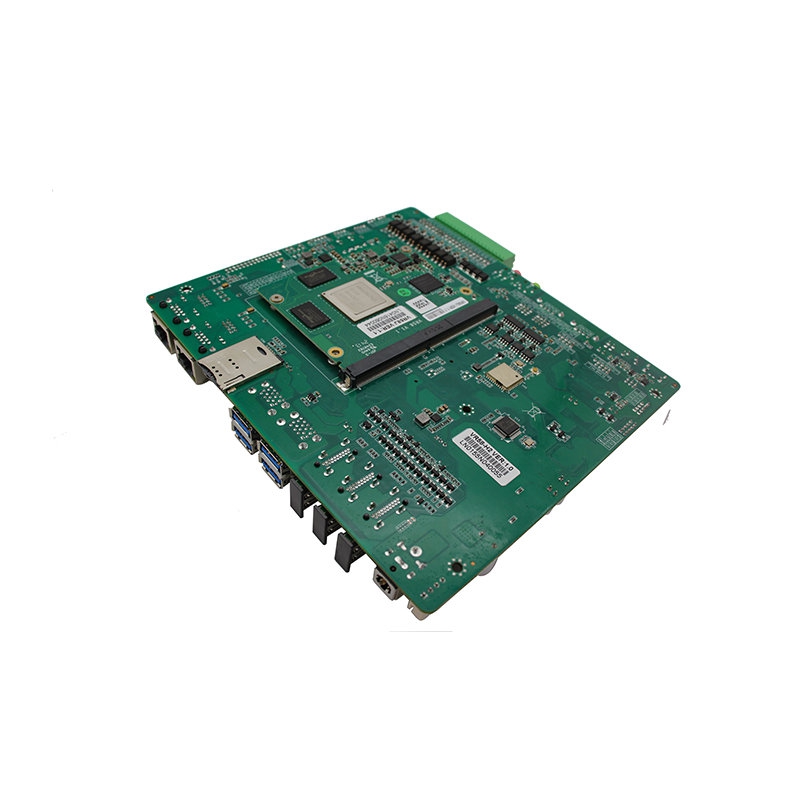

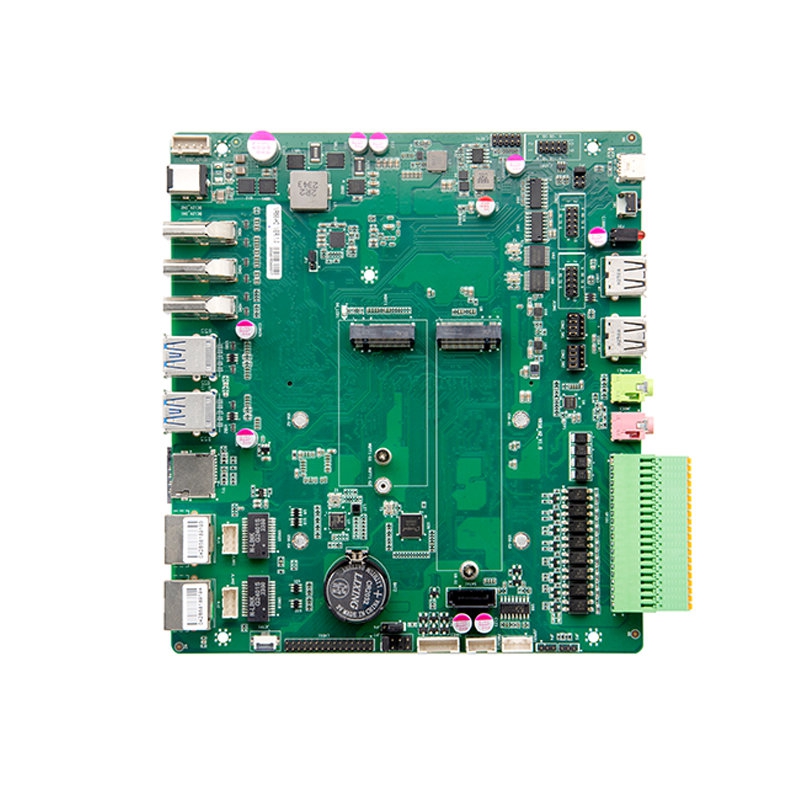

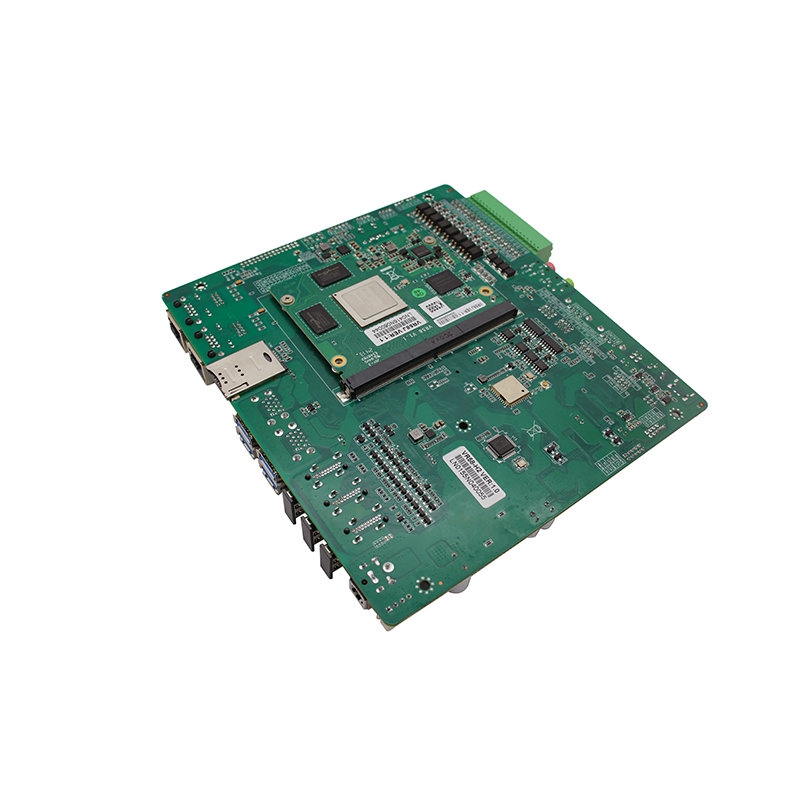

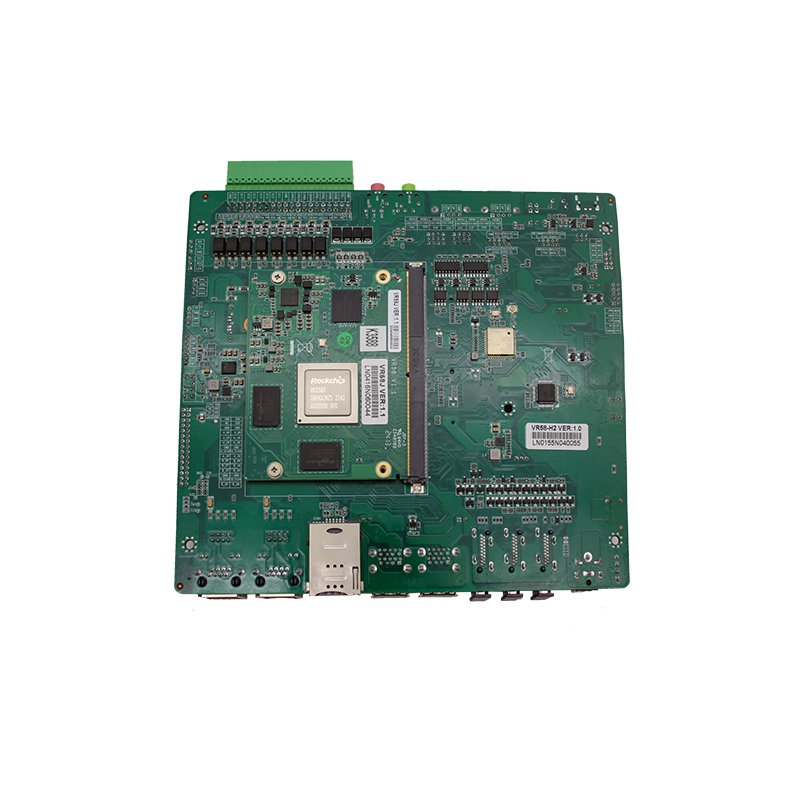

Product Description

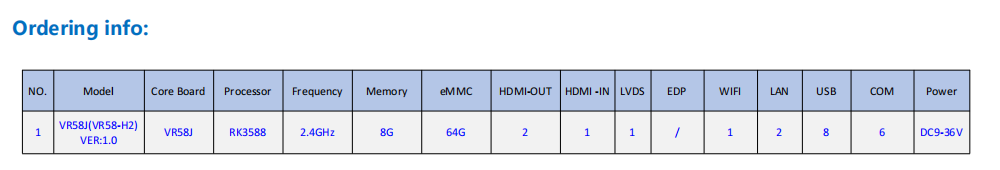

Model No.: VR58J(VR58-H2) VER:0.1
Processor: RK3588 quad-core Cortex-A76, 2.4GHz and quad-core Cortex-A55, 1.7GHz (8 cores in total) processor
Chipset: Based on RK3588 SOC platform
Memory: Onboard LPDDR4 4GB (2GB/8GB/16GB optional) memory, up to 32GB
Display: ARM Mali-G610 MP4 quad-core GPU, supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
2x HDMI-OUT、1x HDMI-IN、1x LVDS
Support 4 screens for simultaneous display and 4 screens for separate display
Network: 2x RTL8211F Gigabit network
1x WIFI/BT module
Storage: 1x eMMC memory chip 32G (16GB/64GB/128G optional)
Support TF card expansion
Audio: PMIC power management chip RK809-5 comes with a sound card, supports Line-out, MICK, and power amplifier

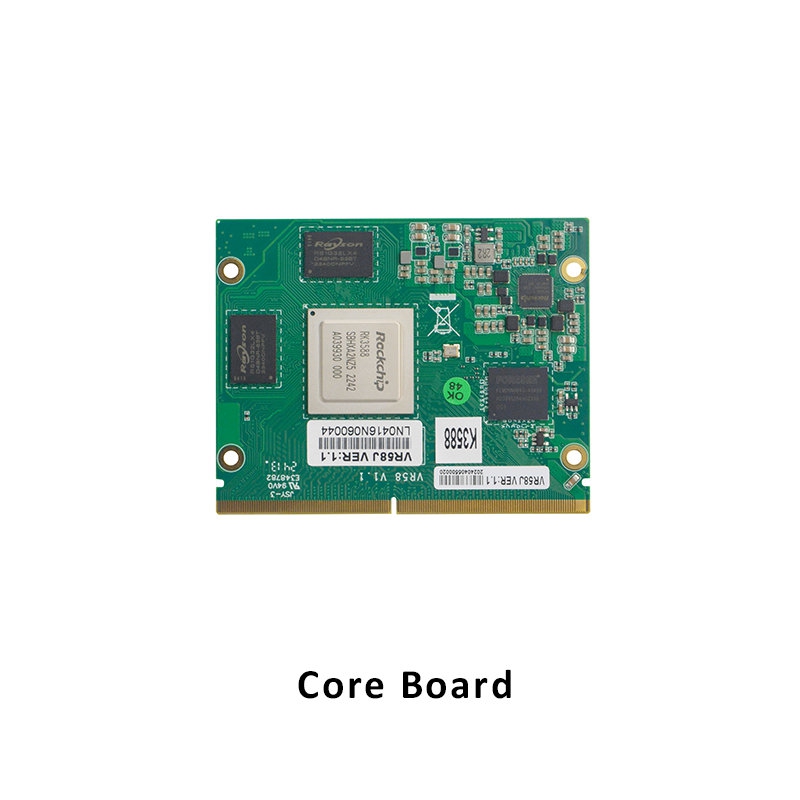

Expansion slots: 1x M.2 supports 4G/5G module, 1x M.2 M Key is connected to accelerator/hard disk, 1x MXM is connected to core board, SATA hard disk interface

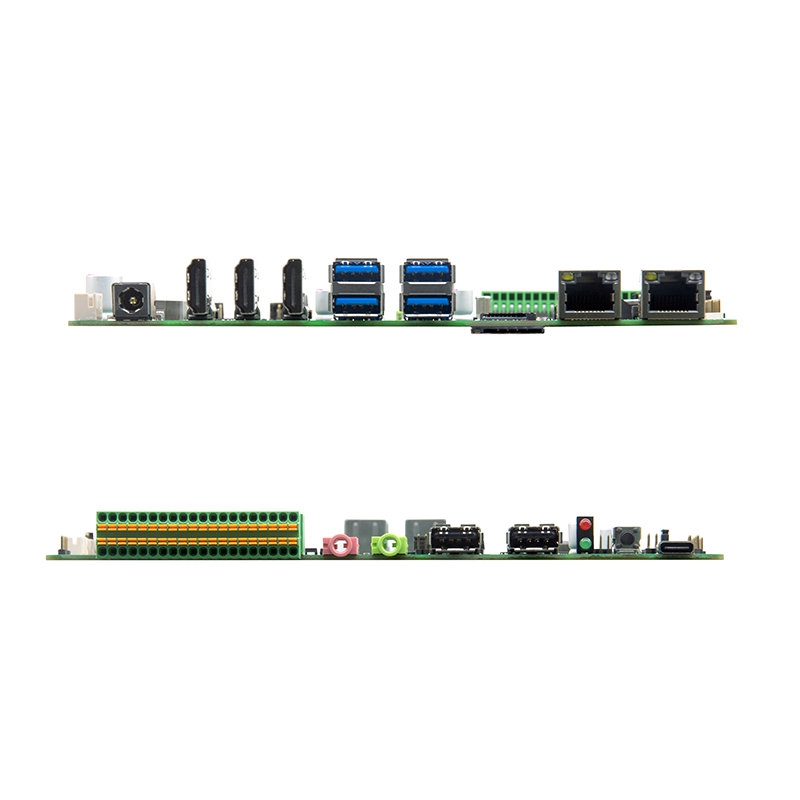

Backplane I/O interface: 1x DC interface (9-36V)
2x HDMI-OUT
1x HDMI-IN
4x USB3.0
1x SIM/TF card
2x RJ45 Gigabit network
Front panel I/O interface: 1x OTG
1x Burning key
1x Indicator light (upper red/lower green)
2x USB2.0
1x Line-OUT
1x Mic
2x 20PIN Phoenix terminals (DC12V/8*DO/8*DI/CAN1/CAN2/1*SPK/Volume+-/4*RS232/4*RS485, 4 RS232 and RS485 converted by jump cap)
Built in I/O interface:
1x DC9-36V power supply (1*4pin)
2x USB2.0 interface 2x 5Pin
1x SATA hard disk interface
1x Hard drive power supply interface 1x 4pin
1x LVDS interface 2x 15pin, supports dual channel 24bit
1x Screen backlight power supply interface 1x 6pin
2x Power amplifier interface (2 ohm 5W) 1x 4pin
1x Front panel function button and indicator light interface 2x 5pin
1x Touch interface (I2C) 1x 6pin, 0.6mm pitch
2x Gigabit network interface (choose one from RJ45), which can be used to connect external POE modules
Power Type: DC input voltage 9-36V
GPIO: Supports 8 input and 8 output DIO interfaces
OS: Android 12, Ubuntu 20.04 (used with VR58 core board)
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% relative humidity, no condensation
Dimension: 176 x 159 x 1.6mm (6-layer board, screw hole specifications: Ø3.2mm x 4)
