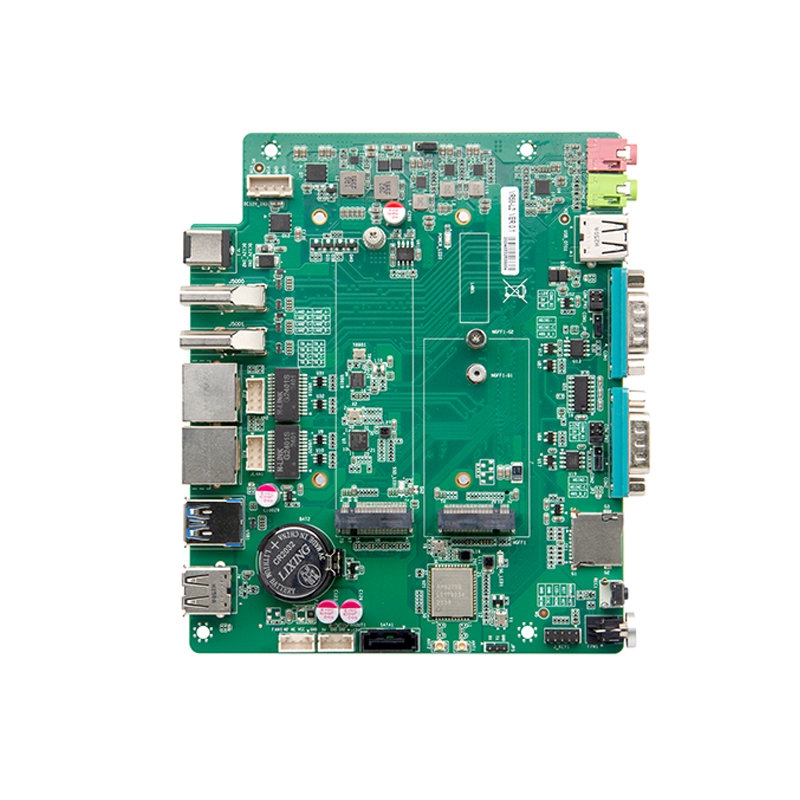

Product Description
Model No.: VR58J(VR58-L2) VER:0.1
Processor: RK3588 quad-core Cortex-A76, 2.4GHz and quad-core Cortex-A55, 1.7GHz (8 cores in total) processor
Chipset: Based on RK3588 SOC platform
Memory: Onboard LPDDR4 4GB (2GB/8GB/16GB optional) memory, up to 32GB
Display: ARM Mali-G610 MP4 quad-core GPU, supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
2x HDMI-OUT
Support 4 screens for simultaneous display and 4 screens for separate display
Network: 2x RTL8211F Gigabit network
1x WIFI/BT module
Storage: 1x eMMC5.1 memory chip 64G (16GB/32GB/64GB/128GB optional)
Support TF card expansion

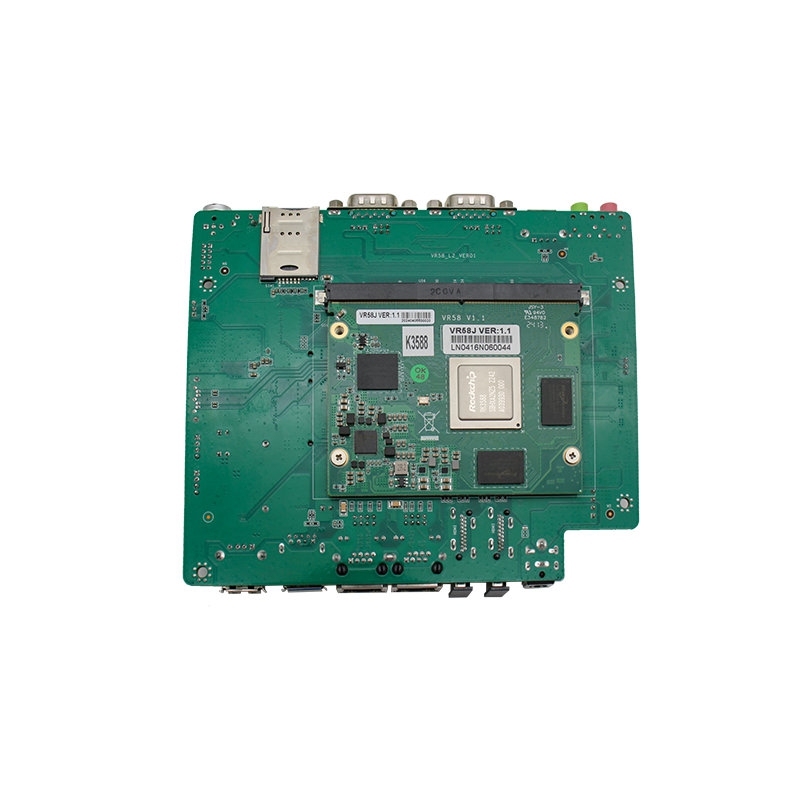

Expansion slots: 1x M.2 supports 4G/5G module, 1x M.2 M Key is connected to the accelerator/hard disk, 1x MXM is connected to the core board

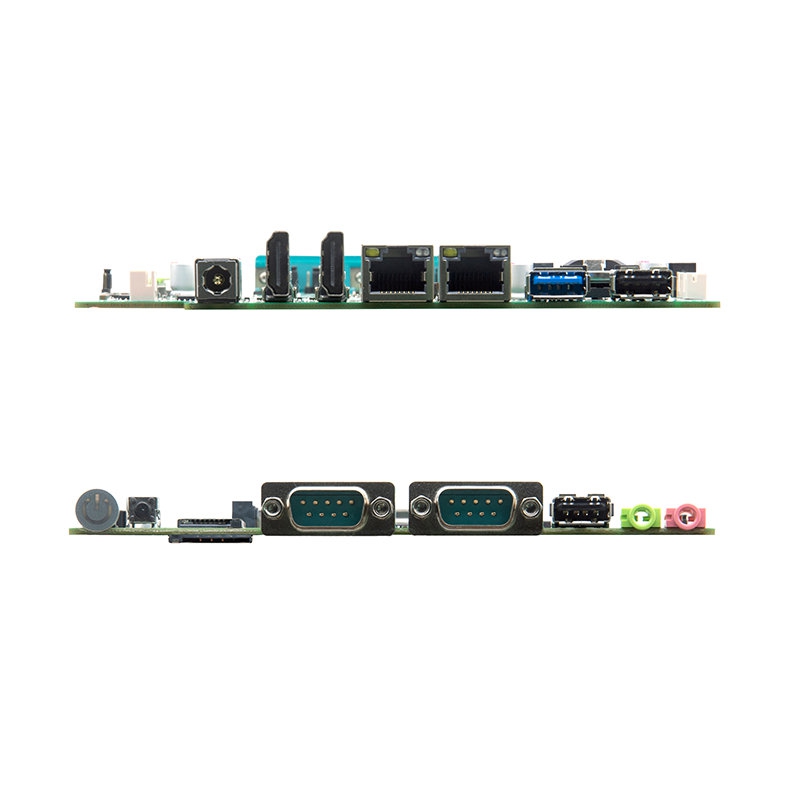

Front panel I/O interface: 1x USB2.0
1x USB3.0
2x RJ45 Gigabit network interface
2x HDMI-OUT
1x DC12V
1x 3PIN 12-36V；DC12-36V(reserved for P1021-PW wide voltage small board)
Backplane I/O interface:
1x Power button
1x Burning key
1x SIM/TF
2x DB9 (RS232 and RS485 jumper switch)
1x USB2.0
1x Line-out
1x Mic
Built in I/O interface: 1x M.2 Key-M slot. Supports M.2 2280 NVME PCIE X4 specification SSD
1x M.2 Key-B slot, supports 2242/2252 5G module
1x MXM seat
1x SATA3.0 hard disk interface，7pin
1x Hard disk power supply interface, 1x 4pin,PH=2.0mm
1x FAN interface, 1x 4pin, PH=2.0mm (reserved)
Built-in pins: 1x 4pin power socket (ph=2.5mm)
Power Type: DC 12V power input
OS: Android 12，Ubuntu 22.04(used with VR58J core board)
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Working Humidity: 5%-95% relative humidity, no condensation
Dimension: 148 x 123.5 x 1.6mm (6-layer board, screw hole specifications: Ø3.2mm x 4)
