Product Description

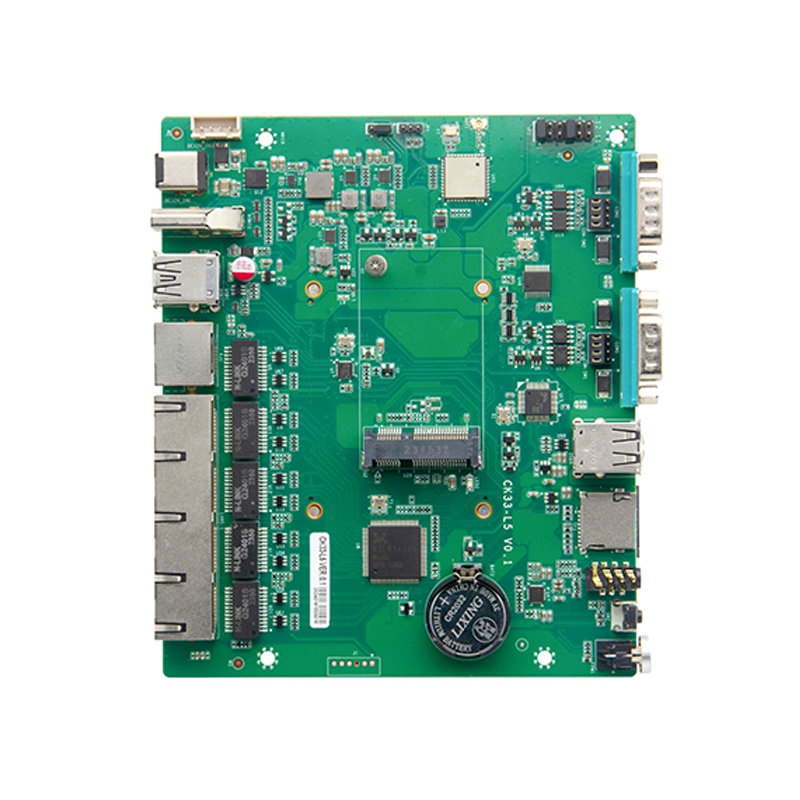

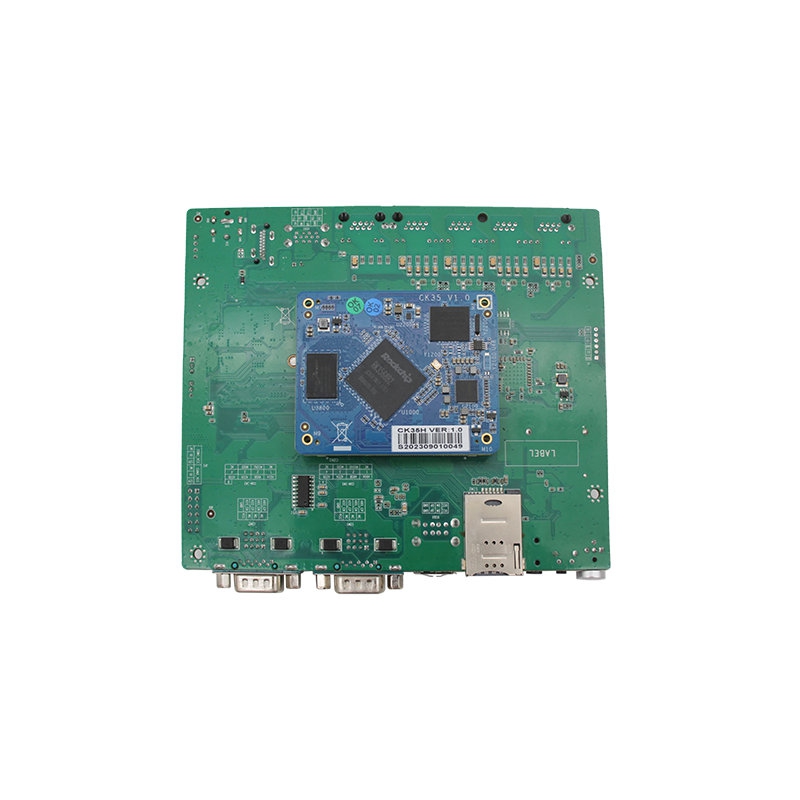

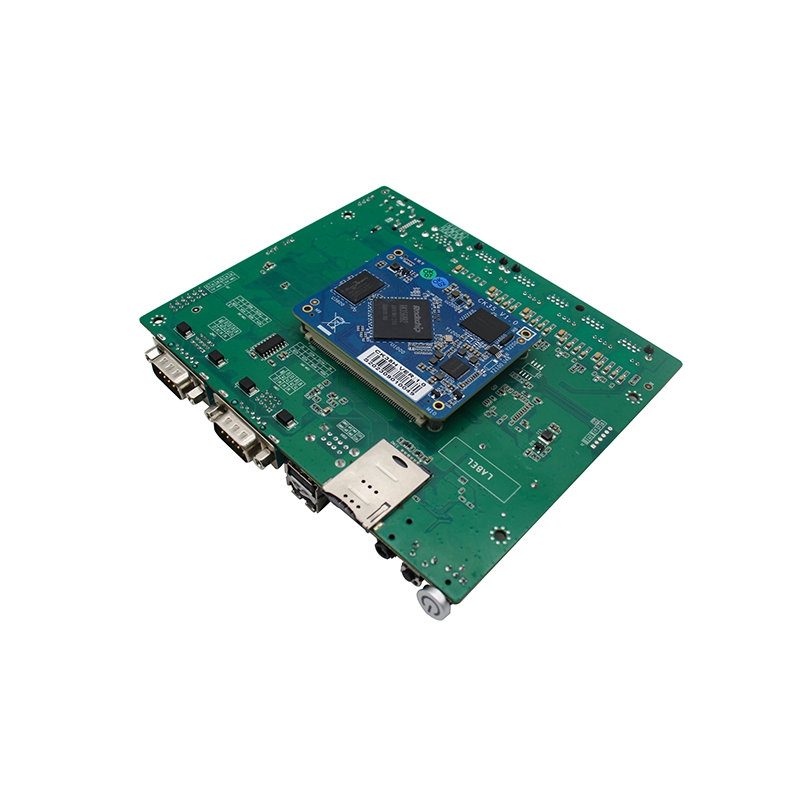

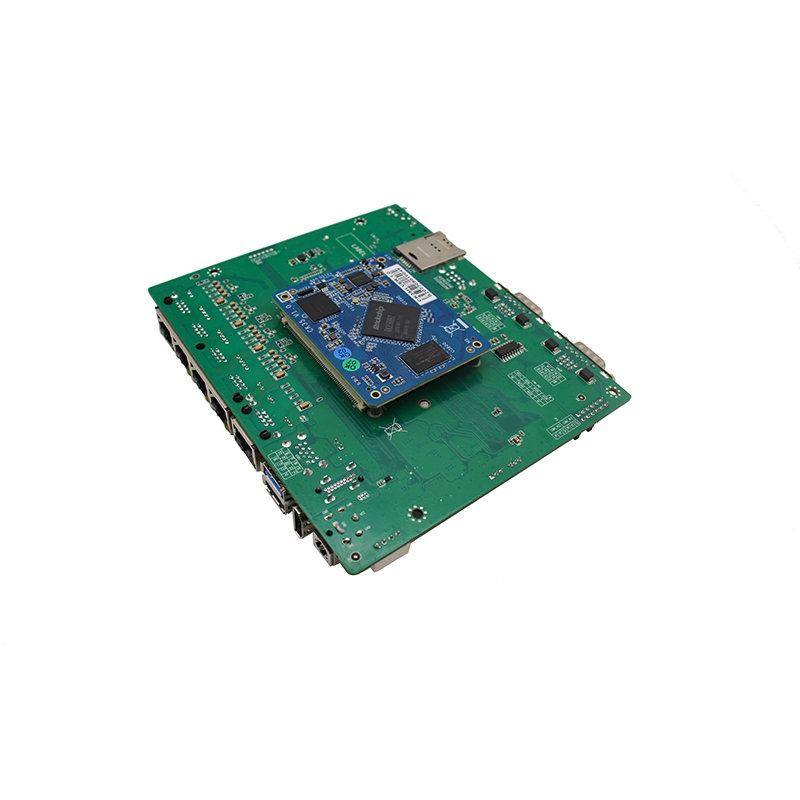

Model No.: CK35H(CK35-L5) VER:1.0
Processor: CPU Rockchip RK3568B2 Quad-core Cortex-A55 up to 2.0GHz
Chipset: Based on RK3568B2 SOC platform
Memory: Onboard LPDDR4 4G memory (2G/8G optional)
Display: Integrated ARM Mali-G52 GPU, support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1
1x HDMI
Network: 1x WAN, 4x LAN(48V POE)
1x WIFI (Dual-band)/Bluetooth module (reserved)
Storage: 1x eMMC memory chip 32G
1x TF Card slot
Audio: Line-out, MICK
supports 2 Ω 5W dual-channel
Expansion slots: 1x mini PCIe (Internal USB3.0 signal, can support 5G); 1x SATA

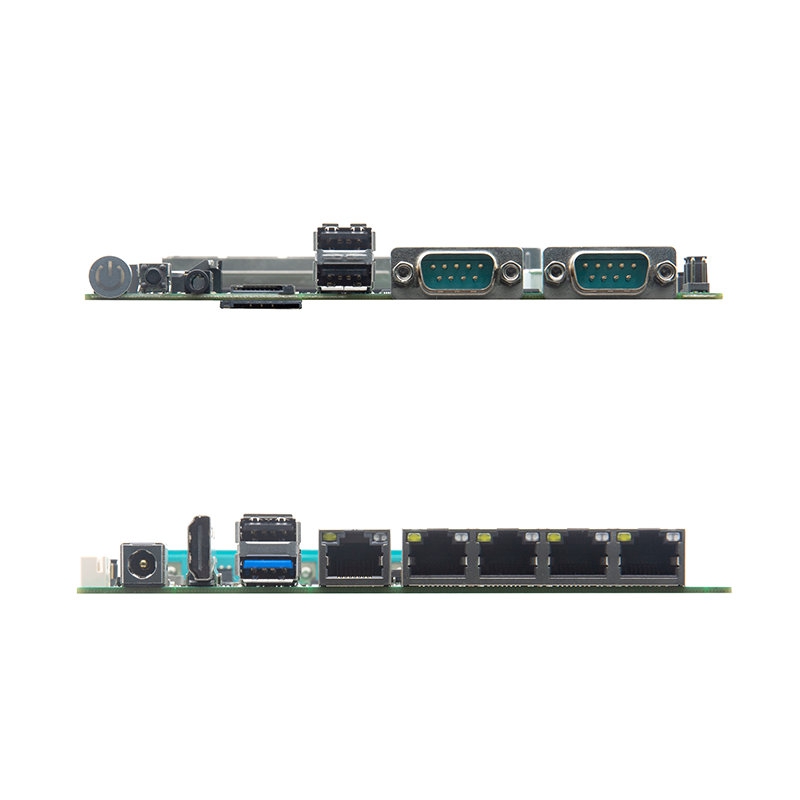

Backplane I/O interface:
2x 12PIN Phoenix terminal（4*DI/4*DO/4*RS232, can be used as 4*RS485 or 2*RS422+2*RS232, overall jumper switch)
1x CONSOLE
2x USB2.0
1x SIM/TF
1x Line-out（Green）
1x MICK (Red)
1x Power indicator light (upper red and lower green)
1x Burn key

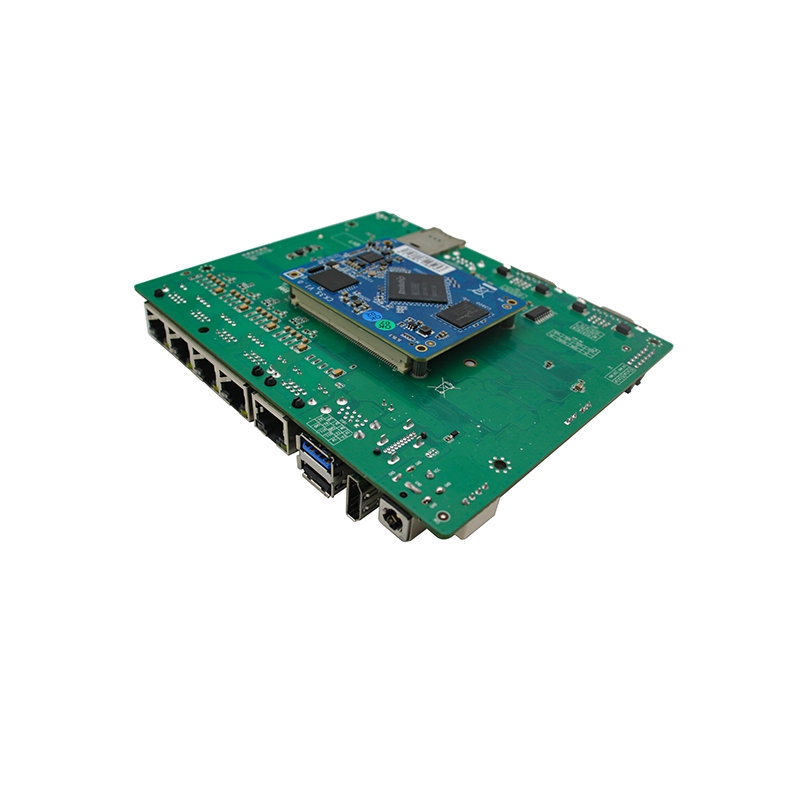

Front panel I/O interface:
1x DC 9-36V input (Threaded and non-threaded LAYOUT)
1x HDMI
1x USB2.0 (upper layer OTG), 1* USB3.0
1x RJ45 Gigabit (WAN port)
4x RJ45 Gigabit (LAN port), With 48V POE function
Built in I/O interface:
1x mini PCIe(support 4G/5G)
1x SATA (high 12mm)
1x Front panel function button and indicator light interface, 2*5pin
2x USB2.0
Power Type: DC 9-36V input
DIO: Support 4 channels of DI and 4 channels of DO interfaces
OS: Android 11、Ubuntu 20.04、Debian 10、debian 11、debian 12.
Working temperature: -40℃～85℃
Storage temperature: -40℃～85℃
Working Humidity: 5%-95% relative humidity, no condensation
Dimension: 148mm x141 x 25.1mm Universal C57 size and screw holes (6-layer board, screw hole specifications: Ø3.5mm x 4)
