Product Description
Model No.: R320V-L8 V1.0(Z370)
Chassis:
Material/structure: 1U standard case, high-quality galvanized steel plate
Color: Iron grey

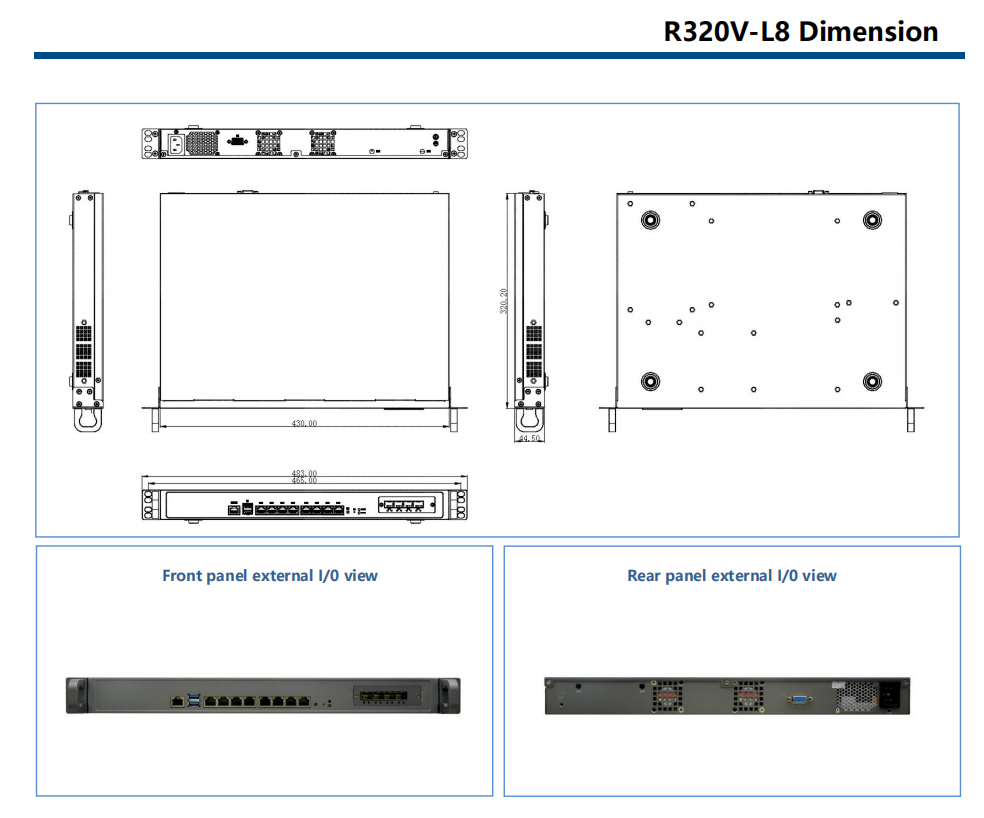

Size（LWH）: 430MMx 320MMx 44.5MM
Installation: 1U standard rack

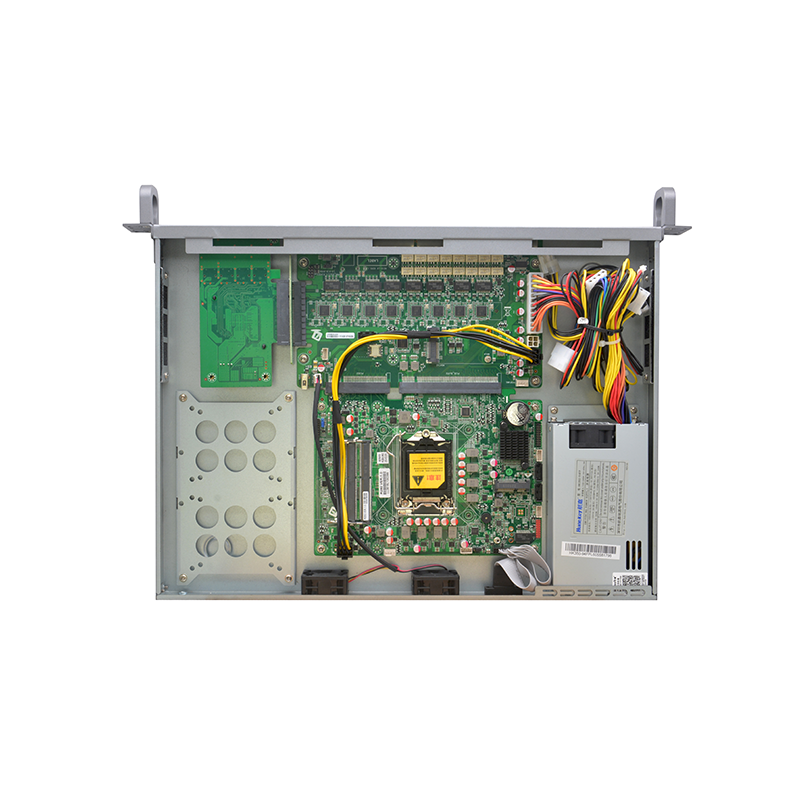

Motherboard:
CPU: Support Intel LGA1151 6-9th Celeron/Pentium/Core i3/i5/i7/i9 series processor ,support CPU below 125W
Chipset: Intel Z370 high speed chipsets
Display: Integrated Intel®HD Graphics
Memory: 2x DDR4 SODIMM memory, support 2666MHz ram, max up to 128GB

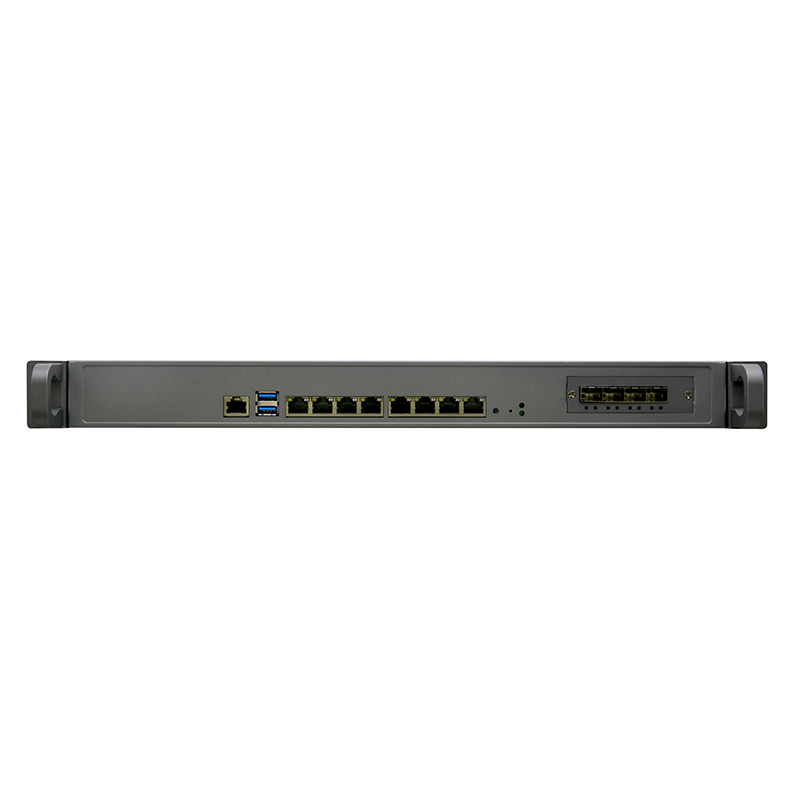

Front panel connector:
Power: 1x Power switch, 1x Restart switch
USB: 2x USB3.0
LAN: 8x Intel I226V 2.5G RJ45 Ethernet port, supporting network wake up /PXE (LAN1-4 supports BYPASS optional) ，LAN8 with WiFi optional，default LAN8
SFP: Support 4 or 2 SFP+ ports（expansion）
COM: 1x RJ45 console
LED: 1x hard disk indicator, 1x power indicator

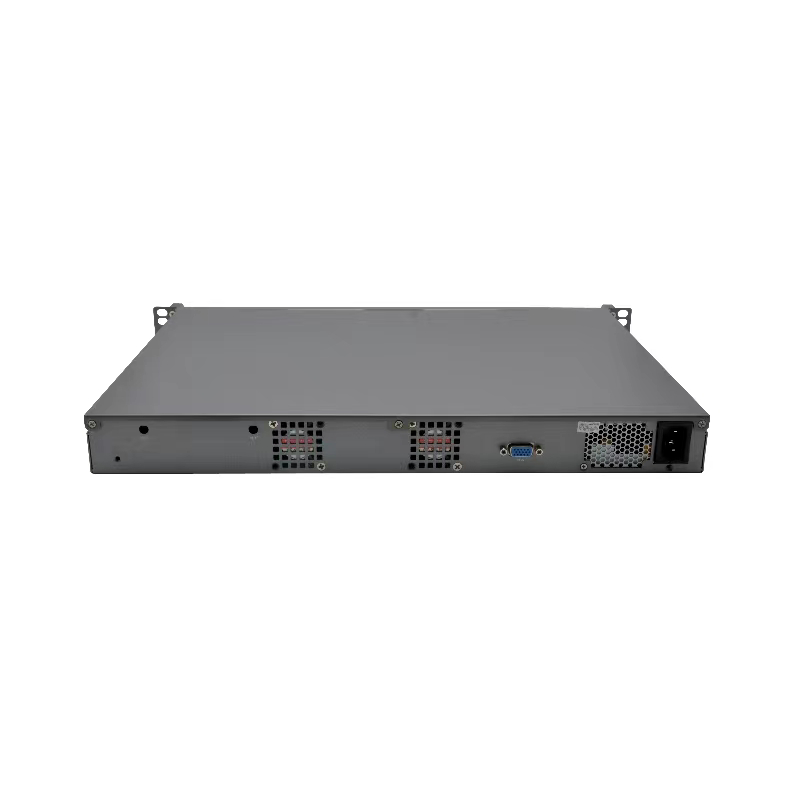

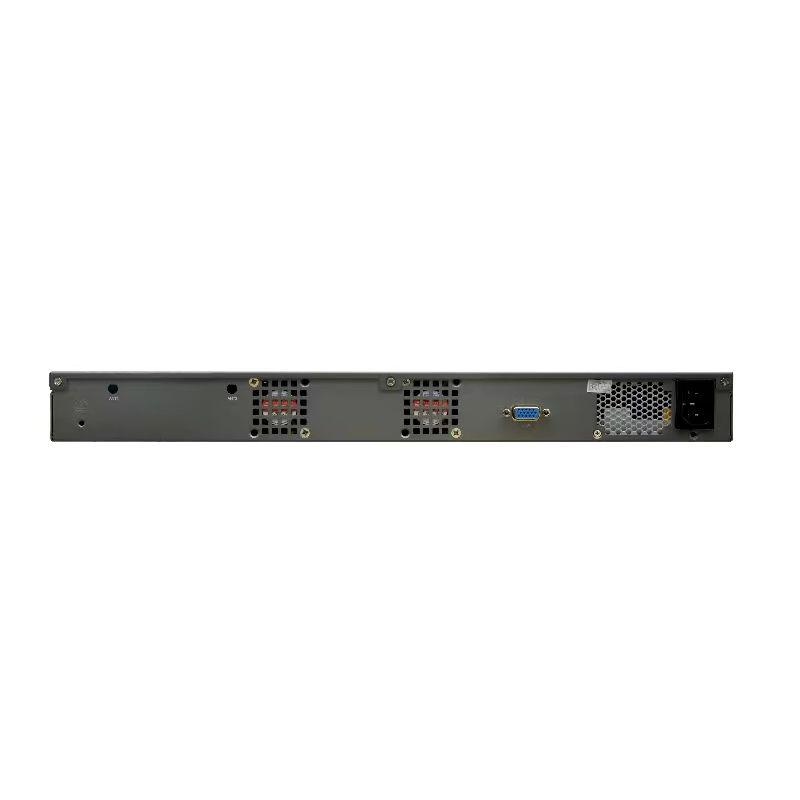

Rear panel connector:
Display interface: 1x VGA
Power interface : 1x AC DC port
Storage:
SATA: 1x 3.5’’ HDD or 1x 2.5’’ HDD slot
MSATA: 1x MSATA
Expansion:
PCIE x8: 1x PCIE X8, can expand Gigabit/10 Gigabit Fiber Card
MINIPCIE: 1x MINIPCIE slot , support WiFi/4G(LAN8 with WiFi optional，default LAN8)
USB: 1x USB2.0，Dongle can be connected
OS: Windows: YES
Linux: YES
Power Supply:
Power type: Built-in ATX/1U power supply
Voltage input : AC 100-240V
Power output : Standard 250W
Environment:
Operating temperature: -10℃～50℃
Storage temperature: -20℃～70℃
Relative humidity: 5%-95%(Relative humidity, non condensing)
Work vibration: 0.5g rms/5-500HZ/random/operating
