Product Description
Model NO.: R19SLZ V:1.0
Chassis:

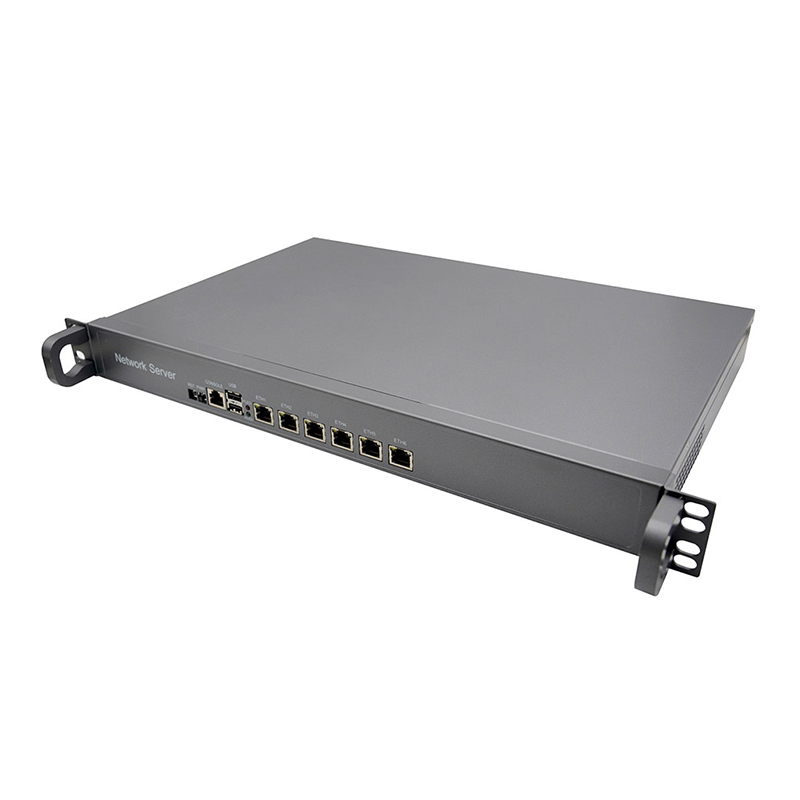

Structure: 1U standard chassis, high quality galvanized steel
Dimension: 430mm*281mm*45mm
Color: Iron gray
Installation: 1U Rack mount / Desktop

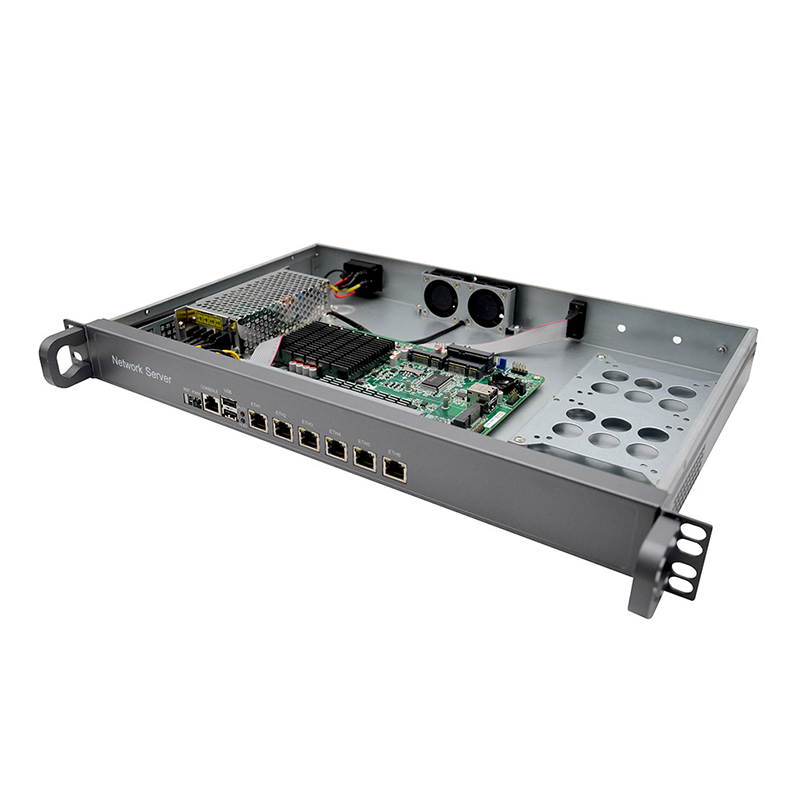

Motherboard:
Processor: Integrated Intel®Celeron J1900 2.0GHz quad-core quad-thread processor ; TDP 10W
Chipset : Bay Trail SOC
Display: Integrated Intel® HD Graphics
Memory: 1x SODIMM slot ,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

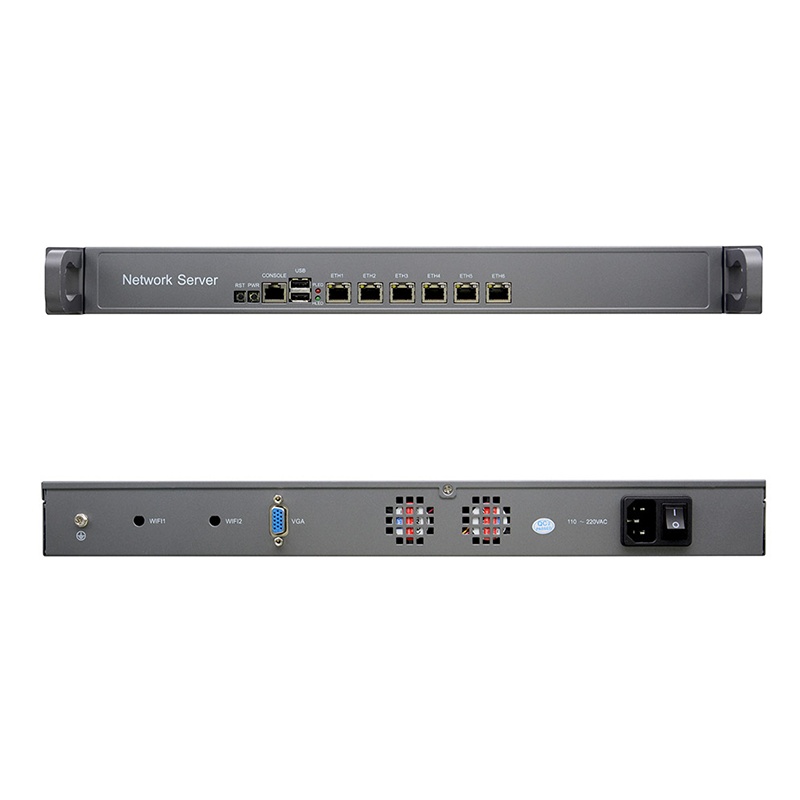

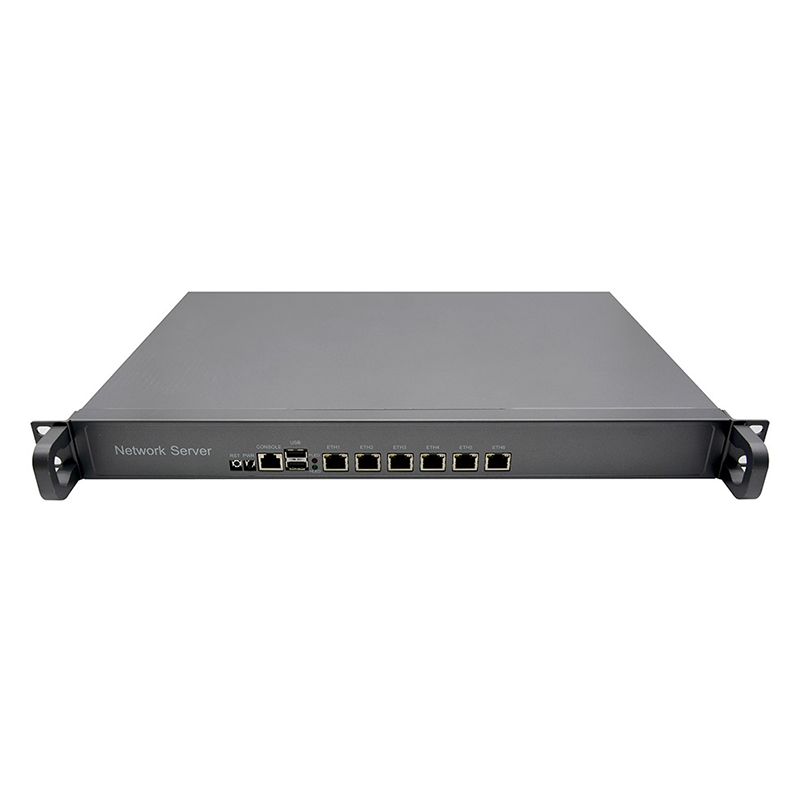

Front I/O:
Switch: 1x Power switch ; 1x Reset Switch
Ethernet: 6x RJ45 Intel I210 Gigabit Ethernet ports, supporting Wake_on_Lan/PXE
Bypass function optional
USB: 2x USB2.0
COM: 1x Console RJ45 RS232 serial port ( CISCO standard)
LED: 1x Power LED ; 1*HDD LED
Rear I/O:
Display: 1x VGA
power: 1x AC power plug (100V~240V power input)
Storage:
SATA: 1x 2.5” SATA HDD Docking Port
SSD: 1x mSATA slot ,support SSD ,transfer speed up to 3Gbps
Extension: Mini PCIE: 2x Mini-PCIE slot ，support WIFI/3G/4G module
OS support:
Microsoft Windows: Win 7/8/10，64bit
Linux: Ubuntu / centOS / Free_BSD / Open_WRT / Debian etc.
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: ATX power supply (preinstalled)
Voltage Input: AC 100V~240V
Power output: AC to DC_60W
Reliability:
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
