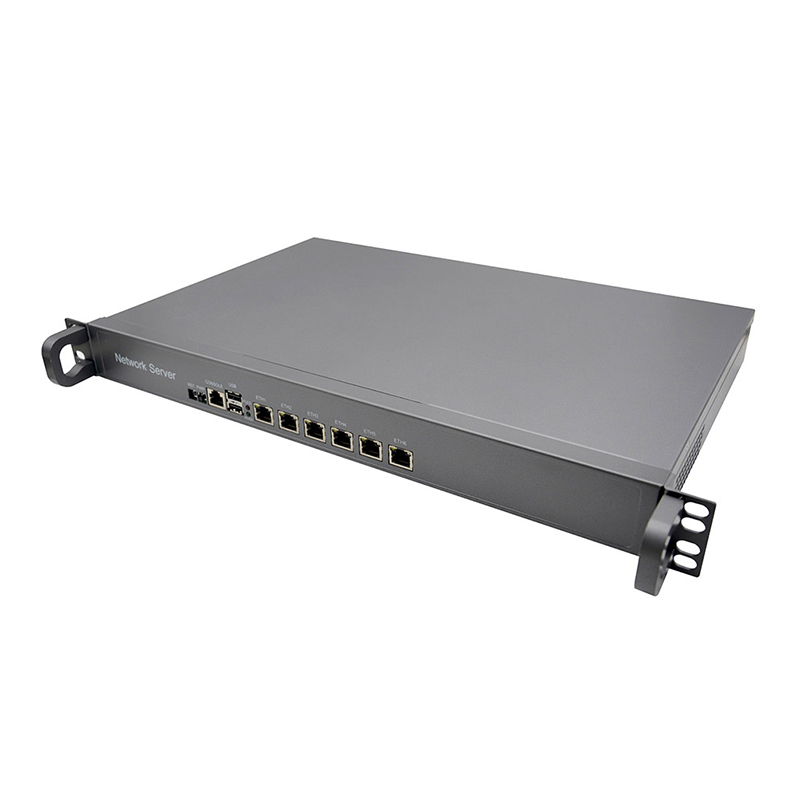

Product Description

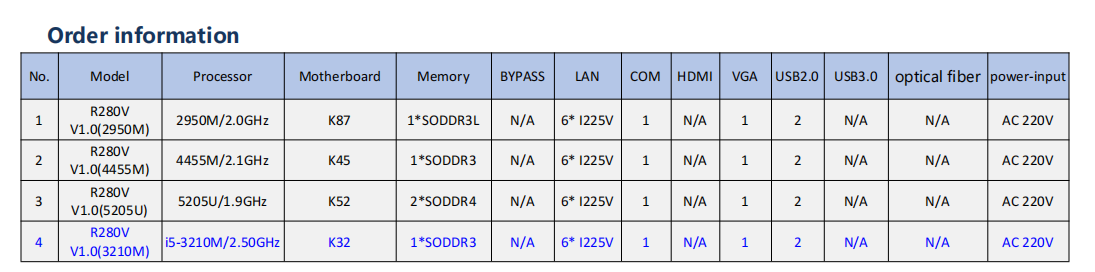

Model No.: R280V V1.0(3210M)
Chassis:
Material/structure: 1U standard case, high-quality galvanized steel plate
Color: Sub silver black

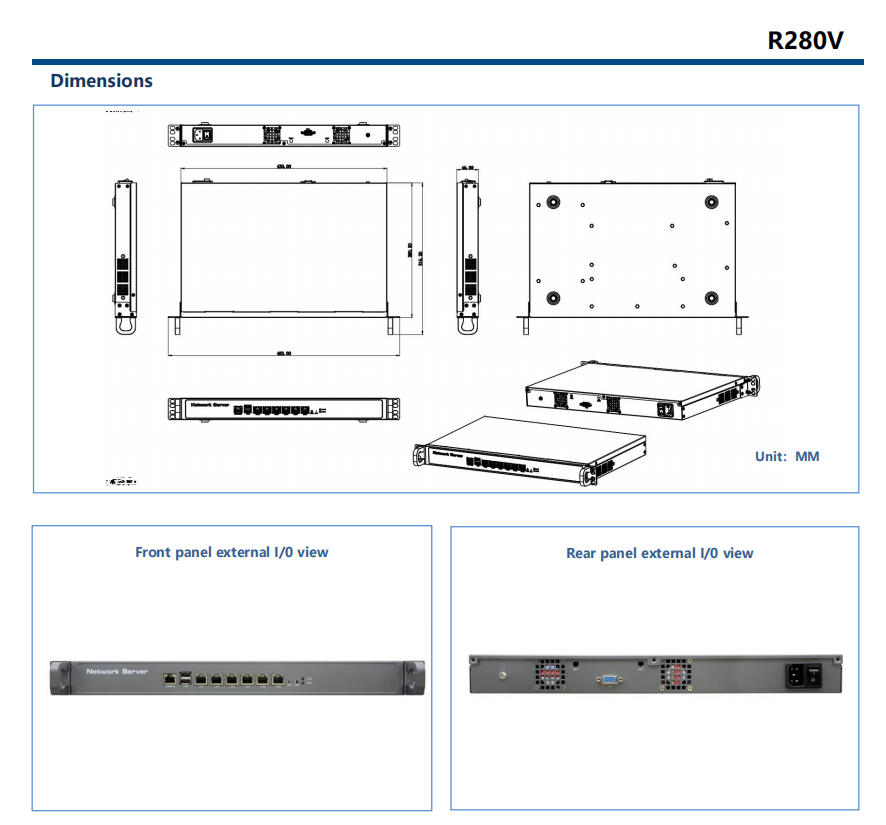

Size（LWH）: L430x 280.2x 45MM
Installation: 1U standard rack
Motherboard:
CPU: Intel i5-3210M 2.50GHz dual-core quad-thread processor，TDP35W
Support Intel® Sandy /Ivy Bridge Pentium/Celeron/I3/I5/I7 BGA1023 low power processor
Chip: Intel HM77 high speed chipsets
Display: Integrated Intel®HD Graphics
Memory: 1x SODIMM memory slot ,support 1600/1333MHz DDR3 memory, up to 8GB

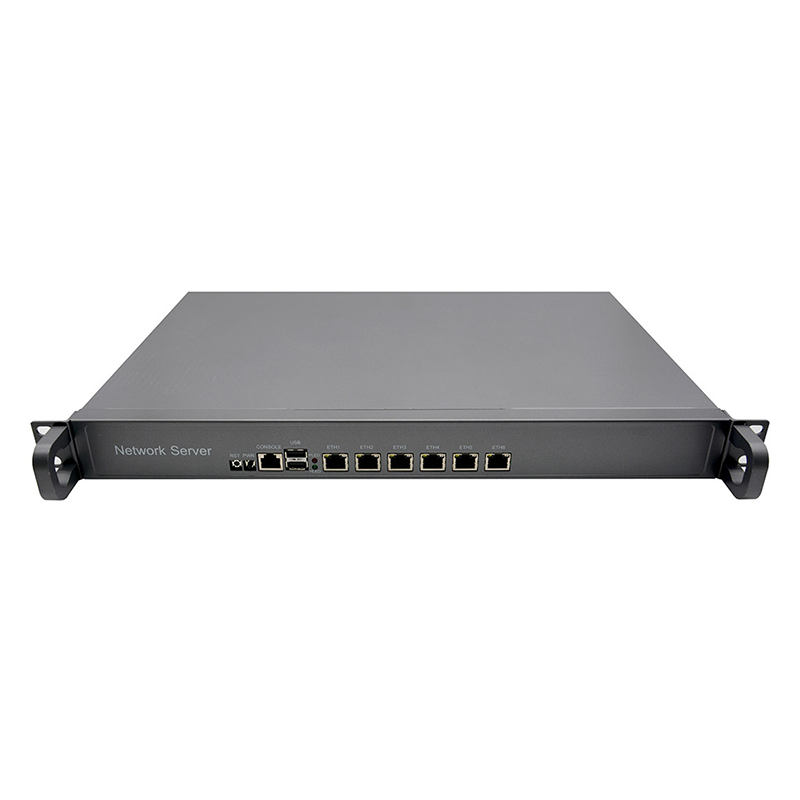

Front panel connector:
POWER: 1x power switch, 1x reset switch
LAN: 6x I225V 2.5G Gigabit electrical port, supports wake-on-LAN/PXE function
COM: 1x RJ45 serial interface
USB: 2x USB2.0 interface
LED: 1x hard disk indicator light, 1x power indicator light

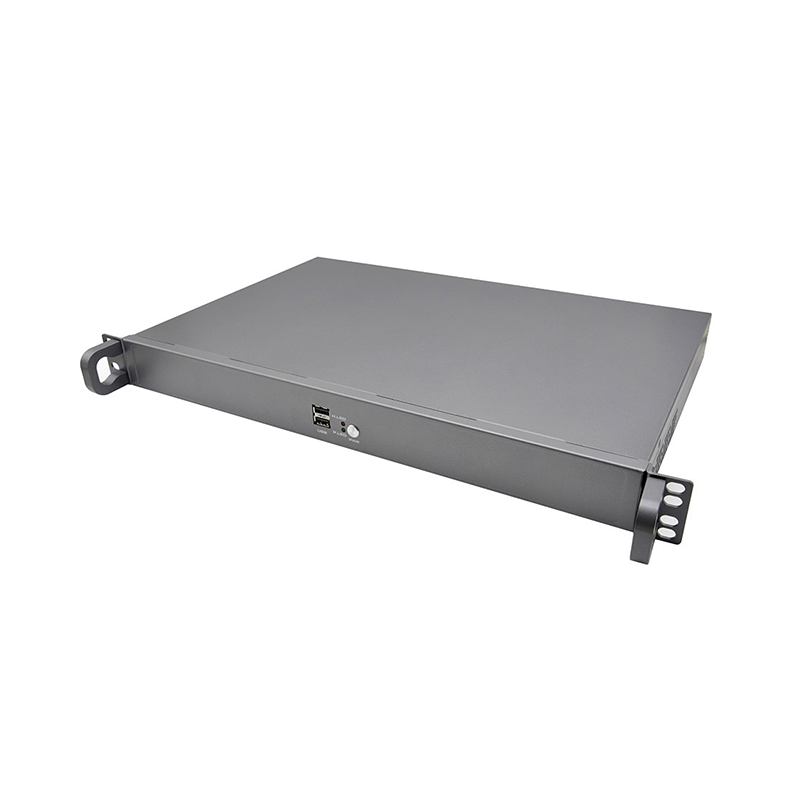

Rear panel connector:
Display interface: 1x VGA interface
Power: 1x power interface
Storage:
SATA: 2x SATA3.0
SSD: 1x MSATA slot, transmission speed up to 6Gbps
Expansion:
Mini PCIE: 1x MINIPCIE，Support TPM-4COM expansion 4 serial ports (requires BIOS that supports 4COM)
M.2: 1x M.2 Key-B slot. Supports M.2 2230/2242/2252 4G/5G module
OS: Microsoft Windows: Windows 10
Linux: Ubuntu 19.04 or above
Watch Dog: Support hardware reset function (level 256, 0~255 seconds)
Power Supply:
Power supply type: open power supply
Voltage input: AC 220V
power output: AC to DC 12V/5A，60W
Environment:
Working temperature: -10℃～60℃
Storage temperature: -20℃～70℃
Relative humidity: 5%-95%(Relative humidity, non condensing)
Working Vibration: 0.5g rms/5-500HZ/random/operating
