Product Description
Model NO.: R41SLZ V1.0(J4125)
Chassis:
Structure: 1U standard chassis, high-quality galvanized steel plate
Color: Sub silver black

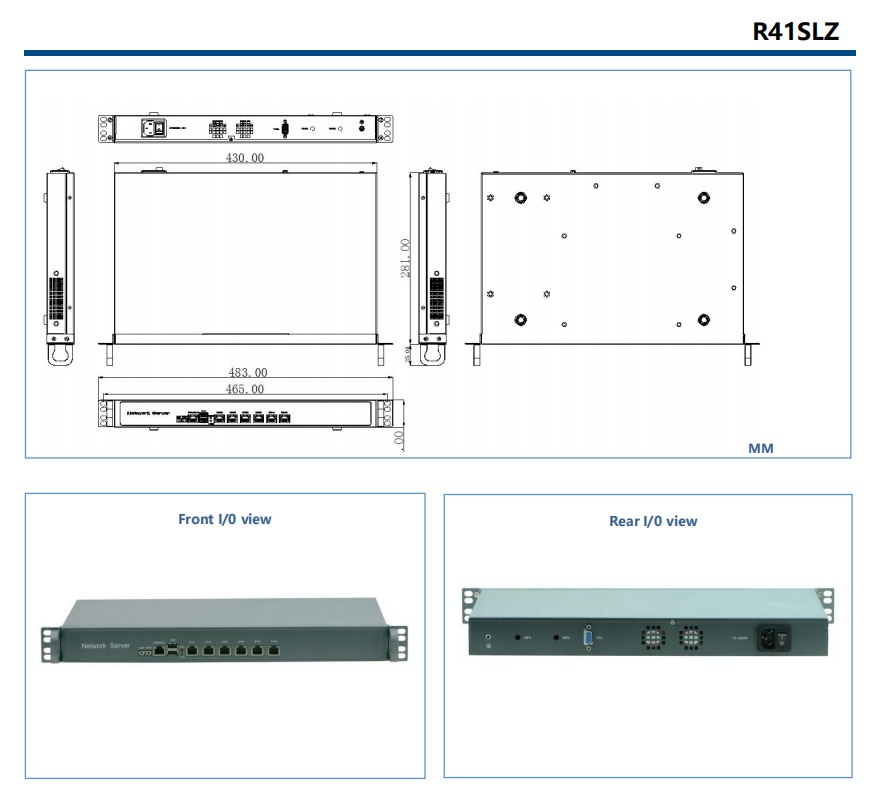

Dimension: 430mm x 281mm x 45mm
Installation : 1U standard rack
Motherboard:
CPU: Integrated Intel®Celeron J4125/2.00GHz quad-core quad-thread processor ,TDP 10W
Display: Integrated Intel® HD Graphics
Memory : 1x SODIMM slot ,support single channel 2400MHz DDR4 ram, is up to 8GB

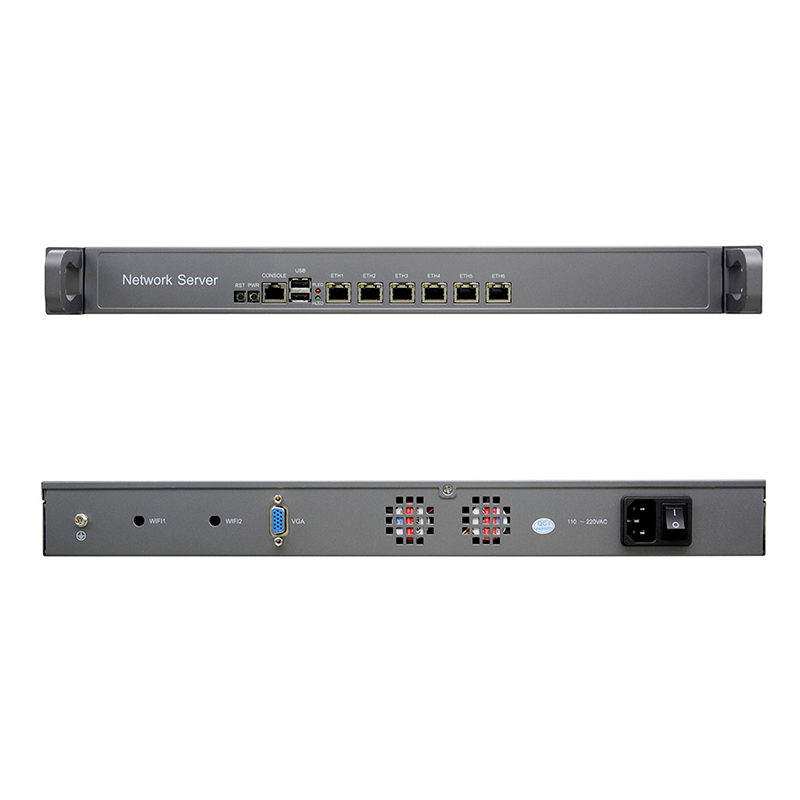

Front I/O:
POWER: 1x power switch，1x reset switch
LAN: 6x Intel I226 Gigabit network card, supports wake-on-LAN/PXE function
COM: 1x RJ45
USB: 2x USB2.0， Built-in 2x USB2.0
LED: 1x PWR LED, 1x HDD LED
Rear I/O:
POWER: 1x AC power input connector
Display: 1x VGA
Storage:
SATA: 1x 2.5 inch HDD port or 1x 3.5 inch HDD port(The 7pin SATA signal is the same as the 7+15p SATA signal, the default is 7+15P)
MSATA: 1*MSATA,transmission speed up to 6Gbps
Extension:
Mini PCIE: 1x Mini PCIE slot, supports WIFI (WiFi and LAN6 are optional, the default is LAN6)
1x Mini-PCIE slot, support 4G module
OS support:
Windows: Yes
Linux: Yes
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: External power adaptor
Voltage Input: AC 110~220V
Power output: AC TO DC，60W
Environment:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
