Key Advantages:
✔ High-speed networking - 4×GbE ports (Bypass optional) for multi-WAN deployment
✔ Energy-efficient - Intel® J4125 CPU (10W TDP) with quad-core performance
✔ Flexible storage - 2.5" SATA + mSATA + mini-PCIe (4G/WiFi) support
✔ Remote management - Console port for out-of-band administration
✔ OS compatibility - Supports Windows/Linux and firewall distros (pfSense/OPNsense)
Typical Applications:
◼ Enterprise firewall/NGFW deployment
◼ VPN gateway/secure access server
◼ Network traffic monitoring & filtering
◼ Edge security protection
Product Description

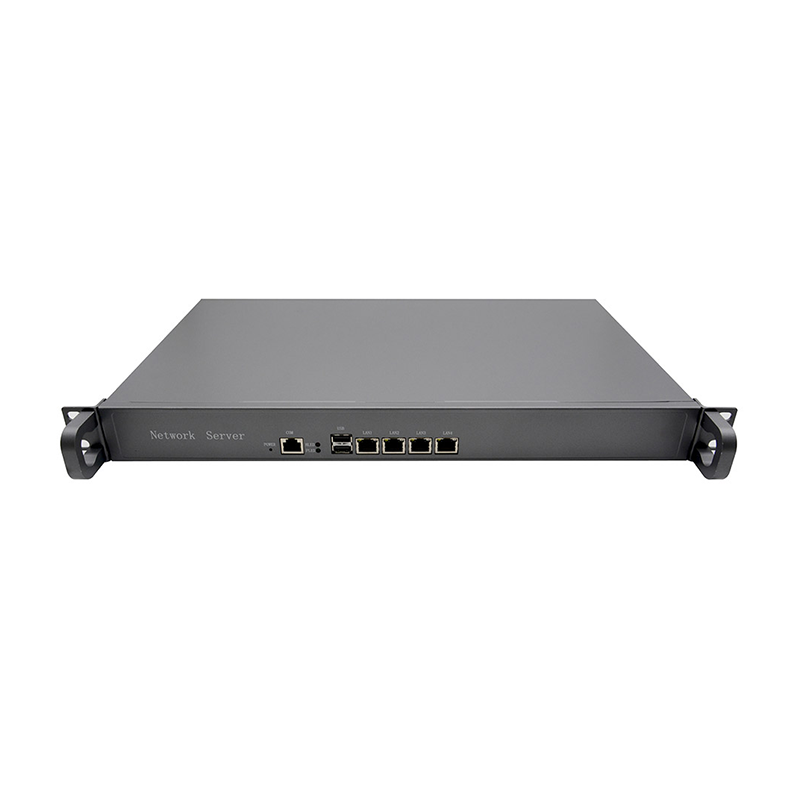

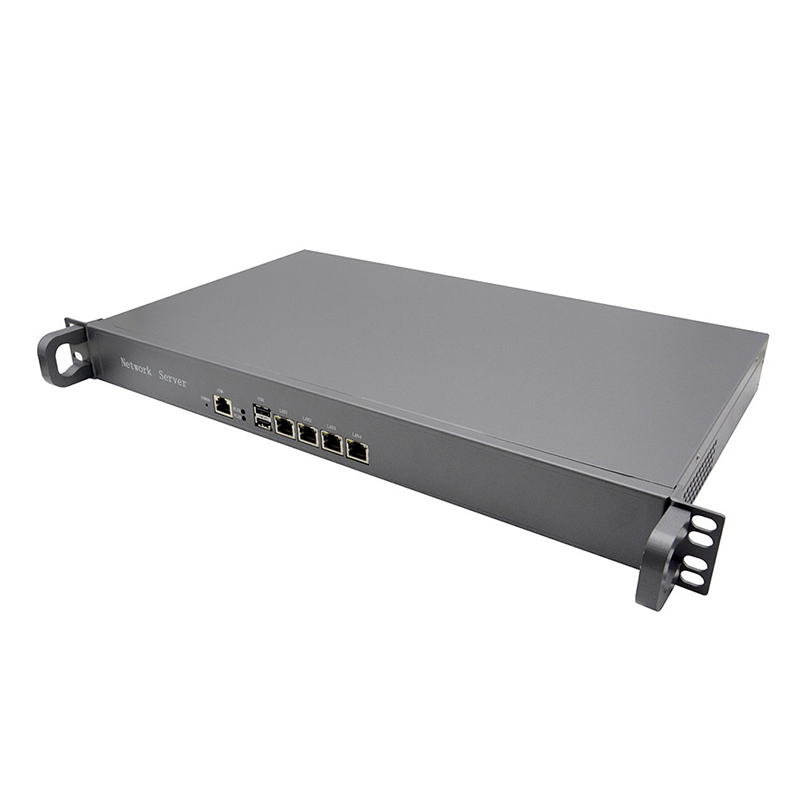

Model NO.: R41VUZ V1.0(J4125)
Chassis:
Structure: 1U standard chassis, high-quality galvanized steel plate
Color: Sub silver black

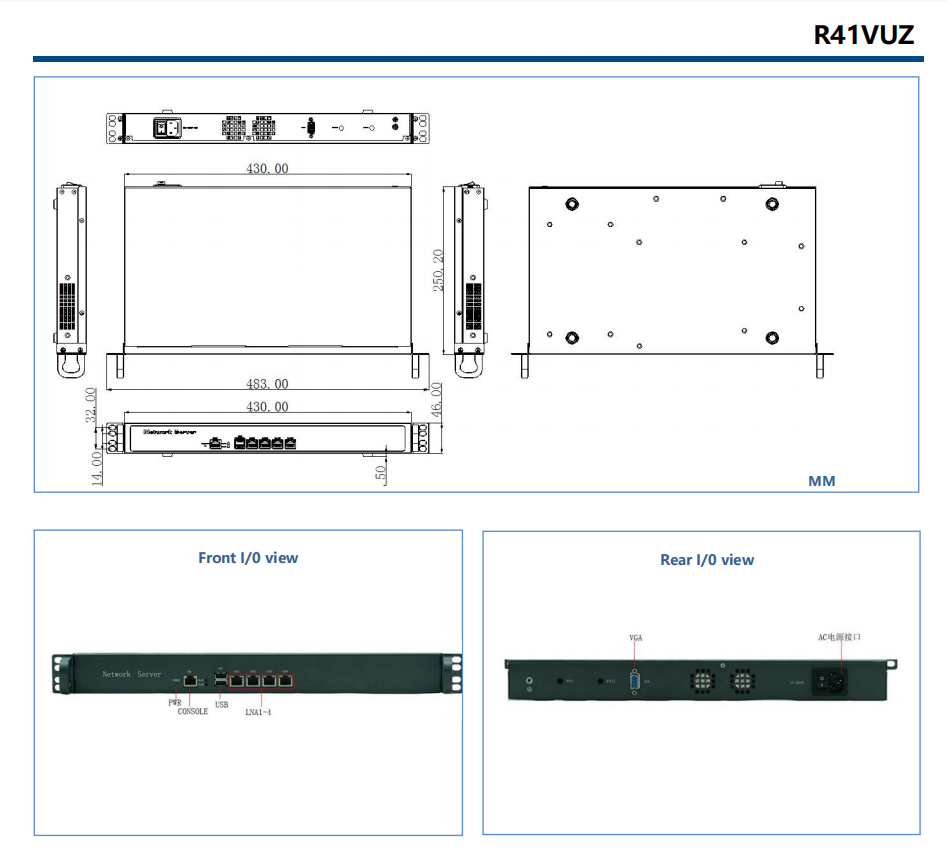

Dimension: 430mmxx 250.2mm x 46mm
Installation: 1U standard rack

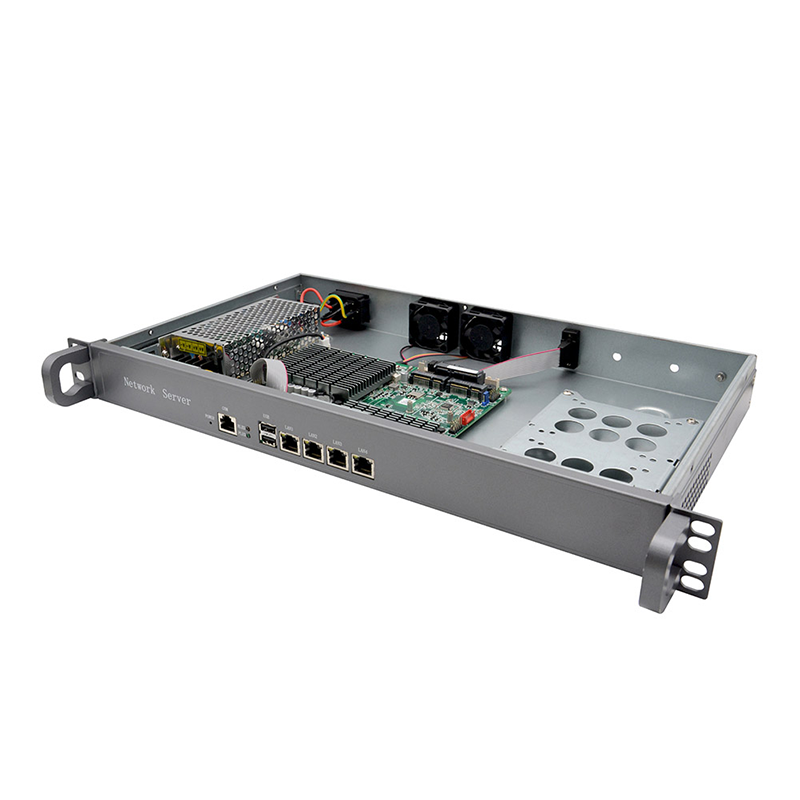

Motherboard:
CPU: Integrated Intel®Celeron J4125/2.00GHz quad-core quad-thread processor ,TDP 10W
Chipset : SOC
Display: Integrated Intel® UHD Graphics 600
Memory: 1*SODIMM slot ,support single channel 2400MHz DDR4 ram, is up to 8GB

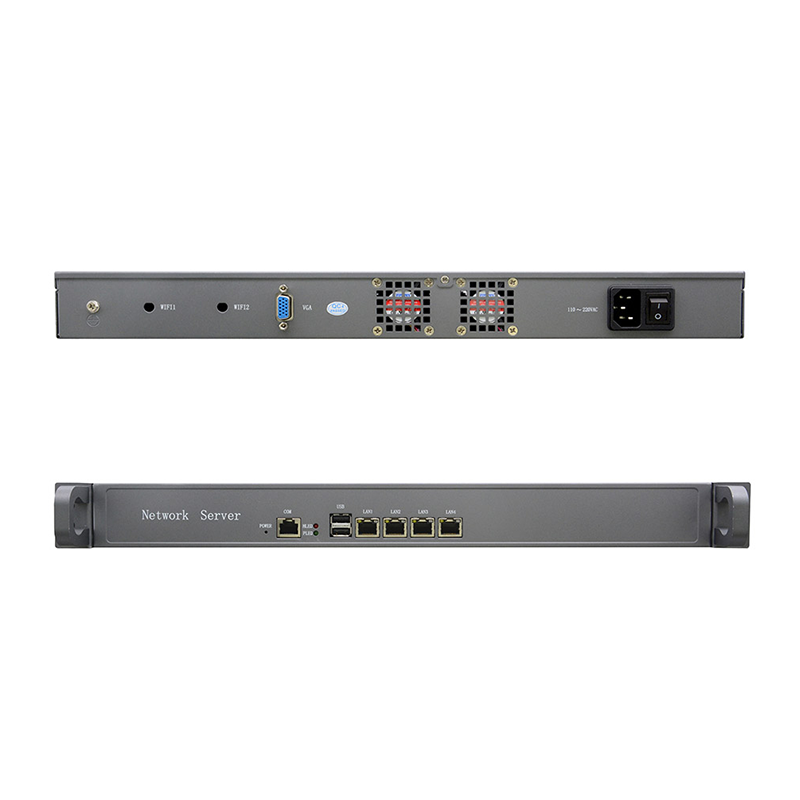

Front I/O:
POWER: 1x power switch
LAN: 4x Intel I225V Gigabit network card, supports wake-on-LAN/PXE function
COM: 1x RJ45
USB: 2x USB2.0
LED: 1x PWR LED, 1x HDD LED
Rear I/O:
POWER: 1x AC power connector
Display: 1x VGA
Storage:
SATA: 1x 2.5 inch HDD port or 1x 3.5 inch HDD port
SSD: 1x MSATA
Extension: Mini PCIE: 1x Mini-PCIE slot, support WIFI/4G module, default 4G
OS support:
Windows: Yes
Linux: Yes
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: External power adaptor
Voltage Input: AC 110~220V
Power output: AC TO DC，60W
Environment:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
Application
We have a comprehensive layout in the fields of smart loT and cloud computing.Our products have been widely used in industrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
Delivery
We have a wide range of transportation options to choose from. No matter where you are, our transportation options can meet your needs.
Company Profile
FAQ
Q1.Do you accept OEM / ODM order?
A1:Of course, we have our own R&D team that support customization on motherboard design, test and produce.
Q2:What payment method do you accept?
A2:We accept T/T,MoneyGram,Paypal, Western Union is all ok.
Q3:How long is the warranty of your products?
A3:we offer 2 years warranty for all of our products.
Q4:How many days will samples be finished? And how about the mass production?
A4:Samples will be deliver within 3 working days,after payment received. The leading time of mass production will depend on the quantity.
Q5:If we come to China,can you arrange the visiting to your factory?
A5:We warmly welcome and look forward to your visiting to our factory at any time.
