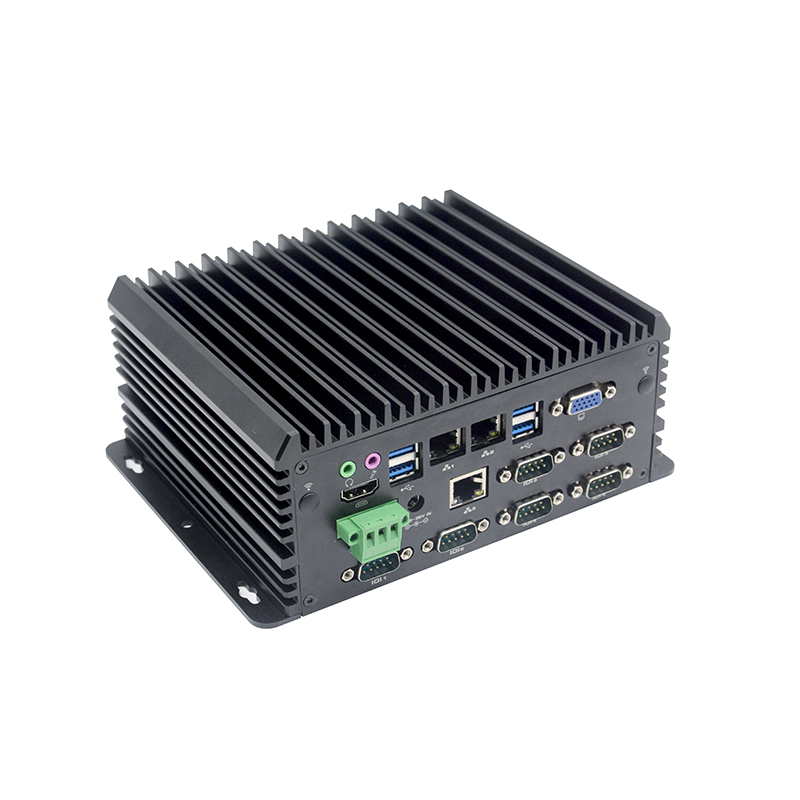

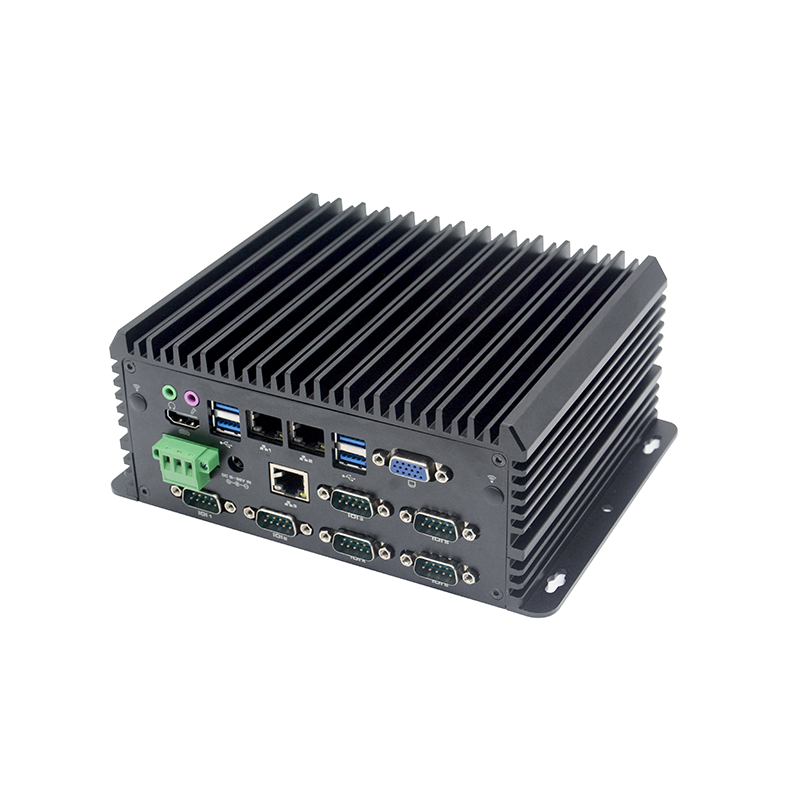

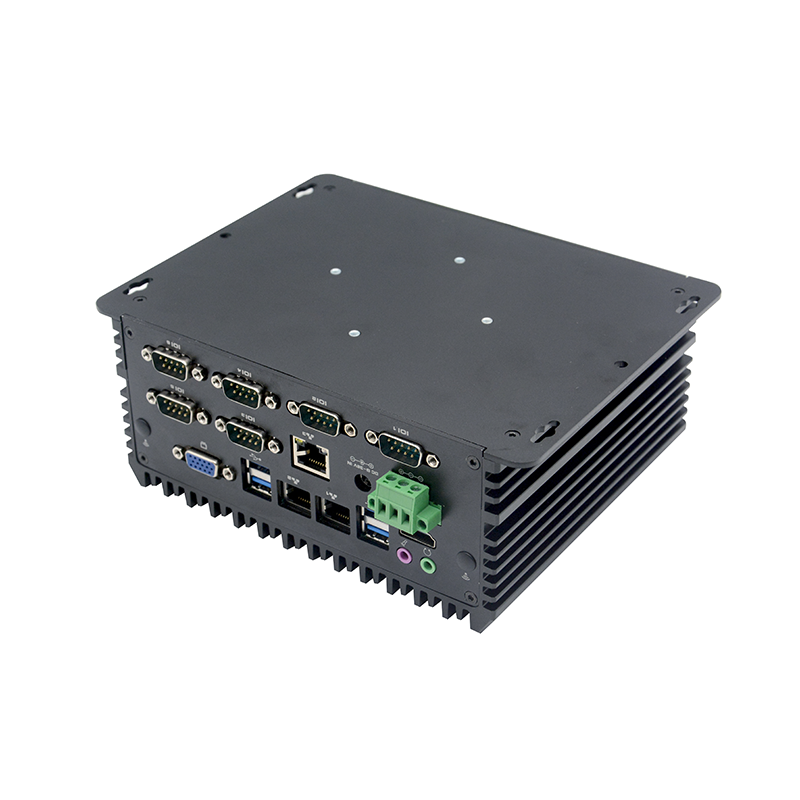

Product Description
Model NO.: C5760Z-R6 V2.0(8565U)
Chassis:
Structure: All aluminum alloy without fan
Color: gloss black
Dimension(L*W*H): 174mmx 148mmx 78mm
Weight(net weight): 1.65KG
Installation: Desktop/embedded
Motherboard:
CPU: Integrated Intel®i7-8565U/1.8GHz 4 cores 8 threads processor，TDP 15W
Display: Integrated Intel® UHD Graphics ，support 4K
Memory: 2x DDR4 SODIMM memory slot，support 2133MHz memory ,up to 64GB
Front I/O:
POWER: 1x Power on button, 1*One key restore, 1*ACLOSS (power on DIP switch)
LED: 1x power indicator light, 1*hard disk indicator light
USB: 3x USB2.0，1x USB2.0 built-in
PHOENIX: 1x 12pin(including four inputs and four outputs GPIO, switch, 5V)
PS2: 1x PS/2
SIM: 1x SIM slot

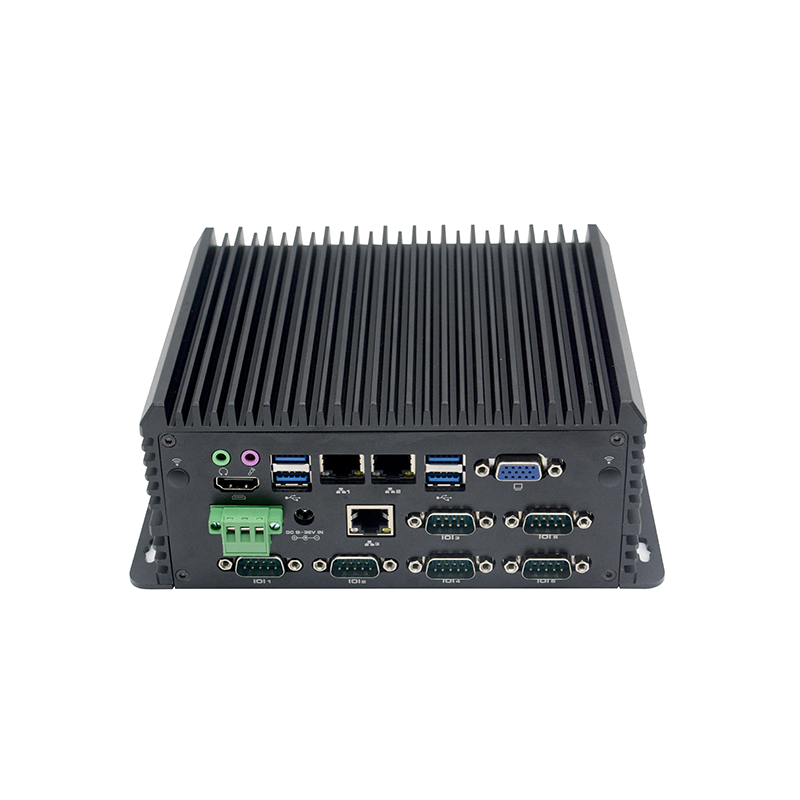

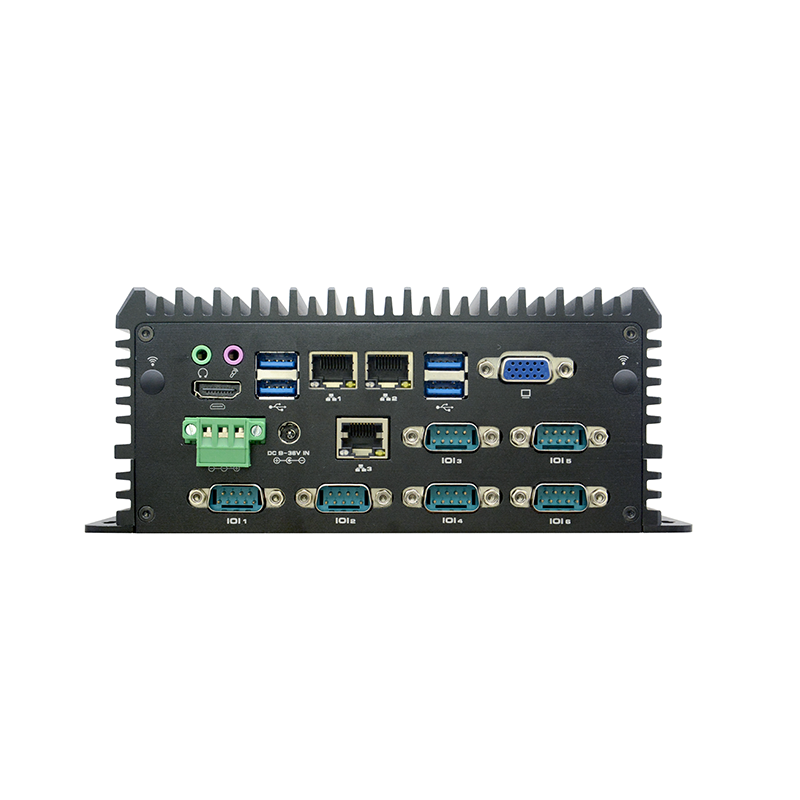

Rear I/O:
Display interface: 1x VGA（1920X1200@60Hz），1x HDMI1.4（4096*2304@24Hz）
LAN: 2x Intel®I211AT+I*Intel I210 Gigabit network card, supports network wake-up and PXE functions
USB: 4x USB3.0
COM: 6x RS232/485 DB9 serial interface，COM5-6 can support CAN signal output (CAN module needs to be loaded)
Audio: 1x Line out，1x MIC
Power: 1x DC power interface or 1x 3pin Phoenix terminal power interface, supports 9~36V power input
Storage:
SATA: 1x 2.5-inch hard drive bay
MSATA: 1x MSATA
Expansion:
Mini PCIE: 1x MiniPCIE，support 4G module
M.2: 1x M.2/WiFi，support Key-E, 2230, WiFi module
OS: Microsoft Windows: Windows 7
Linux: Ubuntu
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power Requirement:
power types: External power adapter or open power supply
Voltage input: 9V~36V wide voltage
power output: 60W~180W
Environment:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
