Product Description
Model NO.: C4350Z-H2 V1.0(10210U)
Chassis:
Structure: All aluminum alloy, fanless cooling structure
Color: Gloss black
Dimension: 141x 126x 56.5MM

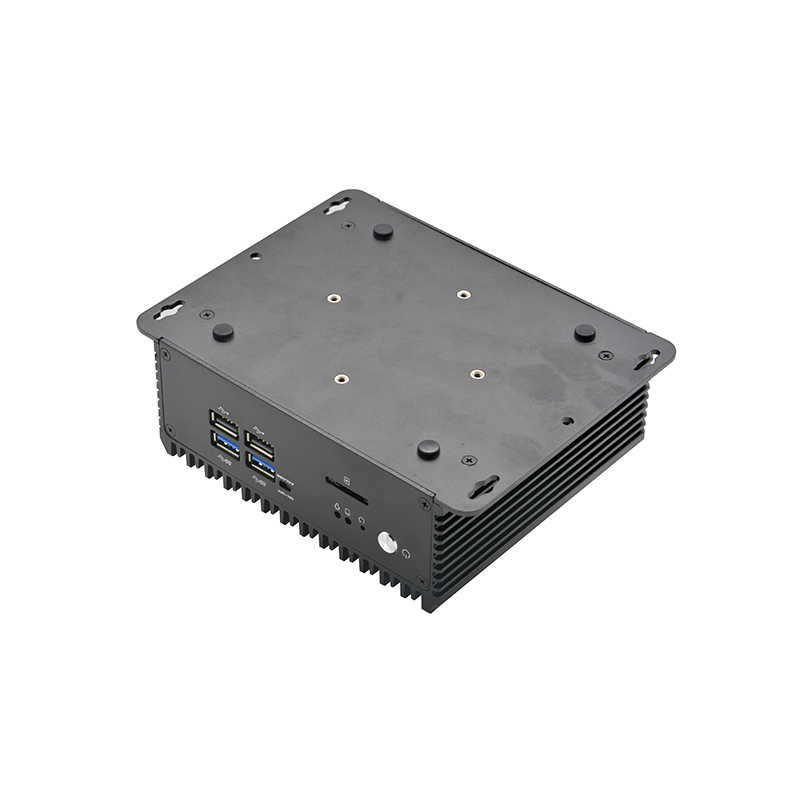

Installation: Desktop/embedded

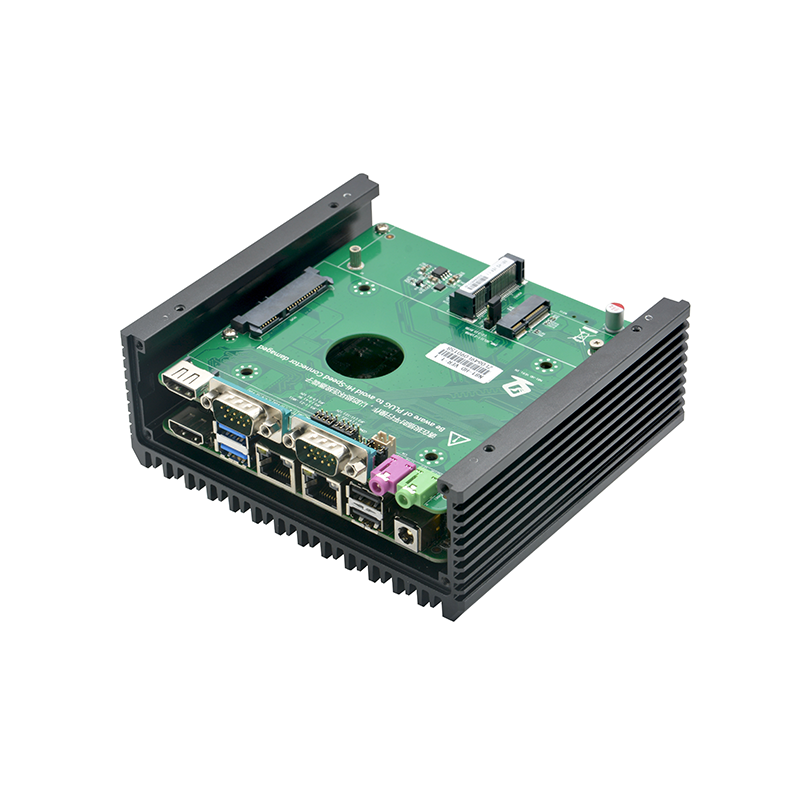

Motherboard:
CPU: Integrated Intel®i5-10210U/1.6GHz 4 core 8 thread processor, TDP 15W
Display: Integrated Intel® UHD Graphics , support 4K/60Hz
Memory: 2x DDR4 SODIMM memory slot,support 2666MHz memory,up to 64GB

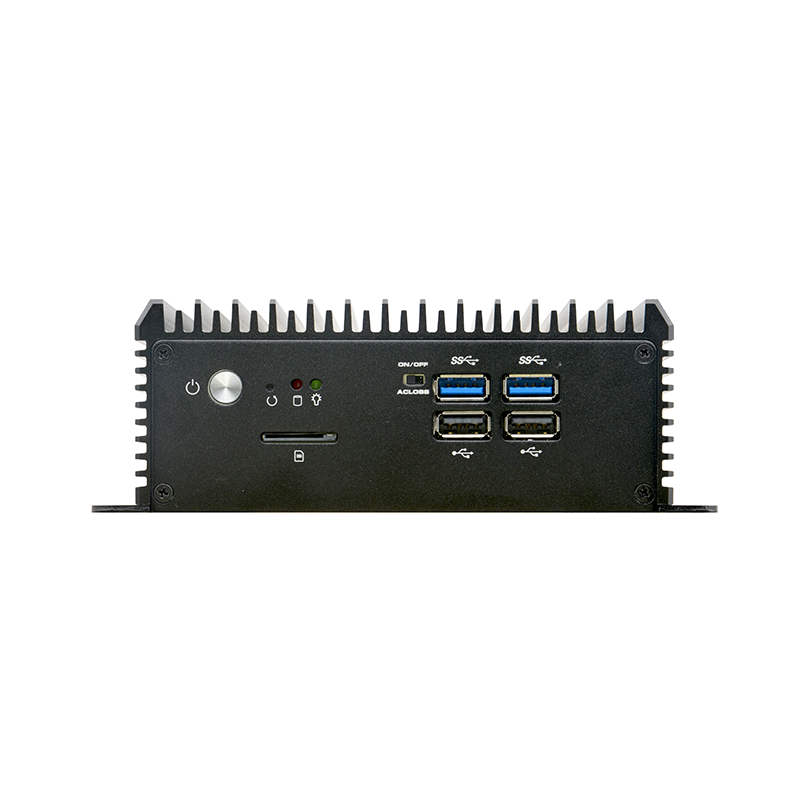

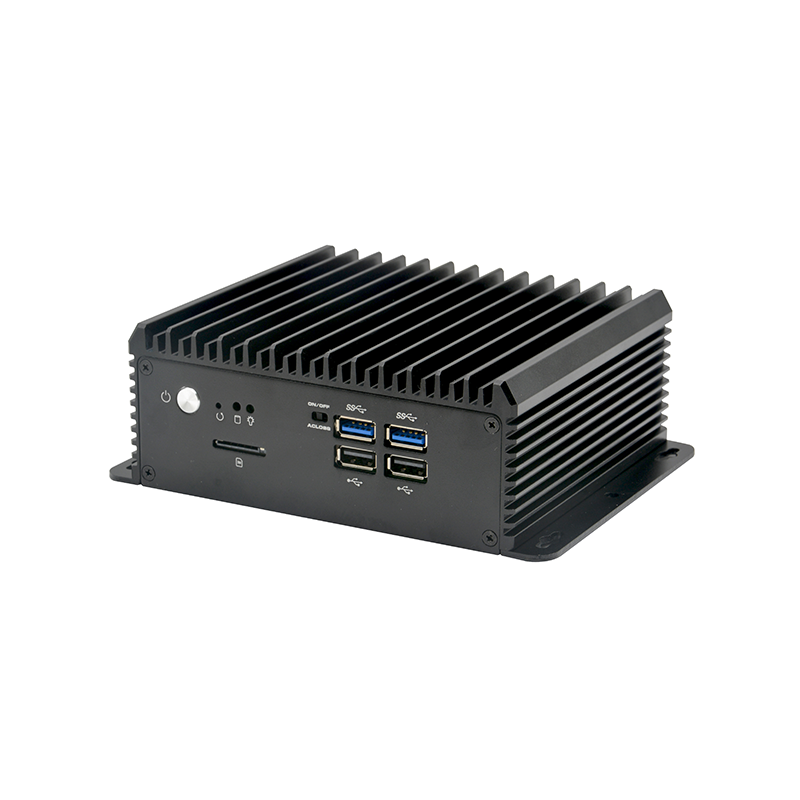

Front I/O:
POWER: 1x power switch, 1x reset switch, 1x AC LOSS (power on toggle switch)
LED: 1x Power indicator light, 1x Hard disk indicator light
USB: 2x USB2.0, 2x USB3.0
SIM: 1x SIM slot

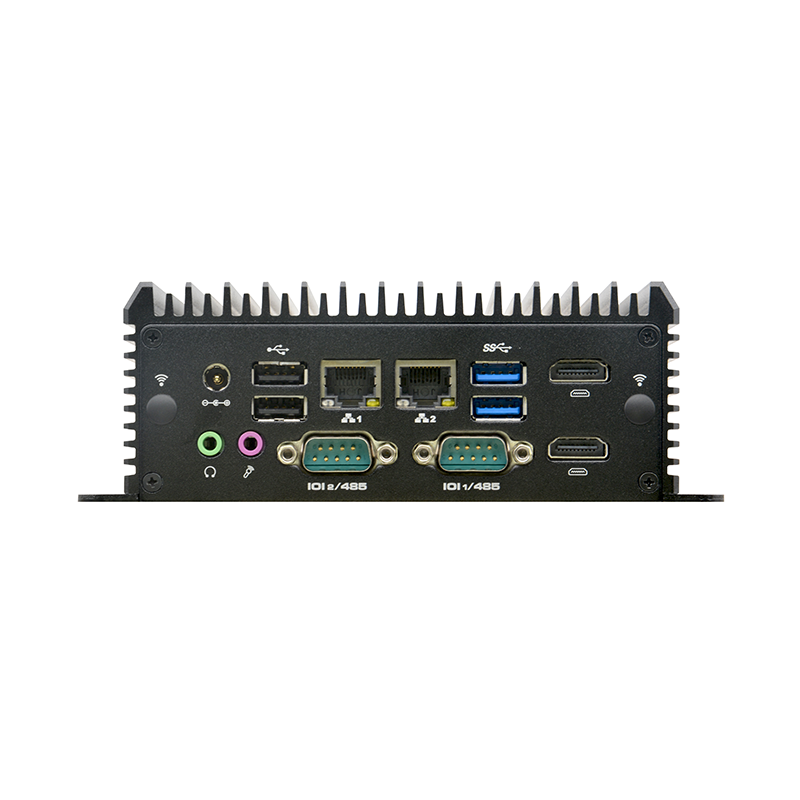

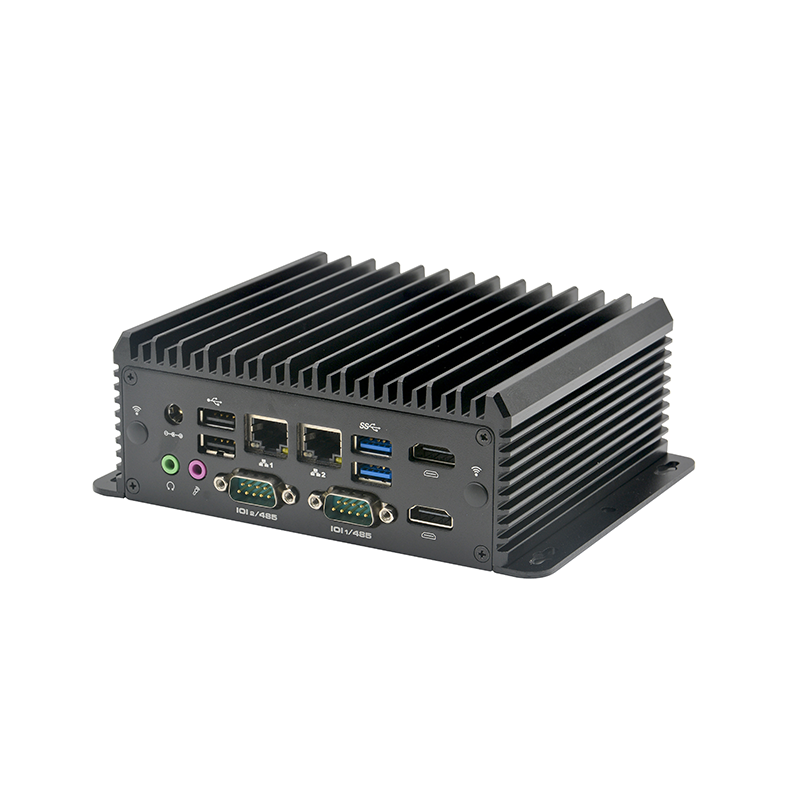

Rear I/O:
Display interface: 1x HDMI1.4（4096x2304@24Hz）, 1x HDMI2.0（4096x2304@60Hz）
LAN: 2x Realtek 8111H Gigabit network card, supports network wake-up and PXE functions
USB: 2x USB2.0, 2x USB3.0
COM: 2x RS232/485 DB9 serial port, supports the 9th pin powered function
Audio: 1x Line out，1x MIC
Power: 1x DC 12V power input
Storage:
SATA: 1x 2.5-inch hard drive bay
M.2: 1x M.2/SSD, support Key-M, 2280 NVME PCIEx4 standard SSD
Expansion:
Mini PCIE: 1x Mini-PCIE, support 4G module
M.2: 1x M.2/WiFi, Key-E, 2230, support WIFI module
OS support:
Windows: Windows 10
Linux: Ubuntu
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power Require:
Power Type: External power adaptor
Voltage Input: DC 12V
Power output: AC TO DC、60W(Depending on specific equipment)
Reliability:
Working Temp.: -10℃～50℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
