Product Description
Model NO.: C4350Z-C1 V1.0(J4125)
Chassis:
Structure: All aluminum alloy, fanless cooling structure
Color: Black
Dimension（L*W*H）: 141.5x 126x 61MM
Installation: Support desktop/wall-mounted
Motherboard:
CPU: Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor,TDP 10W
Chipset: SOC
Display: Integrated Intel® UHD Graphics 600
Memory: 1x DDR4 SODIMM memory slot, 2400MHz memory, supports up to 8GB

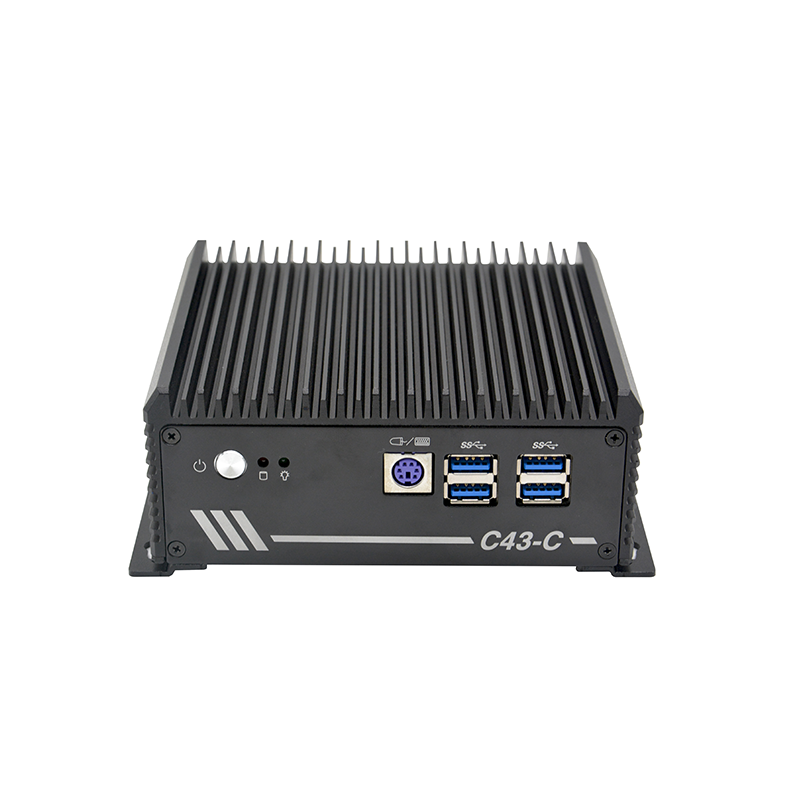

Front I/O:
POWER: 1x power switch
LED: 1x Power indicator light, 1x Hard disk indicator light
USB: 4x USB3.0
PS/2: 1x PS/2

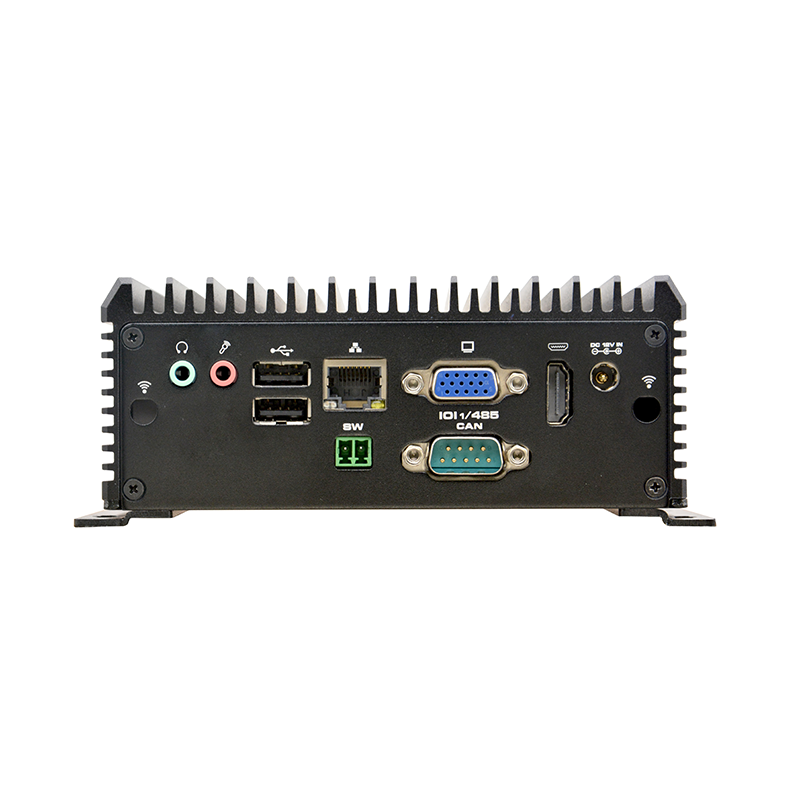

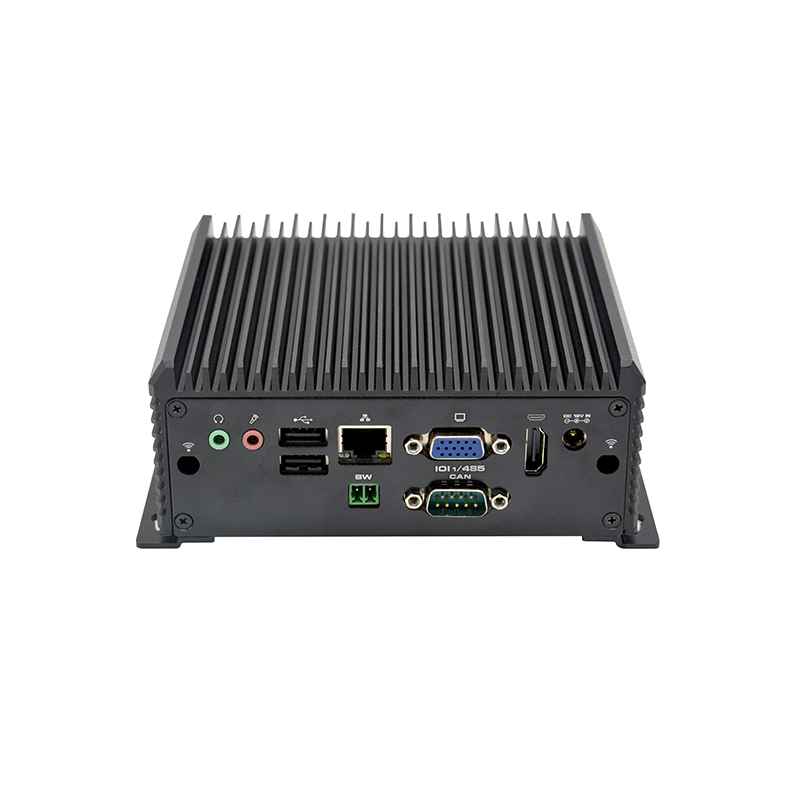

Rear I/O:
POWER: 1x 2PIN remote switch
Display: 1x VGA, 1x HDMI1.4(4096x2304@24Hz)
LAN: 1x Realtek8111H Gigabit electrical port, supports wake-on-LAN and PXE functions
USB: 2x USB2.0
COM: 1x RS232 DB9 serial port
Audio: 1x Line out, 1x MIC
Power: 1x DC 12V power input
Storage:
SATA: 1x SATA 3.0, the transfer rate up to 6Gbps
MSATA: N/A
M.2: 1x M.2, 2280, support SATA
Extension:
Mini PCIE: N/A
M.2: 1x M.2, 2230, support WiFi
Software Support:
Windows: YES
Linux: YES
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: External power adapter
Voltage Input: DC 12V
Power output: AC TO DC、36W / 60W
Reliability:
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
