Product Description
Model NO.: C5750Z-C6 v1.0 (8265U)
Chassis:
Structure: Fanless structure, all aluminum alloy chassis
Dimension: 195mmx 148mmx 57mm
Color: Black
Installation: Desktop / Wall mount / Embedded
Motherboard:
Processor: Integrated Intel®i5-8265U/1.60GHz (4-core,8-threads) processor ; TDP 15W
Chipset: SOC
Display: Integrated Intel®UHD Graphics
Memory: 2x DDR4 SODIMM slot, support 2400MHz RAM, up to 64GB
Front I/O:
Switch: 1x Power Switch ; 1x Reset ; 1x AC LOSS (switch for Auto_Power_on)
USB: 2x USB2.0 ; (1x USB2.0 Security Dongle(Built_in))
COM: 2x DB9 COM (Serial RS-232/485/422), support CAN function (requires MINIPCIE CAN module to be loaded)
Expansion Socket: 1x 12PIN (Provide GPIO(4_in/4_out) ; 1x Switch ; 1x Power 5V)
SIM: 1x SIM slot

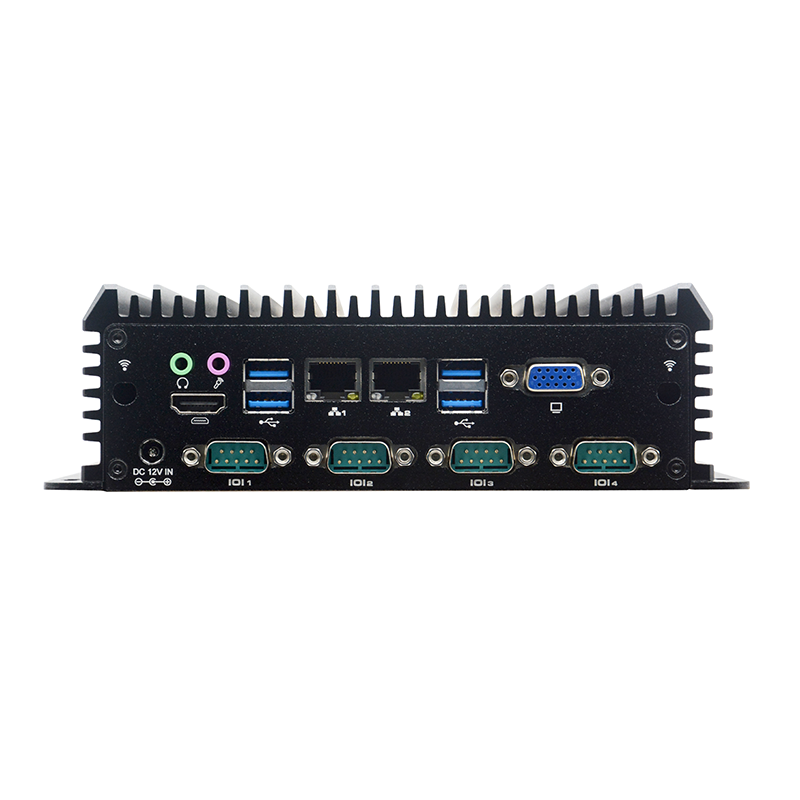

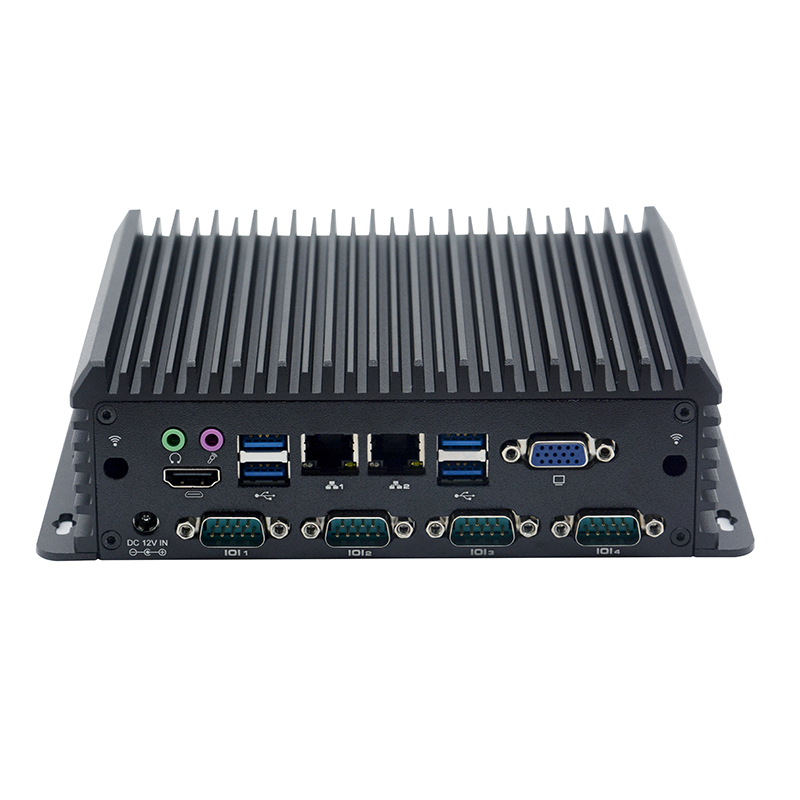

Rear I/O:
Display: 1x VGA(1920*1200@60Hz), 1x HDMI1.4(4096*2304@24Hz)
Ethernet: 2x RJ45 GbE LAN (Intel I210), support Wake on LAN/PXE function
USB: 4x USB3.0
COM: 4x DB9 COM (Serial RS-232; COM1,2 provide 5V/12V power on the 9th PIN)
Audio: 2x Audio (Mic-in/Line-out)
Power: 1x DC_Jack (support DC_12V power input)
Storage:
SATA: 1x 2.5” Notebook HDD docking port
mSATA: 1x mSATA slot
Extension:
M.2: 1x M.2/WiFi, support Key-E, 2230, WiFi module
Mini-PCIE: 1x Mini-PCIE slot, support WIFI/4G module
Software Support:
Operating System: Windows
Linux
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power:
Power Type: External power adaptor
Voltage Input: DC_12V
Power output（W）: AC to DC 60W(Depends on specific equipment)
Reliability:
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
