Product Description
Model NO.: C4350Z-HD V1.0(8265U)

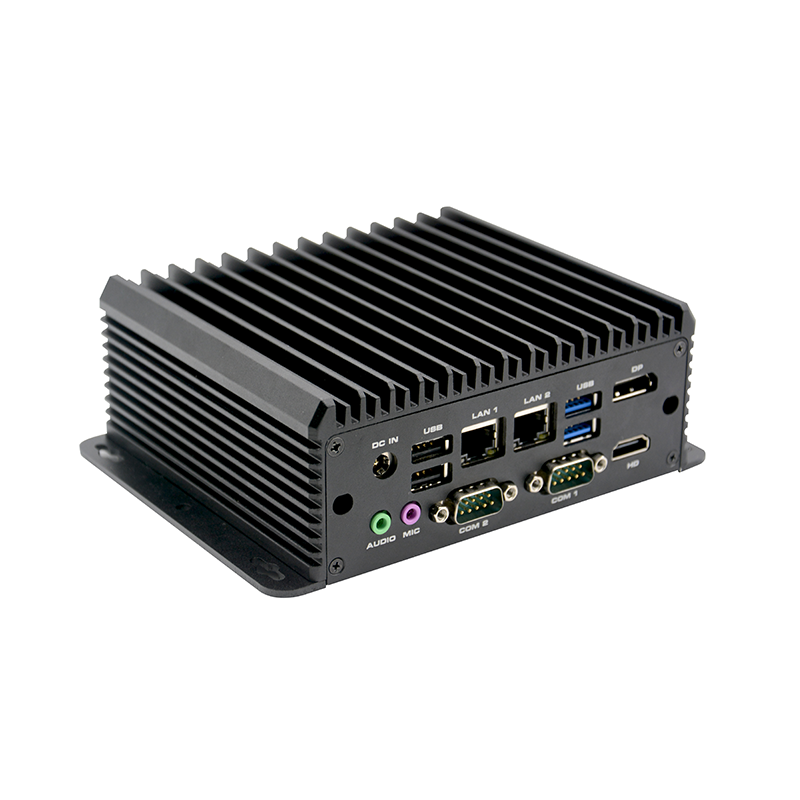

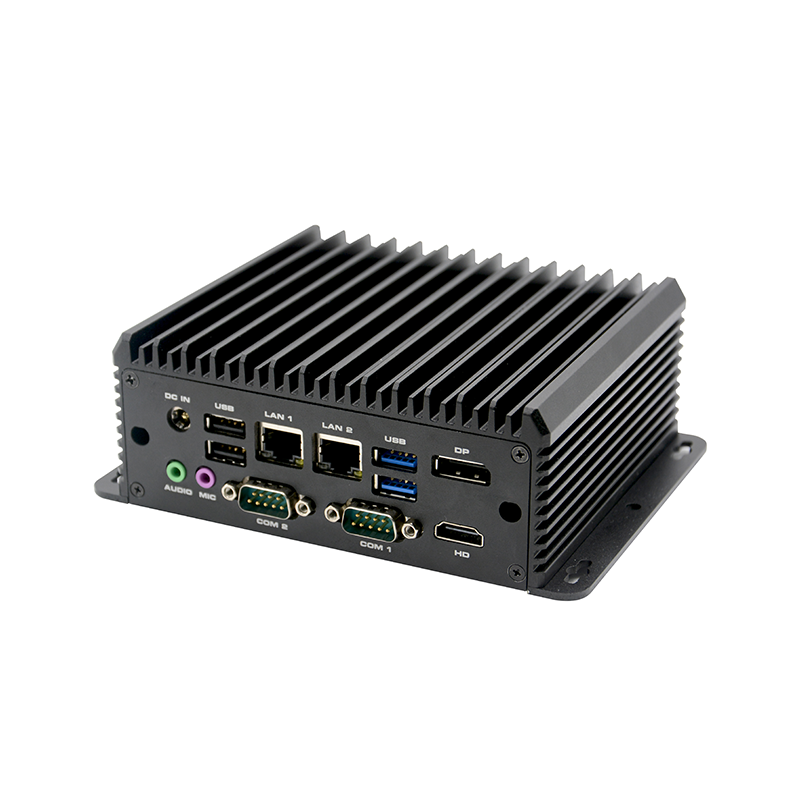

Chassis:
Structure: All aluminum alloy, fanless cooling structure
Color: Gloss black
Dimension: 165x 126x 56.5MM

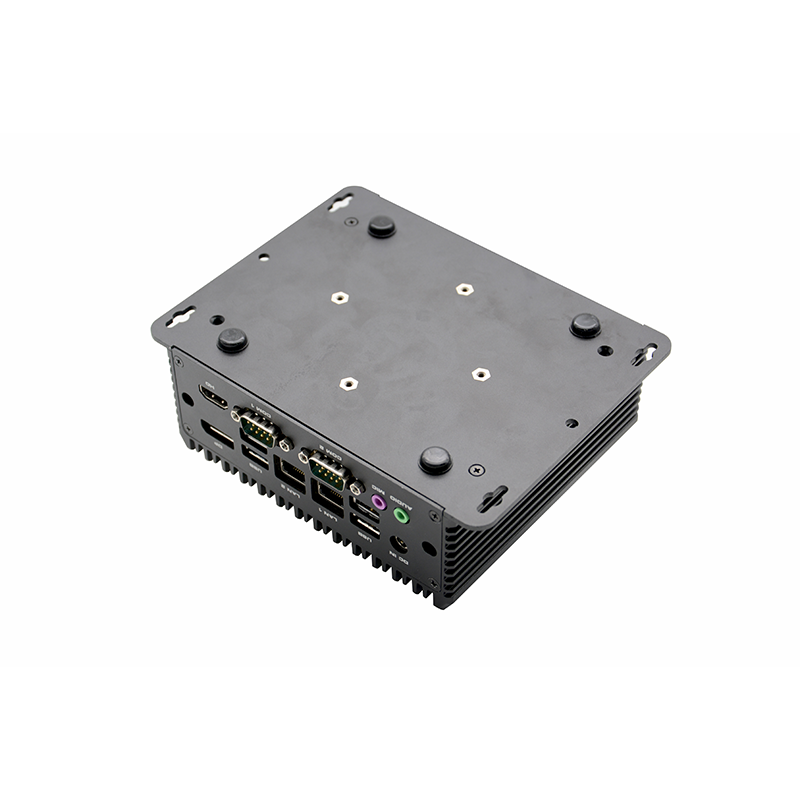

Installation: Desktop/embedded
Motherboard:
CPU: Integrated Intel® I5-8265U 1.6GHz quad-core eight-thread processor, TDP 15W
Display: Integrated Intel® UHD Graphics ,support DirectX 12 OpenGL 4.5 , support 4K/60Hz
Memory: 2x DDR4 SODIMM memory slot, support dual channels, support 2400MHz memory,up to 32GB

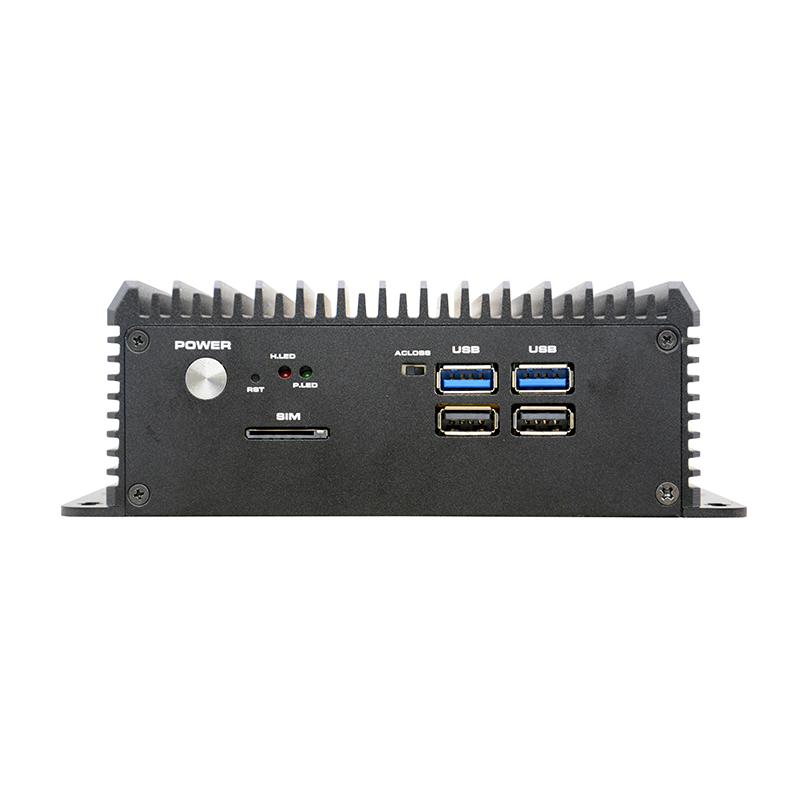

Front I/O:
POWER: 1x power switch, 1x reset switch, 1x AC LOSS (power on toggle switch)
USB: 2x USB2.0, 2x USB3.0
SIM: 1x SIM slot, support 3G/4G module

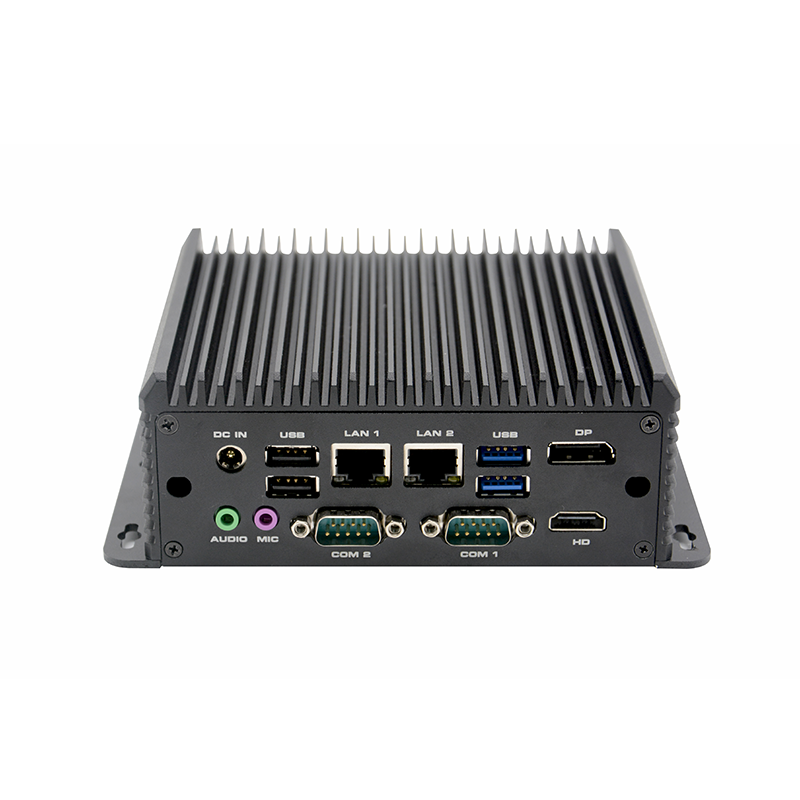

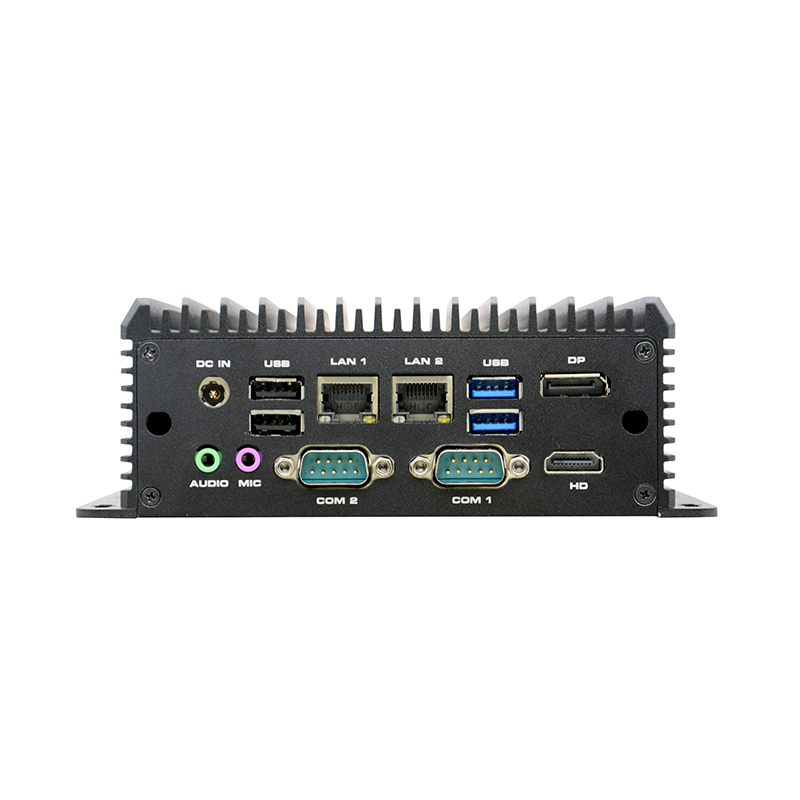

Rear I/O:
Display interface: 1x HDMI2.0（4096x2304@60Hz）, 1x DP（4096x2304@60Hz）
LAN: 2x Realtek 8111H Gigabit network ports, supports network wake-up and PXE functions
USB: 2x USB2.0, 2x USB3.0
COM: 2x RS232/485 DB9 serial port, supports the 9th pin powered function
Audio: 1x Line out, 1x MIC, Onboard ALC662 6-channel high-fidelity audio controller
Power: 1x DC 12V power input
Storage:
SATA: 1x 2.5’’ hard drive bay
M.2: 1x M.2, support M.2 2280 NVME PCIEx4 standard SSD
Expansion:
Mini PCIE: 1x Mini-PCIE, support 4G module
M.2: 1x M.2, support WIFI module
OS support:
Windows: Windows 10
Linux: Ubuntu
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power Require:
Power Type: External power adaptor
Voltage Input: DC 12V
Power output: AC TO DC、36W / 60W(optional,depending on specific equipment)
Reliability:
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
