Product Description
Model NO.: C6860Z-C10(J1900)
Chassis:
Structure: All aluminum alloy without fan
Color: gloss black
Dimension: L205x W207x H78mm
Weight: 2.45KG
Installation: Desktop/embedded

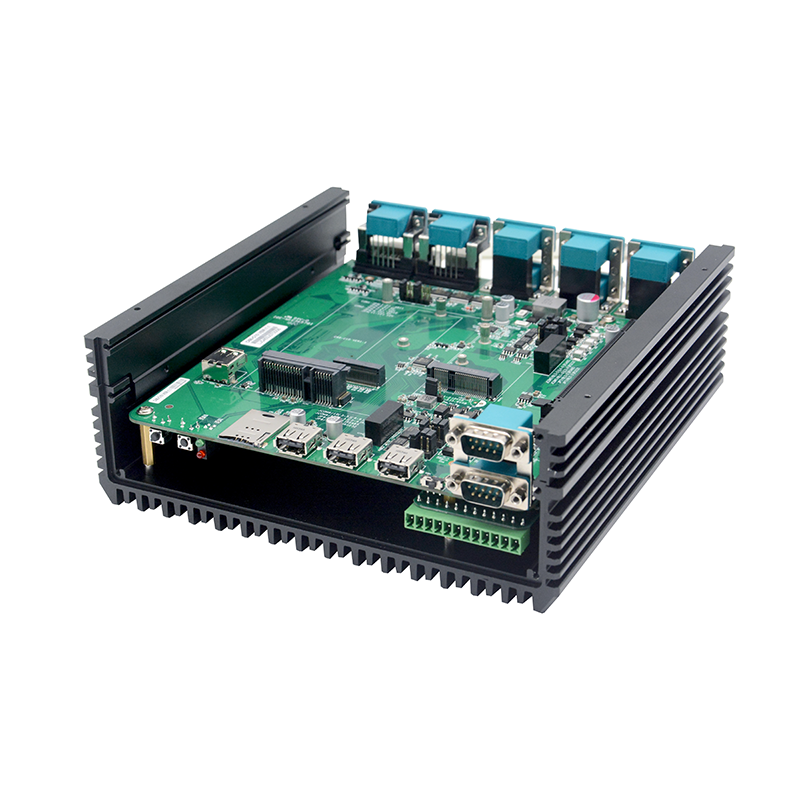

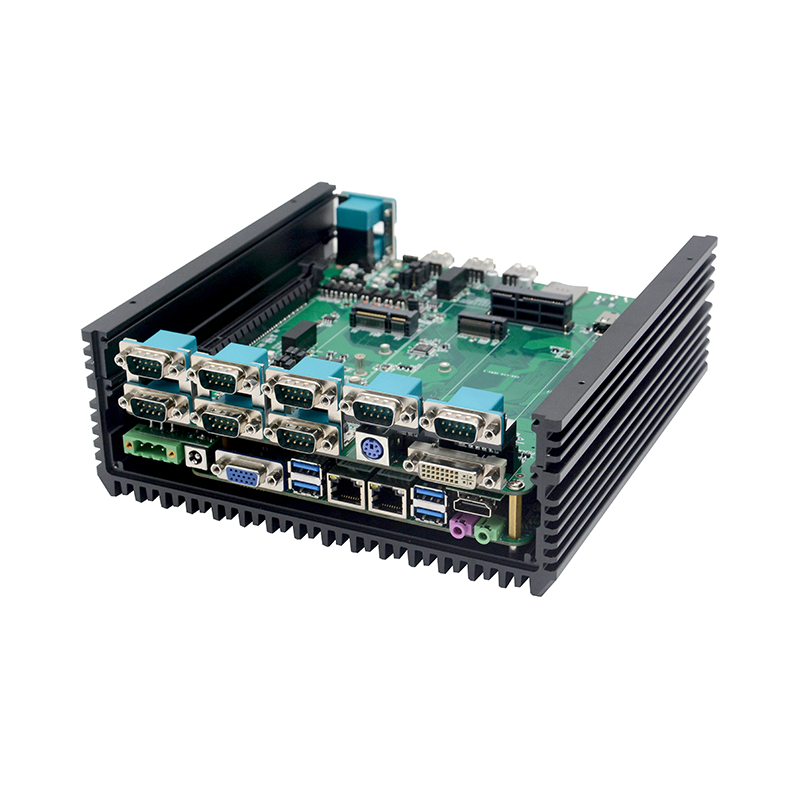

Motherboard:
CPU: Integrated Intel®J1900/2.00GHz quad-core processor，TDP 10W
system-on-a-chip: Based on Bay Trail, CPU integration
Display: Integrated Intel® HD Graphics core graphics card
Memory: 1x SODIMM slot for supporting single channel 1600 MHZ or 1333 MHZ DDR3L/1.35V memory，up to 8

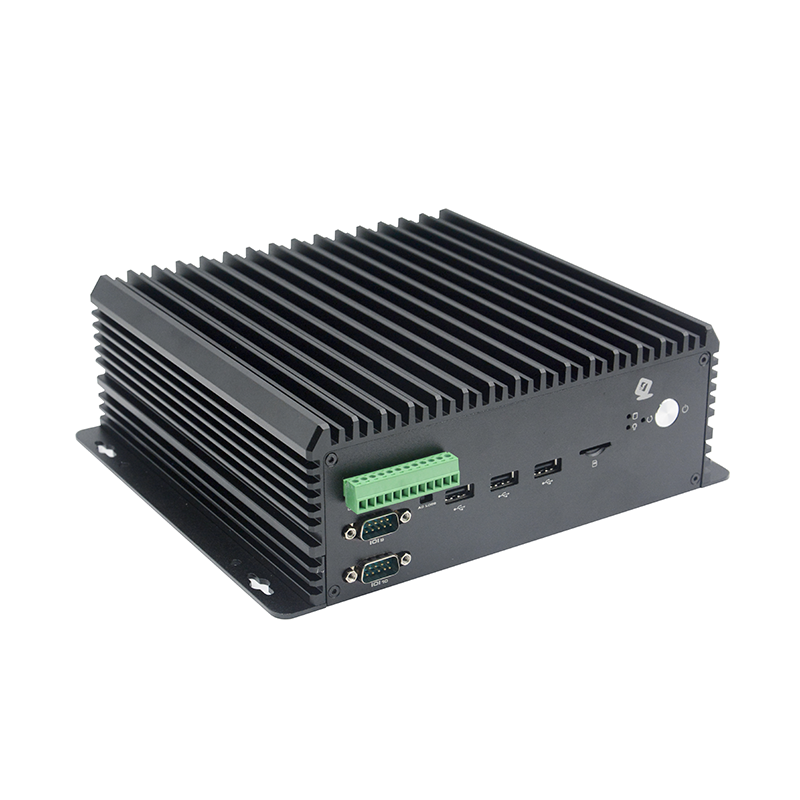

Front I/O:
POWER: 1x power switch, 1x reset switch
AC LOSS: 1x AC LOSS (Power on/off switch）
USB: 3x USB2.0 interface, 1x built-in USB dongle
PHOENIX: 1x 12pin, support four in four out GPIO, with isolation, switch, 5V
COM: 2x DB9 RS232 serial interface,COM9,COM10 support RS485 function, with isolation
SIM: 1x SIM card slot, 3G/4G module application

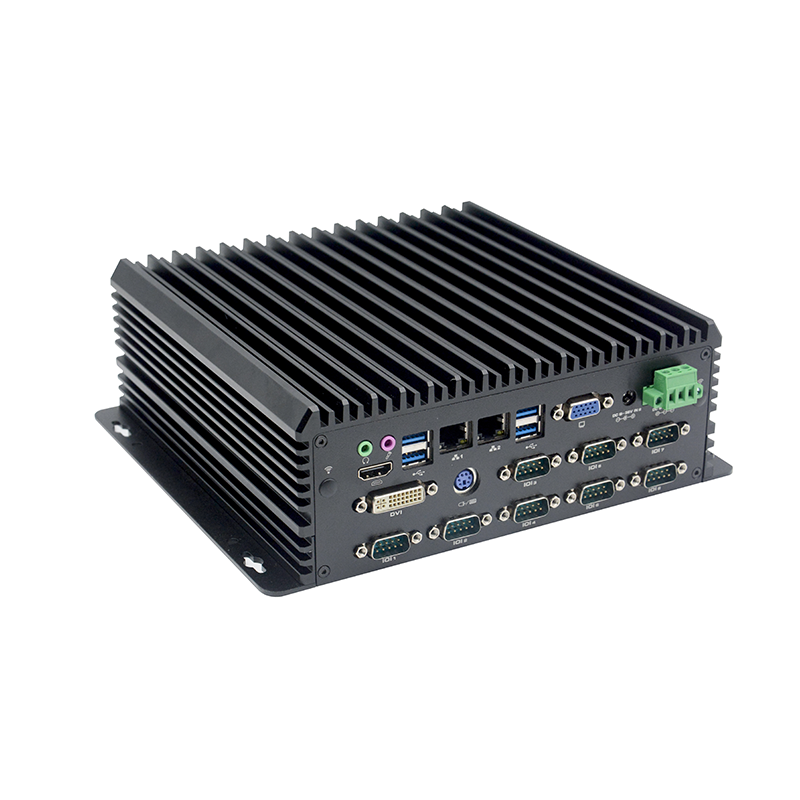

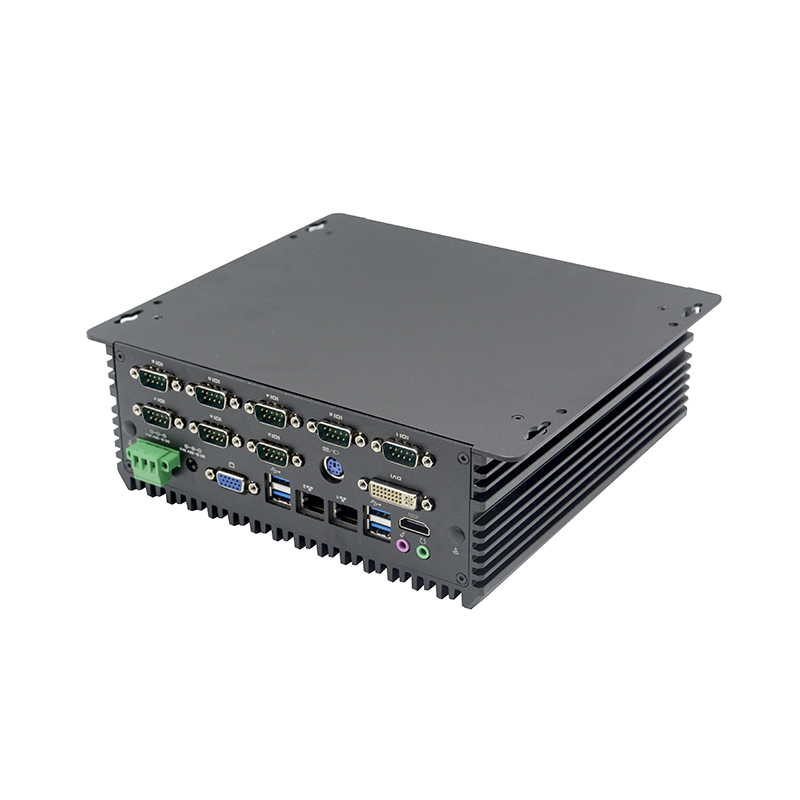

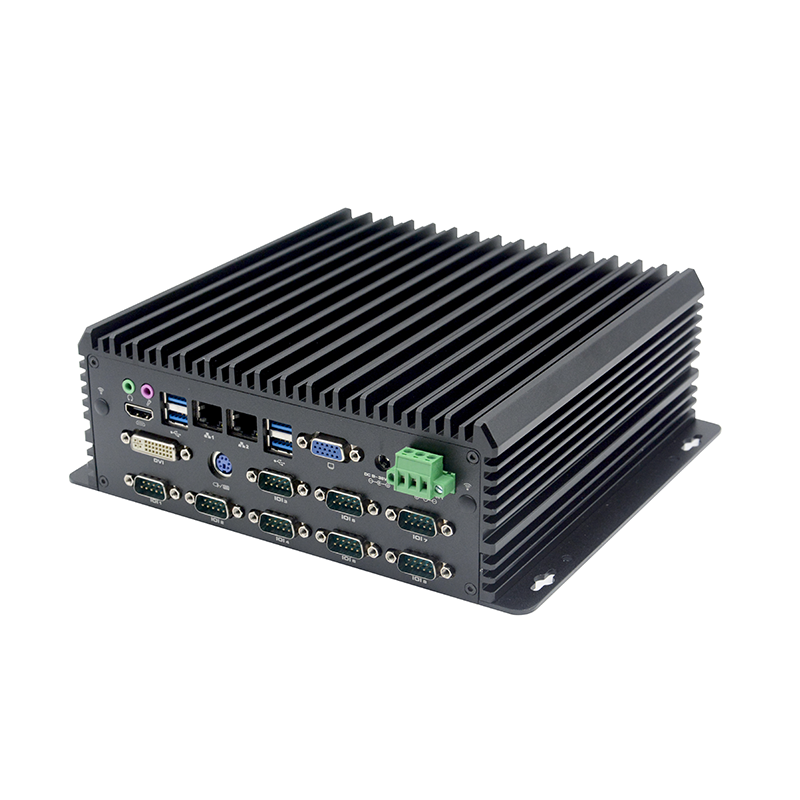

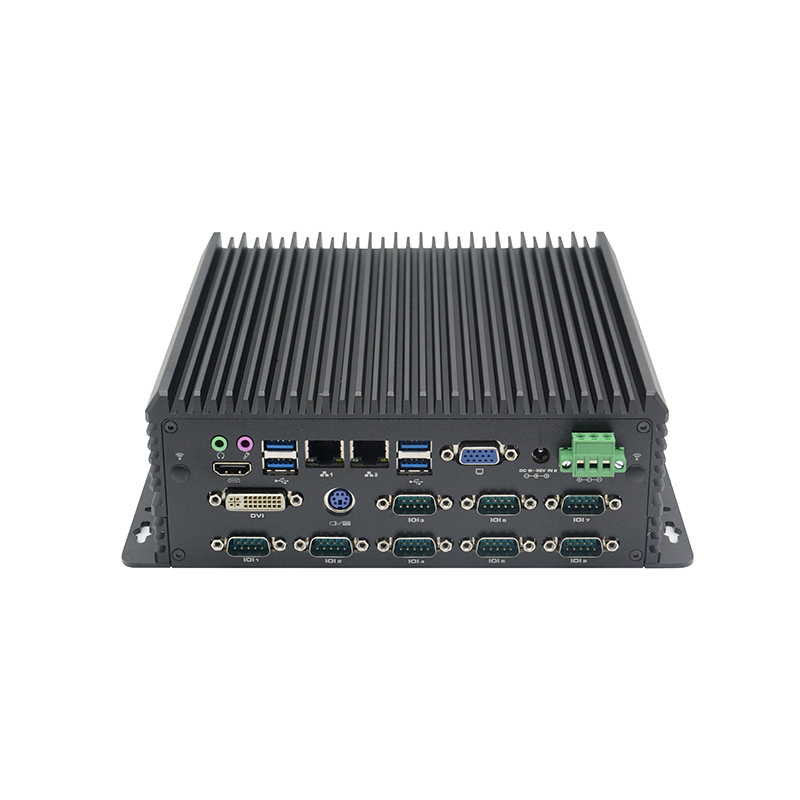

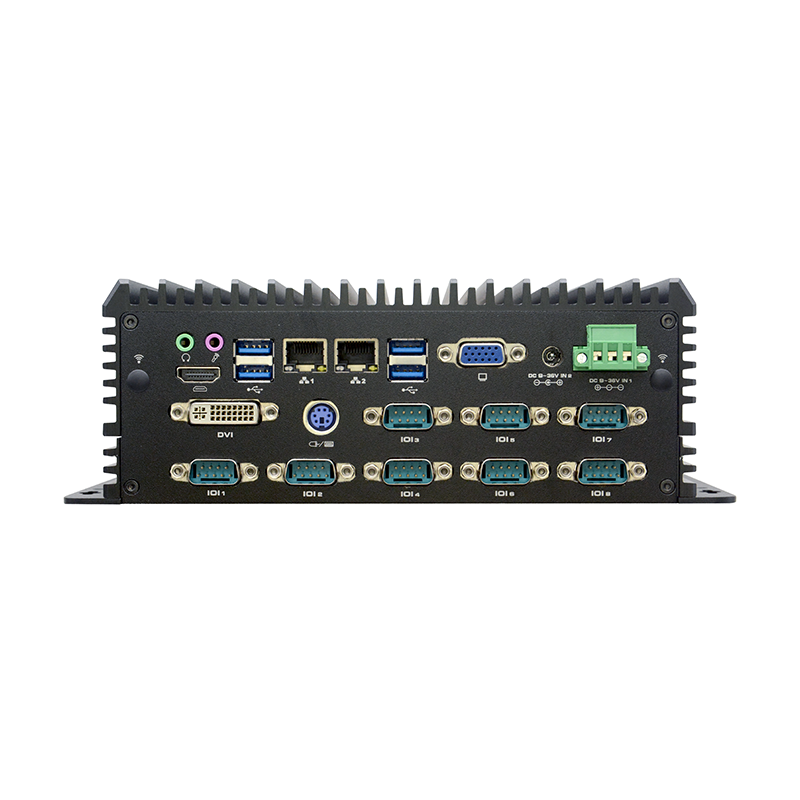

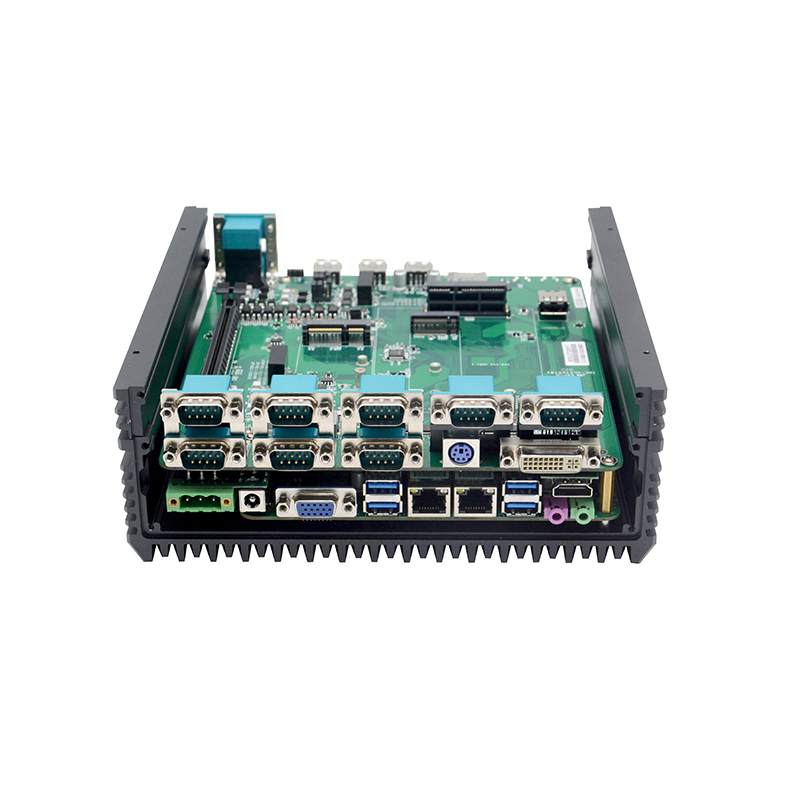

Rear I/O:
Display interface: 1x VGA port, 1x HDMI1.4 port, 1x DVI port
LAN: 2x Intel® WGI210AT Gigabit network adapter, supporting network wake up and PXE functions
USB: 3x USB2.0 ports, 1x USB3.0 ports
COM: 8x DB9 RS232 serial interface,COM1.COM2 support 9pin live, COM7,COM8 support RS485 function, with isolation
PS2: 1x PS2
Audio: 1x Line out，1x MIC
Power: 1x DC power adapter interface, 1x 3pin power interface, support 9~36V power input
Storage:
SATA: 1x 2.5-inch hard disk
solid state disk: 1x MSATA SSD expansion, transfer speed up to 6Gbps
Expansion:
Mini PCIE: 1x Mini PCIE slot, supporting WIFI/4G module
M.2: 1x M.2 slot, support M.2 2260/2280 NVME PCIE x4 standard SSD.
OS support:
Microsoft Windows: Windows 10 64-bit (without key)
Linux: Ubuntu
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power Requirement:
power types: External power adapter or open power supply
Voltage input: 9V~36V wide voltage
power output: 36 w ~ 180 w
Environment:
Working Temp.: -10℃～60℃
Storage Temp.: -20℃～70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
