Product Description
Model NO.: C4350Z-L4 V1.0 [J4125]
Chassis:
Structure: Fanless structure, all aluminum alloy chassis
Dimension: 141.5mmx 126mmx 56.5mm
Color: black

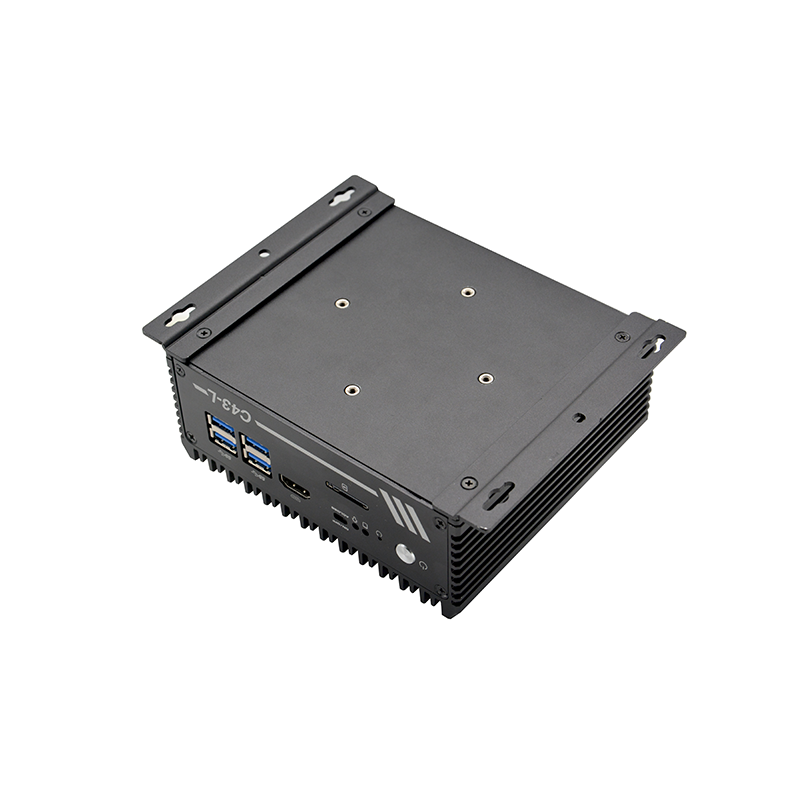

Installation: Desktop/Wall mounted
Motherboard:
Processor: Integrated Intel® Celeron J4125 2.0GHz quad-core quad-thread processor ; TDP 10W
Chipset: SOC
Display: Integrated Intel® UHD Graphics 600
Memory: 1x SODIMM slot, support single channel 2400MHz DDR4 ram, up to 8GB

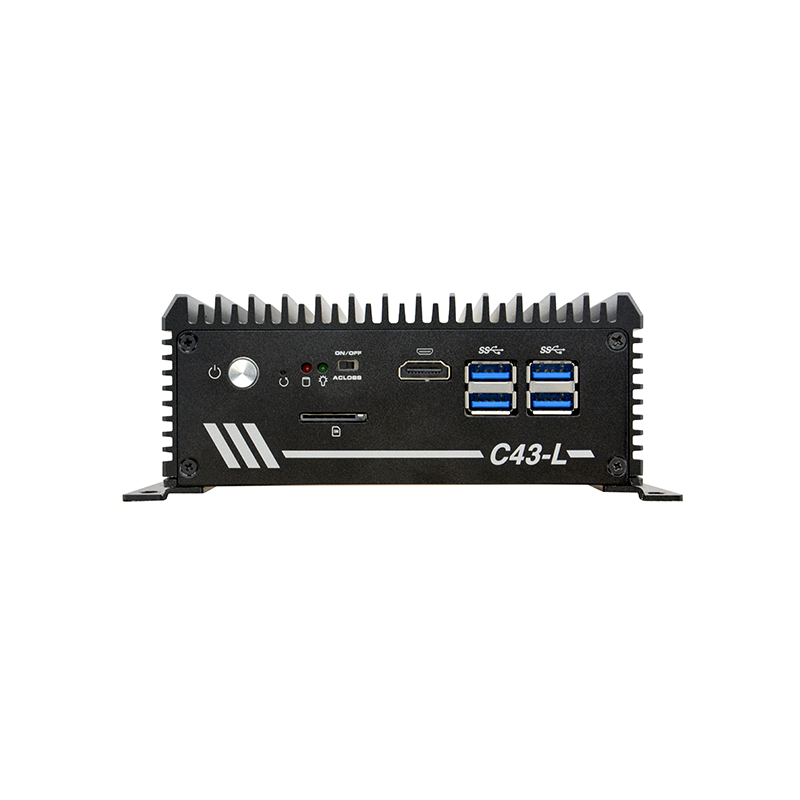

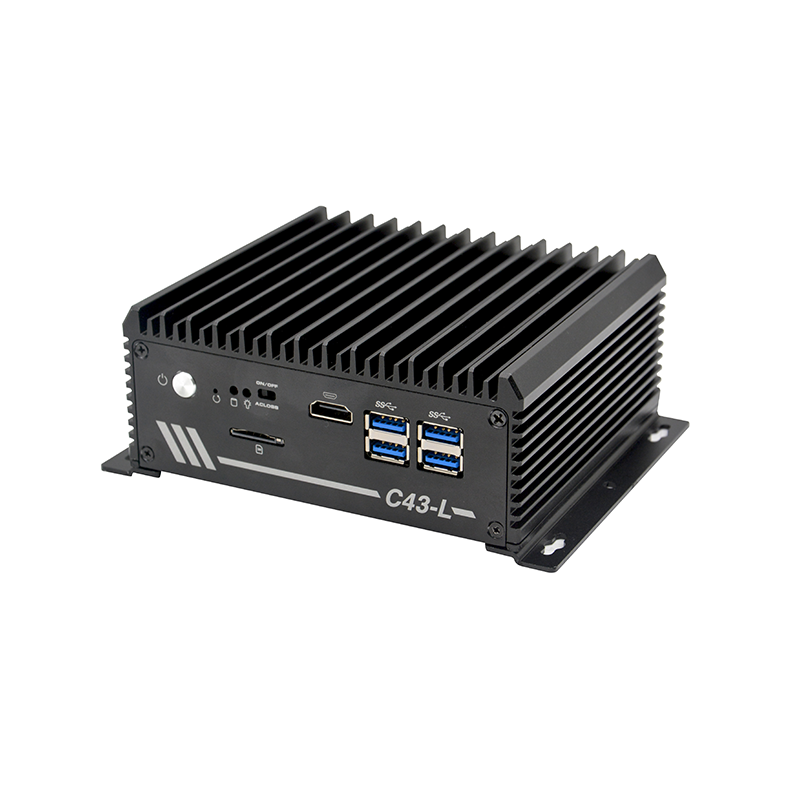

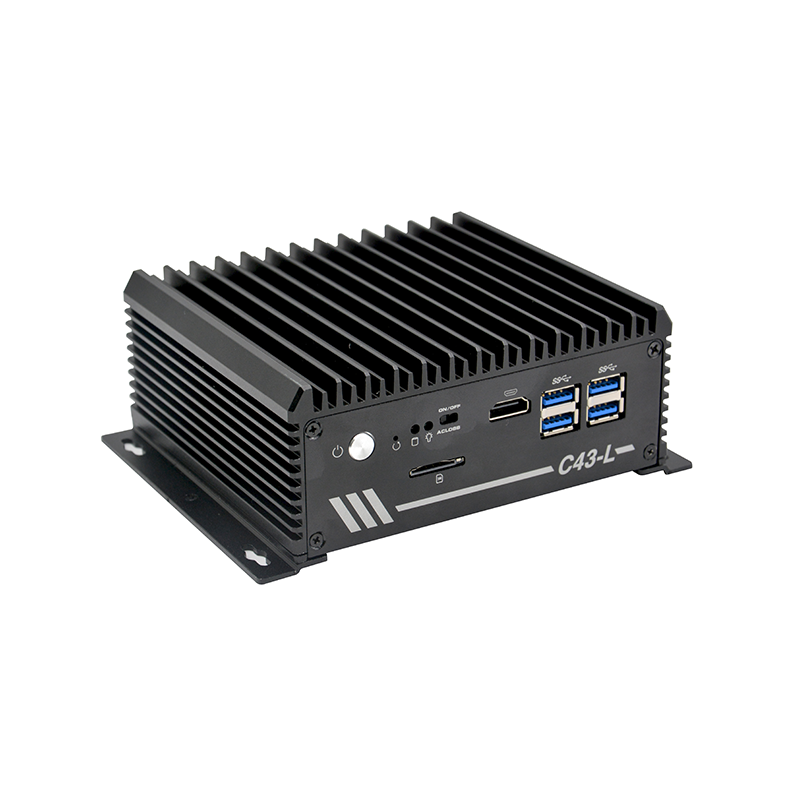

Front I/O:
Switch: 1x Power switch ; 1x Reset switch
LED: 1x P.LED,1x H.LED
Display interface: 1x HDMI(4096X2160@30Hz)
AC LOSS: 1x AC LOSS(Power-on and switch-on toggle switch)
USB: 4x USB3.0 ; 1x USB2.0(built-in dongle)
SIM: 1x Standard SIM slot

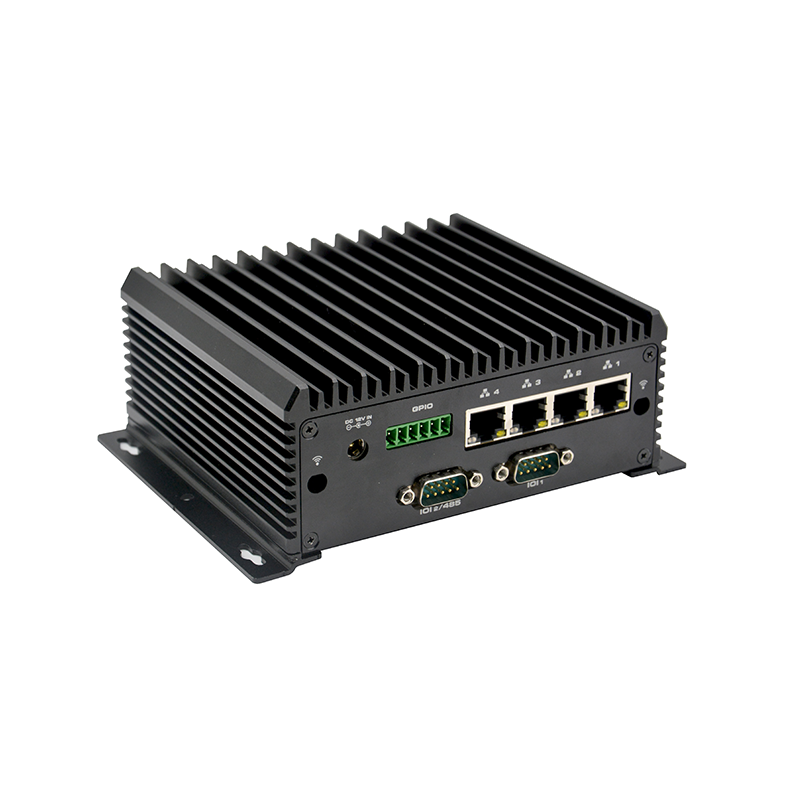

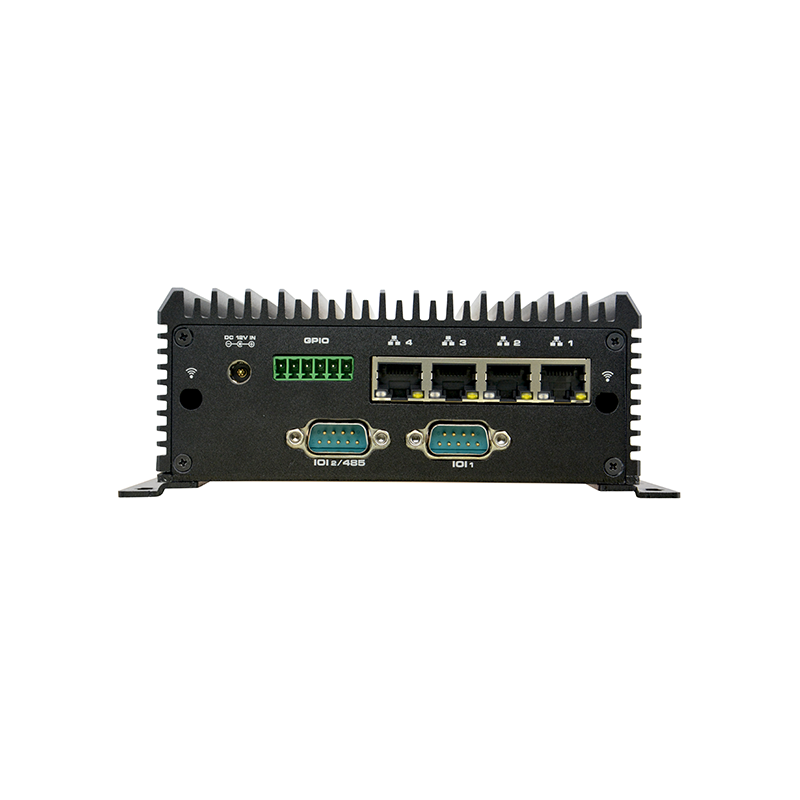

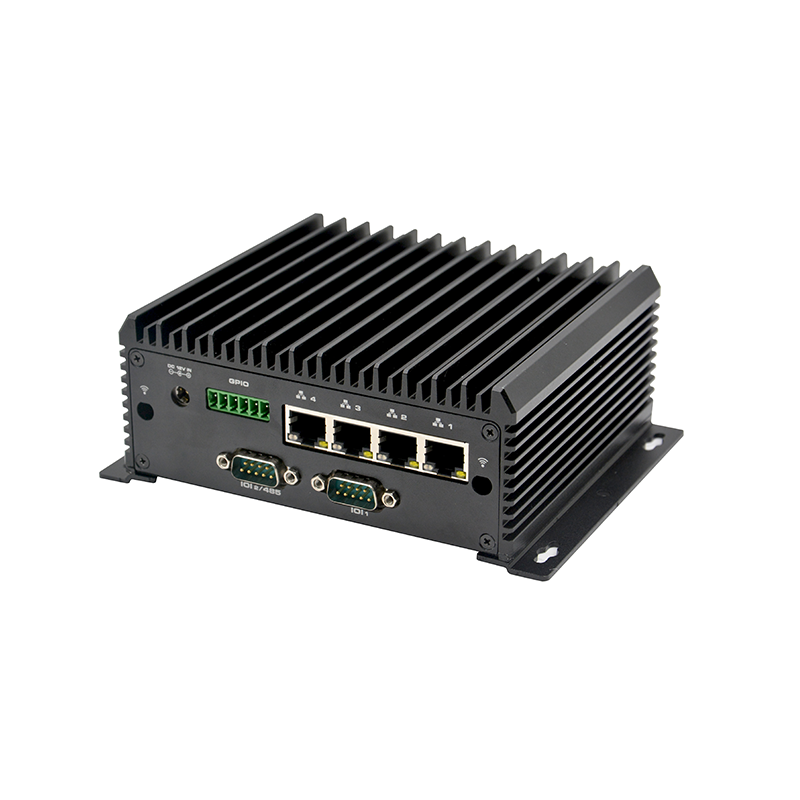

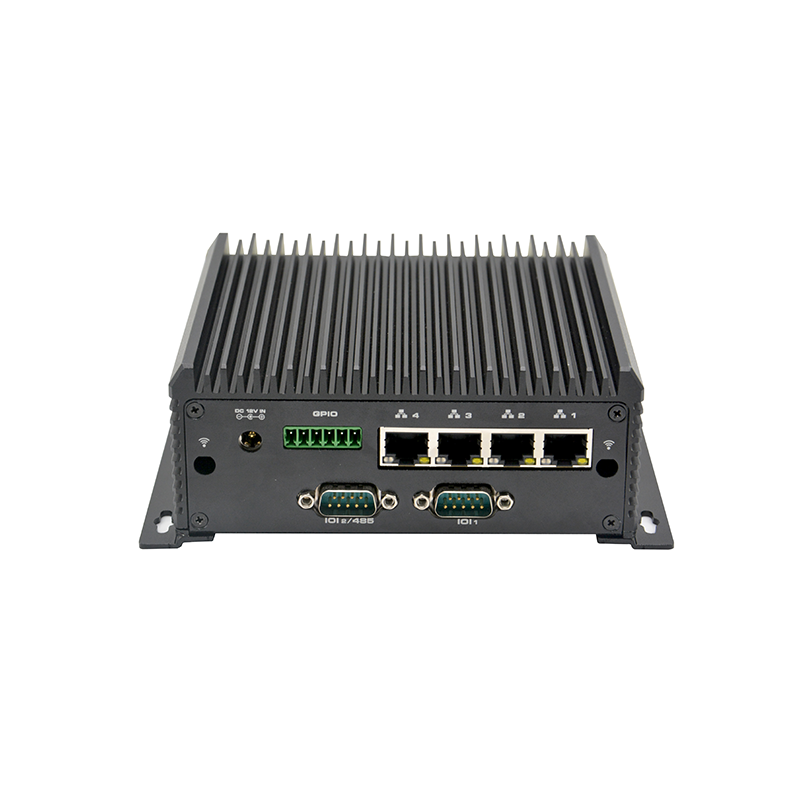

Rear I/O:
Ethernet: 4x RJ45 Gigabit Ethernet, Intel I225V 2.5G chip, support Wake_on_LAN/PXE
GPIO: 1x 6pin(support 2 input 2 output GPIO function,1 pin VCC,6 pin GND)
Serial Port: 2x DB9 RS_232 serial port (COM2 support RS_485)
Power: 1x DC_JACK , support DC_12V power input
Storage:
SATA: 1x SATA port, support 2.5” Notebook HDD
SSD: 1x MSATA slot, support SSD ,transfer rate up to 6Gbps
Expansion:
Mini PCIE: 1x Mini-PCIE slot, support 4G module
M.2: 1x M.2 slot, support M.2 2230 standard WiFi
OS support:
Microsoft: Windows 10/Linux
BIOS: 64Mb Flash ROM
Watch Dog: Support hardware reset function (L256, 0~255 seconds)
Power Require:
Power Type: External power adaptor
Voltage Input: DC_12V
Power output: AC_to_DC 60W
Reliability:
Working Temp.: - 10℃ ~ 60℃
Storage Temp. : -20℃ ~ 70℃
Relative Humidity: 5%-95% relative humidity, non-condensing
Working Vibration: 0.5g rms/5-500HZ/random/operating
